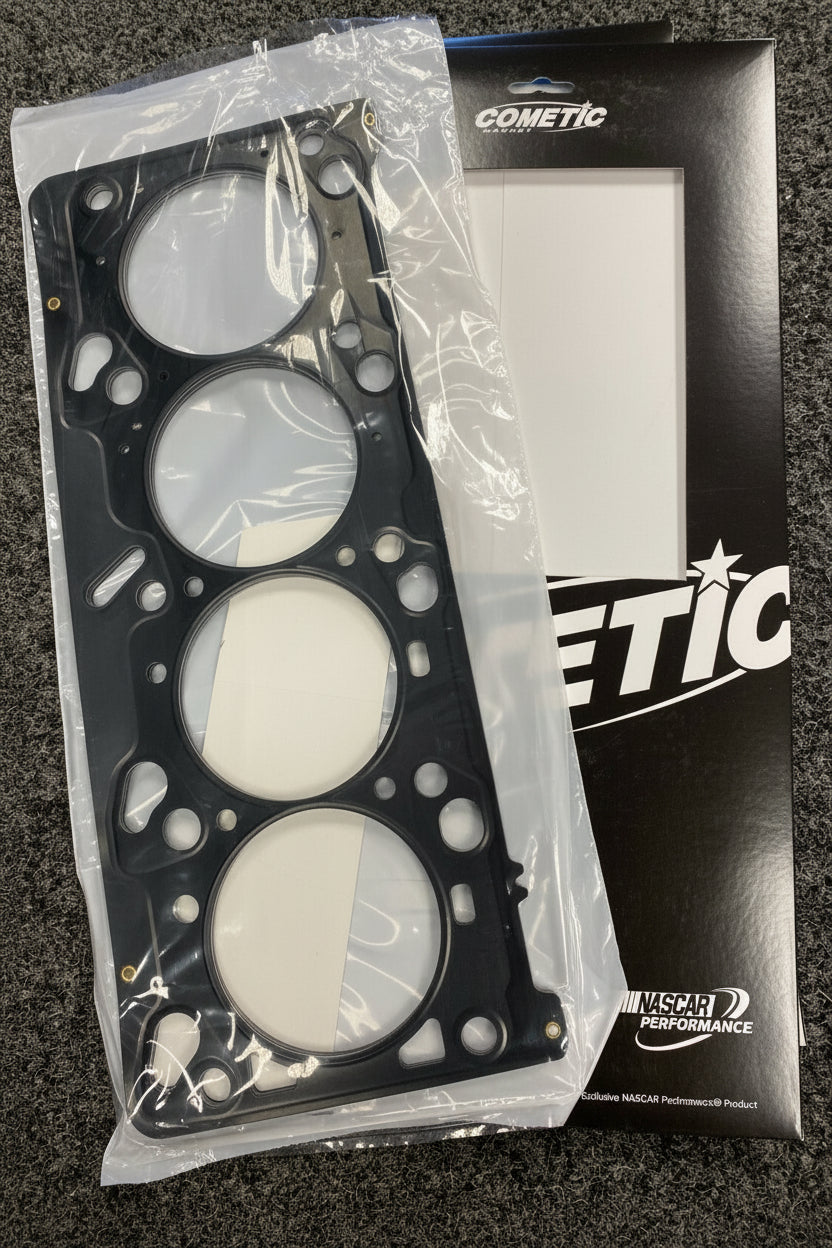

Ford Focus MK1 ST170 Multi layered Steel 1.8mm Cometic Head Gasket

Multi-layer shim steel head gasket. Thickness 0.070" (1.78mm), bore 87.0mm

Cometic MLS gaskets are comprised of multiple layers of stainless steel due to its increased strength, ability to rebound and resistance to corrosion. The outer layers of the gaskets are embossed and coated on both sides with Viton - a flouroelastomer rubber based material that is heat resistant to 250C / 482F. Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The centre or shim layer is a uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements. They provide maximum sealing performance for todays high output engines and require no sealants. Ideal for aluminium heads to aluminium blocks and aluminium heads to cast iron blocks withstanding the shearing force created by the two materials. No need to re-torque, the embossing design of the MLS gasket promotes an even clamp load across the sealing surface allowing for measurable reduced bore distortion.

Ford Zetec Silver Top -05/98

Application:

• Ford Escort Mk5 1.6 16v 1992-1995
• Ford Escort Mk5 1.8 & XR3i 1992-1995
• Ford Escort Mk6 1.6 16v 1995-2000
• Ford Escort Mk6 1.8 & GTi 1995-1998
• Ford Fiesta Mk3 Si 1.6 16v 1992-1995
• Ford Fiesta Mk3 XR2i 1.8 16v 1992-1995
• Ford Fiesta Mk3 RS1800 1.8 16v 1992-1995
• Ford Mondeo Mk1 1.6 16v 1992-1996
• Ford Mondeo Mk1 1.8 16v 1992-1996
• Ford Mondeo Mk1 2.0 16v 1992-1996
• Ford Mondeo Mk2 1.6 16v 1996-05/1998
• Ford Mondeo Mk2 1.8 16v 1996-05/1998
• Ford Mondeo Mk2 2.0 16v 1996-05/1998

Ford Zetec Black Top 05/98-

Application:

• Ford Cougar 2.0 16v 1998-2002
• Ford Focus Mk1 1.8 16v 1998-2005
• Ford Focus Mk1 2.0 16v 1998-2005
• Ford Focus Mk1 ST170 2.0 16v 2002-2005 (Duratec ST)
• Ford Focus Mk1 RS 2.0 16v 2002-2003 (Duratec RS)
• Ford Mondeo Mk2 1.8 16v 05/1998-2000
• Ford Mondeo Mk2 2.0 16v 05/1998-0000
