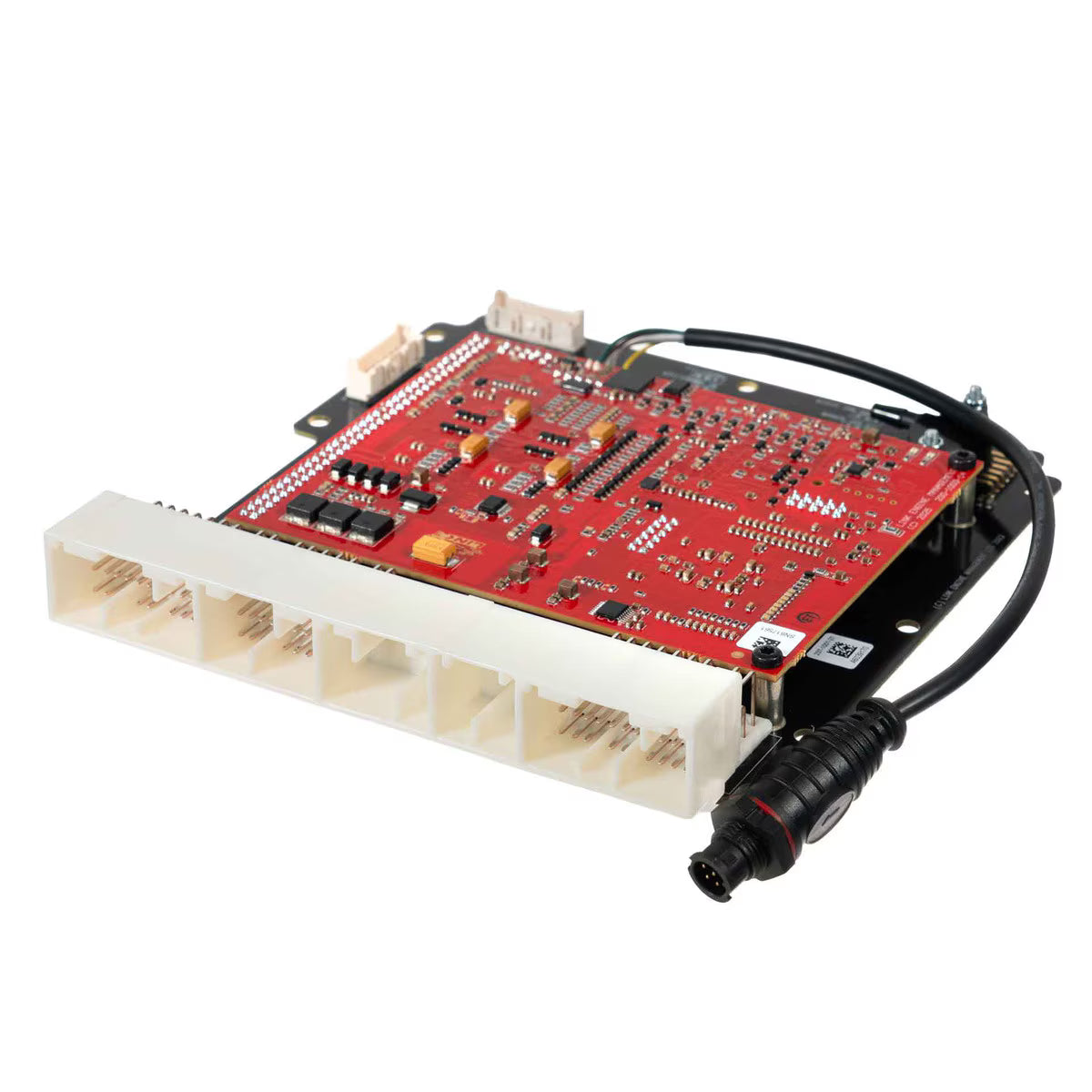

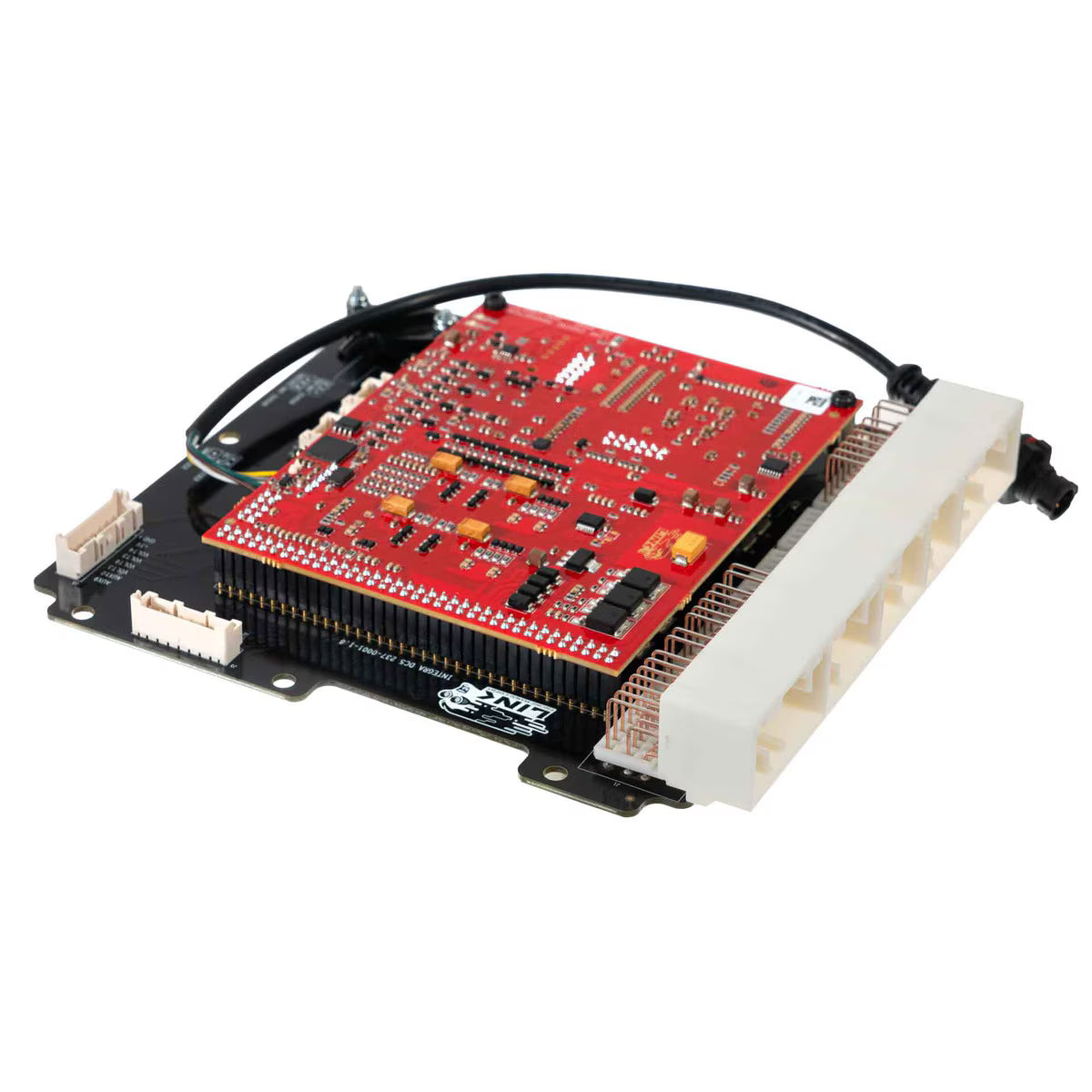

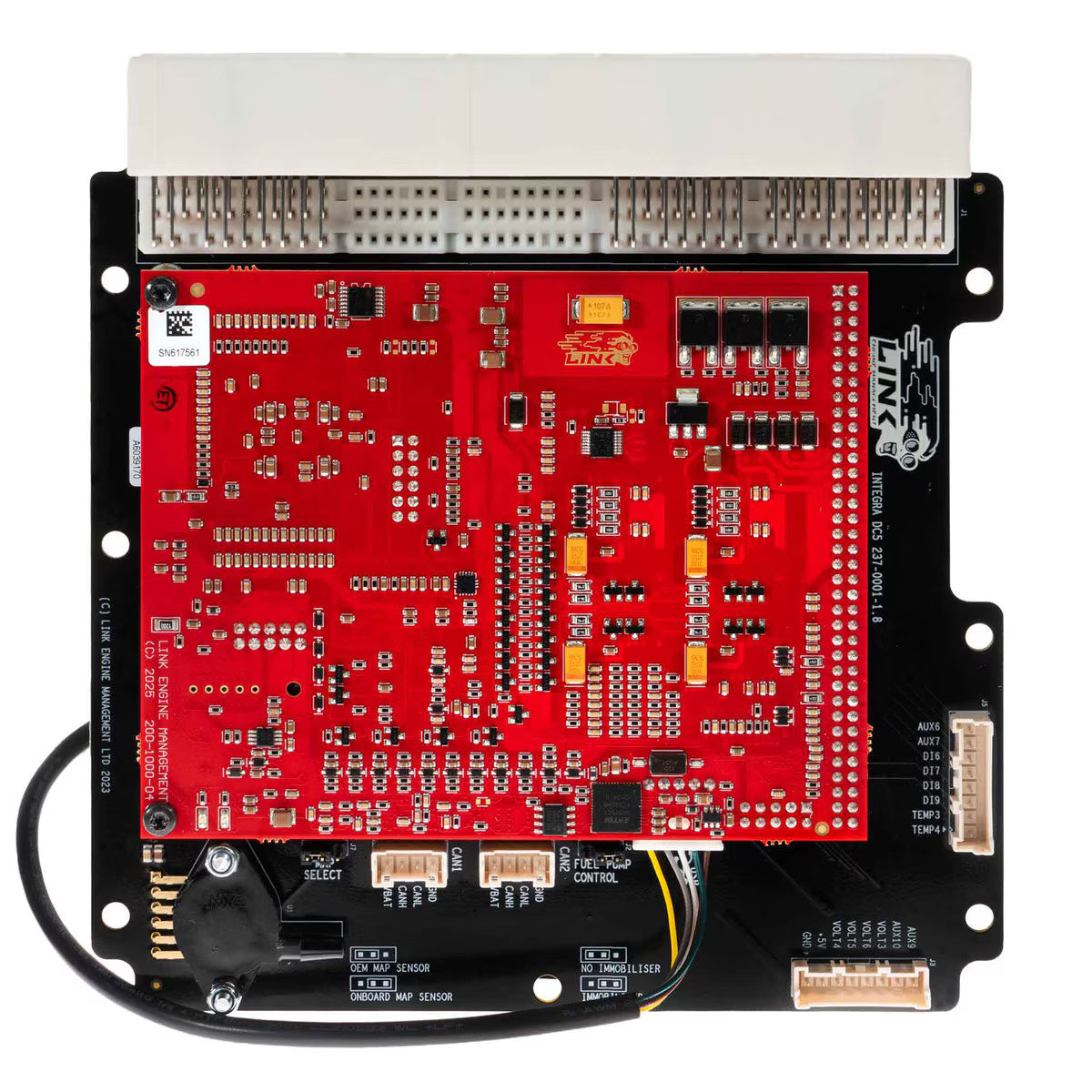

The Link G4X Honda K20X Plug-In ECU gives you modern standalone engine management while retaining the convenience of a genuine plug-in ECU.

Designed for a range of Honda and Acura K20, D17 and K24 applications, the K20X fits directly into the factory ECU location using the original mounting points, wiring loom and ECU connectors.

No replacement engine loom or adaptor harness is required. The ECU is designed to work with the factory wiring while retaining supported original vehicle functions and maintaining a clean, factory-style installation.

A startup map is included to help get the engine running ready for final setup and calibration.

The K20X uses the same processor, firmware and PCLink software as the rest of the Link G4X range and includes the standard G4X feature set.

Suitable Applications

The K20X is designed to suit the following applications:

• Honda Integra Type R DC5 with K20A / K20A2 / K20A3 engine – 2002 to 2004

• Acura RSX with K20A / K20A2 / K20A3 engine – 2002 to 2004

• Honda Civic Type R EP3 with K20A engine – 2001 to 2005

• Honda Civic Si / SiR with K20A3 engine – 2001 to 2005

• Honda Civic DX / LX / HX with D17A1 / D17A2 / D17A3 engine – 2001 to 2005

• Honda CR-V with K24A1 engine – 2002 to 2004

Important Compatibility Information

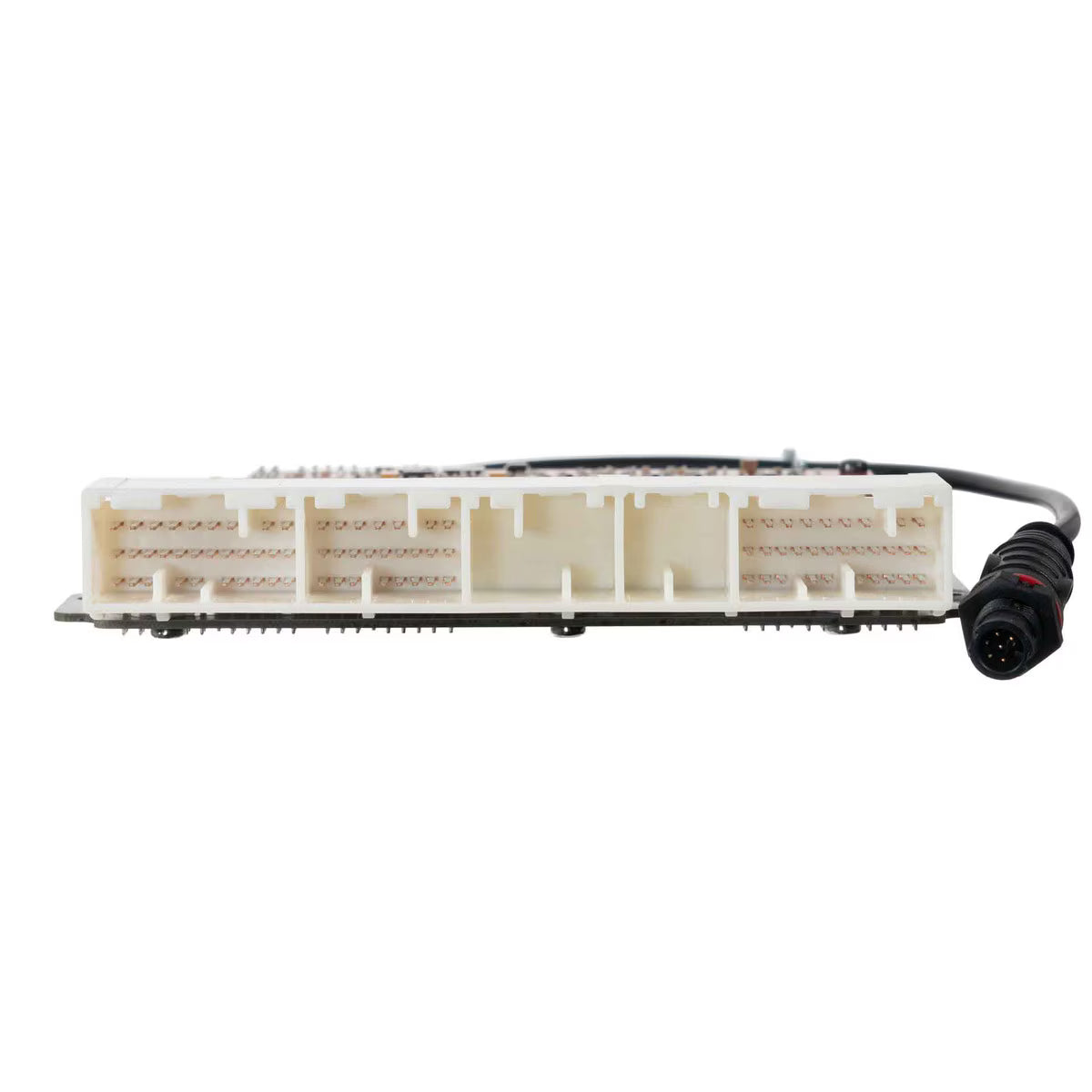

Please check your original ECU connector arrangement against the ECU header shown in the product photos before ordering.

• Suitable for manual transmissions only

• Built-in MAP sensor

• Most factory features are supported

• E-Throttle requires an expansion connector before it can be used

• Uses the newer 4-pin powered CAN connection

CAN Connection

The K20X uses Link's newer 4-pin powered CAN connector and cannot use the older CANPCB cable.

For connecting CAN devices, use the CANJST4 cable – Part Number 101-0198.

The 4-pin connection provides:

• CAN connection

• Protected 12V power supply

• Ground connection for CAN devices

• Self-resetting fuse rated at 3A continuous

This allows compatible CAN devices to be connected and powered directly from the ECU connection.

G4X K20X Features

• Dual CAN Bus

• Flex Fuel

• Trigger Oscilloscope

• 3 Axis Accelerometer

• Selectable Temperature Input Pull-ups

• Flexible Engine Protection Limiters

• CAN Keypad Control

• VVT Control

• Open Loop Boost Control

• Closed Loop Boost Control

• Dual Closed Loop Lambda

• Compatible with leading aftermarket displays via CAN or serial stream

• 512MB Internal Data Logging

• Built-in MAP sensor

E-Throttle Control

The K20X supports E-Throttle control, but an expansion connector is required before E-Throttle can be used.

Motorsport Features

• Nitrous Control

• Launch Control

• Anti-Lag

• Cruise Control

• Traction Control

• Race Timer and Power Management

• Gear Shift Control

• Paddle Shift Control

Inputs and Outputs

For the complete list of available inputs and outputs, please refer to the Link K20X Installation Manual.

Communications

• 2 CAN Bus Channels

• LTW 6-Pin USB Tuning Connection

• 4-Pin Powered CAN Connection

Dimensions

Length: 170mm
Width: 160mm
Height: 30mm

Weight

260g

Electrical Specification

Operating Voltage Range: 6.5V to 24V
Maximum Input Voltage: 36V
Maximum Continuous Current Draw: 11.5A

What's Included

• Link G4X Honda K20X Plug-In ECU

• Anti-static strap

• USB tuning cable

• Link stickers

• Plug-In manual card

• Product registration card

Please Note

The ECU is supplied with a startup map to assist with initial setup. This is not a finished vehicle calibration.

Professional setup and tuning are recommended before the vehicle is driven under load.
