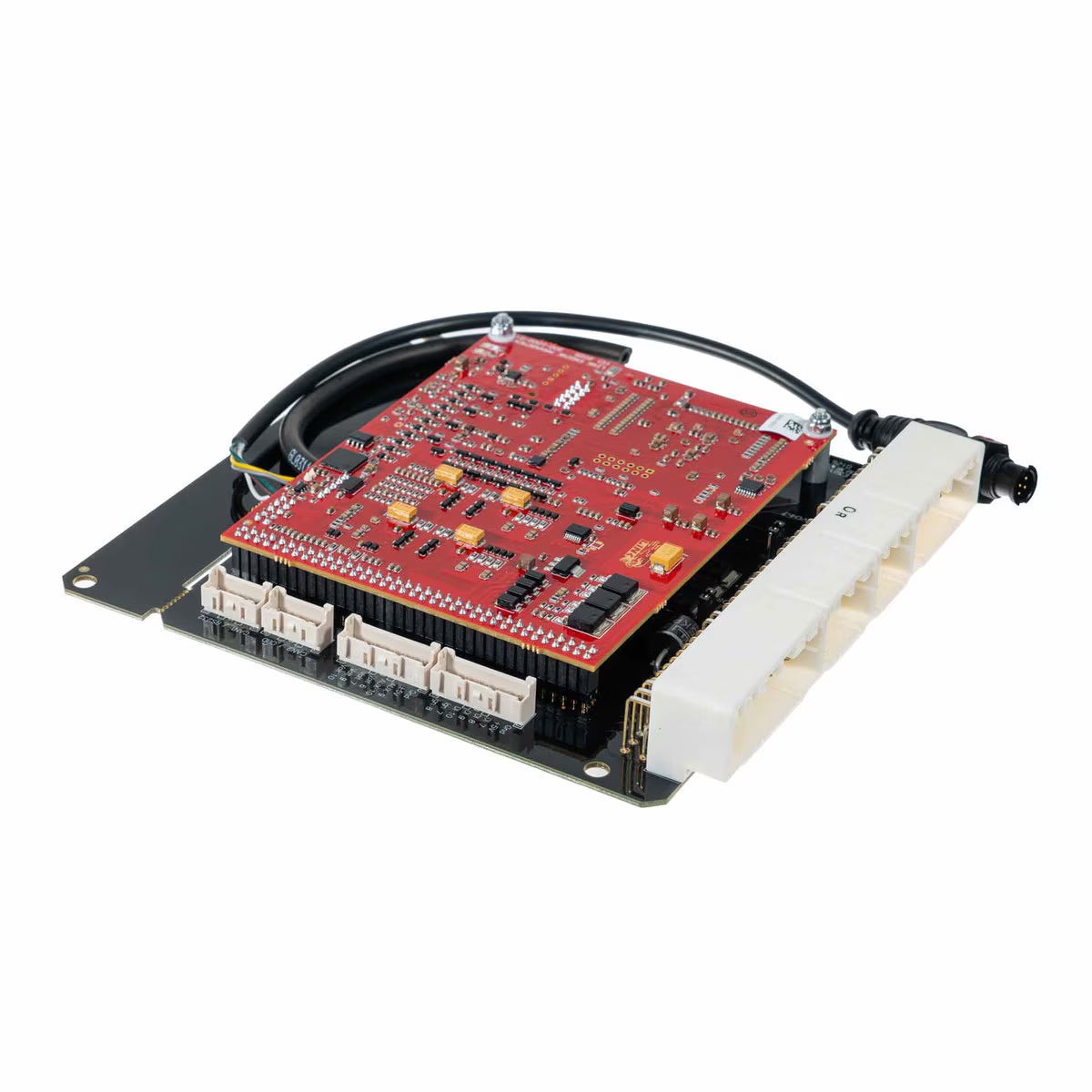

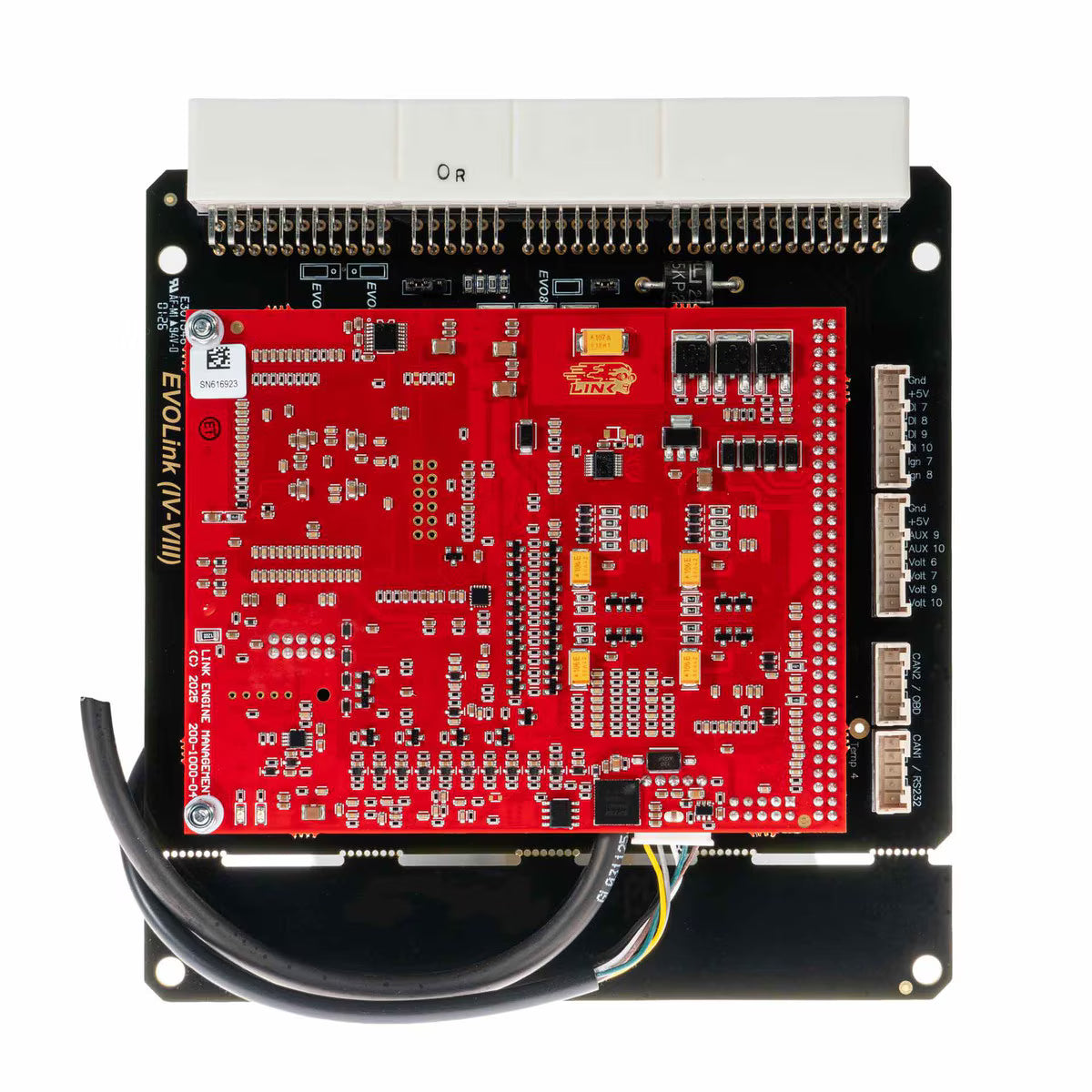

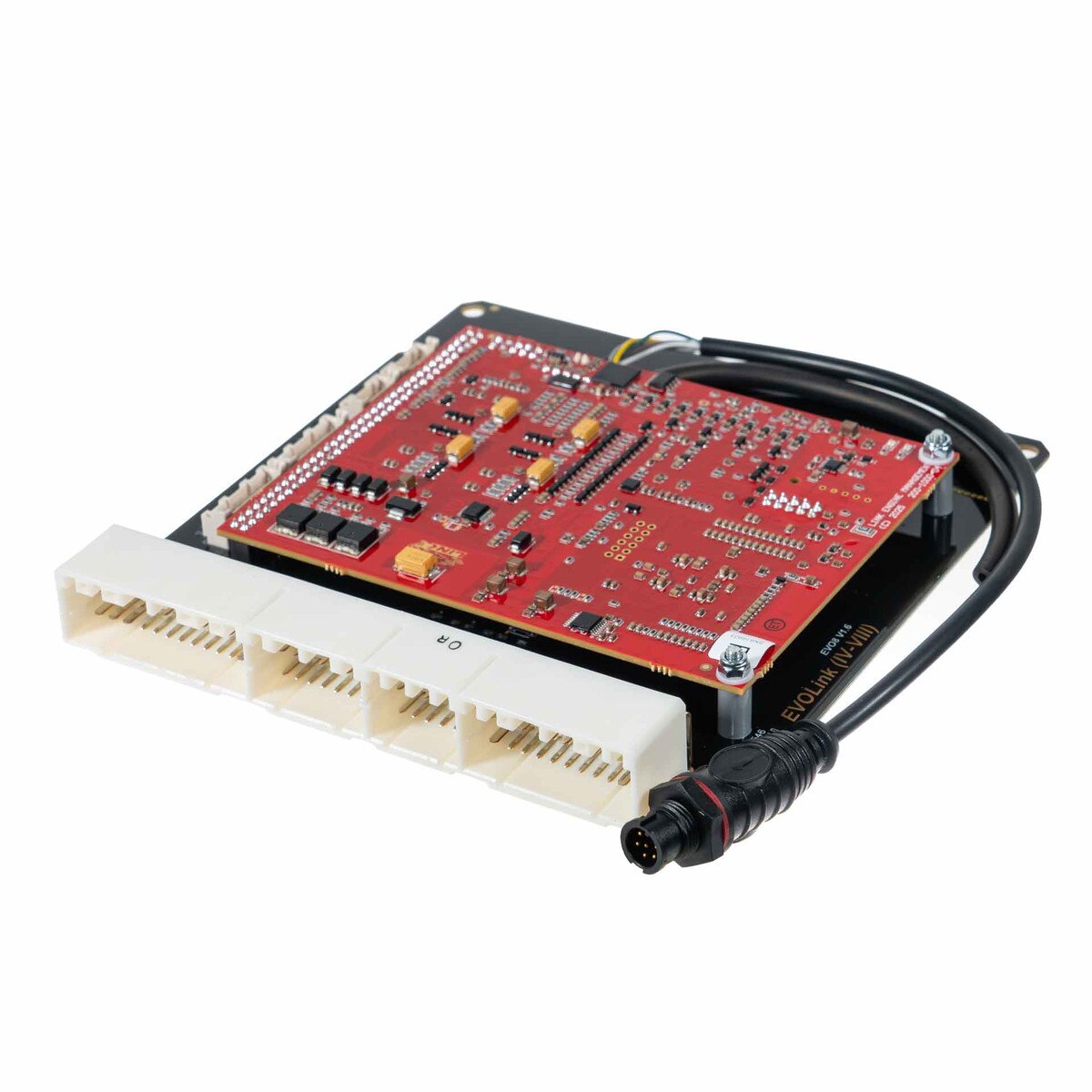

The Link G4X Mitsubishi EVO8X Plug-In ECU gives you modern standalone engine management while retaining the convenience of a genuine plug-in ECU.

Designed specifically for the Mitsubishi Lancer Evolution IV to VIII, the EVO8X fits directly into the factory ECU location using the original mounting points, wiring loom and ECU connectors.

No replacement engine loom or adaptor harness is required. The ECU is designed to work with the factory wiring while retaining supported original vehicle functions and maintaining a clean, factory-style installation.

A startup map is included to help get the engine running ready for final setup and calibration.

The EVO8X uses the same processor, firmware and PCLink software as the rest of the Link G4X range and includes the standard G4X feature set.

Suitable Applications

The EVO8X is designed to suit the following applications:

• Mitsubishi CN9A Lancer Evolution 4

• Mitsubishi CP9A Lancer Evolution 5

• Mitsubishi CP9A Lancer Evolution 6

• Mitsubishi CP9A Lancer Evolution 6.5 TME

• Mitsubishi CT9A Lancer Evolution 7

• Mitsubishi CT9A Lancer Evolution 8 – models with 4-plug ECU only

• Mitsubishi Eclipse G2 GS-T – 1994 to 1999

Important Compatibility Information

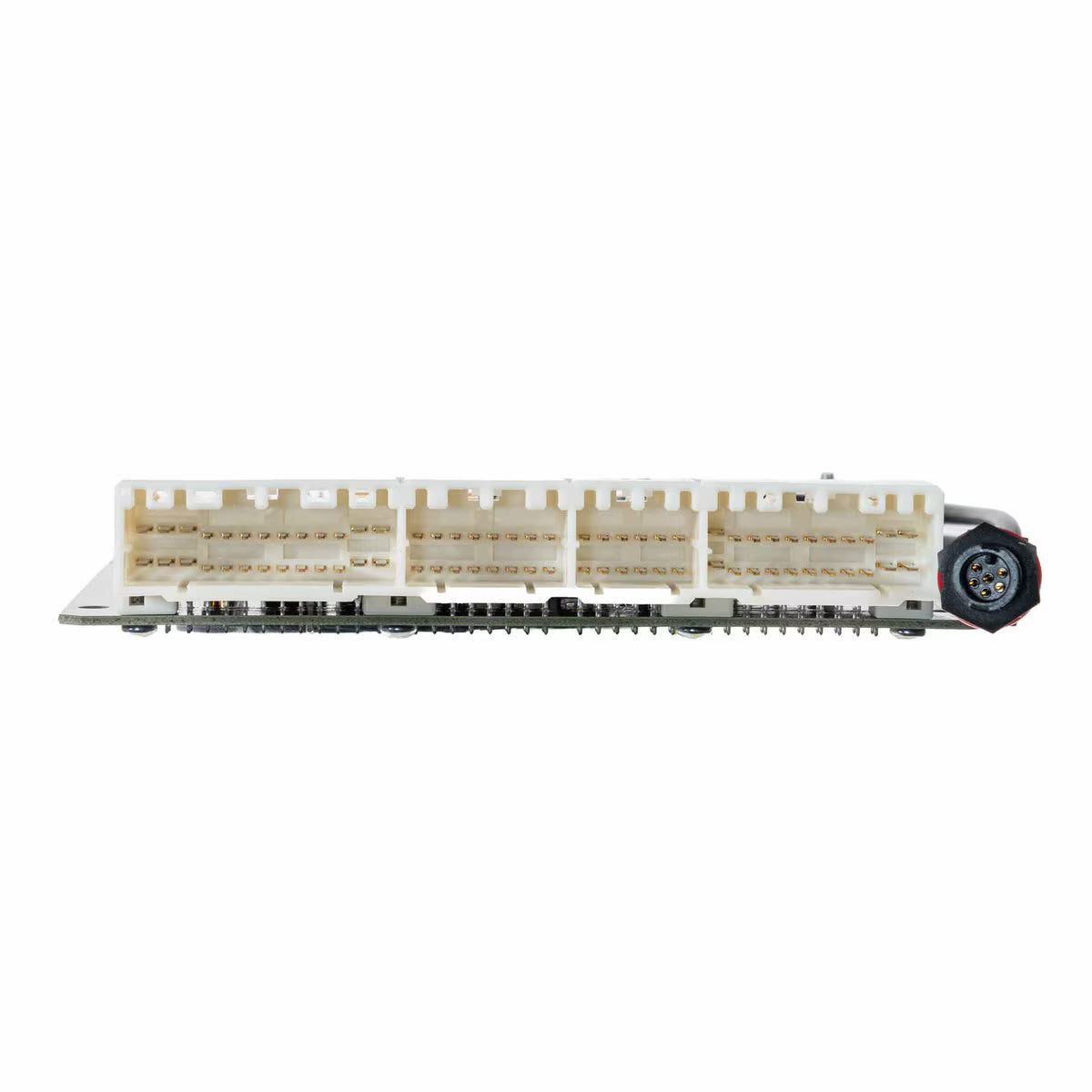

Please check your original ECU connector arrangement against the ECU header shown in the product photos before ordering.

• Suitable for manual transmissions only

• EVO 8 applications must use the 4-plug ECU

• Includes onboard MAP sensor

• Most factory features are supported

• E-Throttle requires an expansion connector before it can be used

G4X EVO8X Features

• Dual CAN Bus

• Flex Fuel

• Trigger Oscilloscope

• 3 Axis Accelerometer

• Selectable Temperature Input Pull-ups

• Flexible Engine Protection Limiters

• CAN Keypad Control

• VVT Control

• Open Loop Boost Control

• Closed Loop Boost Control

• Dual Closed Loop Lambda

• Compatible with leading aftermarket displays via CAN or serial stream

• 512MB Internal Data Logging

• Built-in MAP sensor

E-Throttle Control

The EVO8X supports E-Throttle control, but an expansion connector is required before E-Throttle can be used.

Motorsport Features

• Nitrous Control

• Launch Control

• Anti-Lag

• Cruise Control

• Traction Control

• Race Timer and Power Management

• Gear Shift Control

• Paddle Shift Control

Inputs and Outputs

For the complete list of available inputs and outputs, please refer to the Link EVO8X Installation Manual.

Communications

• 2 CAN Bus Channels

• LTW 6-Pin USB Tuning Connection

Dimensions

Length: 190mm
Width: 160mm
Height: 30mm

Weight

260g

Electrical Specification

Operating Voltage Range: 6.5V to 24V
Maximum Input Voltage: 36V
Maximum Continuous Current Draw: 8.5A

What's Included

• Link G4X Mitsubishi EVO8X Plug-In ECU

• Anti-static strap

• USB tuning cable

• Link stickers

• Plug-In manual card

• Product registration card

• EVO4-8 end plate

Please Note

The ECU is supplied with a startup map to assist with initial setup. This is not a finished vehicle calibration.

Professional setup and tuning are recommended before the vehicle is driven under load.
