Link ECU G4X WRXLink V7-V9 WRX9X PlugIn fits the Subaru Impreza WRX & STI EJ20 V7-V9 MY2000-2007

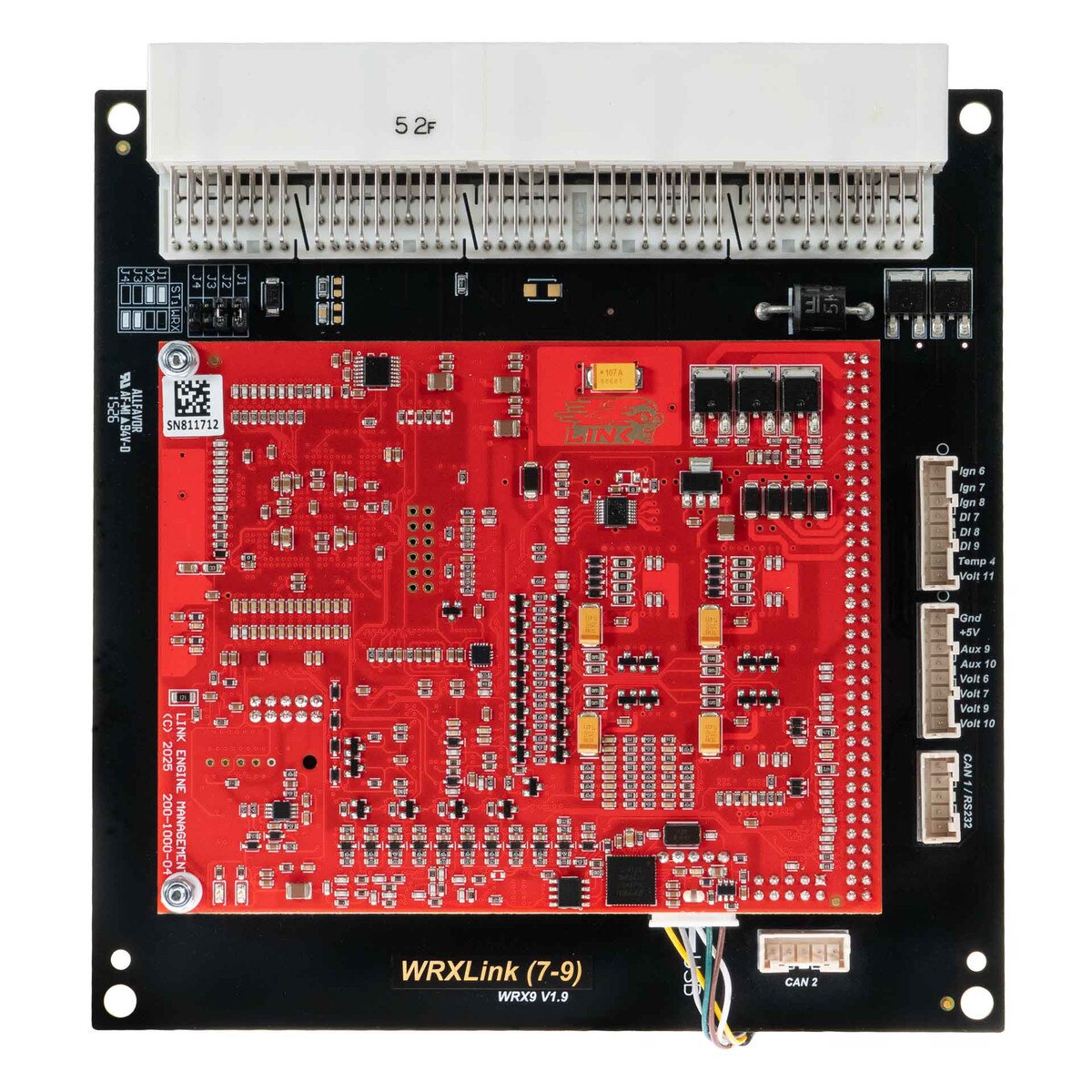

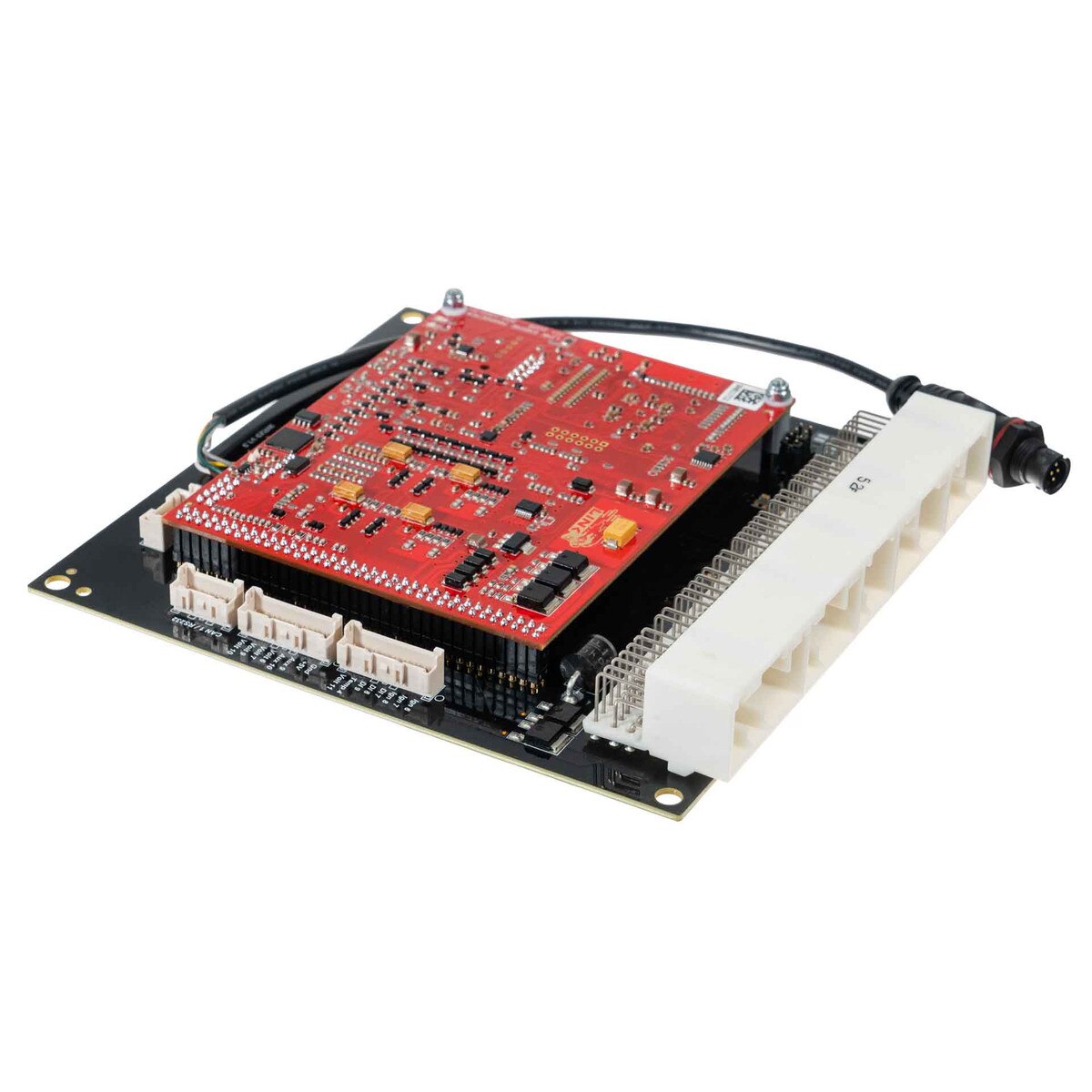

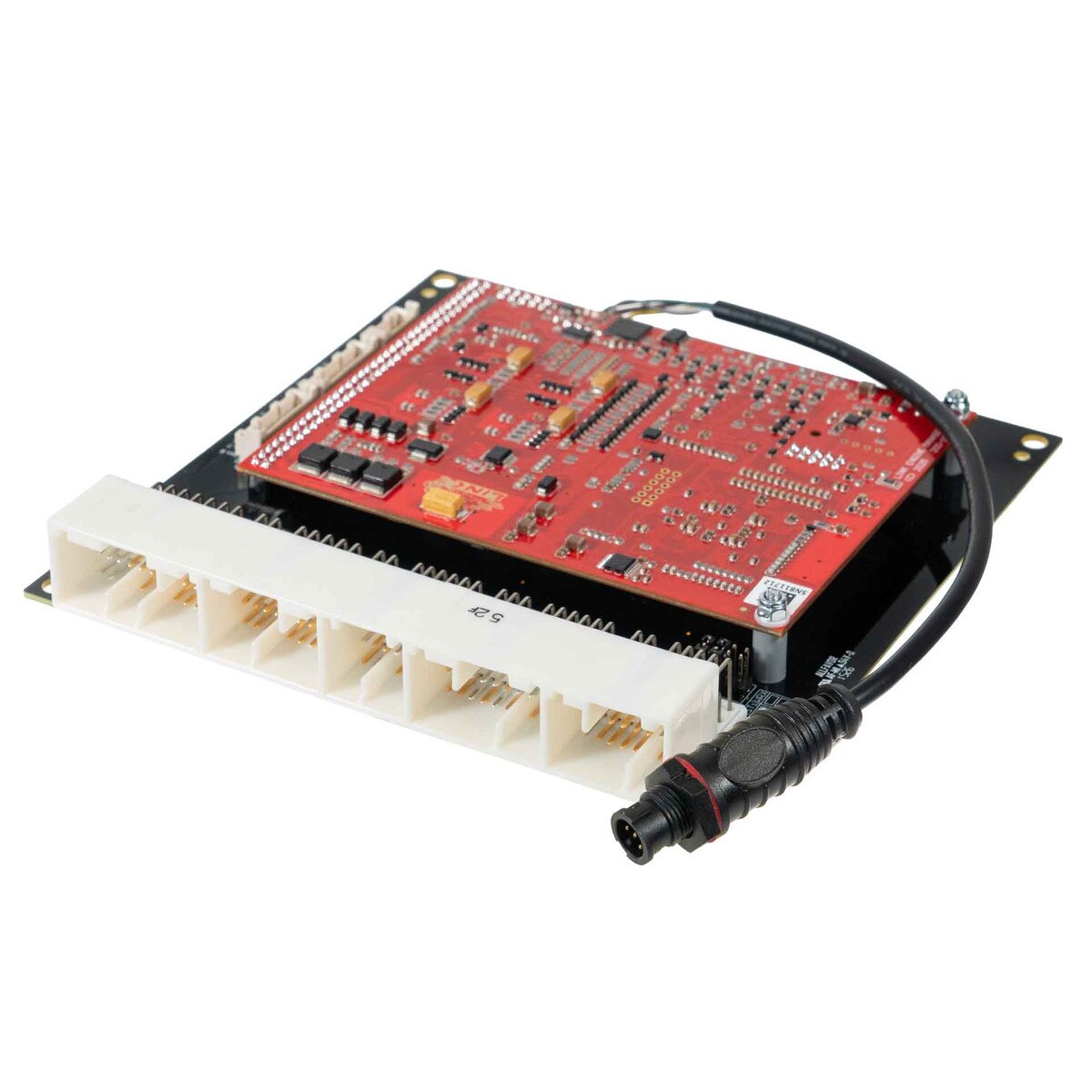

Link G4X Subaru WRX9X Plug-In ECU – WRX Version 7 / 8 / 9

The Link G4X Subaru WRX9X Plug-In ECU gives you modern standalone engine management while retaining the convenience of a genuine plug-in ECU.

Designed specifically for the Subaru WRX Version 7 to Version 9 with EJ20 engine, the WRX9X fits directly into the factory ECU location using the original mounting points, wiring loom and ECU connectors.

No replacement engine loom or adaptor harness is required. The ECU is designed to work with the factory wiring while retaining supported original vehicle functions and maintaining a clean, factory-style installation.

A startup map is included to help get the engine running ready for final setup and calibration.

The WRX9X uses the same processor, firmware and PCLink software as the rest of the Link G4X range and includes the standard G4X feature set.

Suitable Applications

The WRX9X is designed to suit the following 5-plug applications:

• Subaru WRX Version 7, GD / GG, EJ20 – 2000 to 2002

• Subaru WRX Version 8, GD / GG, EJ20 – 2002 to 2004

• Subaru WRX Version 9, GD / GG, EJ20 – 2004 to 2005

Important Compatibility Information

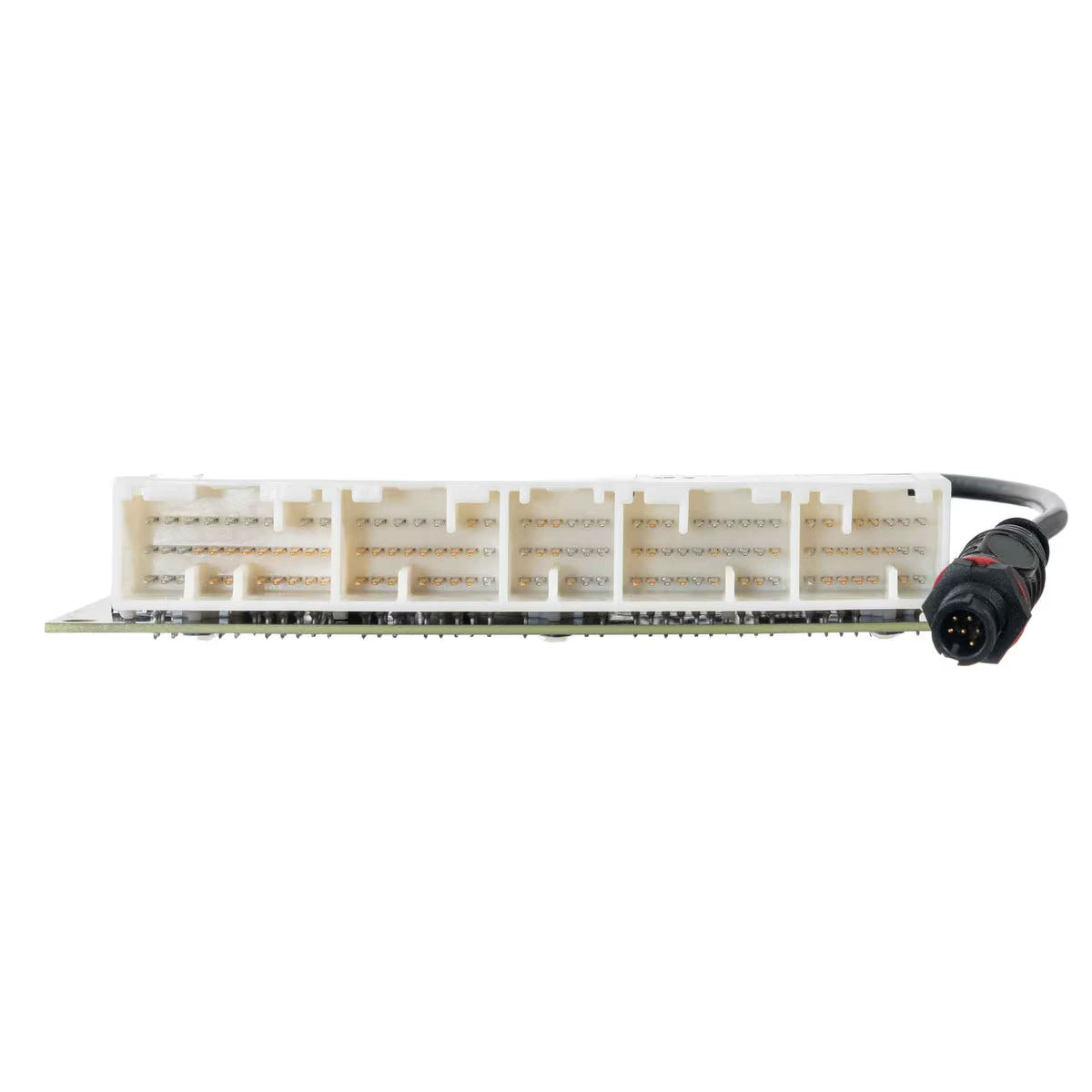

Please check your original ECU connector arrangement against the ECU header shown in the product photos before ordering.

• Suitable for 5-plug applications

• Suitable for manual transmissions only

• Most factory features are supported

• E-Throttle requires an Expansion Loom before it can be used

G4X WRX9X Features

• Dual CAN Bus

• Flex Fuel

• Trigger Oscilloscope

• 3 Axis Accelerometer

• Selectable Temperature Input Pull-ups

• Flexible Engine Protection Limiters

• CAN Keypad Control

• VVT Control

• Open Loop Boost Control

• Closed Loop Boost Control

• Dual Closed Loop Lambda

• Compatible with leading aftermarket displays via CAN or serial stream

• 512MB Internal Data Logging

E-Throttle Control

The WRX9X supports E-Throttle control, but an Expansion Loom is required before E-Throttle can be used.

Motorsport Features

• Nitrous Control

• Launch Control

• Anti-Lag

• Cruise Control

• Traction Control

• Race Timer and Power Management

• Gear Shift Control

• Paddle Shift Control

Inputs and Outputs

For the complete list of available inputs and outputs, please refer to the Link WRX9X Installation Manual.

Communications

• 2 CAN Bus Channels

• LTW 6-Pin USB Tuning Connection

Dimensions

Length: 190mm
Width: 160mm
Height: 30mm

Weight

260g

Electrical Specification

Operating Voltage Range: 6.5V to 24V
Maximum Input Voltage: 36V
Maximum Continuous Current Draw: 8.5A

What's Included

• Link G4X Subaru WRX9X Plug-In ECU

• Anti-static strap

• USB tuning cable

• Link stickers

• Plug-In manual card

• Product registration card

Please Note

The ECU is supplied with a startup map to assist with initial setup. This is not a finished vehicle calibration.

Professional setup and tuning are recommended before the vehicle is driven under load.
