Ecumaster Control Race Package – EMU Black ECU, ADU 5" Dash, PMU16 & USB-to-CAN

Ecumaster Control Race Package – EMU Black ECU, ADU 5" Dash, PMU16 & USB-to-CAN

The Ecumaster Control Race Package is a complete motorsport electronics package designed for serious race, track, and performance vehicle builds. This kit combines the Ecumaster EMU Black ECU, ADU 5" IP65 Digital Dash Display, PMU16 Power Management Unit, and USB-to-CAN interface into one integrated control and monitoring solution.

This package brings together engine management, driver display, power distribution, data visibility, and CAN communication, making it ideal for customers building a modern motorsport electrical system from the ground up.

Why Choose This Package?

This package is a strong choice for customers who want a complete Ecumaster control system rather than purchasing the ECU, display, power management, and communication interface separately.

The EMU Black controls the engine, the ADU 5" Dash displays critical live data and warnings, the PMU16 replaces traditional relays and fuses with intelligent power distribution, and the USB-to-CAN interface allows communication with CAN-based Ecumaster devices.

Together, these components create a clean, professional, and expandable electronics package suitable for motorsport, track cars, custom builds, and high-performance applications.

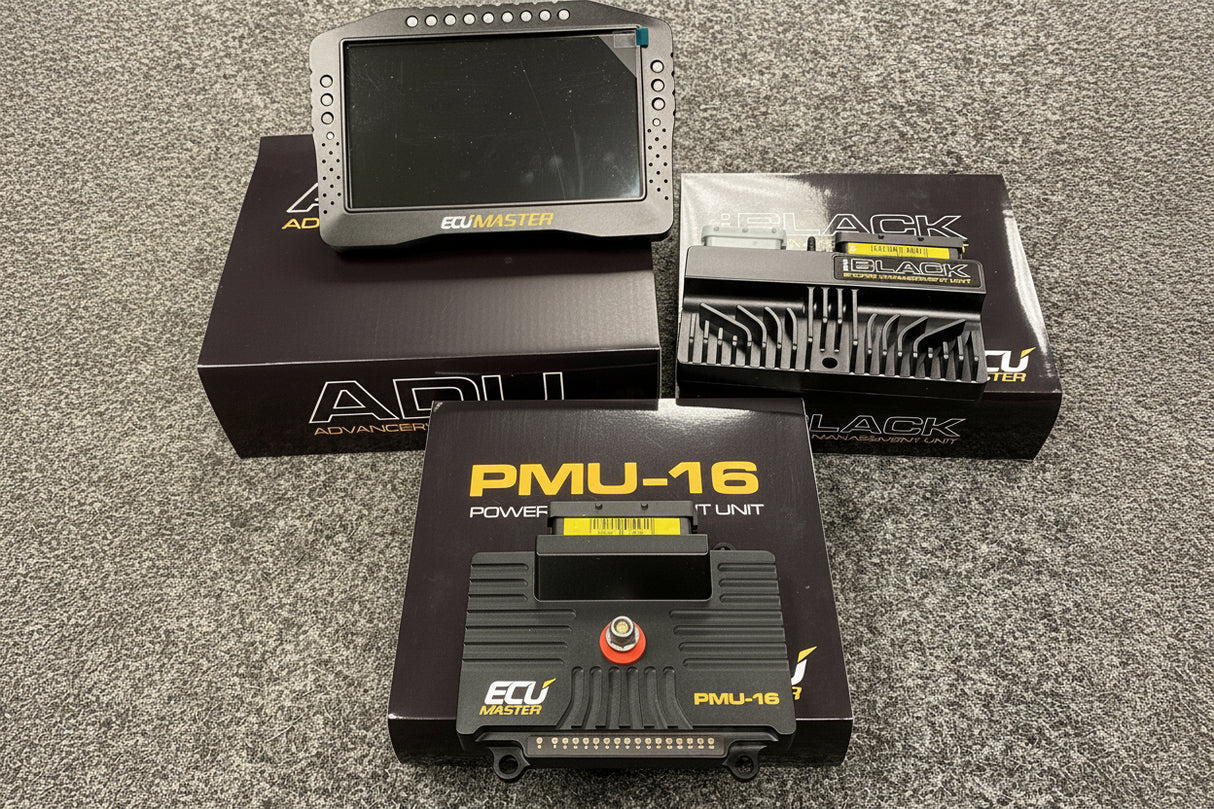

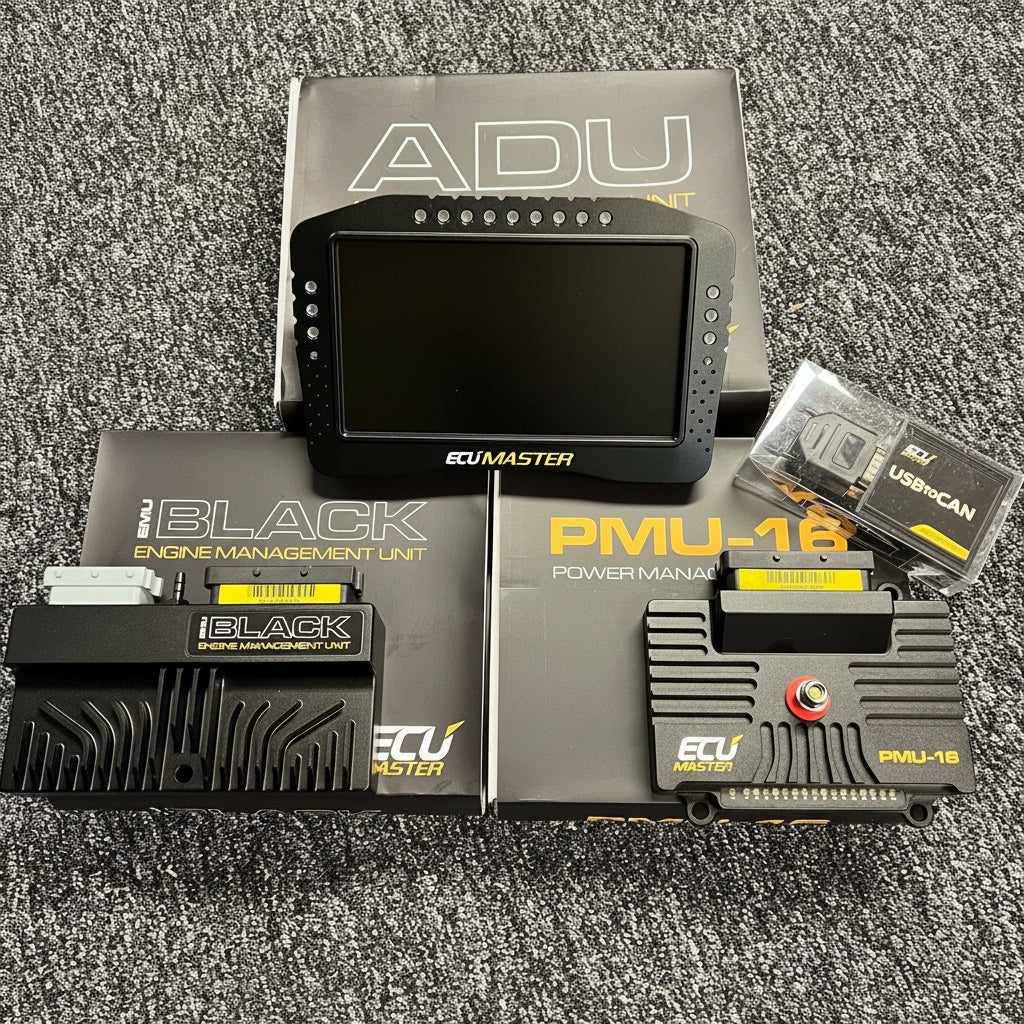

Package Includes

• 1 × Ecumaster EMU Black ECU
• 1 × Ecumaster ADU 5" IP65 Digital Dash Display
• 1 × Ecumaster PMU16 Power Management Unit
• 1 × Ecumaster USB-to-CAN interface

Ecumaster EMU Black ECU

The EMU Black is an advanced standalone engine management system designed for high-performance and motorsport applications. It controls fuel, ignition, auxiliary systems, drive-by-wire throttle, variable valve timing, boost control, flex fuel, engine protection strategies, and more.

Unlike many standalone ECU systems, the EMU Black includes a range of built-in features that reduce the need for external modules, including:

• Built-in wideband lambda controller for Bosch LSU 4.2 and LSU 4.9 sensors
• Built-in 4 bar MAP sensor
• Built-in barometric pressure support
• 2 EGT probe inputs
• Direct flex fuel sensor input
• Drive-by-wire throttle control
• CAN bus communication
• Real-time PC logging and external logger support

The EMU Black supports 1–12 cylinder engines, can drive up to 6 passive coils or 12 smart coils, and includes advanced safety and diagnostic strategies to help protect the engine in demanding conditions.

Ecumaster ADU 5" IP65 Digital Dash Display

The Ecumaster ADU 5" Digital Dash provides a professional driver display for live engine, vehicle, and race data. It features a high-resolution, high-visibility anti-glare screen designed for clear visibility in demanding lighting conditions.

The ADU comes with multiple pre-configured display pages that can be customised by the end user for different race stages, including practice, qualifying, race, and troubleshooting. Pages can be changed manually or automatically using defined conditions.

Each displayed channel, including gauges, icons, text, and warning indicators, can be configured using user-friendly Windows-based software. The ADU overlay system allows important information such as low oil pressure, best lap, warnings, and alerts to appear independently of the current display page.

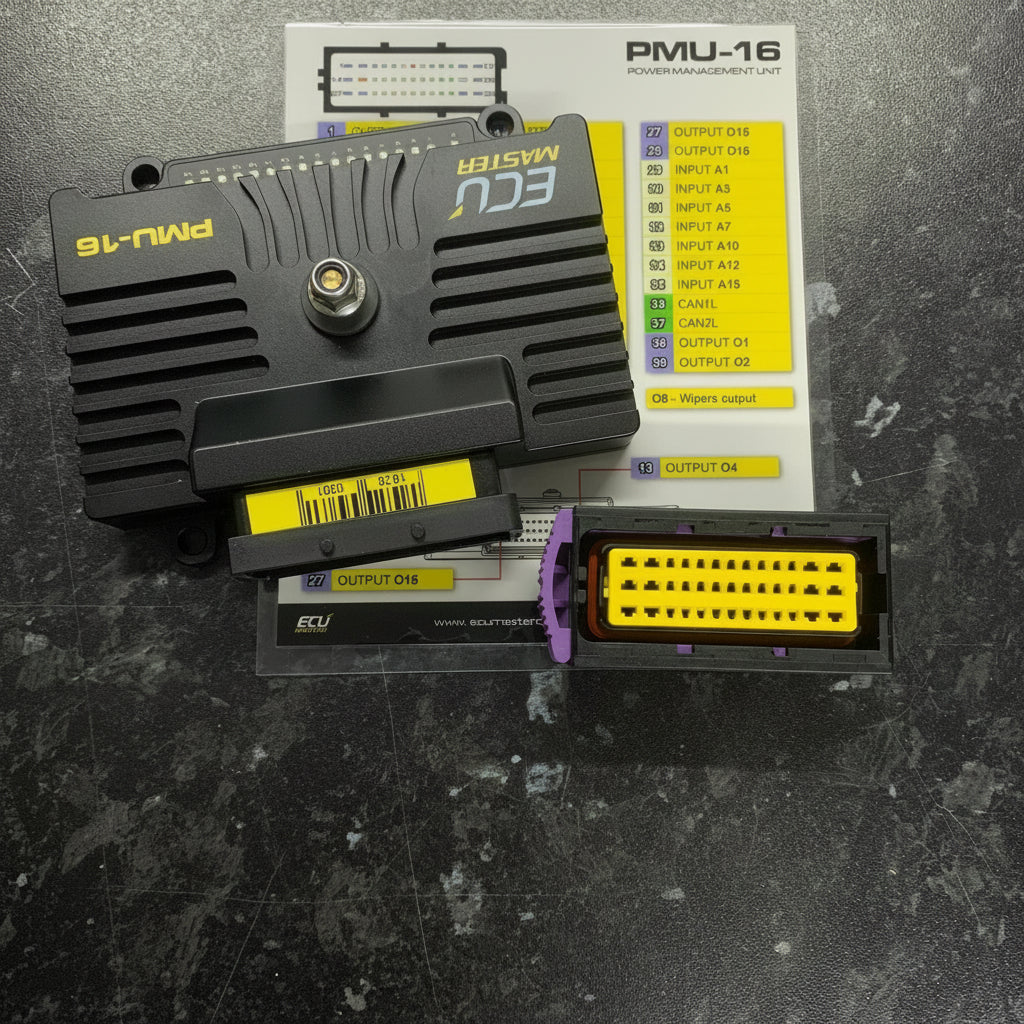

Ecumaster PMU16 Power Management Unit

The Ecumaster PMU16 replaces traditional fuses, relays, and circuit breakers with an intelligent programmable power distribution system.

Modern race cars often use a large number of electrical systems, including fuel pumps, cooling fans, lights, radios, data loggers, paddle shift systems, ABS systems, and auxiliary pumps. Traditionally, these require complex wiring, fuses, and relays. The PMU16 simplifies this by allowing electrical loads to be controlled, protected, and monitored from one central unit.

The PMU16 provides 16 high-current outputs, advanced circuit protection, current monitoring, CAN communication, and logic-based control. Outputs can be configured in software, helping reduce wiring complexity, improve diagnostics, and increase reliability.

USB-to-CAN Interface Included

This package includes a USB-to-CAN interface, allowing communication with CAN-based Ecumaster devices such as the PMU16 and ADU. This is essential for configuration, setup, and communication with supported Ecumaster CAN devices.

EMU Black Technical Highlights

• Temperature range: -40°C to +105°C
• Operating voltage: 6–22V
• IP65 CNC-machined aluminium enclosure
• USB, serial, and CAN communication
• 6 protected injector outputs
• 6 ignition outputs for passive or active coils
• 6 protected auxiliary outputs
• Built-in wideband controller for LSU 4.2 and LSU 4.9
• Built-in 4 bar MAP sensor
• 2 EGT inputs
• 2 knock sensor inputs
• Flex fuel sensor input
• Hall / VR trigger support
• Drive-by-wire throttle support
• Boost control
• Variable valve timing support
• Launch control, flat shift, pit limiter, ALS, and rolling anti-lag
• Advanced engine protection strategies
• Real-time PC logging and external logger support

ADU 5" Dash Highlights

• 5" high-resolution anti-glare display
• IP65 enclosure
• Multiple configurable display pages
• Custom graphics and user-defined content
• Automatic or manual page switching
• Warning and information overlays
• Lap timing support
• CAN-based data input
• RGB warning and shift LEDs
• USB data logging support
• Designed for motorsport visibility and reliability

PMU16 Technical Highlights

• 16 high-current outputs
• 10 × 25A continuous outputs
• 6 × 15A continuous outputs
• 150A total continuous output capacity
• Overcurrent and overheating protection
• Output current and voltage measurement
• 16 bicolour output status LEDs
• 16 analogue inputs
• 2 × CAN 2.0B interfaces
• Support for Ecumaster CAN keypads
• 3D accelerometer and gyroscope
• Real-time clock with backup power
• Configurable logic functions
• 500Hz update frequency

Important Notes

• Professional installation and configuration are recommended
• Additional wiring, sensors, switches, and setup may be required depending on the vehicle
• USB memory may be required separately for ADU data logging
• The package is designed for motorsport, track, and performance applications

Motorsport Use Notice

This product is intended for motorsport, performance, and off-road applications. Installation and configuration should be carried out by a qualified professional. It is the customer’s responsibility to ensure the product is suitable and legal for their intended use and location.
