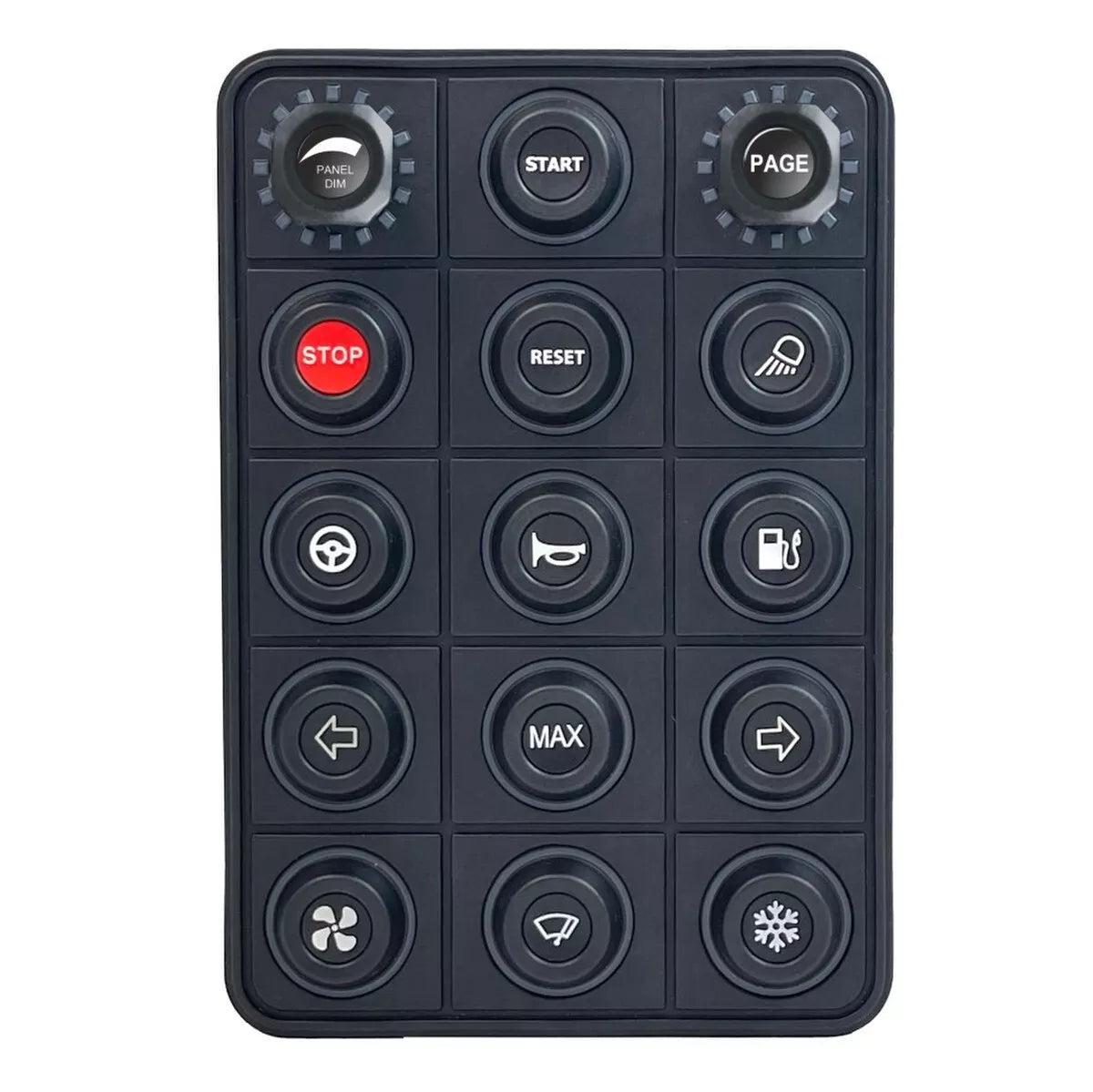

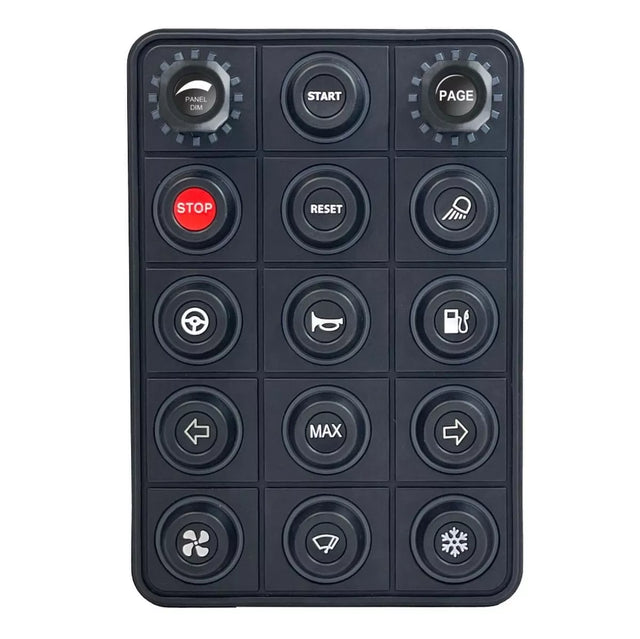

Link CAN Canbus Keypad 15 Button Keypad Switches + 2 Rotary Encoders BF25

Rugged 15 button CAN Keypad with interchangeable 15mm inserts (sold separately). Two rotary encoders with 16 Blue indicator LEDs each. Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad. The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality.

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Features

• 15 Buttons and 2 Rotary Encoders (push enabled, buttons
  can function independent to rotary encoder)
• 4 Analog Inputs for additional Sensors or Switches
• CAN Configurable with G4X/G5 PC Link – Change button
  LED backlight colour, individual button indicator ring
  colour, programmable to show change in status, flashing
  option, multiple modes including momentary, latched
  and toggle.
• CAN Bus Communication back to Engine Management
  System/PDM
• 16 Blue LED Lights on Rotary Encoders while all 13
  Pushbuttons Buttons have customisable RGB LED Rings
• Compatible with all Link G4X and G5 ECUs
• Customizable Button Inserts – The replacement system
  for individual inserts makes modifying the keypad layout
  simple and economical
• DTM4 Connector for CAN and Power, Molex Connector
  for Analogue Inputs

Weight - 360grams

Dimensions - 105 x 152.5 x 16.3mm (excl mounting studs)
