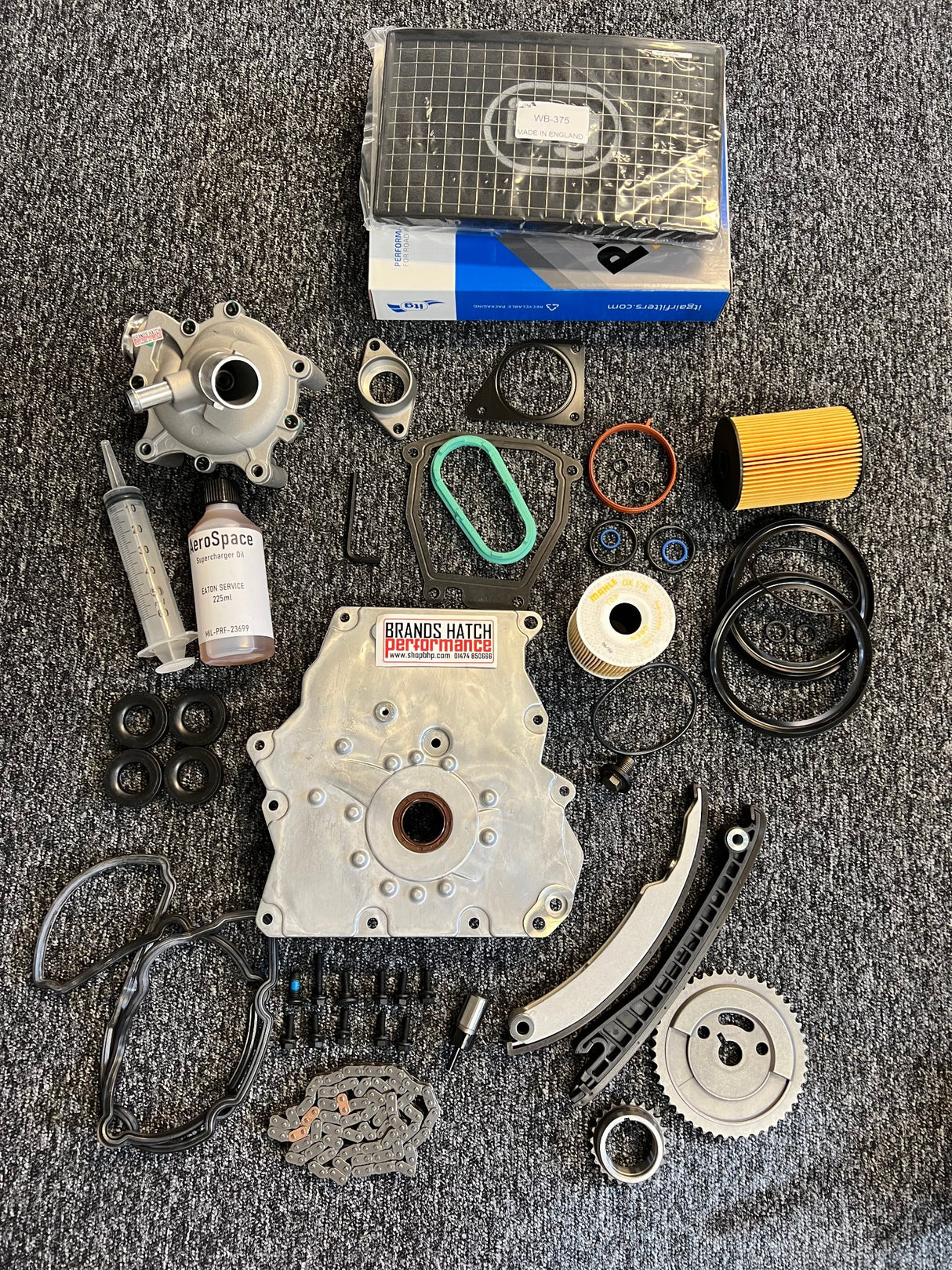

Mini Cooper S R52 R53 W11B16A Oil Pump & Supercharger & Timing Ultimate Service Kit With ITG Air Filter

Mini Cooper S R52 R53 W11B16A Oil Pump & Supercharger & Timing Ultimate Service Kit With ITG Air Filter

This is the Ultimate Service Kit for you Supercharged Mini.

The Kit Includes a BRAND NEW High Quality OE Quality Oil Pump, Water Pump & Timing Chain Kit.

ITG Air Filter, Oil Filter, Fuel Filter

Water Pump to Block Flange

Super charger Service Kit

All Gaskets & Seals

Suits:

Mini R52 R53 Cooper S

W11B16A Engines.

Kit Details:

1. Oil Pump

You are buying the Best Replacement OE Quality Oil Pump on the Market.

This comes with Timing Gasket & Seals

Suits OE Number: 11 14 7 57 3765

2. Timing Bolts :

Timing Bolts 07131500895 X8

Timing Cover Torx Bolt 11417829908 X1

Timing Cover Torx Bolt 07101485186 X 1

Timing Cover Bolt With Seal 07131485184 x1

3. Timing Kit:

All Parts are Top Quality from a OE Suppliers with the Correct Grade Materials.

Crank and cam gears are correctly heat treated

1 X Timing Chain 11 31 1 485 400

1 X Tensioner 11 31 7 510 801

1 X Camshaft Sprocket 11 31 1 485 403

1 X Crankshaft Sprocket 11 31 1 485 402

1 X Tensioner Guide Rail 11 31 8 648 241

1 X Guide Rail 11 31 1 485 397

4. Elring or Victor Reinz Rocker Cover Gasket

5. Supercharger Service Kit With Water Pump

-1 X 225ml Mil-PRF-23699 Aerospace Supercharger Oil

-1 X Syringe

-1 X Water Pump  11517520123 -  Recommended to change as most are the original part which deteriorates over the years. The Water Pump is easy to change while doing the supercharger service.

-1X Supercharger Horn Intake Housing Gasket 17511524319

-1X Supercharger to Intercooler Gasket  17511520044

-1X Supercharger Air Inlet Green Seal - 11610020836

-1 X Throttle Body Seal - 13547509045

-2 X Water pump O-Rings - Viton Seal - 11517509186

-1 X Lower BLUE Dipstick Tube Seal - 11437513891 (Often Leaking)

-1 X BLUE Crankshaft position O-ring Seal - 12147514983 (Located just below the water pump, generally found to be leaking oil so worth changing)

-2 X O Rings Viton Seals for drain plugs

-1 X 3/16 Allen Key (Supplied to remove drain plugs)

The Best Quality Gaskets and Seals from the top OE gasket suppliers Victor Reinz and Elring.

Supplied are all the gaskets & seals BHP recommended to change while servicing the supercharger over

time they deteriorate and are prone to leaking.

6. Water Pump to Block Flange

11517509170

7. ITG Air Filter WB-375

The Uprated Tri-foam ITG filter is one of the best filters on the market today as it achieves optimum performance:

Maximises air flow; the ability to allow air to pass through without causing a large drop in pressure

Cleaning Efficiency; the capability to capture a high proportion of airborne dust while feeding the engine with clean air

Dust Load-up Tolerance; the capability to absorb a large amount of dust without reducing air flow capacity

Advantages of using a ITG Filter includes a significant reduction in noise while provide more power for longer.

Filter Can be reused when cleaned and re-oil regularly, this is recommended every 10K miles/ inspected every 12 months.

8. MAHLE Fuel Filter KX504D

9. Mahle Oil Filter OX175D

10. Elring Sump Plug

M14 X 1.5 Thread

Sump Plug with Seal Ring

We CANNOT SHIP SUPERCHARGER OIL INTERNATIONALLY BUT CAN PROVIDE REST OF KIT.

Please Contact us if you have any Queries.
