Link 4-Port Boost Control Solenoid

The Link 4-Port Boost Control Solenoid provides precise electronic boost control for high-boost turbocharged applications.

It is suitable for internal and external wastegates, including single and multiple wastegate configurations, and offers a wider boost control range than a conventional 3-port solenoid.

When configured correctly, boost levels can reach approximately 6 to 7 times the base wastegate spring pressure.

Suitable Applications

Compatible with:

• All Link ECUs

• Internal wastegates

• External wastegates

• Single wastegate setups

• Multiple wastegate setups

• Open Loop Boost Control

• Closed Loop Boost Control

• High-boost turbocharged applications

For applications that do not require the wider boost range of a 4-port setup, a 3-Port Boost Control Solenoid may be more suitable.

Installation Requirements

The solenoid requires:

• Spare ECU Auxiliary Output switched to ground

• 12V ignition-switched power supply

• MAP sensor

• Open Loop or Closed Loop Boost Control configured in the ECU

No additional standalone boost controller is required.

Key Features

• 4-port electronic boost control solenoid

• MAC 45 Series

• Maximum pressure of 120 PSI

• Suitable for internal and external wastegates

• Suitable for single or multiple wastegate configurations

• Fast and consistent response

• High shifting force

• Short-stroke, high-flow design

• Balanced poppet design

• Resistant to pressure variation

• Rugged construction

• Long operational life

Boost Control

Depending on the wastegate and turbocharger setup, a 4-port solenoid can allow boost pressure to reach approximately 6 to 7 times the base wastegate spring pressure.

Technical Specification

Series: MAC 45
Maximum Pressure: 120 PSI
Port Size: 1/8" BSPPL
Voltage: 12V DC
Power: 5.4W
Coil Lead Length: 450mm / 18"

Electrical Specification

Operating Voltage Range: 10.2V to 13.2V
Maximum Continuous Current Draw: 495mA

Recommended PWM Frequency

Link recommends starting with a 25Hz PWM frequency for this boost control solenoid.

Further boost control setup information is available within the PCLink software help files.

Dimensions

Length: 30mm
Width: 45mm
Height: 25mm

Weight

135g

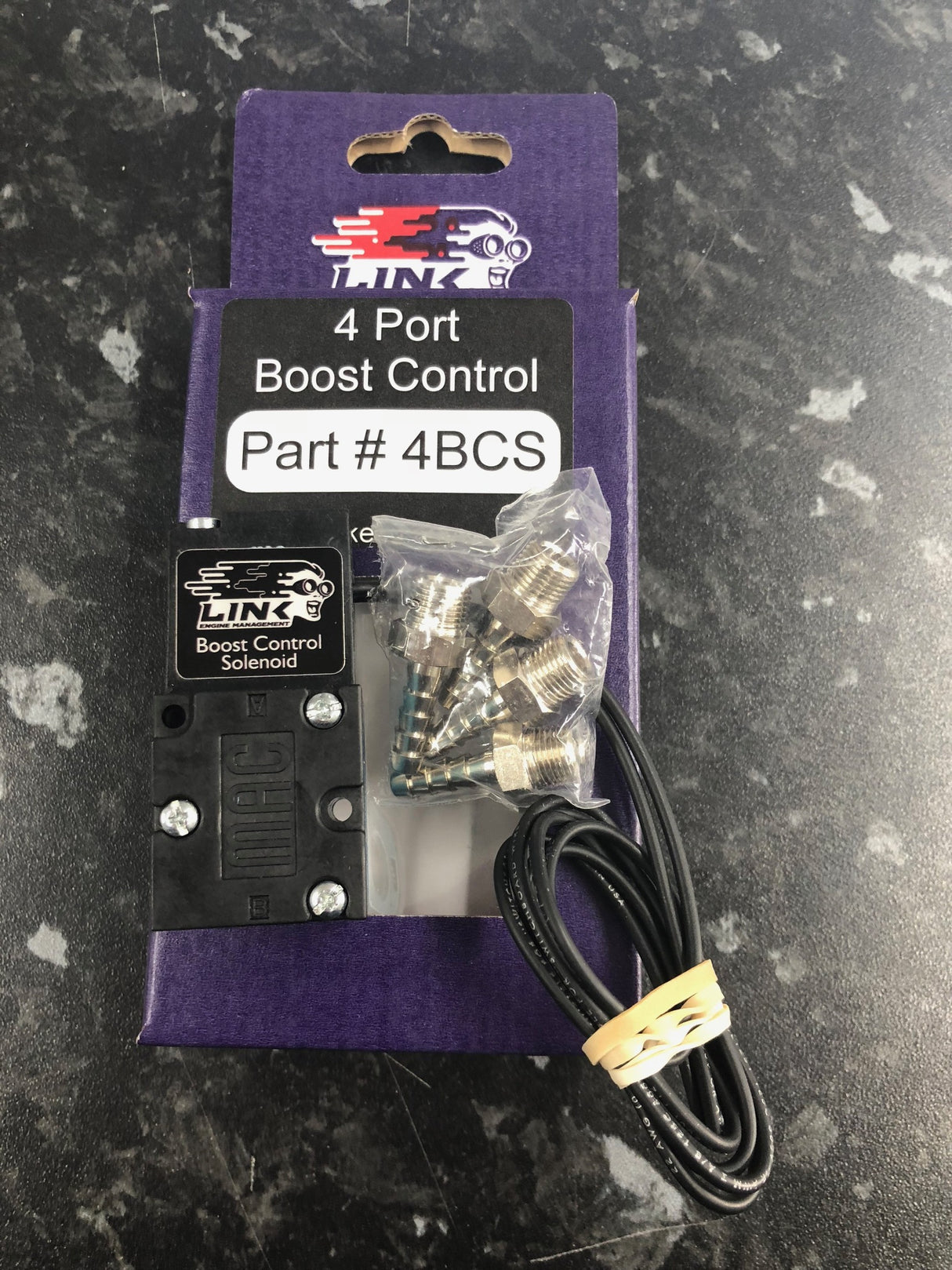

What's Included

• Link 4-Port Boost Control Solenoid

• 4 x 1/8" BSP Hose Fittings

• Accessory Instructions

Please Note

Correct boost control configuration is essential.

The final achievable boost pressure will depend on the wastegate spring pressure, turbocharger setup, plumbing and ECU calibration.
