Link Ethanol Content Sensor

The Link Ethanol Content Sensor is a genuine Continental Flex Fuel Sensor designed to measure both the ethanol content and temperature of the fuel passing through it.

When used with a compatible Link ECU, it allows the engine calibration to automatically adjust fuel, ignition and boost settings based on the ethanol percentage in the fuel.

This makes it suitable for vehicles running varying petrol and ethanol blends, including E85.

Suitable Applications

Compatible with:

• Link G4+ ECUs

• Link G4X ECUs

• Link G5 ECUs

• Petrol and ethanol fuel blends

• E85 applications

• Flex Fuel engine setups

Installation Information

The sensor should be installed in the fuel return line between the fuel pressure regulator and the fuel tank.

It requires:

• 12V power supply

• Battery ground

• 1 Digital Input on the ECU

The ethanol content and fuel temperature outputs must then be configured in the ECU software.

Key Features

• Genuine Continental Flex Fuel Sensor

• Measures ethanol content

• Measures fuel temperature

• Digital output signal

• AN-6 male fittings

• Connector and pin kit included

Ethanol Content Output

50Hz to 150Hz = 0% to 100% ethanol

Fuel Temperature Output

1ms to 5ms pulse width = -40°C to +125°C

Electrical Specification

Operating Voltage Range: 9V to 18V
Maximum Input Voltage: 18V
Maximum Continuous Current Draw: 20mA

Dimensions

Length: 130mm
Width: 130mm
Height: 40mm

Weight

130g

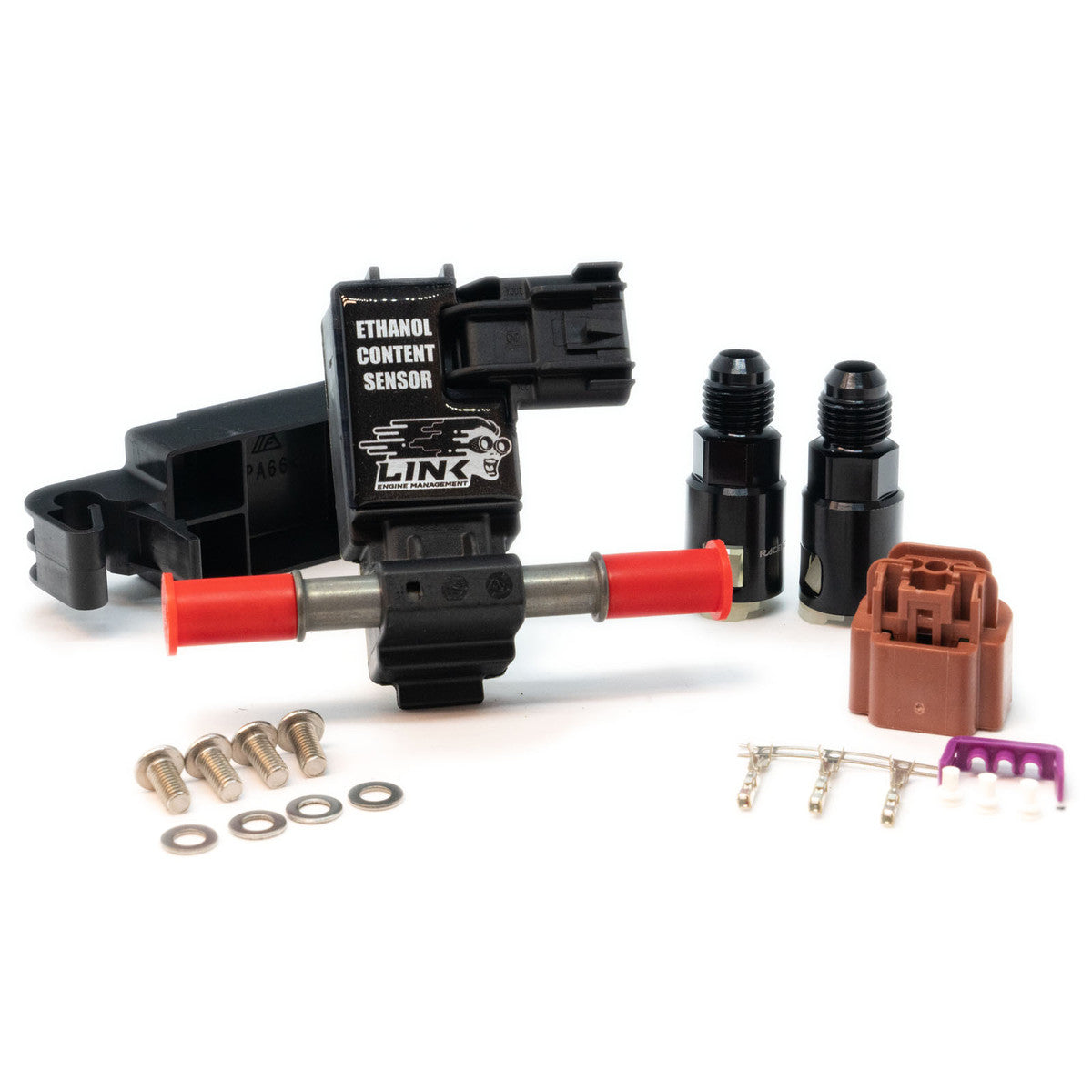

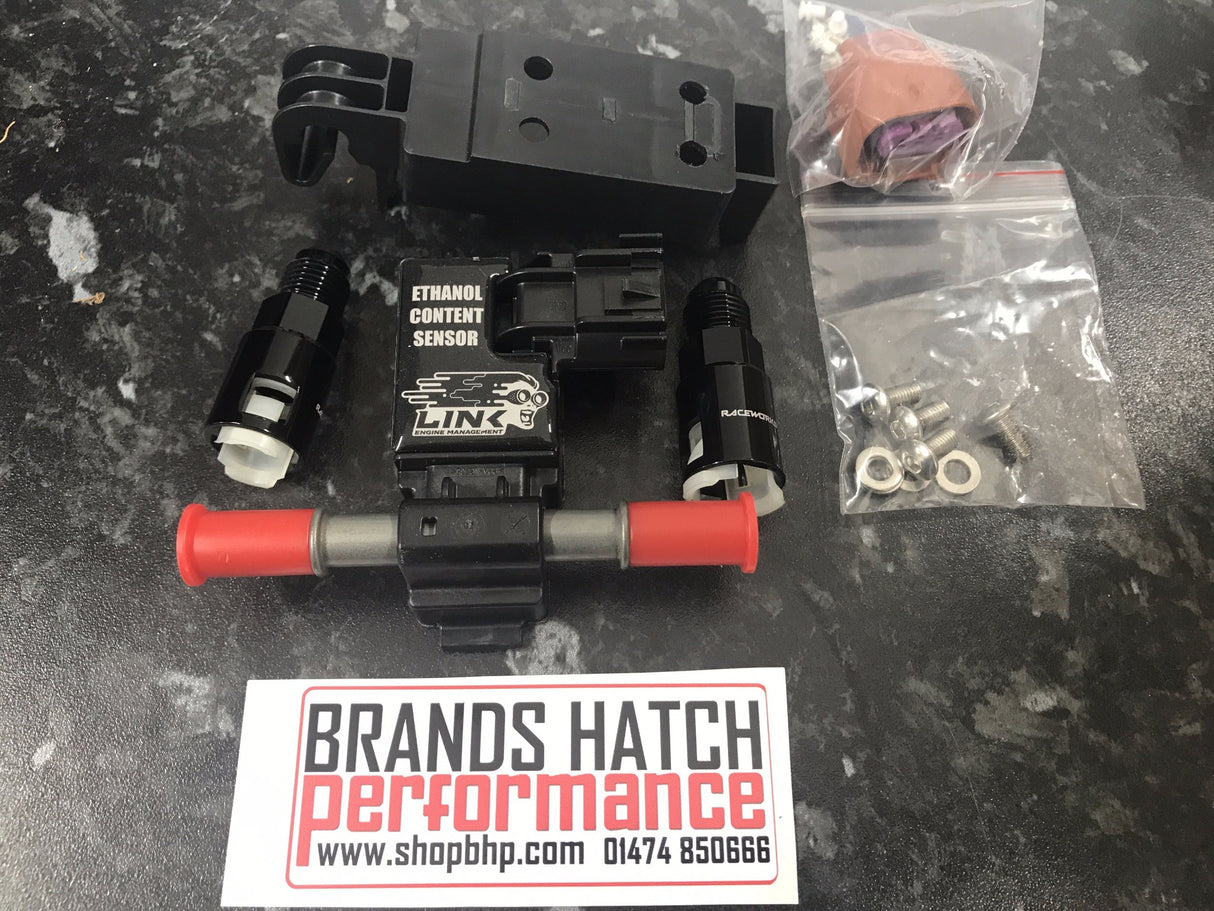

What's Included

• Link Ethanol Content Sensor

• AN-6 Adapter Fittings

• 3-Pin Connector Kit

Please Note

The sensor must be configured correctly within the ECU software before Flex Fuel compensation can be used.

For best results, fuel, ignition and boost compensation tables should be calibrated to suit the engine and the expected range of ethanol content.
