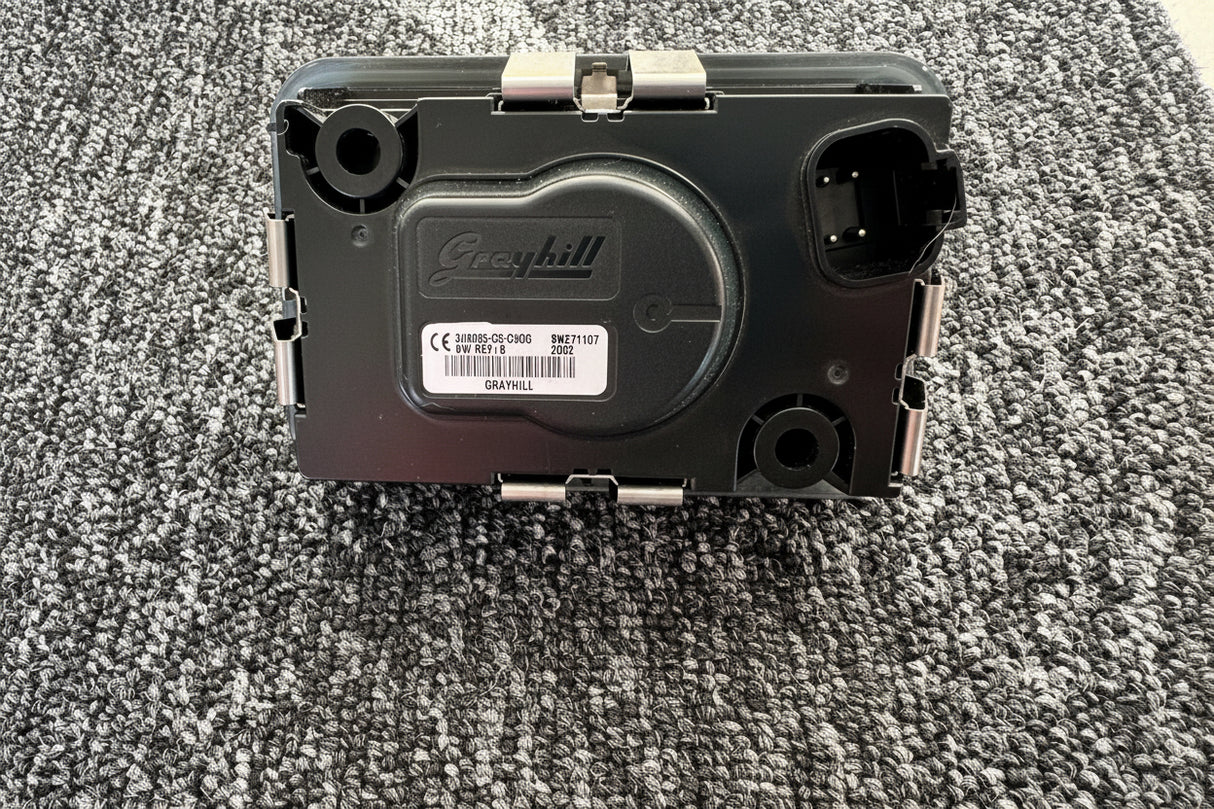

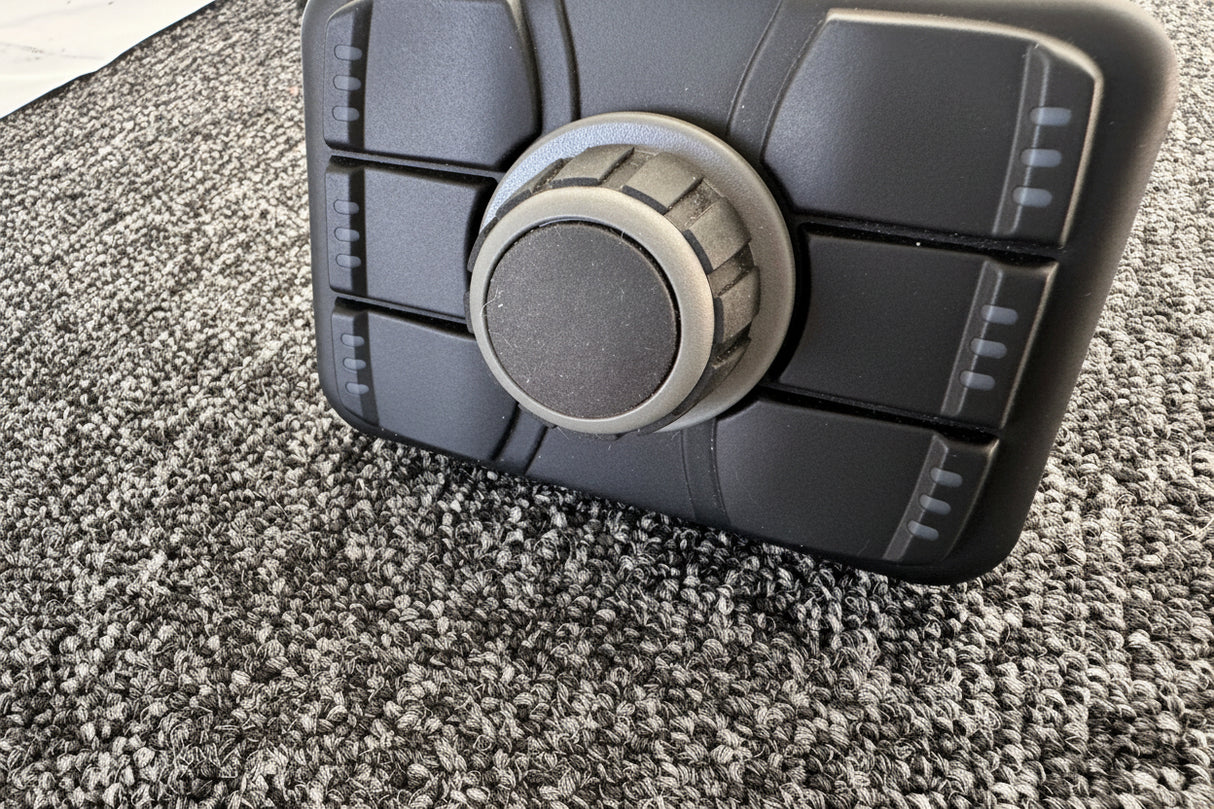

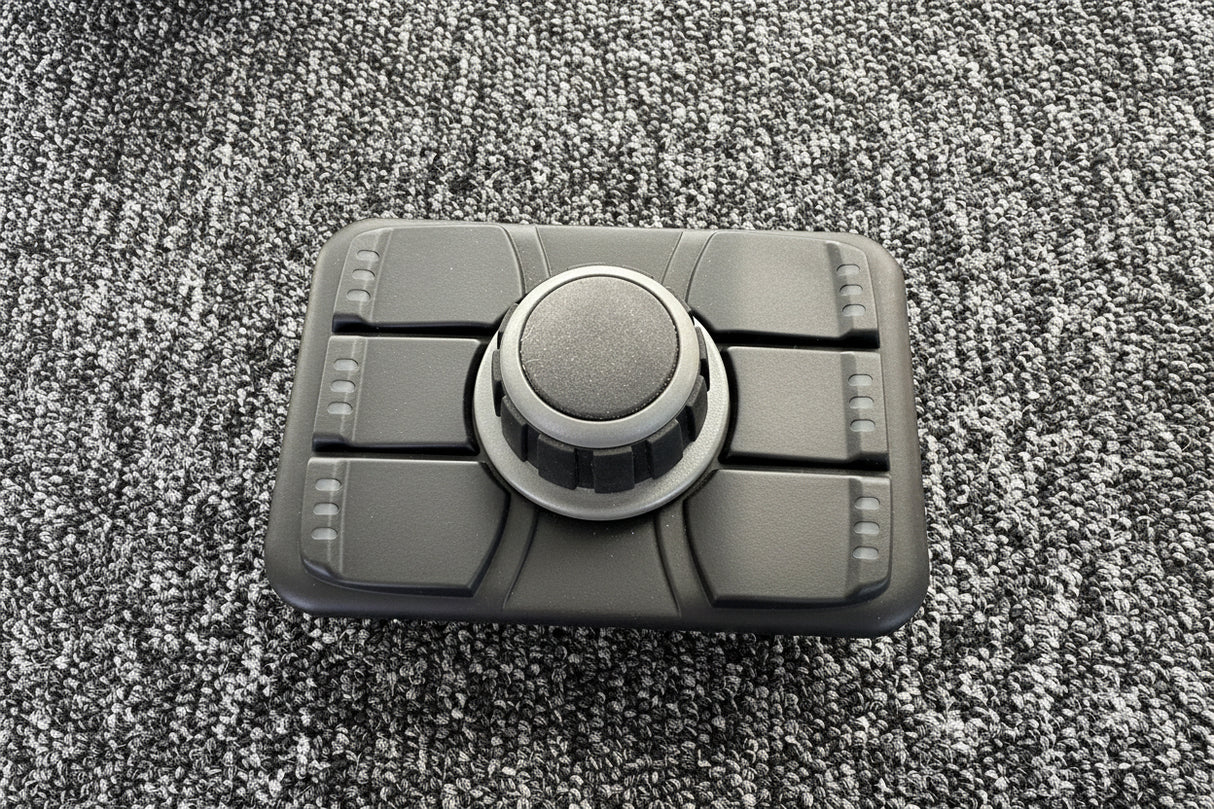

CAN Keypad - Grayhill 3JG2 Keypad Rotary Knob Encoder - 3J0005-G2-C3GG CAN BUS VEHICLE INTERFACE CONTROLLER PLUS

6 Button CAN Keypad with Rotary Encoder – Green Backlight

Ideal for most ECUs with configurable CAN. Supplied with a Link Engine Management base map with settings already applied.

Compatible with all modern aftermarket engine management systems, including LINK, ECUMASTER, DTA ECU and many more.

This 6 button CAN switch panel includes a rotary encoder, which can be configured from 0–4 up to 0–65535. The encoder can also be set to rollover or non-rollover operation.

Key Features

• 6 button CAN keypad
• Integrated rotary joystick encoder
• No-tool snap-in front mounting
• Modern flush-mount styling
• Designed for ISO 13849 safety-rated vehicles
• J1939 CAN protocol
• Low-current sleep mode
• Supplied with connector
• Supplied with Link ECU base map

Specifications

• Backlight Colour: Green
• CAN Bus Protocol: J1939
• Indicator Colour: Green
• Keypad Symbols: None – stickers available separately
• Mounting Style: Snap Fit
• Number of Keypad Buttons: 6
• Number of Digital I/O: 0
• Rotary Interface Type: Joystick Encoder
• Rotary Pushbutton: No

Downloads

Data sheet and programming manual available on request or via the links provided.
