Link ECU CAN Splitter Cable - CANTEE for connecting an additional CAN devices

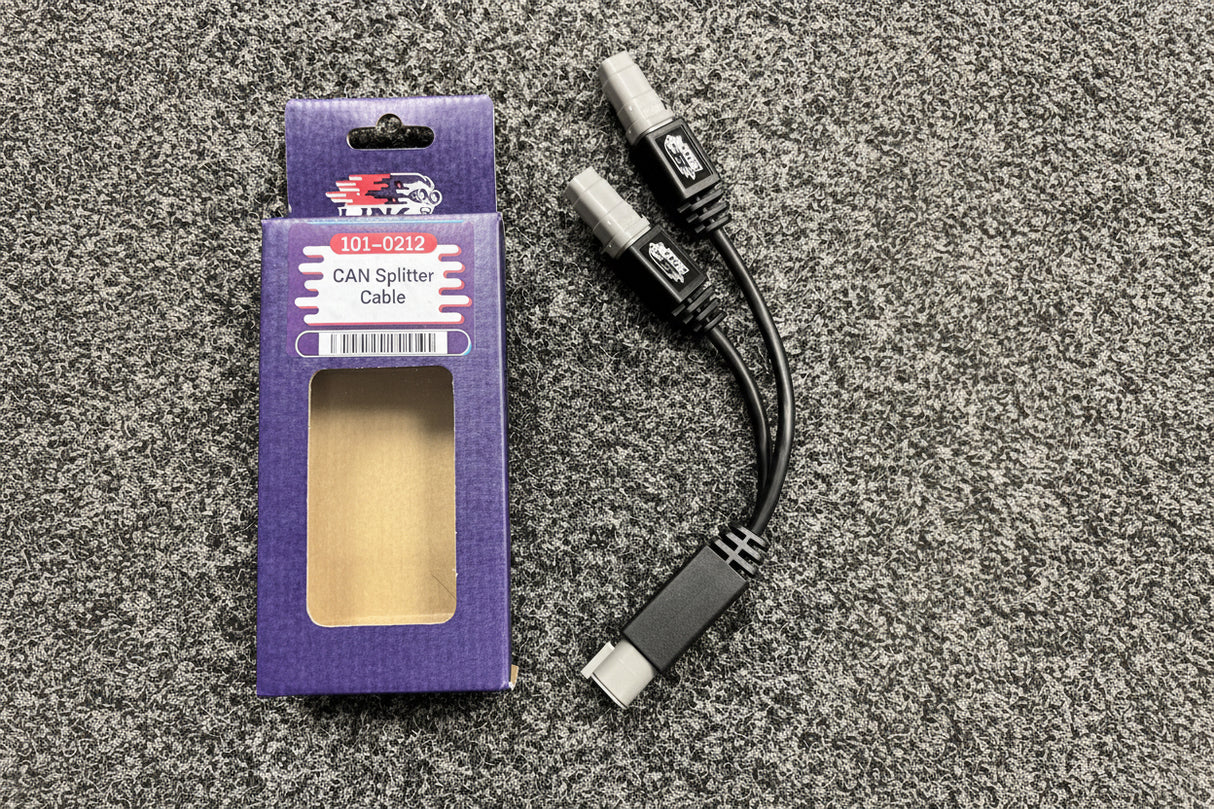

Link CAN Splitter Cable

The Link CAN Splitter Cable is used to connect additional CAN devices to a compatible Link CAN network.

It allows a single CAN connection to be split into two outputs and is suitable for use with compatible Link CANJST, CANLTW and CANSS cables.

Suitable Applications

Suitable for:

• Adding additional CAN devices

• Link CANJST connections

• Link CANLTW connections

• Link CANSS connections

• Link CAN accessories

• Motorsport and performance wiring installations

Key Features

• Splits one CAN connection into two

• DTM4 Female to 2 x DTM4 Male

• Includes CAN and power wiring

• Uses the standard Link CAN pinout

• Suitable for expanding compatible Link CAN networks

CAN Pinout

• Pin 1: 12V

• Pin 2: Ground

• Pin 3: CAN Low

• Pin 4: CAN High

Loom Lengths

Loom 1: 80mm
Loom 2: 120mm

Electrical Specification

Maximum Input Voltage: 300V
Maximum Continuous Current Draw: 3A
Wire Size: 20 AWG / 0.5mm²

Dimensions

Length: 280mm
Width: 34mm
Height: 23mm

Weight

200g

Connector

• 1 x DTM4 Female

• 2 x DTM4 Male

• Includes CAN and power wiring

What's Included

• 1 x Link CAN Splitter Cable

Please Note

This cable is designed to expand a compatible Link CAN network by providing two CAN connections from one existing connection.

Please check the connector type and CAN network layout before ordering.
