ITG Universal Air Box STAB122 Air Box with 86mm ID Filter
Description
Description

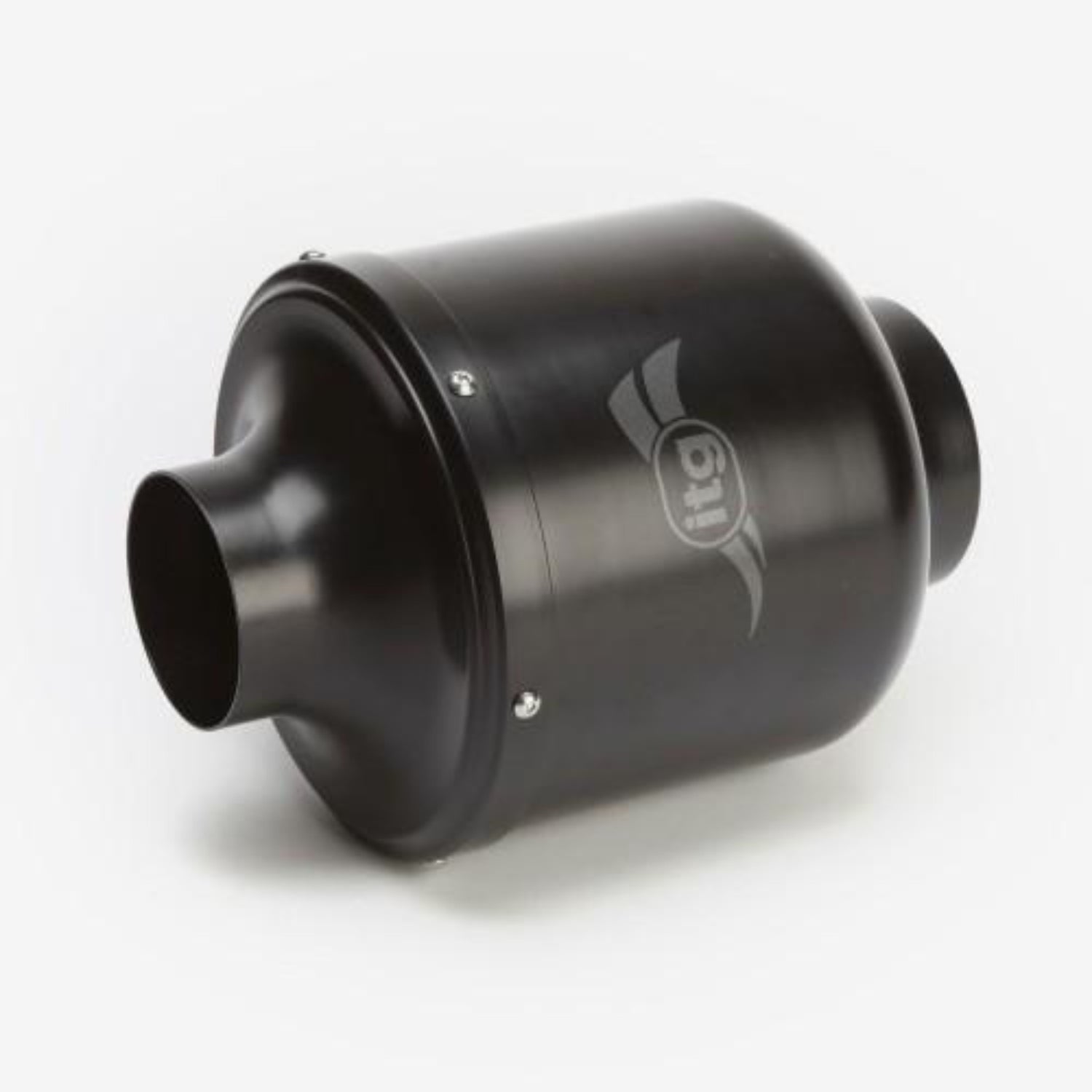

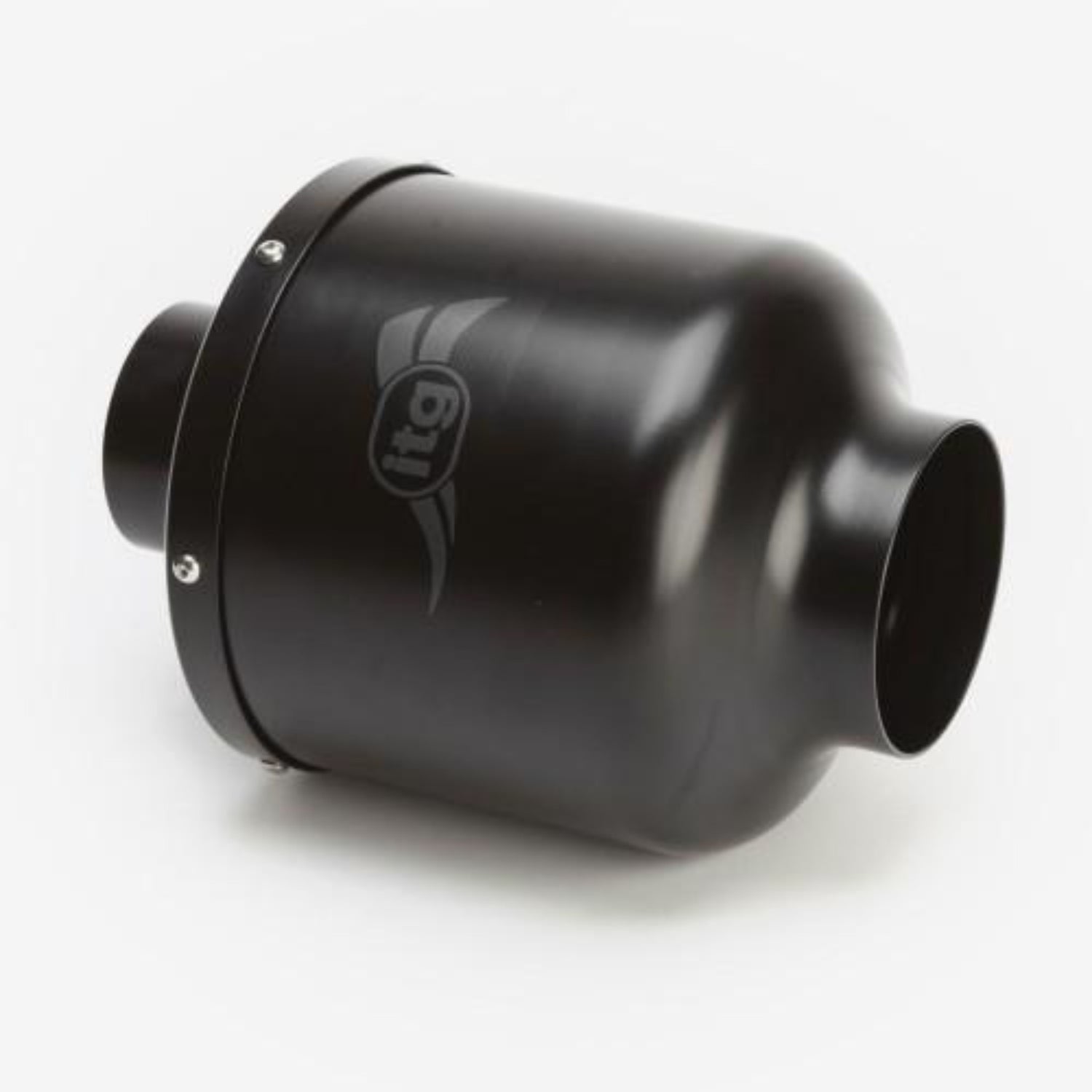

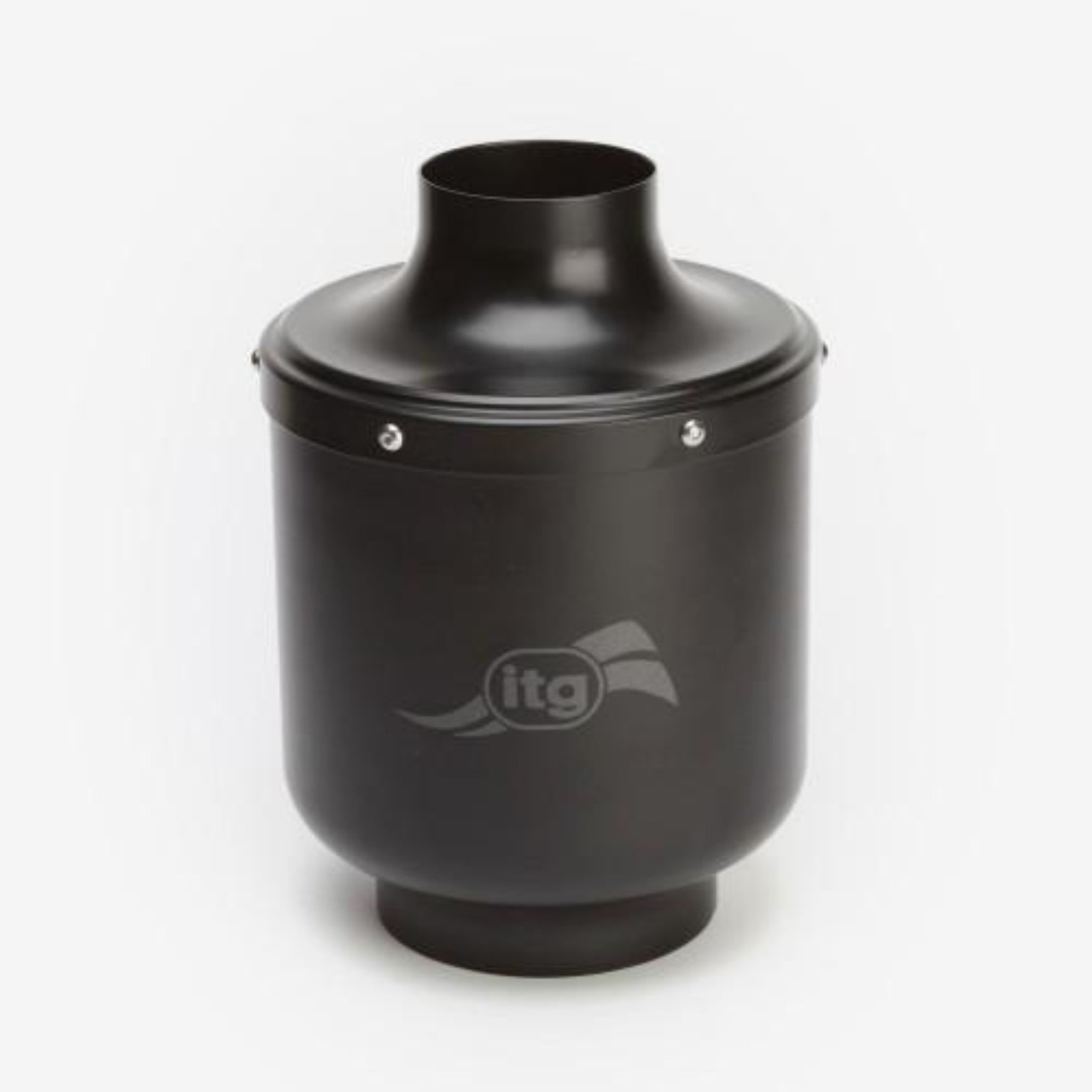

The largest diameter aluminium air box is perfect for big bhp applications. The outside diameter is large which means high air flow characteristics but the air box itself is still a 'stubby' design which should help with locating it in the engine bay. If you have the space, 127mm ducting can be used on the inlet

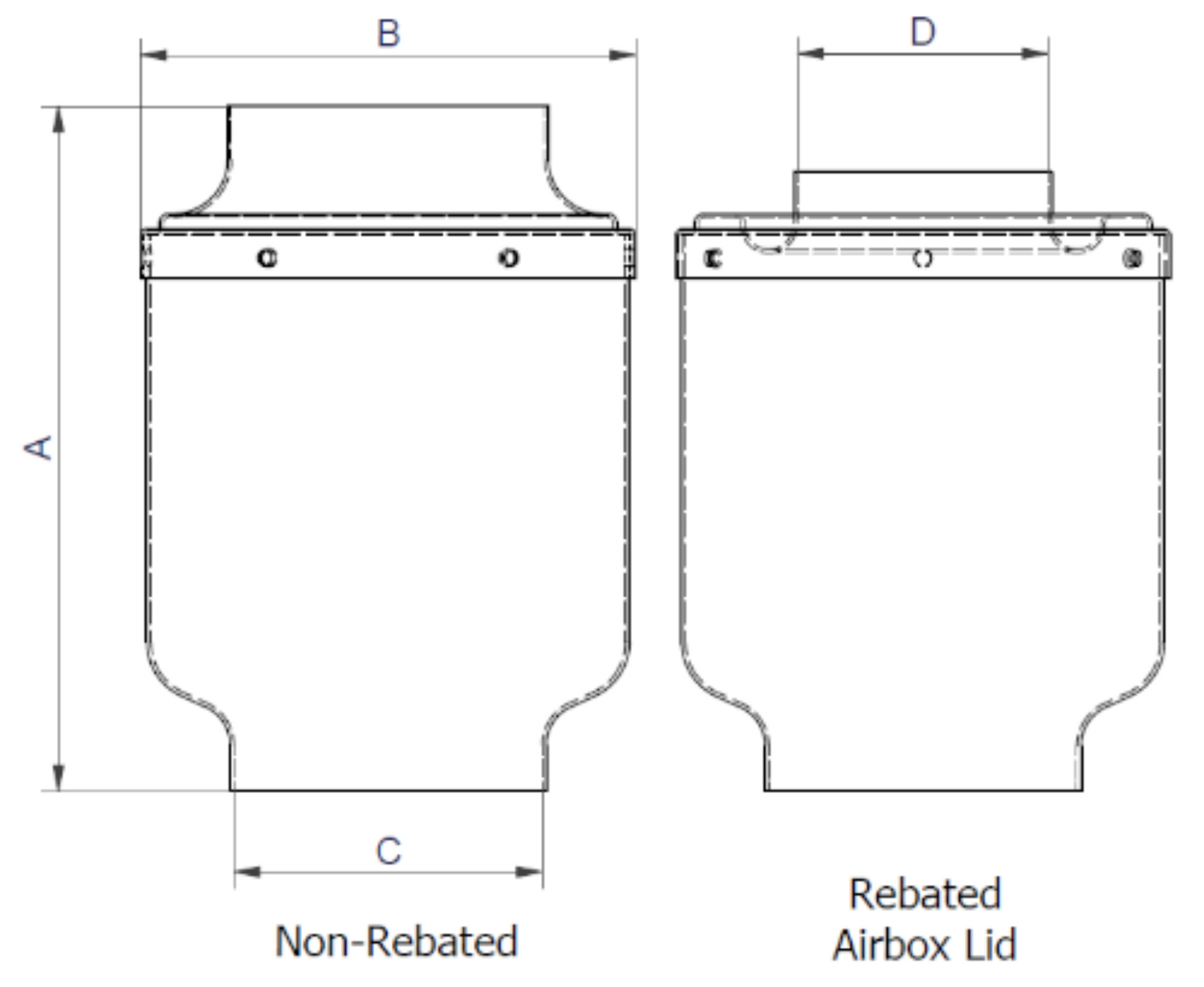

A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D).
Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C – Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D – Outlet (Clean air out) measurement taken as internal diameter, and relates to ARAB spinning used.
See table for silicone hose sizing guide.
All dimensions are in mm
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet) | |
|---|---|---|---|---|---|
| STAB122/67R | 239.50 | 196.00 | 122.00 | 70.00 | |
| STAB122/80 | 276.50 | 196.00 | 122.00 | 83.00 | |
| STAB122/80R | 238.50 | 196.00 | 122.00 | 83.00 | |
| STAB122/86 | 270.50 | 196.00 | 122.00 | 89.00 | |
| STAB122/86R | 238.40 | 196.00 | 122.00 | 89.00 | |
| STAB122/93 | 263.50 | 196.00 | 122.00 | 96.00 | |
| STAB122/99 | 264.50 | 196.00 | 122.00 | 102.00 | |
| STAB122/114 | 260.50 | 196.00 | 122.00 | 117.00 | |
| STAB122/124 | 257.50 | 196.00 | 122.00 | 127.00 |
