Ecumaster Control Race Package – EMU Black ECU, ADU 5 IP65 Digital Dash & PMU16 PDU

Ecumaster Control Race Package – EMU Black ECU, ADU 5 IP65 Digital Dash & PMU16 PDU

The Ecumaster Control Race Package is a complete motorsport electronics package combining engine management, driver display, and programmable power distribution in one integrated Ecumaster system.

This package includes the Ecumaster EMU Black ECU, ADU 5 IP65 digital dash display, and PMU16 Power Management Unit / PDU, making it ideal for race cars, track cars, kit cars, engine conversions, drift cars, rally cars, and high-performance custom builds.

Designed for users who want a professional Ecumaster control system, this package gives you standalone engine management, configurable dash display, data logging capability, alarm strategies, CAN communication, and electronic power distribution.

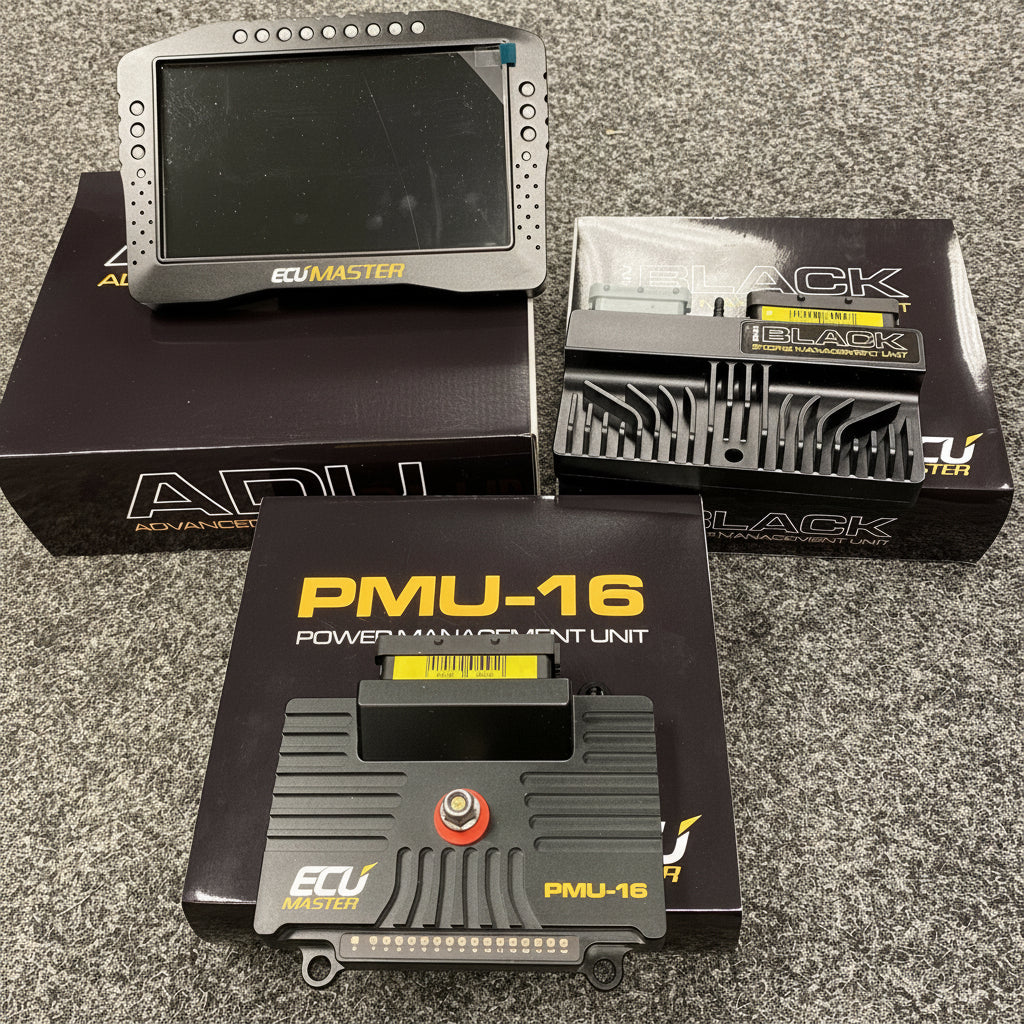

Package Includes

• 1 × Ecumaster EMU Black ECU
• 1 × Ecumaster ADU 5 IP65 digital dash display
• 1 × Ecumaster PMU16 power management unit / PDU

Key Features

Complete Ecumaster Control Package
Combines ECU, digital dash, and power management into one matched motorsport electronics package.

EMU Black Standalone ECU
Provides advanced fuel, ignition, boost, lambda, and auxiliary control for a wide range of engine applications.

ADU 5 IP65 Digital Dash
A compact 5" digital dash display with IP65 protection, data logging support, alarms, overlays, shift lights, and configurable pages.

PMU16 Power Management Unit
Replaces traditional fuses, relays, and circuit breakers with programmable electronic power distribution.

CAN Bus Integration
The EMU Black, ADU, and PMU16 can communicate over CAN bus, allowing engine data, alarms, power status, and system information to be shared between devices.

Professional Motorsport Solution
Ideal for clean, modern wiring installations where reliability, configurability, and diagnostics are important.

Ecumaster EMU Black ECU

The Ecumaster EMU Black is a powerful standalone engine management system designed for advanced fuel, ignition, boost, and auxiliary control.

Key EMU Black features include:

• Built-in 4 bar MAP sensor
• Built-in wideband lambda controller
• Bosch LSU 4.2 and LSU 4.9 wideband sensor support
• Drive-by-wire throttle support
• Flex fuel support
• CAN bus communication
• Advanced boost control
• Launch control
• Flat shift
• Traction control strategies
• Knock control support
• Configurable inputs and outputs
• Closed-loop fuel control
• Closed-loop boost control
• Motorsport data logging
• Windows-based tuning software

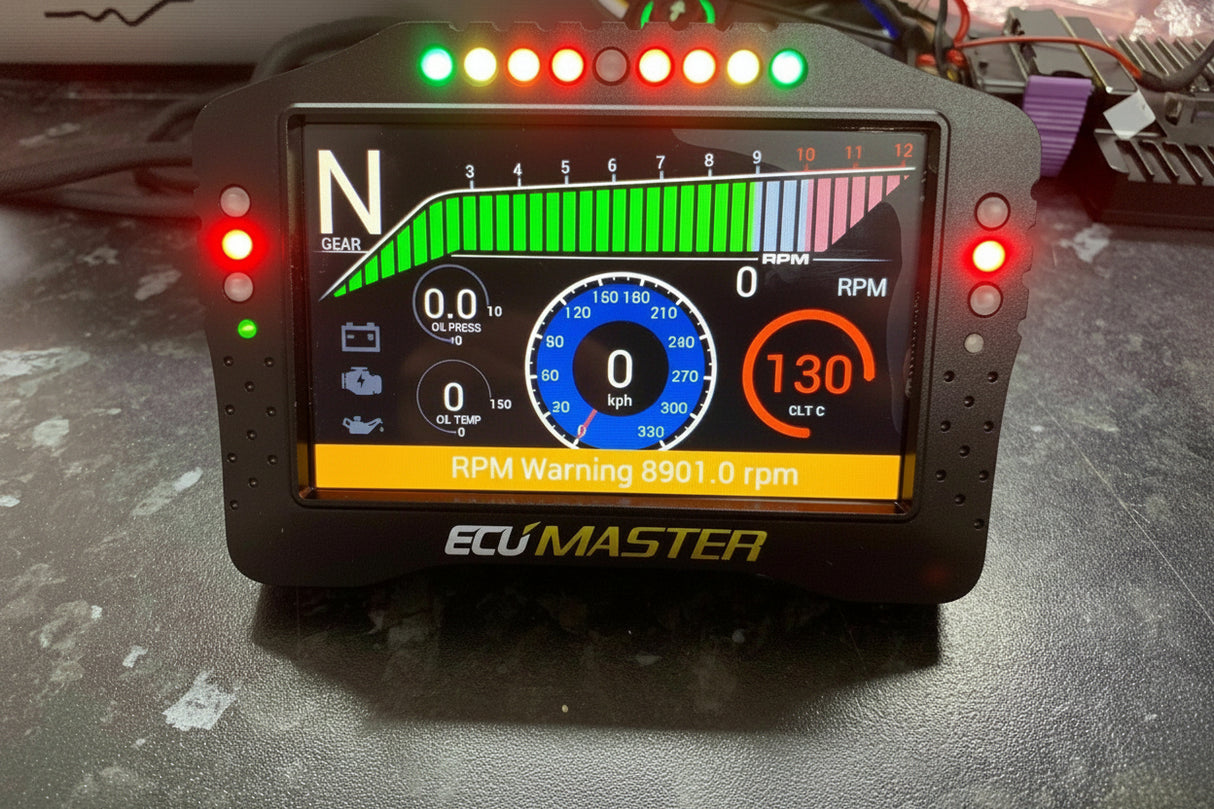

Ecumaster ADU 5 IP65 Digital Dash

The Ecumaster ADU 5 IP65 is a professional digital dash display designed for motorsport and performance vehicle applications.

The ADU displays critical vehicle information in a clear, easy-to-read format and features a comprehensive alarm and overlay system for warnings such as low oil pressure, temperature alerts, fuel pressure warnings, battery voltage, lap timing, and more.

ADU 5 IP65 features include:

• 5" high-visibility anti-glare TFT display
• IP65 dust and water-resistant enclosure
• 800 × 480 display resolution
• 600 cd/m² brightness
• Multiple pre-configured and customisable pages
• Up to 48 configurable pages
• Manual or automatic page switching
• User-defined overlays and warnings
• 15 ultra-bright RGB LEDs for shift lights and alarms
• Lap timer and predictive timing support with GPS or beacon input
• USB data logging up to 500Hz
• Dual CAN bus communication
• Built-in accelerometer and gyroscope
• Light sensor for automatic brightness adjustment
• Internal temperature monitoring

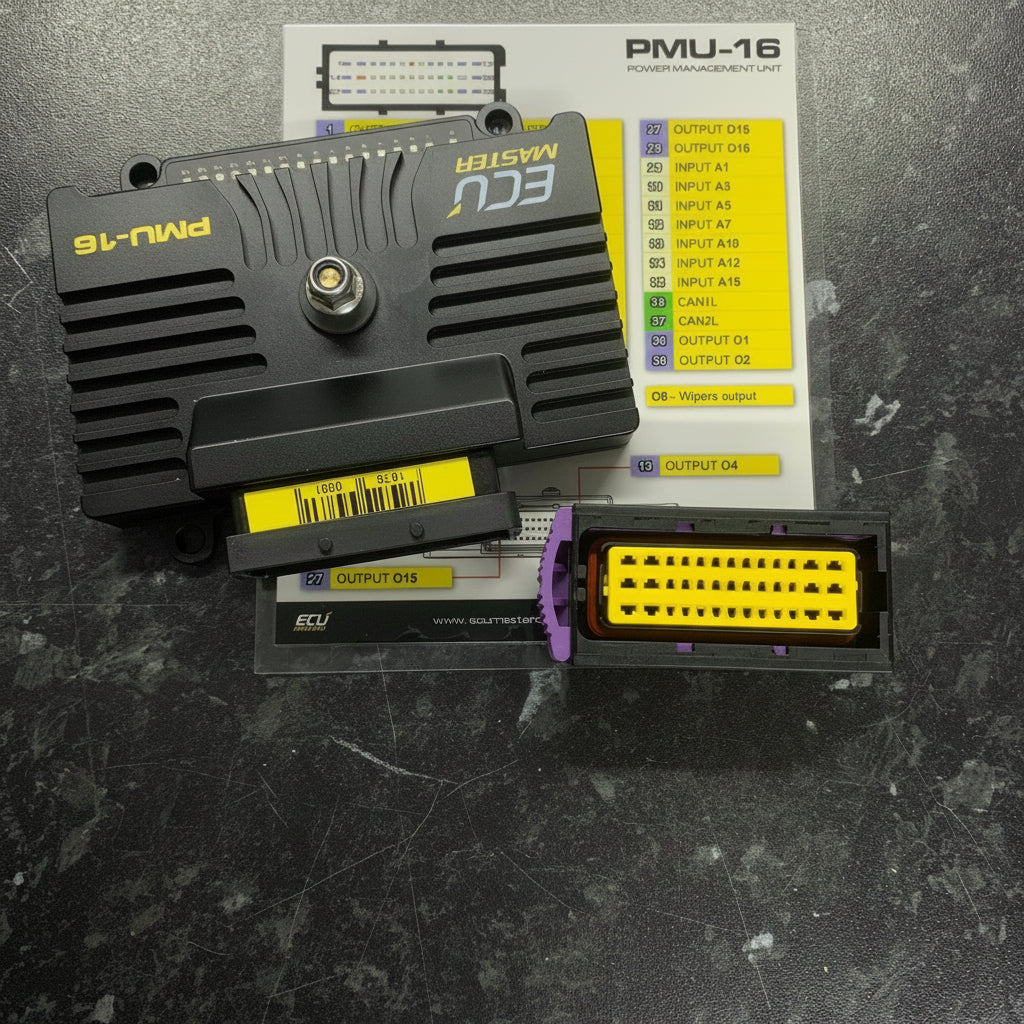

Ecumaster PMU16 Power Management Unit / PDU

The Ecumaster PMU16 is a programmable power management unit designed to replace conventional relays, fuses, and circuit breakers.

It allows vehicle electrical systems to be controlled electronically, improving wiring flexibility and providing advanced protection and diagnostics.

The PMU16 can be used to control electrical loads such as:

• Fuel pumps
• Cooling fans
• Ignition power
• ECU power
• Lights
• Water pumps
• Wipers
• Auxiliary systems
• Motorsport electronics
• Other vehicle electrical circuits

Using the PMU16 allows a cleaner wiring layout, simplified power distribution, and programmable control logic for motorsport and performance applications.

Why Choose This Package?

This package is ideal when building a complete modern vehicle electronics system.

The EMU Black controls the engine, the ADU 5 IP65 displays and logs critical data, and the PMU16 manages vehicle power distribution. Together, they create a flexible, CAN-based control system suitable for demanding motorsport and track applications.

Typical Applications

• Race cars
• Track cars
• Drift cars
• Rally cars
• Kit cars
• Engine conversions
• Custom wiring builds
• Motorsport electrical systems
• High-performance road and competition vehicles

Important Notes

• Professional installation, wiring, and calibration are strongly recommended
• A CAN interface is required for configuration and communication with the ADU and PMU16
• CAN-to-USB interface is not included unless selected separately
• USB memory may be required separately for ADU data logging
• Additional sensors, wiring, connectors, and configuration may be required depending on application
• Final ECU mapping and system setup must be carried out before full use
• Compatibility depends on engine specification, wiring layout, sensors, and CAN configuration

Motorsport Use Notice

This product is intended for motorsport, competition, and off-road use where permitted. Please ensure the package is suitable for your intended application and complies with any relevant rules, regulations, or emissions requirements before use.
