ECUMaster Digital ECU Tuner 3 DET 3 NA / 4 Bar Piggyback Unit Controller

  • £195.00
    Unit price per
Tax included.

Digital ECU Tuner 3 is the most popular device as a  "piggy back" unit on the market. Due to its many features and cost friendly price, this product has gained a large group of satisfied customers and becoming one of the most purchased piggy back units in the uk..

Technical details:

  •  Four 16x16 side tables (fuel map,two PWM tables, ignition table)
  •  8 Correction tables 16x1,
  •  2 independent switchable map sets ,
  •  possibility to modification of one analogue signal
  • 4 analog inputs,
  • inbuilt Data Flash – possibility of logging without connected PC,
  • battery voltage monitoring ,
  • support of frequency output air flow meter (possibility of signal modification) 17Hz-4kHz,
  • support VR and Hall effect crank sensors together with ignition modules pulse. Device support both single ended and differential signals,
  • supports a lot of crank trigger patterns :60-2, 36-2, 36-1, Multitooth, Ignition Modules and more,
  • support of waste gate valve,
  • output for 4 saturated injectors ("full group"),
  • ON/OFF parametric output,
  • automatic conversion of MAP to MAF with the use of the learning algorithm,
  • launch control,
  • road dyno,
  • possibility individual calibration of each analogue sensors – device displayed values with correct units,
  • free firmware update – new crank trigger patterns and new functionality,
  • fuel Implant mode –possibility of drive injectors in standalone mode (batch fire),
  • USB communication no additional interface needed,
  • 24 months warranty.

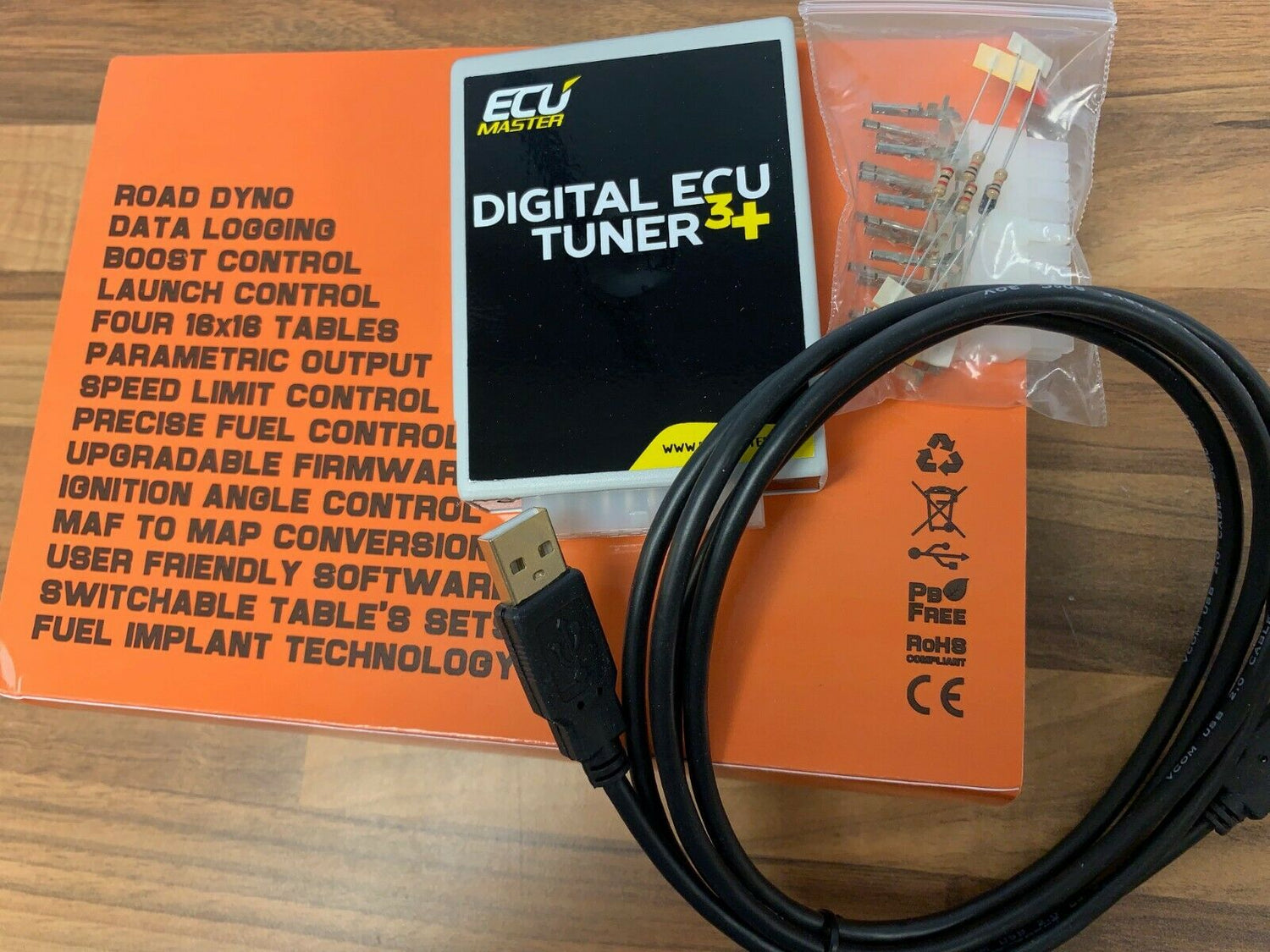

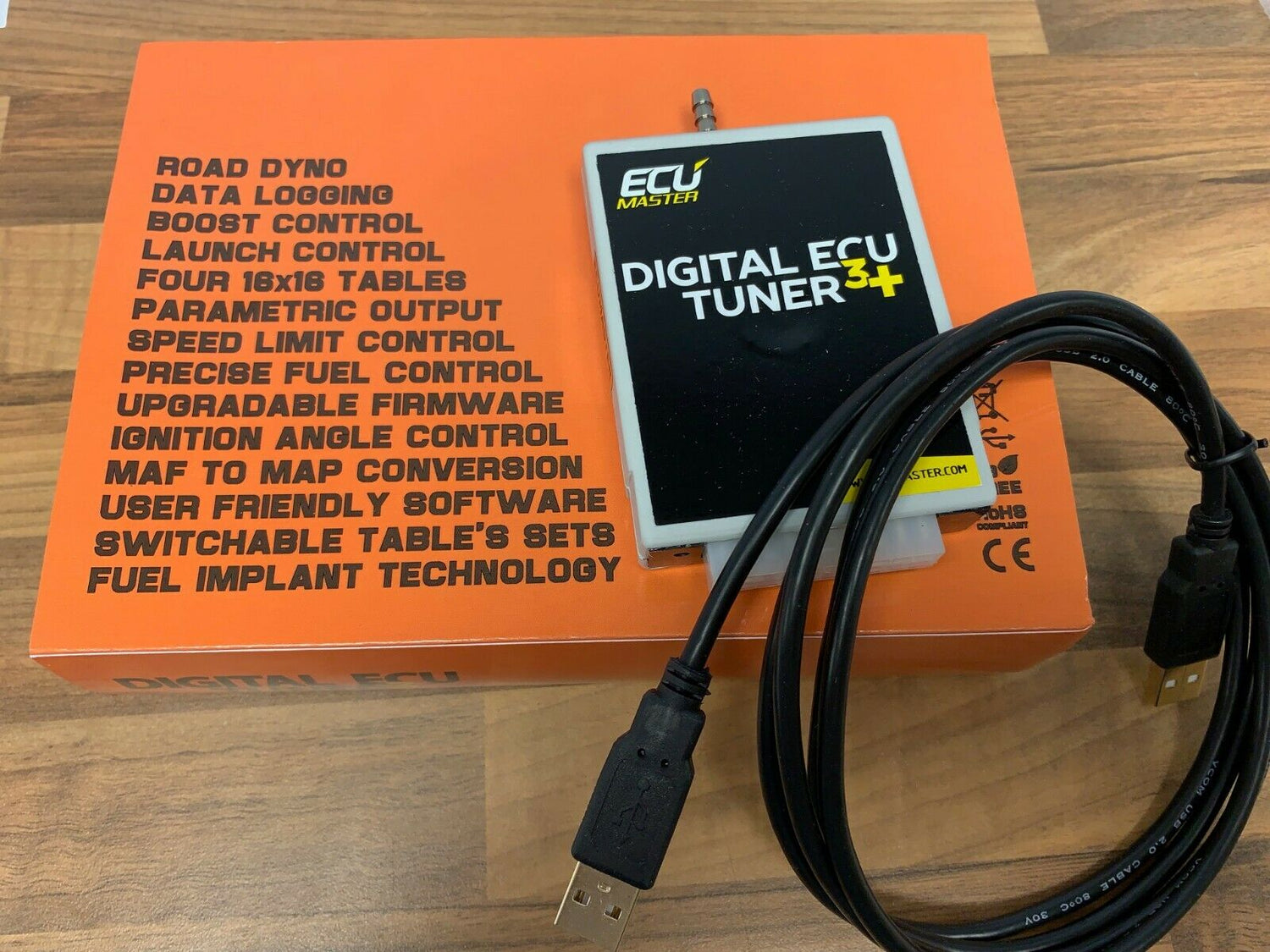

What is in the box

  • Digital ECU Tuner 3 device,
  • USB AA lead,
  • connector,
  • set of terminals,
  • set of resistors and diode which may be useful during set up
