Link KnockLink Kit

The Link KnockLink Kit is a complete standalone visual knock warning system designed to detect engine knock and alert the driver immediately using a high-intensity LED warning.

It uses intelligent digital signal processing to monitor the knock sensor signal and automatically learn the engine's normal noise characteristics, allowing it to identify knock without requiring manual gain or frequency setup.

This kit is supplied with a knock sensor and 2 metre loom, providing the main components required for a complete installation.

Suitable Applications

Compatible with:

• Link knock sensors

• Compatible OEM knock sensors

• Standalone knock monitoring applications

Important Compatibility Information

• Do not connect the KnockLink and ECU to the same knock sensor

• Not suitable for mechanically noisy engines

• Not recommended for engines with high-clearance pistons

• Not suitable for two-stroke engines

Key Features

• Standalone knock detection

• Intelligent self-learning knock detection

• Self-calibrating operation

• No gain setup required

• No frequency setup required

• High detection accuracy

• High-intensity visual LED knock warning

• Monitors one knock sensor

• Operates independently of the ECU

• Compact CNC aluminium enclosure

• Knock sensor included

• 2m knock sensor loom included

• Wiring loom and mounting bracket included

How It Works

The KnockLink continuously monitors the signal from the supplied knock sensor.

The unit learns the normal background noise of the engine and uses this information to identify abnormal combustion events associated with knock or detonation.

When knock is detected, the KnockLink provides an immediate visual warning to the driver.

Electrical Specification

Operating Voltage Range: 6V to 26V
Maximum Input Voltage: 26V
Maximum Continuous Current Draw: 100mA

What's Included

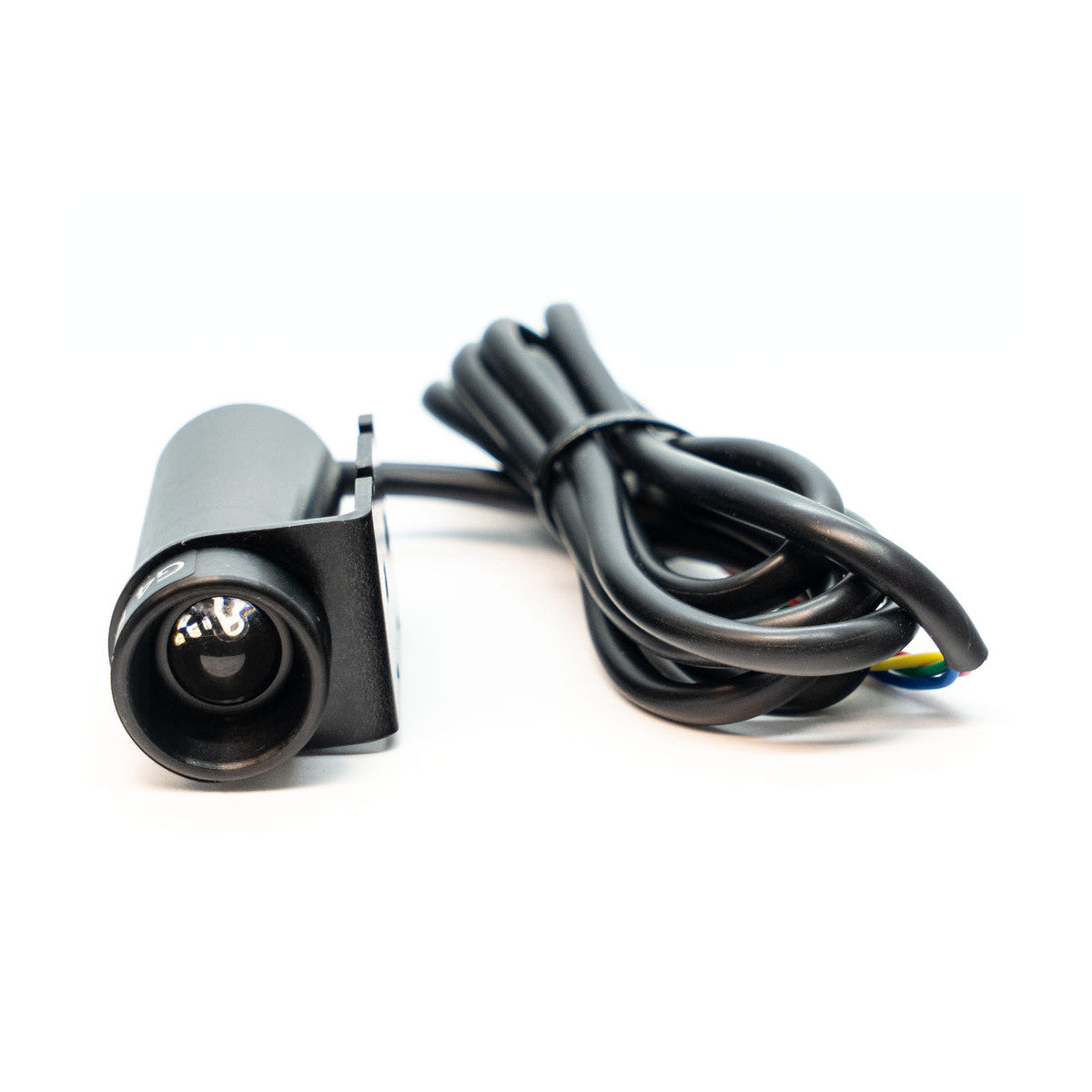

• Link KnockLink Visual Warning Device

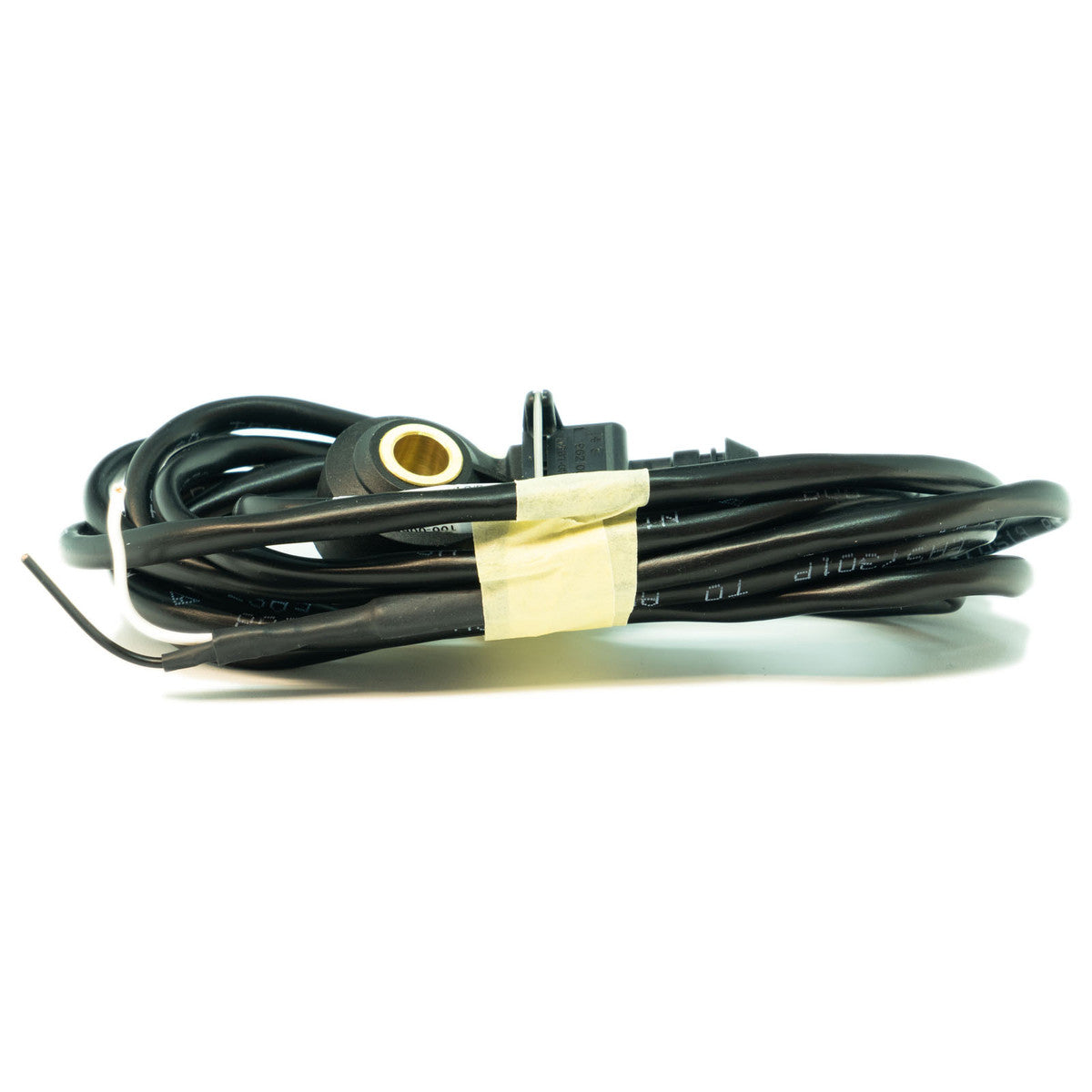

• Knock Sensor

• 2m Knock Sensor Loom

• Wiring Loom

• Mounting Bracket

Please Note

The KnockLink must use its own knock sensor and should not share the same sensor with the engine ECU.

Correct knock sensor placement and mounting are important for reliable operation.
