Ford RS Cosworth YB Ecumaster EMU Black ECU Kit with Loom, Injectors, K20 Coils & DBW Throttle

Ford RS Cosworth YB Ecumaster EMU Black ECU Kit with Loom, Injectors, K20 Coils & DBW Throttle

The Ford RS Cosworth YB Ecumaster EMU Black ECU Kit is a complete standalone engine management package designed for Ford RS / Sierra Cosworth YB engine applications.

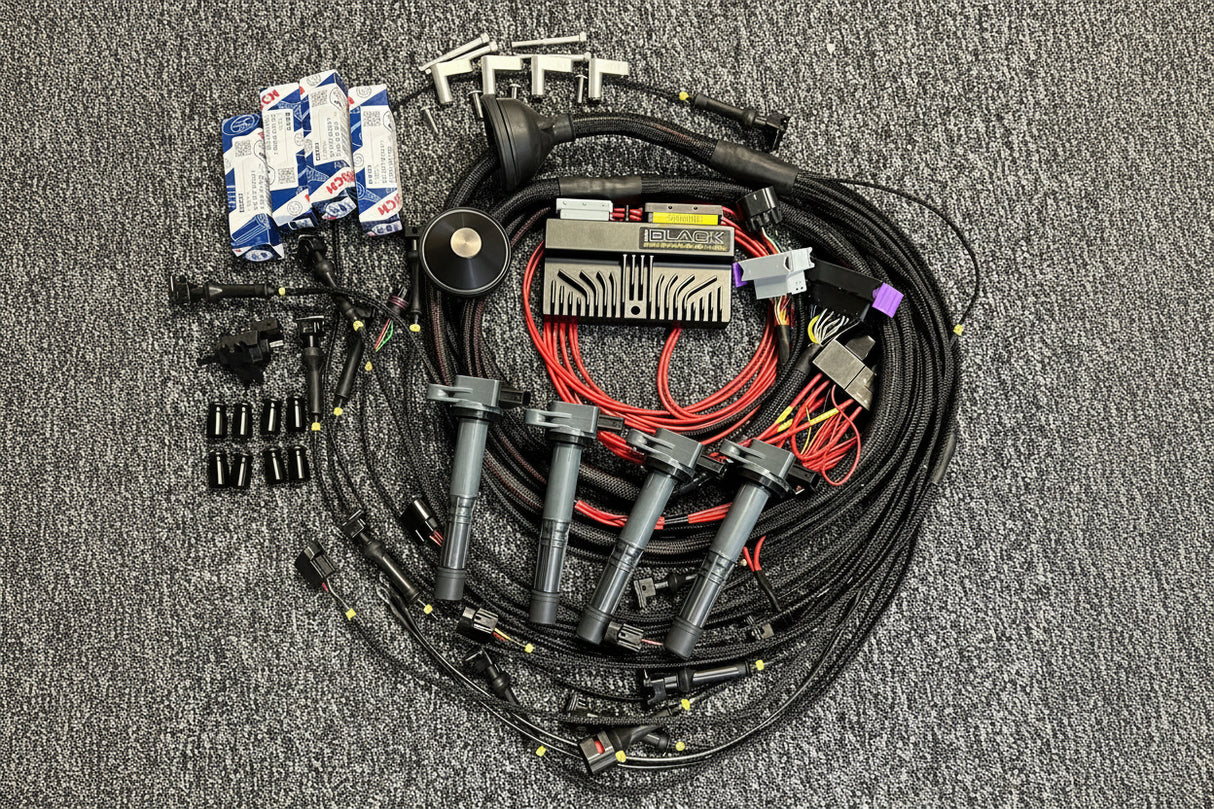

This kit includes the Ecumaster EMU Black ECU, a full handmade engine wiring loom, Bosch 1000cc multihole injectors, Honda K20 coil conversion kit, boost controller, distributor cover, and Bosch Motorsport 60mm drive-by-wire electronic throttle body.

Designed for Cosworth YB builds, conversions, and motorsport applications, this package provides a modern, reliable, and highly configurable engine management solution with a professionally built loom and key supporting hardware.

Each loom is built to order using AVSS automotive thin-wall wire, genuine TYCO and Delphi connectors, and is supplied fully braided and labelled for a professional installation.

Key Features

Complete YB Engine Management Package
Includes the Ecumaster EMU Black ECU, full engine loom, Bosch 1000cc injectors, K20 coil conversion, boost controller, distributor cover, and Bosch Motorsport DBW throttle body.

Ecumaster EMU Black Included
The EMU Black features an onboard 4 bar MAP sensor, built-in wideband lambda controller, CAN communication, drive-by-wire throttle support, boost control, flexible inputs and outputs, and advanced motorsport strategies.

Handmade Full Engine Loom
The loom is handmade to order, fully braided, labelled, and built using AVSS automotive thin-wall wire throughout.

Bosch 1000cc Injectors Included
Supplied with 4 × Bosch 1000cc multihole injectors and height adaptors.

Honda K20 Coil Conversion
Includes 4 × Honda K20 coils with mounting brackets for a modern coil-on-plug ignition upgrade.

Drive-by-Wire Throttle Included
Supplied with a Bosch Motorsport 60mm electronic throttle body.

Boost Controller Included
Includes a boost controller for ECU-controlled boost management.

Relay Block Included
The loom includes a relay block with new Panasonic micro relays and fused outputs for the engine and fuel pump. The fuel pump is controlled via an ECU-controlled relay.

CAN / OBD2 Output
Includes ISO OBD2 CAN output for connection to standard OBD2 diagnostics, tablets, and other CAN-based products such as CAN lambda modules or CAN dashboards.

Loom Connections

The engine loom includes connections for:

• Crank sensor
• Phase sensor
• 4 × injectors
• 4 × K20 ignitors / coils
• Engine coolant temperature sensor
• Intake air temperature sensor
• Throttle position sensor, wired for PF09
• Boost control valve
• Idle speed control valve
• Wideband lambda
• Knock sensor
• DBW electronic throttle
• 6-way generic pedal connector
• Fuel pressure sensor, wired for 150 PSI sensor
• ISO OBD2 CAN output
• BHP standard multiway Delphi body connector
• Spare ECU functions terminated

Included in the Kit

• 1 × Ecumaster EMU Black ECU
• 1 × Base map
• 1 × Full handmade engine loom
• 4 × Bosch 1000cc multihole injectors with height adaptors
• 4 × Honda K20 coils with mounting brackets
• 1 × Distributor cover
• 1 × Boost controller with bracket
• 1 × Bosch Motorsport 60mm electronic throttle body
• 1 × Relay block with Panasonic micro relays
• 1 × High-quality 60mm rubber grommet

Please Note

No pedal is included with this kit. The loom is supplied with a 6-way generic pedal connector.

Optional Extras

Optional additional wiring can be added to the loom, including:

• Oil pressure
• Sump pressure

Additional extras are typically priced at approximately £15 per wire. Please contact us before ordering to discuss any additions required for your loom.

Built to Order

These looms are made to order and can take up to 10-15 working days to complete.

Once purchased, please contact us to confirm the correct configuration required for your loom. This helps ensure the kit is built to suit your specific vehicle and engine setup.

Application

Full engine management kits are available for the Ford Sierra Cosworth YB engine fitted to any car. Please contact us to discuss any technical requirements not covered in the listing.

Important Notes

• Supplied with Ecumaster EMU Black ECU only
• Supplied with a base map
• No DBW pedal included
• Looms are made to order
• Customer must confirm configuration after purchase
• Professional installation and calibration are strongly recommended
• Additional sensors, wiring, and setup may be required depending on the vehicle

Motorsport Use Notice

This product is intended for performance, motorsport, conversion, and off-road applications. Installation and calibration should be carried out by a qualified professional. It is the customer’s responsibility to ensure the product is suitable and legal for their intended use and location.
