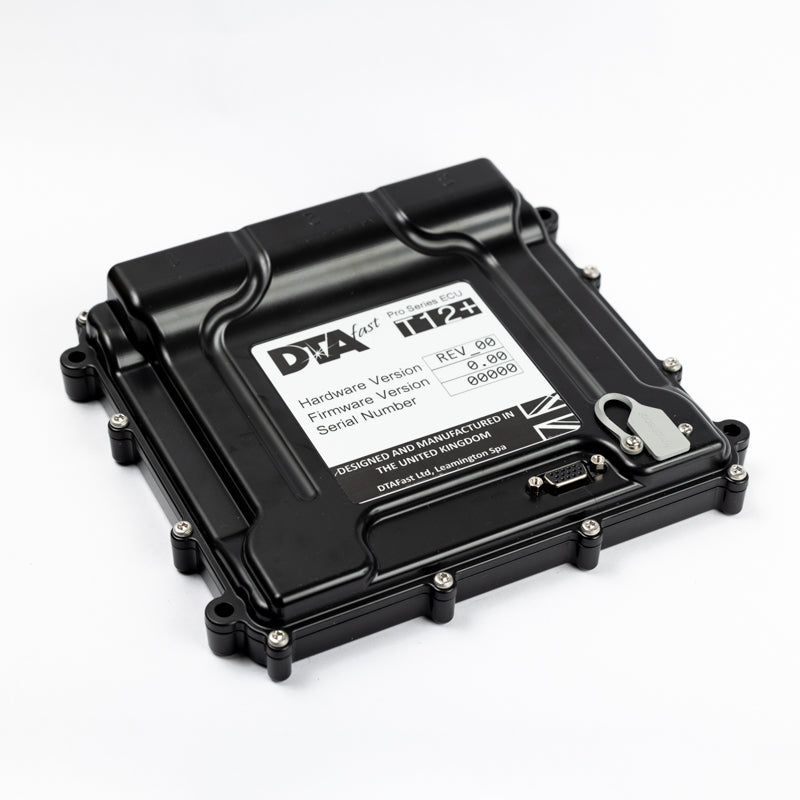

DTA T12+ Plus Standalone ECU

DTA T12+ Plus Standalone ECU

  • $2,156.00
    Unit price per
Tax included.


DTA T12+ Plus Standalone ECU

PLEASE NOTE: KNOCK CONTROL AVAILABLE FROM LATE 2022 VIA FREE FIRMWARE UPDATE

The T12+ is the big daddy in the DTA range. It’s packed with pretty much everything you’d need to run complex engines up to 12
cylinders, fully sequentially. Dual fly-by-wire, dual knock, quad variable cam, paddle shift – everything but the kitchen sink!

T-Series engine control units are powered by an all-new, automotive specific, multi-core processor. They feature Bosch lambda
controllers for maximum accuracy, multiple safety redundancies, high resolution map tables, fully configurable I/O and up to
32MB of logging at up to 500 Hz with compression algorithms for fast log downloads. The PC software has a user-friendly, responsive
design for better readability on high resolution monitors using high scaling (DPI). It features a full oscilloscope for
crankshaft/camshaft signal analysis and allows firmware to be upgraded without special cables or separate software.

Highlights

Paddle-shift control

Dual knock & fly-by-wire control

Dual wideband Lambda control

Quad variable cam control

12 cylinders fully sequential

37 inputs

42 outputs

10 control strategies

IP67 extruded aluminium case

Product features

Inputs

Analogue (0-5v)

16

Digital

9

Thermistor (NTC)

3

Wheel Speed

4

Wideband Lambda

2

Knock


Outputs

Digital (PWM)

12

Coil Drivers

12

Injector Drivers

12

Cam Solenoid Drivers

4

H-Bridge (FBW) Drivers


Control Strategies

Auxiliary PWM Control

Pit Limiter

Launch Control

Flat-shift Control

VTEC Control

Boost Control

Idle Control

Wideband Lambda

dual

Variable Cam Control

quad

Traction Control

Wet/Dry Traction

Fly-by-wire Control

dual

Knock Control

dual

Paddle-shift Control


Communications

USB

For PC connection

Serial

For dyno box connection

CAN bus

For communication with

dashboards, power

distribution modules,

dataloggers etc

Miscellaneous

Dimensions

188x176x25-42mm

Weight

945g

Material

billet aluminium

Ingress Protection

IP67

Hardware Upgradeable

What more could you need!?
