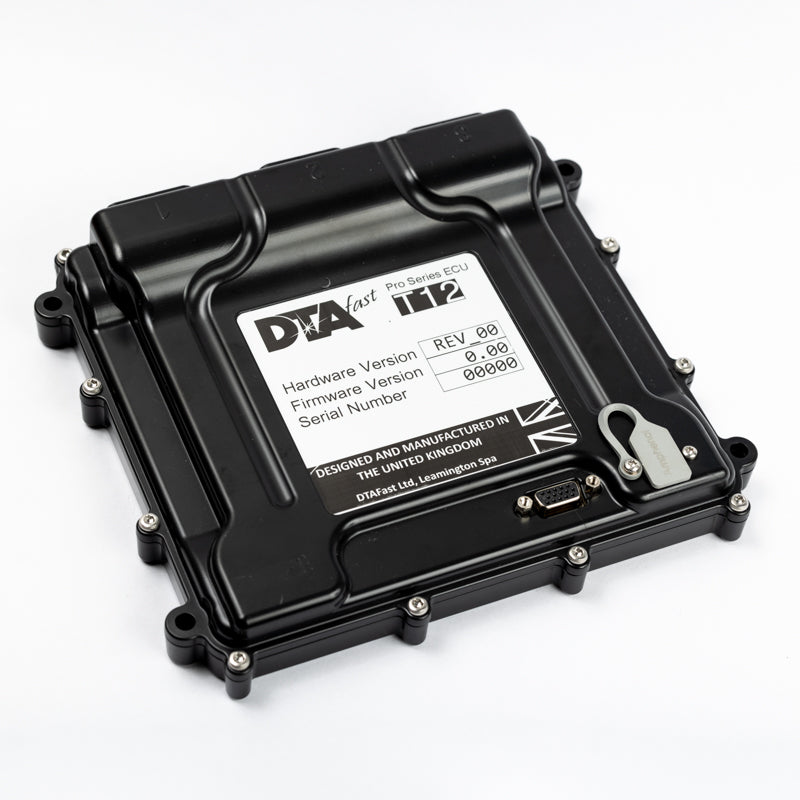

DTA T12 Standalone ECU

DTA T12 Standalone ECU

  • $1,846.00
    Unit price per
Tax included.


DTA T12 Standalone ECU

The T12 is ideal for more advanced V engines. It can run up to 12 cylinders fully sequentially, features quad variable cam control,
paddle shift and has more I/O than you can shake a stick at!

T-Series engine control units are powered by an all-new, automotive specific, multi-core processor. They feature Bosch lambda
controllers for maximum accuracy, multiple safety redundancies, high resolution map tables, fully configurable I/O and up to
32MB of logging at up to 500 Hz with compression algorithms for fast log downloads. The PC software has a user-friendly, responsive
design for better readability on high resolution monitors using high scaling (DPI). It features a full oscilloscope for
crankshaft/camshaft signal analysis and allows firmware to be upgraded without special cables or separate software.

Highlights

Paddle shift control

Dual wideband Lambda control

Quad variable cam control

Up to 12 cylinders fully sequential

35 inputs

40 outputs

10 control strategies

IP67 extruded aluminium case

Product features

Inputs

Analogue (0-5v)

16

Digital

9

Thermistor (NTC)

3

Wheel Speed

4

Wideband Lambda

2

Knock


Outputs

Digital (PWM)

12

Coil Drivers

12

Injector Drivers

12

Cam Solenoid Drivers

4

H-Bridge (FBW) Drivers


Control Strategies

Auxiliary PWM Control

Pit Limiter

Launch Control

Flat-shift Control

VTEC Control

Boost Control

Idle Control

Wideband Lambda

dual

Variable Cam Control

quad

Traction Control

Wet/Dry Traction

Fly-by-wire Control

Knock Control

Paddle-shift Control


Communications

USB

For PC connection

Serial

For dyno box connection

CAN bus

For communication with

dashboards, power

distribution modules,

dataloggers etc

Miscellaneous

Dimensions

188x176x25-42mm

Weight

945g

Material

billet aluminium

Ingress Protection

IP67

Hardware Upgradeable

To T12+
