The Link G4X BMW E36X Plug-In ECU gives you modern standalone engine management while retaining the convenience of a genuine plug-in ECU.

Designed specifically for BMW E36 models fitted with the M50TUB25 engine and Bosch M3.3.1 ECU, the E36X fits directly into the factory ECU location using the original mounting points, wiring loom and connectors.

No replacement engine loom or adaptor harness is required. The ECU is designed to work with the factory wiring while retaining supported original vehicle functions and maintaining a clean, factory-style installation.

A startup map is included to help get the engine running ready for final setup and calibration.

The E36X uses the same processor, firmware and PCLink software as the rest of the Link G4X range and includes the full standard G4X feature set.

Suitable Applications

The E36X is compatible only with:

• BMW E36

• M50TUB25 engine

• Bosch M3.3.1 ECU

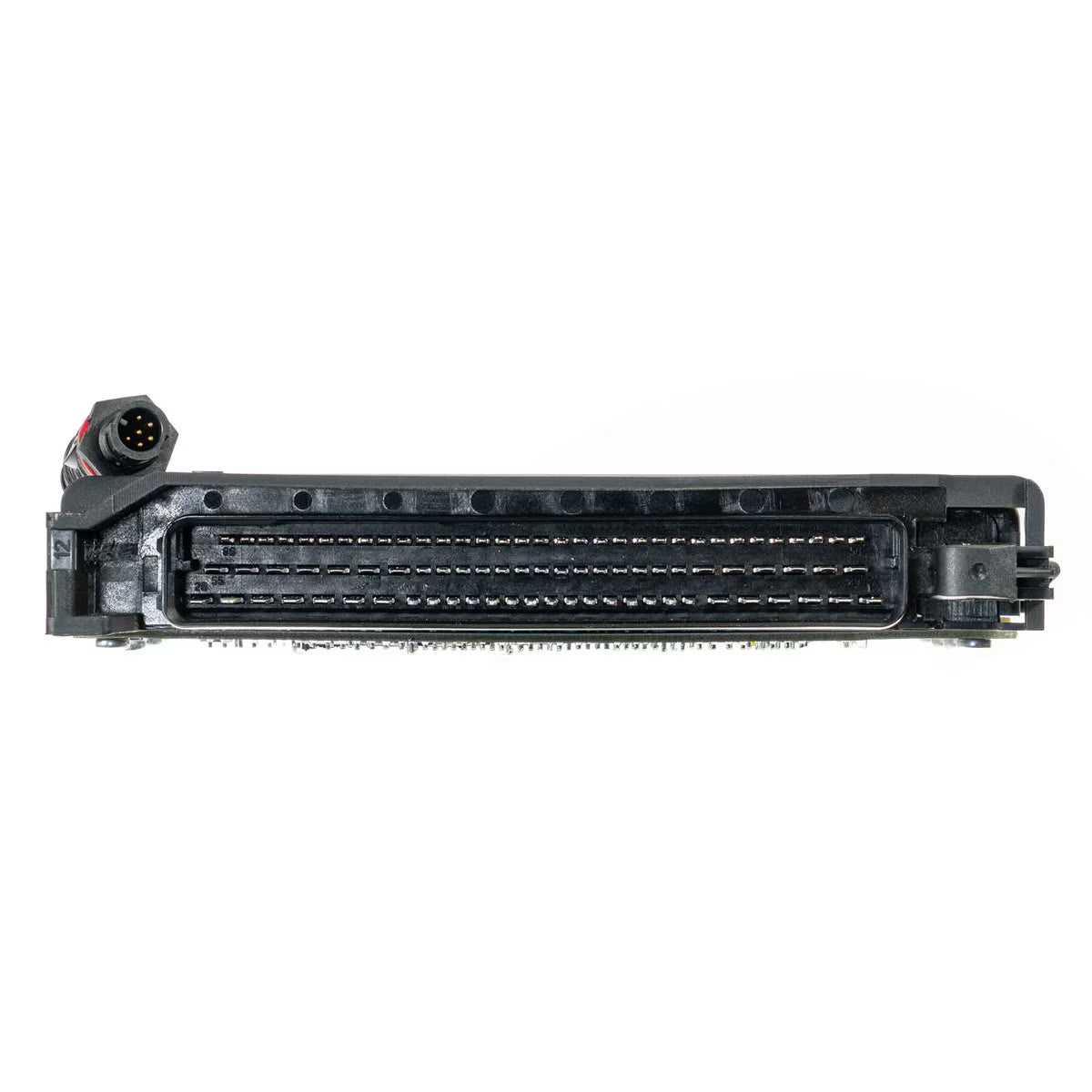

Please check your original ECU connector arrangement against the ECU header shown in the product photos before ordering.

Important Compatibility Information

• Suitable for manual transmissions

• Suitable for automatic transmissions

• Built-in MAP sensor

• Most factory features are supported

• E-Throttle requires ECU modification before it can be used

We can carry out the required E-Throttle modification in-house if needed.

G4X E36X Features

• Dual CAN Bus

• Flex Fuel

• Trigger Oscilloscope

• 3 Axis Accelerometer

• Selectable Temperature Input Pull-ups

• Flexible Engine Protection Limiters

• CAN Keypad Control

• VVT Control

• Open Loop Boost Control

• Closed Loop Boost Control

• Dual Closed Loop Lambda

• Direct Automatic Transmission Control

• Compatible with leading aftermarket displays via CAN or serial stream

• 512MB Internal Data Logging

• Built-in MAP sensor

E-Throttle Control

The E36X supports E-Throttle control, but the ECU requires a modification before E-Throttle can be used.

Please contact us if you require the ECU to be modified for E-Throttle before dispatch.

Motorsport Features

• Nitrous Control

• Launch Control

• Anti-Lag

• Cruise Control

• Traction Control

• Race Timer and Power Management

• Gear Shift Control

• Paddle Shift Control

Inputs and Outputs

For the complete list of available inputs and outputs, please refer to the Link E36X Installation Manual.

Communications

• 2 CAN Bus Channels

• LTW 6-Pin USB Tuning Connection

Dimensions

Length: 190mm
Width: 160mm
Height: 30mm

Weight

260g

Electrical Specification

Operating Voltage Range: 6.5V to 24V
Maximum Input Voltage: 36V
Maximum Continuous Current Draw: 8.5A

What's Included

• Link G4X BMW E36X Plug-In ECU

• Anti-static strap

• USB tuning cable

• Link stickers

• Plug-In manual card

• Product registration card

Please Note

The ECU is supplied with a startup map to assist with initial setup. This is not a finished vehicle calibration.

Professional setup and tuning are recommended before the vehicle is driven under load.
