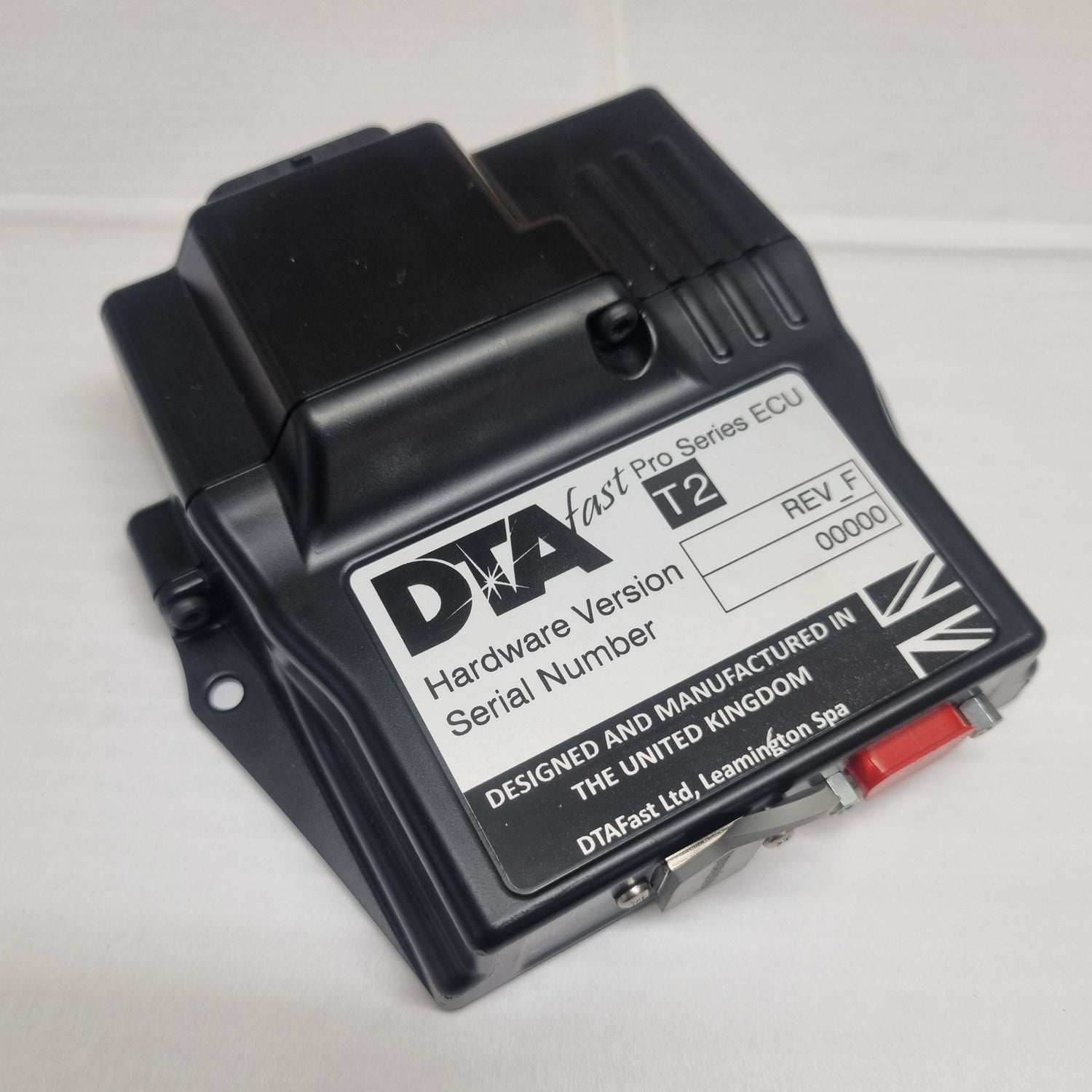

DTA T2 Standalone ECU

DTA T2 Standalone ECU

  • $920.00
    Unit price per
Tax included.


DTA T2 Standalone ECU

The T2 is a full management ECU which is ideal for 4-cylinder engines that have no requirement for more advanced features such
as continuously variable camshaft control, traction control etc.

It features closed loop flat-shift, launch control, VTEC control and full, closed-loop wideband lambda control.

T-Series engine control units are powered by an all-new, automotive specific, multi-core processor. They feature Bosch lambda
controllers for maximum accuracy, multiple safety redundancies, high resolution map tables, fully configurable I/O and up to
32MB of logging at up to 500 Hz with compression algorithms for fast log downloads. The PC software has a user-friendly, responsive
design for better readability on high resolution monitors using high scaling (DPI). It features a full oscilloscope for
crankshaft/camshaft signal analysis and allows firmware to be upgraded without special cables or separate software.

Highlights

Wideband Lambda control

Up to 4 cylinders

13 inputs

8 outputs

5 control strategies

IP67 extruded aluminium case

Product features

Inputs

Analogue (0-5v)

6

Digital

2

Thermistor (NTC)

2

Wheel Speed

1

Wideband Lambda

1

Knock


Outputs

Digital (PWM)

4

Coil Drivers

2

Injector Drivers

2

Cam Solenoid Drivers

0

H-Bridge (FBW) Drivers


Control Strategies

Auxiliary PWM Control

Pit Limiter

Launch Control

Flat-shift Control

VTEC Control

Boost Control

Idle Control

Wideband Lambda

single

Variable Cam Control

Traction Control

Wet/Dry Traction

Fly-by-wire Control

Knock Control

Paddle-shift Control


Communications

USB

For PC connection

Serial

For dyno box connection

CAN bus

For communication with

dashboards, power

distribution modules,

dataloggers etc

Miscellaneous

Dimensions

129x108x48mm

Weight

526g

Material

extruded aluminium

Ingress Protection

IP67

Hardware Upgradeable

No
