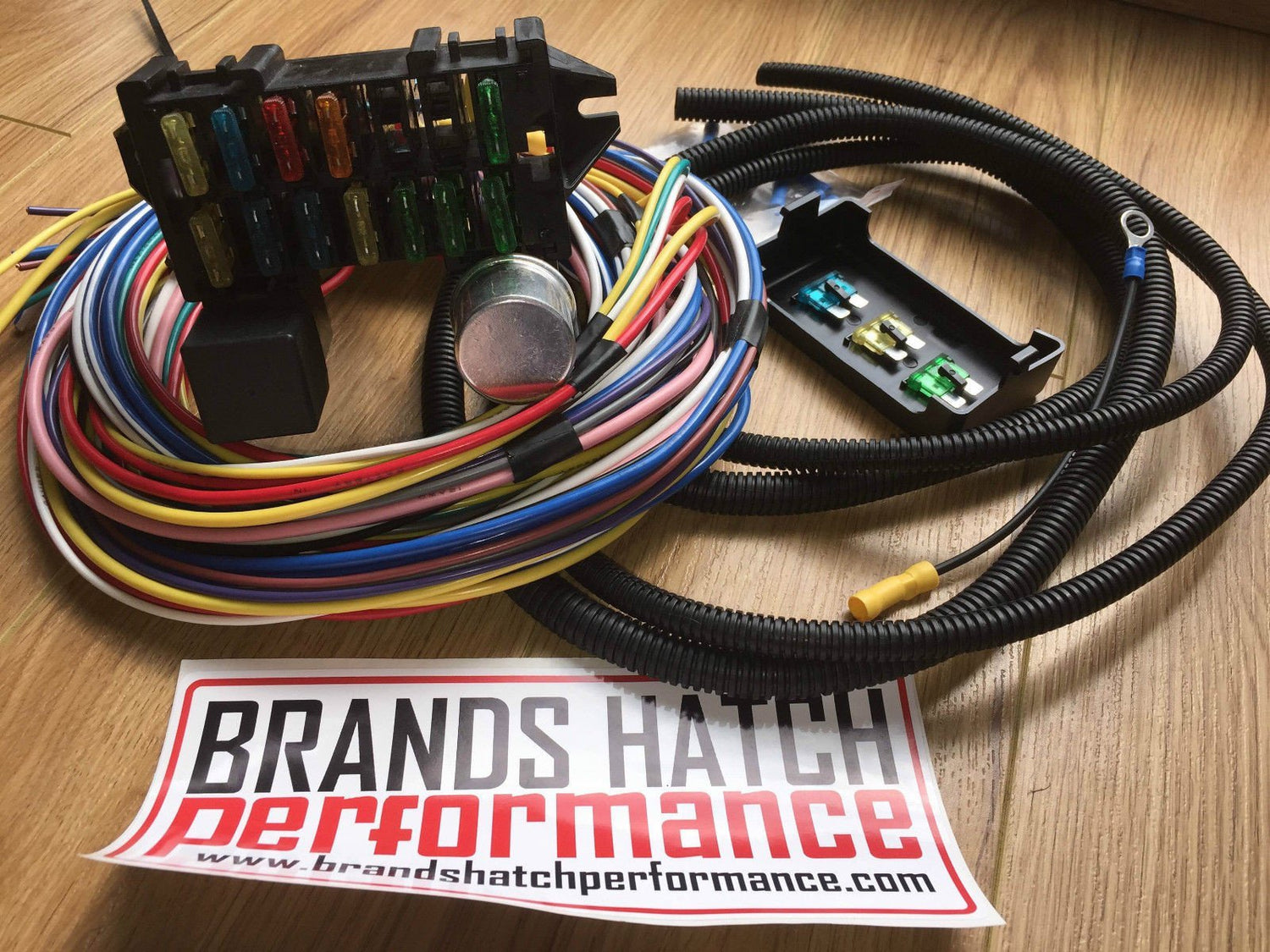

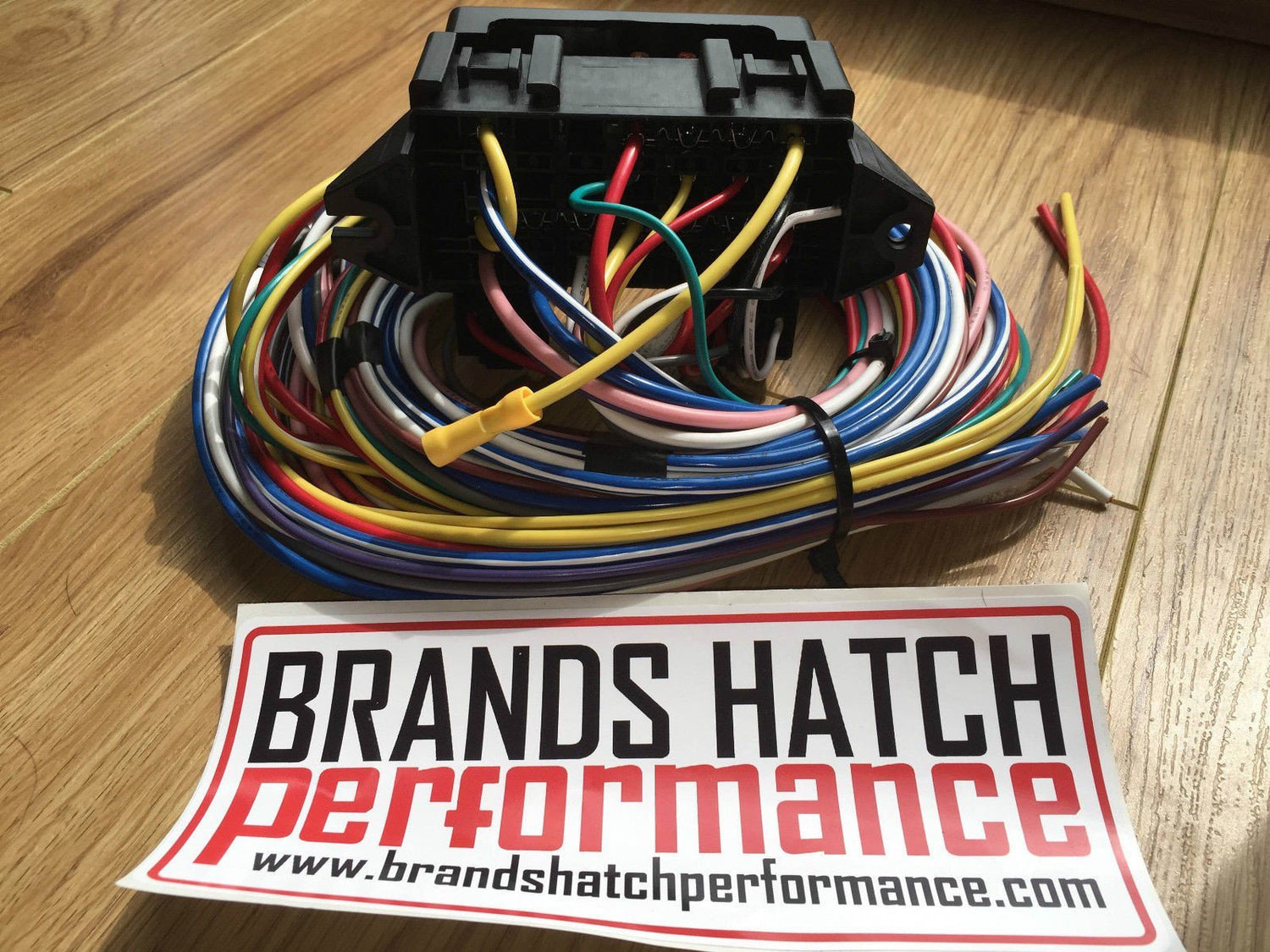

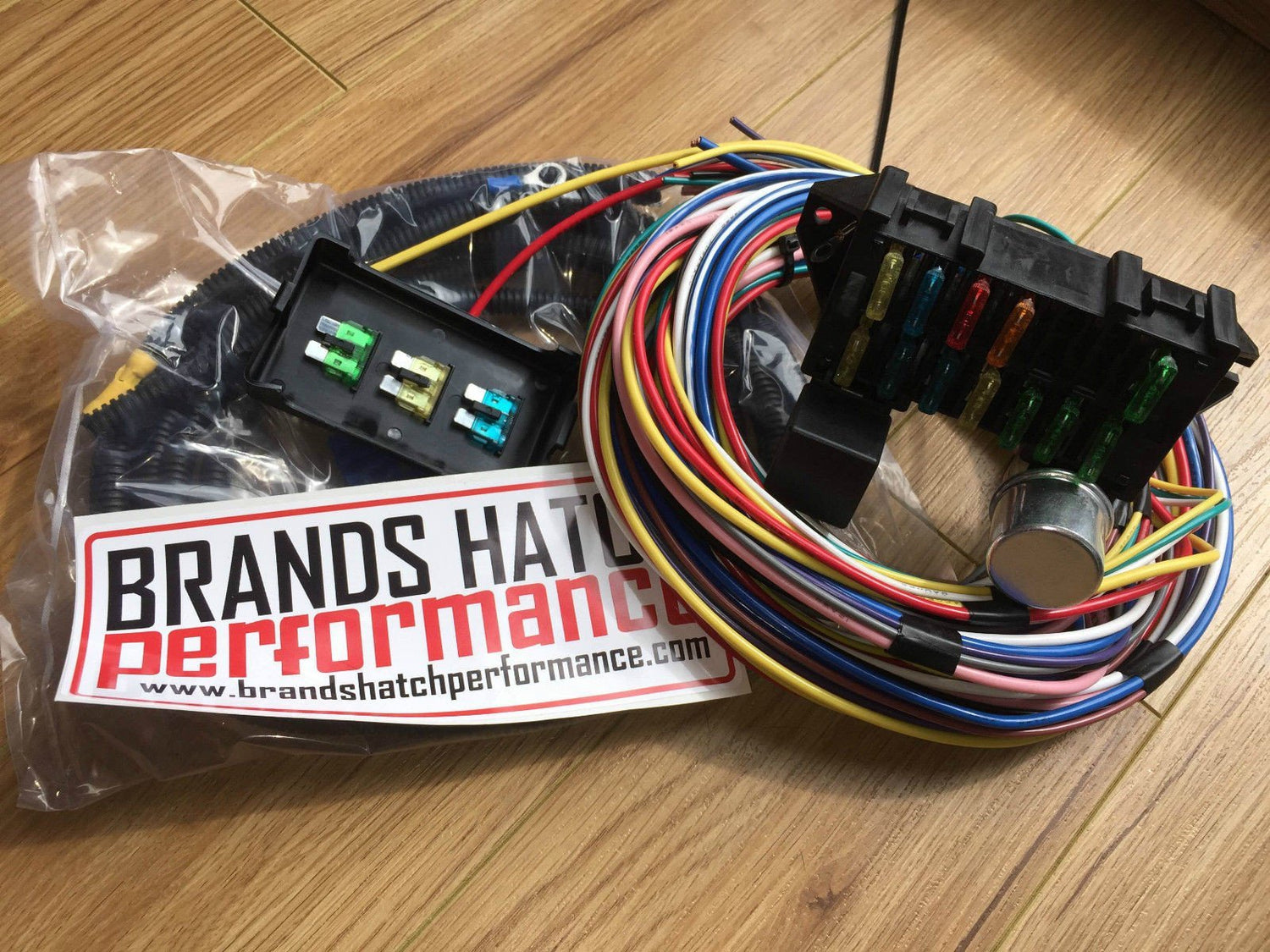

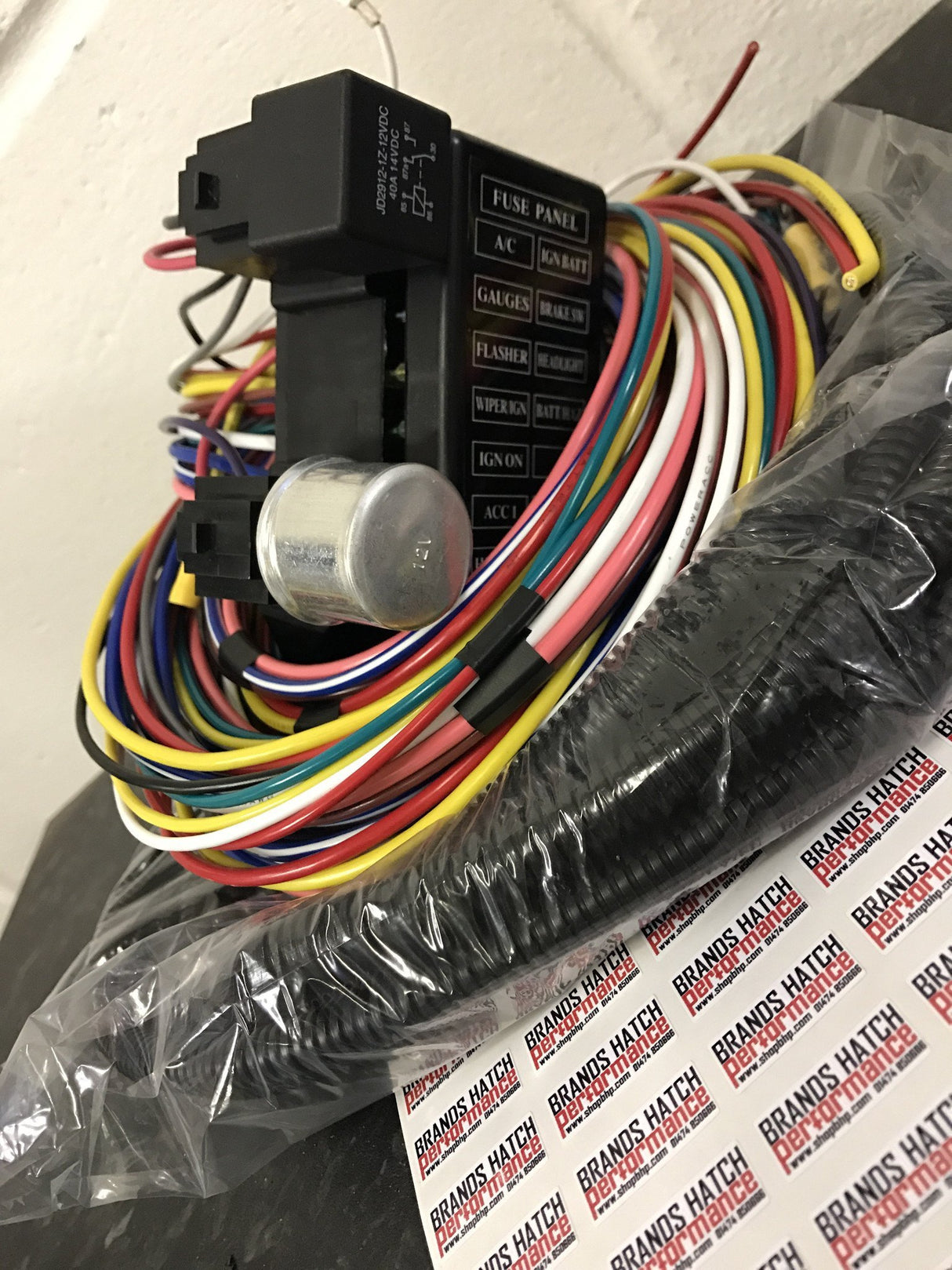

12 Circuit Classic Car / Kit Car Wiring Loom inc Fuse Box, Relay and Flasher

I have fitted these to Mk1 / Mk2 Escorts, Mk1 Cortinas and various other old fords, great way to bring your wiring up to date and get rid of all the associated problems with vintage looms

Really easy to install and has 2 spare circuits with relay positions, I use these when I run engine management to keep everything nice and neat.

Uses high quality wire which are 2.8M in length. Every wire is labelled every 600mm to make install easier.

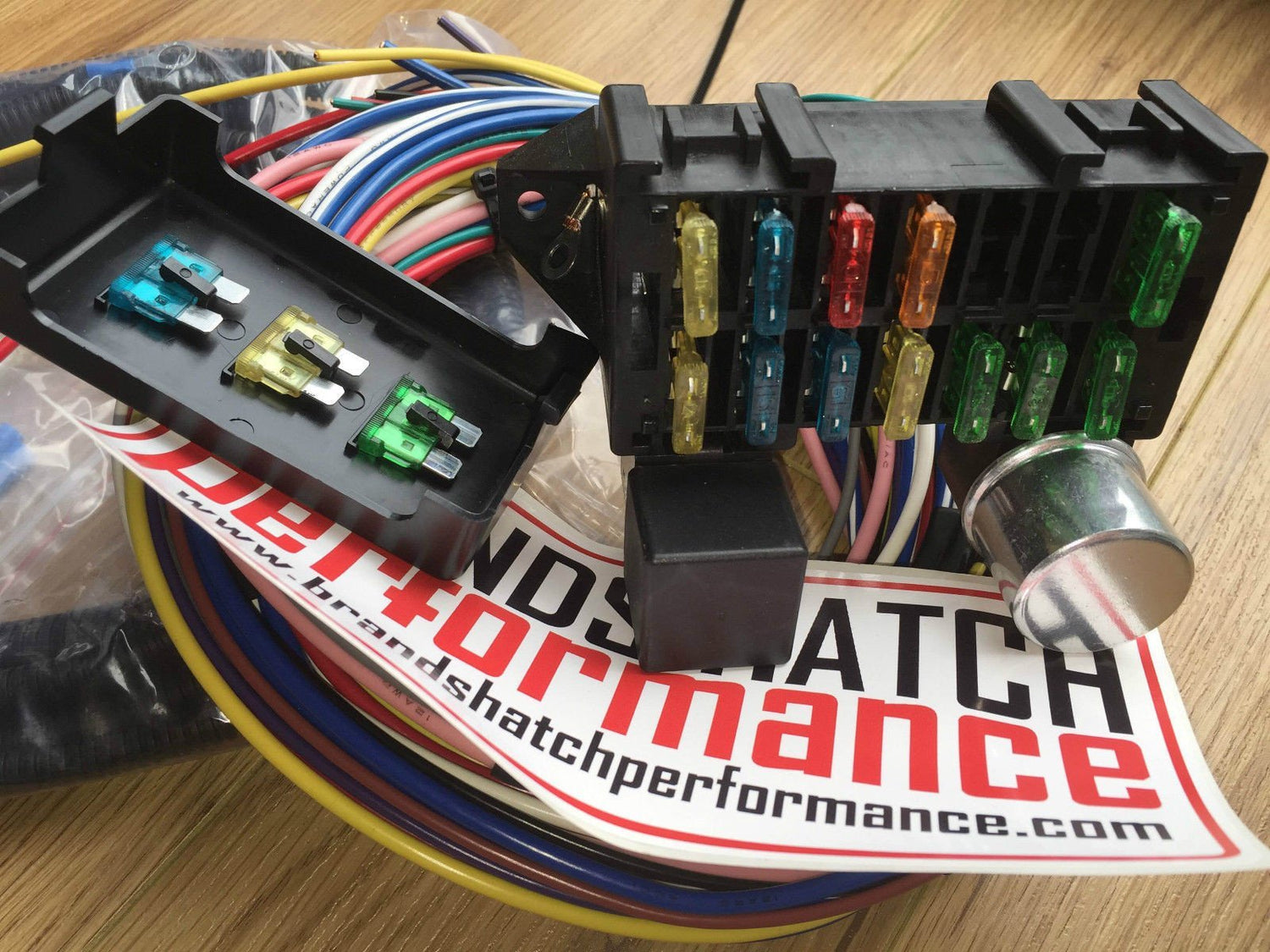

Also comes with a small 14 way fuse box that can be mounted pretty much anywhere in the car.

Includes:

• 12 Fused Circuits / 2 Spare(For ECU?)
• 14 Circuits total
• 12 Pre-wired Terminals
• Labelled Wire
• Colour Coded
• Flame Resistant Fibre Wire JacketÊ
• Fuse Cover with 3 Spare Fuses
• Built in Flasher
• Built in Relay
• Extra Wire
• Plug n Play Technology
• High Quality Flame Resistant Wire

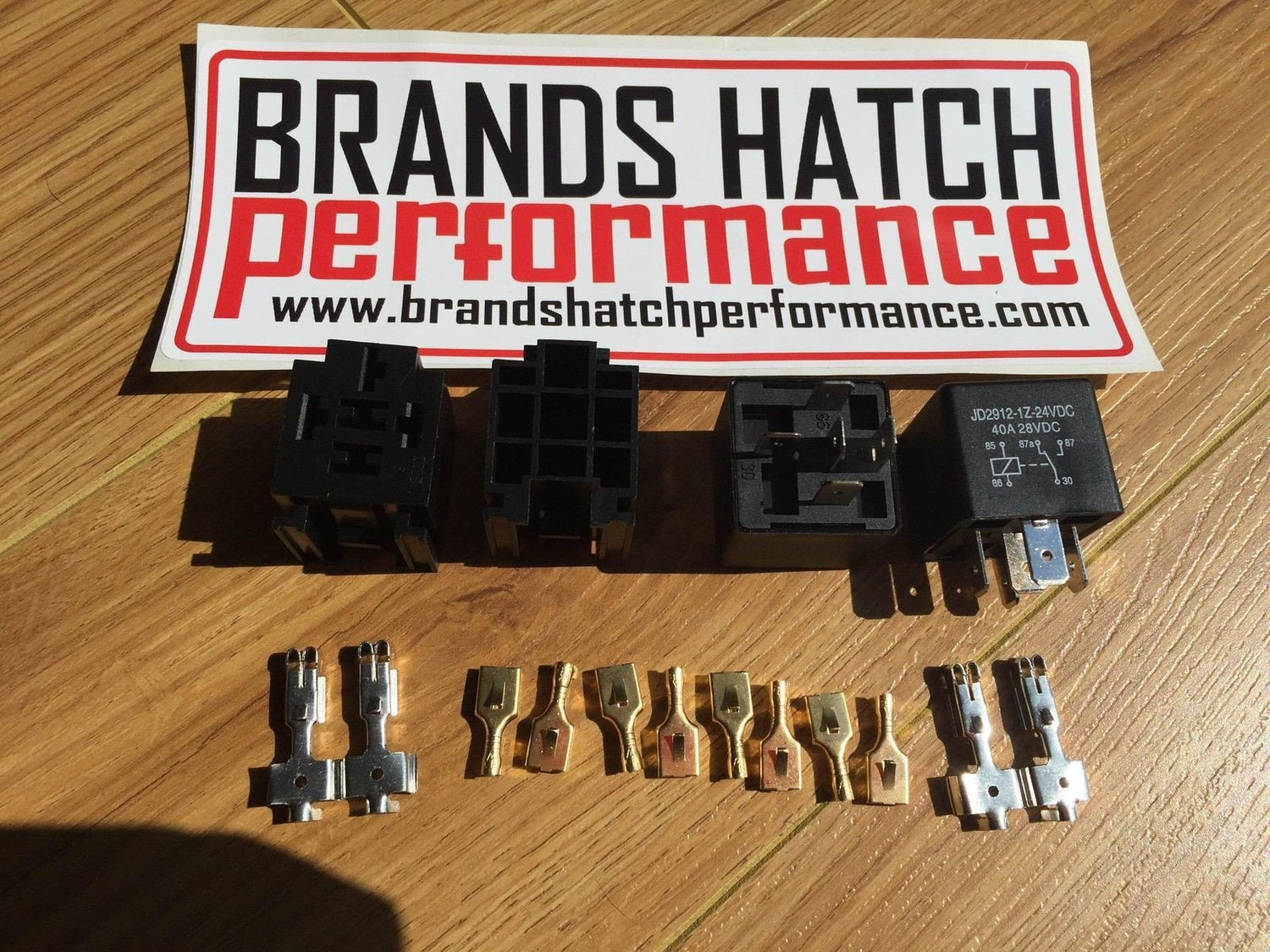

We also sell the upgrade for the Spare Circuits, which includes 2 40A Max Relays, 2 Relay holders and all the terminals to connect them (fuse and relay)

Wiring Diagram Available here:

12 Circuit System Install Guide
