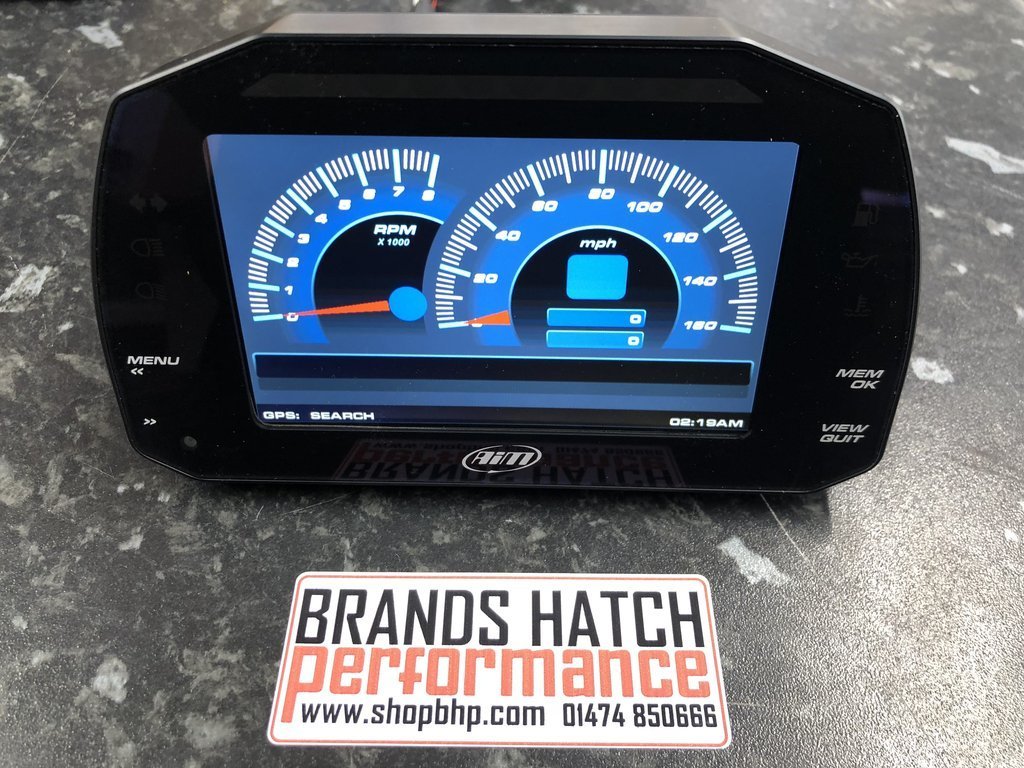

Aim Motorsport MXS 5" TFT Strada 1.3 IVA Compliant Plug and Play Dash Display Kit - CAN

  • £1,440.00
    Unit price per
Tax included.

 Aim Motorsport MXS 5" TFT Strada 1.3 IVA Compliant Plug and Play Dash Display Kit - CAN

The MXS 1.3 Strada IVA compliant digital dash display is a complete road legal display solution for OEM kit car and race builders.


Key Features :

5” Compact TFT Display

10 Shift Light RGB LEDs

Can Output

6 Alarm RGB LEDs

8 Analogue Inputs

Configure data.

What’s in the Box?

  • MXS 1.3 Strada 1.2
  • USB Cable
  • 14 Pin Standard Wiring
  • IVA Loom
  • AiM Sticker


  • Display : 5" TFT
  • Resolution: 800 x 480 pixels
  • Contrast: 600:1
  • Brightness: 700cd/m2 - 1,100 Lumen
  • Ambient Light Sensor: Yes
  • Alarm LEDs: 6 RGB freely configurable
  • Shift Lights: 10 integrated freely configurable RGB LEDs
  • CAN Connections: 2
  • ECU Connections: CAN, RS232 or K-Line
  • ECU Compatibility: +1000 industry-leading ECUs
  • Expansion CAN Connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
  • Analogue Inputs: 8 fully configurable, max 1000 Hz each
  • Digital Inputs: 1-speed input, coil RPM input
  • Digital Outputs: 1 (1 A max)
  • Second CAN: Yes
  • Body: Anodized Aluminium
  • Pushbuttons: Metallic
  • Connectors: 2 AMP connectors + 1 Binder connector
  • Power Consumption: 400 mA
  • Dimensions: 169.4 x 4 x 97 x 23mm
  • Weight: 480g
  • Waterproof: IP65

The MXS 1.3 Strada is one of our most widely used dashes on tracks and roads all over the world. The MXS 1.3 Strada has a 5" colour TFT display that offers a great visual impact. You can configure the dash to show all the information coming from the ECU, analogue /digital inputs, predefined math channels and an optional GPS Module.

The MXS 1.3 Strada is available with a choice of connection. Choose either the OBDII or K-Line CAN, depending on whether you want to connect to the vehicles ECU or OBDII port or directly to the ECU through the CAN channel.

Easy Connection

Connecting the MXS 1.3 Strada dash to your ECU is simple. You can sample and display dozens of channels straight from the vehicles ECU. This is usually the quickest and easiest setup, needing only 2 cable connections to the ECU instead of multiple connections to analogue sensors.

As well as the standard 14 pin wiring loom included in the kit with a choice of CAN or OBDII, K-Line the kit also comes with an additional 23 pin loom which has pre-configured connections for all the main relevant electrical items in your vehicle such as oil, temperature, fuel level, sidelights, hazards, front and rear fog, handbrake, main beam, dipped beam and left and right-hand indicator. A speed sensor is also included in the kit to connect to this additional loom.

Digital Outputs

The MXS 1.3 Strada features 1 AMP digital output configurable to be activated/deactivated depending on the value of the analogue /digital inputs or on the impulses coming from the ECU. This allows you to automatically run external systems, such as switching on/off additional lights, to activate/deactivate a cooling fan or circulation pumps when a certain event happens.

With CAN Output you can send messages directly to an existing  CAN network to improve the range of vehicle control possibilities.


The MXS 1.3 Strada has a 5" TFT high contrast colour display. The visual quality is optimized by the ambient light sensor which keeps the backlight at the best brightness levels

Pre-configured Pages

The MXS 1.3 Strada shows the RPM scale and all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can custom pages to suit your requirements, including up to four additional fields. Define what data is shown with the end of scale and measure units. Swapping between the pages is easy just use the pushbuttons.

Flexible Shift Light & Alarms

The ten multi-coloured RGB shift lights can be customized to your liking, defining the RPM threshold on analogue or digital inputs, ECU values, expansion values, math channels or optional GPS option. You can choose the conditions and colours, select a solid arm or flashing one, also the flashing frequency. You can also configure an accompanying text message and set the alarm priorities.

Camera Inputs

Two analogue camera inputs are available, to switch your display into a mirror camera, through pushbutton command or event management. The camera is sold separately.

Pin Harness

The MXS 1.3 Strada has a choice of ECU connection. Choose between the OBDII or K-Line CAN. Depending on whether you want to connect to the vehicles ECU using the OBDII port or directly to the ECU through the CAN channel.
