Audi 2.7 RS4 S4 (B5 engine) ECUMASTER EMU Black ECU & Plug and Play Adaptor

  • £1,270.40
    Unit price per
Tax included.


The EMU Black  stand-alone engine management system is designed to operate the most advanced and complex engines available. It is a successor of our proven system, EMU. Throughout EMU’s lifetime we collected lots of data that allows us to substantially improve the device hardware and software.

EMU Black targets race cars, road cars, motorcycles, boats, and stationary engine applications.

The EMU Black controls fueling, ignition and auxiliary systems on 1-12 cylinder engines including those with drive-by-wire throttles (E Throttle) and VVT.

It can drive up to 6 passive or 12 smart coils directly and does not require external amplifier/power modules to achieve this. Sophisticated drive-by-wire strategies provide a wide range of throttle control along with advanced plausibility (fault/error) checking for safety.

Free, easy to install firmware upgrades further improve system capabilities (e.g. new strategies, trigger patterns, CAN data streams).

The EMU Black features more built-in value than any other aftermarket ECU. It easily matches the functionality of other stand-alone management systems with multiple inputs and outputs. Unlike many other ECU systems, the EMU Black has built-in wideband lambda input (Bosch LSU 4.2, and LSU 4.9 sensors wire directly in), MAP control connector (4 bar MAP sensor on board), 2 EGT probe inputs and an input to directly connect a Flex Fuel ethanol content sensor. All of this provides greater flexibility, reduces costs and negates the requirement for external or supplemental signal conditioning control systems and the associated wiring that other management systems require.

Whats Included!

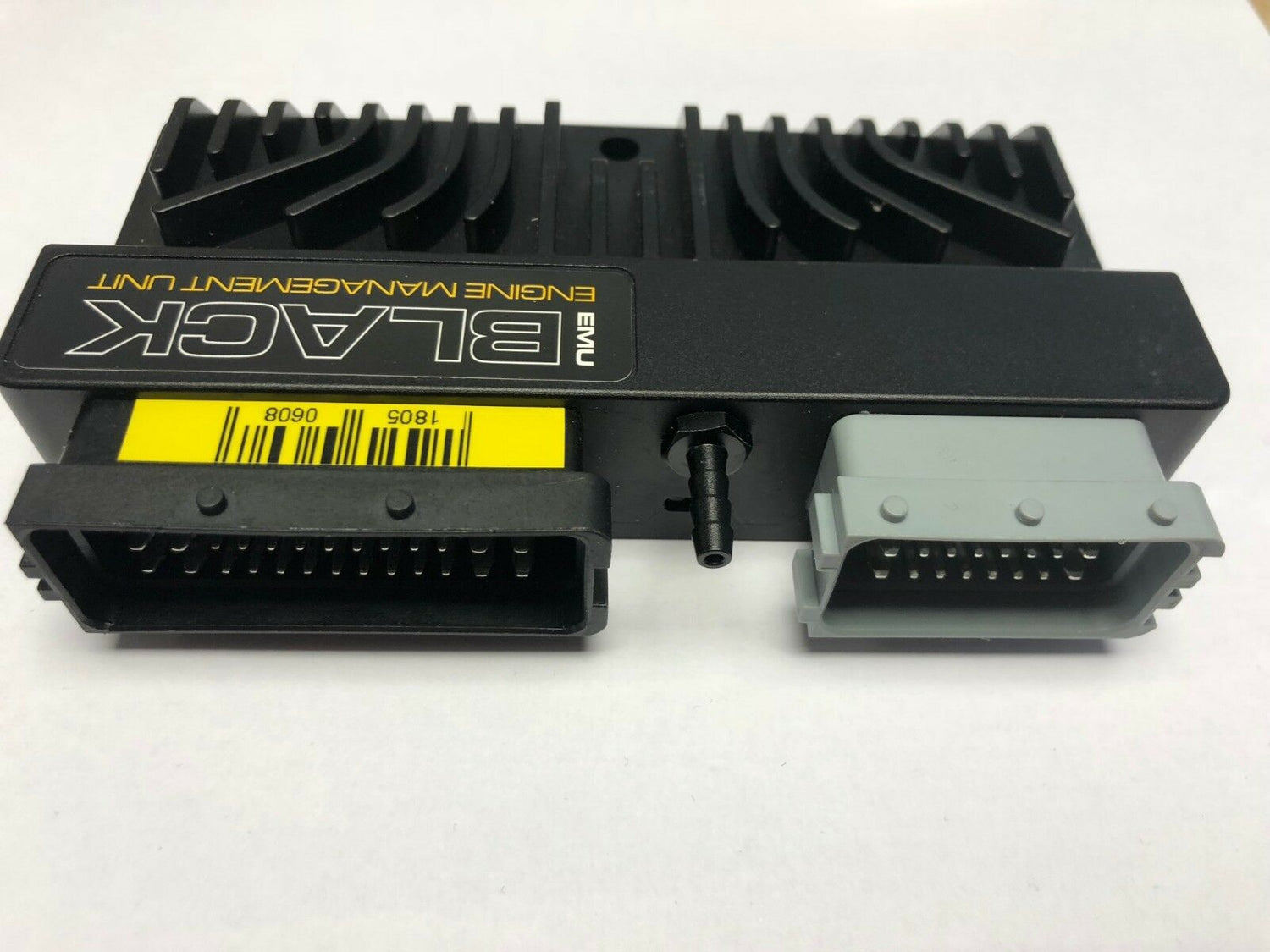

Emu Black ECU

Adapter ( Interconnector) for AUDI RS4 / S4 - B5 engines

Tuning Cable

Added Extra:

Bosch 4.9 Short Lambda Sensor + Connector +£110

TECHNOLOGY

The EMU Black is assembled according to IPC-S-815A standards to ensure high reliability of the product. The device is manufactured on an automated assembly line with optical inspection, automatically tested including burn-in. The PCB board quality and design, special surface coating and IP65 enclosure keeps the device operational in the harshest environments. The components used allow continued operation in a very wide temperature range (AECQ-100 GRADE 2 (-40 to +105˚C).

SPECIFICATION

GENERAL

Temperature range AECQ100 GRADE2 (-40 to +105˚C)
Reverse battery protection Yes, internal
Operating voltage 6-22V, immunity to transients according to ISO 7637
Enclosure IP 65, custom CNC machined aluminium
Size (mm) and weight(g) 150x72x31, 390
Connectors 1 x 24, 1 x 39 FCI Automotive connector
PC communication USB (with PC client software), serial, CAN

OUTPUTS

Injector outputs 6 protected outputs 5A, low side
Ignition outputs 6 outputs 7A(15A peak) (passive & active coils supported)
Aux outputs 6 protected outputs 5A, low side
Other outputs Full bridge up to 7A, can be used as separate outputs or 2 H-Bridges
WBO heater Protected low side up to 5A
Communication Serial, CAN BUS 2.0B

INPUTS

Analog inputs 9 inputs, resolution 10Bits, 0-5V (protected)
EGT inputs 2 for K-Type thermocouple
Knock sensor 2 inputs
Oxygen sensor LSU 4.2, LSU 4.9 or Narrow band
Trigger inputs 3 (primary, 2 cams) Hall/ VR software selectable
VSS 1 (Hall / VR)
Flex Fuel Sensor Yes
Switch inputs 3 inputs, switched to ground

SENSORS

Temperature sensors IAT, CLT, Oil temperature, AC evap temperature
Pressure sensor MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor, Back pressure
Oxygen sensor LSU 4.2 or 4.9 (built in controller), Narrow band, external WBO controllers
Speed Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated)

FUELING

Injectors Up to 8 HiZ injectors (sequential)
Injection angle control 0-720 deg, start or end of injections
Battery compensation User defined, wizard for popular injectors
Fueling strategies VE based speed density, Alpha N
Air charge temp. Based on IAT and CLT
VE table 2 tables 16×20 (Load x RPM), resolution of 0.1%
Individual cylinder trim Yes
Staged injection Yes
Additional correction Oxygen sensor corrections, EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensor
Lambda based real time correction Using Lambda target table
Acc. / Deceleration enrichment Yes

IGNITION

Ignition outputs 6 for passive and active coils (software selectable)
Supported triggers N-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ, Wrangler
Ignition angle table 2 tables 16×20 (Load x RPM), resolution of 0.5 Deg
Per cylinder trim Yes
Dwell time battery compensation Used defined,  wizard for popular coils
Odd fire compatibility Application dependent
Additional correction CLT, IAT, TPS vs MAP, Nitrous,  Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichment

KNOCK SENSING

Channels 2
Resonant frequency range 1-20kHz, 3rd order AAF
Sampling Ignition event driven, knock window
Actions Ignition retard, fuel enrichment, dashboard indication

IDLE CONTROL

Control type PWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar),  ignition cut, fuel cut
Control strategy Open / Close loop , ignition angle control
VE correction Yes, for Alpha-N
Corrections AC clutch, coolant fan, analog input

BOOST CONTROL

Boost ref  and target tables 2 sets 10×10 (TPS vs RPM)
Control strategies Open / Closed loop (PID based)
Corrections Gear, VSS, IAT, EGT

DRIVE BY WIRE

Control strategy Advanced 3D PID + static friction compensation
Supported throttles All with DC motor and current requirement lower than 6.5A



Wizard for 28 popular electronic throttles

PPS to throttle position characteristic 3D table
BLIP support Yes
ALS support Yes

TRACTION CONTROL

TC strategy Delta RPM, gear compensation
Torque reduction Spark cut using 3D table (16×20)
Sensitivity control 10 position rotary switch

VARIABLE VALVE TIMING

Supported systems VVTi, MiVec, VANOS, Double Vanos
Number of camshafts 2
Control strategy PID based closed loop, CAM angle target tables 12×12

FLEX FUEL

Ethanol content measurement Yes
Fuel temperature measurement Yes
Tables blending VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup
Fuel temperature PW correction Yes

SPORT

ALS 2 independent ALS setting, DBW support
Shift light Per gear shift light
Launch control Yes
Gear cut Yes (Open loop), DBW blip supported



Source: Switch, load cell, CAN

Pit limiter Yes
Rolling anti lag Yes

ENGINE PROTECTION

Fail safe values for critical sensors Yes
Dashboard indication of failures Yes, user defined
Over temperature engine protection Yes (oil and coolant), user defined, RPM limit
Low oil pressure protection Yes, user defined, shut off
Fuel pressure protection Yes, fuel dose compensation, RPM limit, engine shut off
High exhaust temperature Alarm, per cylinder fuel trim, boost limit

CAN BUS

CAN standard 2.0B 125, 250, 500, 1000 kbps
Supported CAN Dashes ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM
Supported OEM CAN streams BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST, EVO X (AYC support)

OTHER

Unused injection outputs can be used as AUX output Yes
Output functions Fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output,  AC clutch, main relay, speedometer, tachometer
Password protection Yes, 2 levels
Timers Fuel, Ignition, Boost, timers controlled by virtual outputs
Serial dashboard support AIM, RaceTechnology
Autotune Yes
Built in trigger scope Yes
Logging Real time logging to PC computer, logging on external loggers (serial / CAN)
