FORD 1.6 8V Crossflow Xflow Wossner Forged Pistons & Rods Set

FORD 1.6 8V Crossflow Xflow Wossner Forged Pistons & Rods Set

Compression Ratio: 11.0:1

Stroke: 77.6mm

Compression Height : 44.6mm

Displacement: 1658cc

Dome / Bowl Volume: -30cc

Bore Sizes Available: 82.5mm K9390D150 , 83.5mm K9390D250

You are buying a full set of 4 Pistons with Rings, Gudgeon pins & Circlips & H-beam Rods.

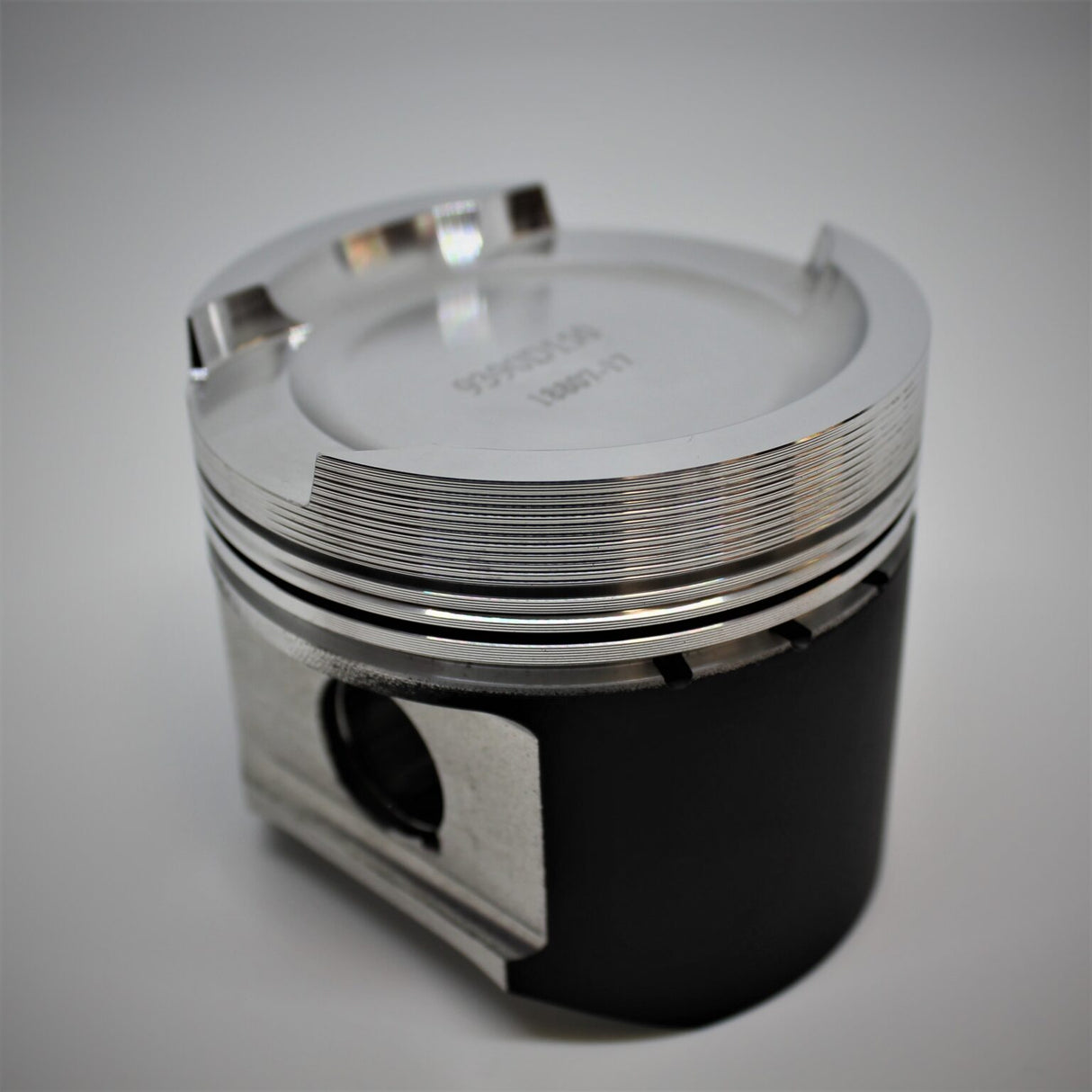

Wossner pistons:

• 4x Wossner forged pistons
• 4x Wossner piston rings sets
• 4x Wossner gudgeon pins
• 4x Wossner circlips sets
• 1x Wossner sticker
• 1x piston installation guideline sheet

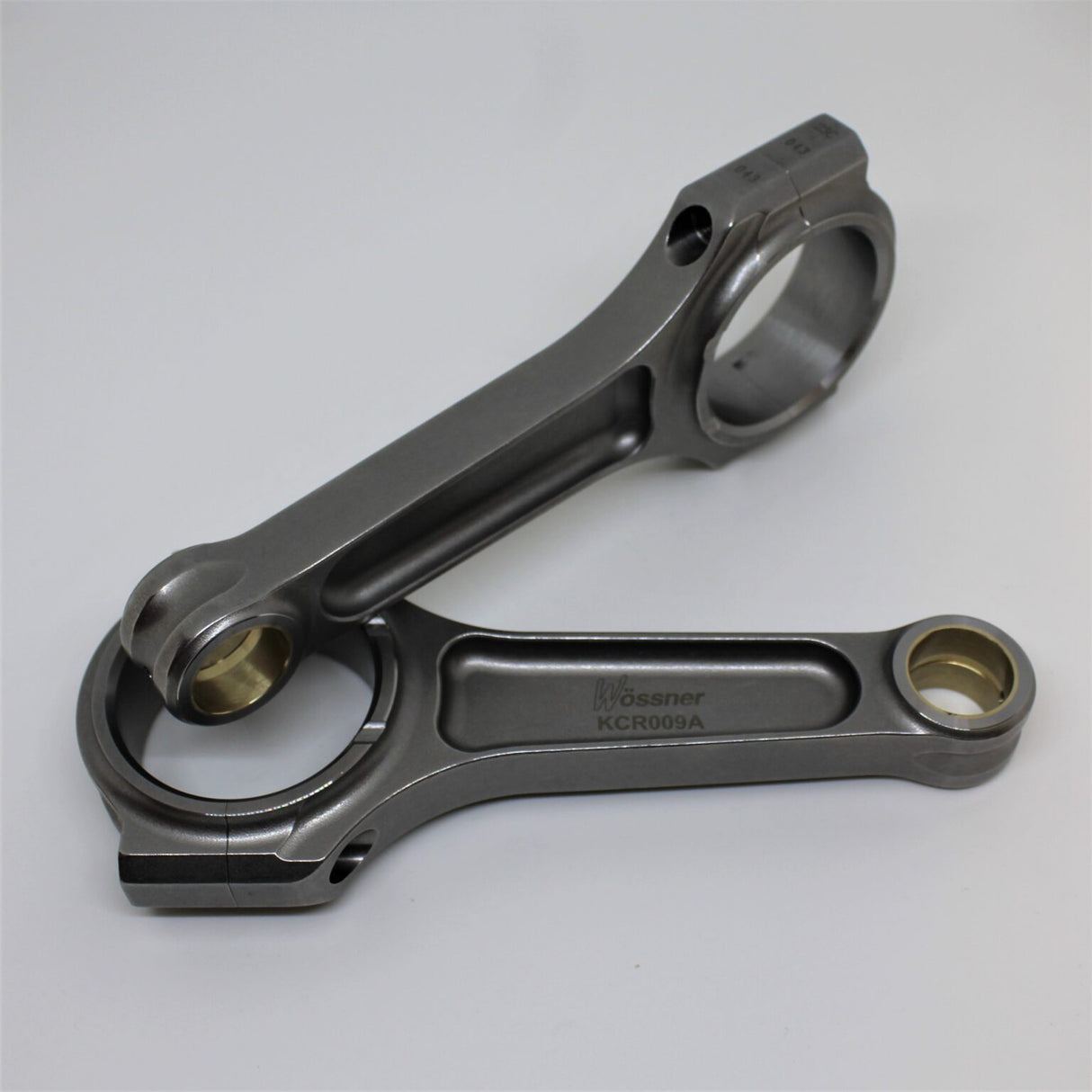

connecting rods:

• 4x forged steel connecting rods - H-beam
• 8x ARP 2000 series
• 1x ARP fastener assembly lubricant
• 1x connecting rod installation guideline sheet

Wössner are regarded by Europe’s leading motor sport engine builders as being the piston of choice when building an engine not only to perform, but to withstand the stresses and duress’s of competition life. Wössner pistons feature a unique PTFE coating on the skirts and a grade of 4032 Alloy (T6) which allows the engine builder to run a closer piston to bore tolerance then he might do on another make of piston. This helps remove the slapping noise during cold start, common place among engines running forged pistons due to larger then OE bore clearances. The crowns of the pistons are also polished to better resist detonation on a high performance engine. Polishing allows a more even spread of heat inside the chamber which will help prevent “hot spots” on piston crowns. Price includes all piston rings and gudgeon pins.
