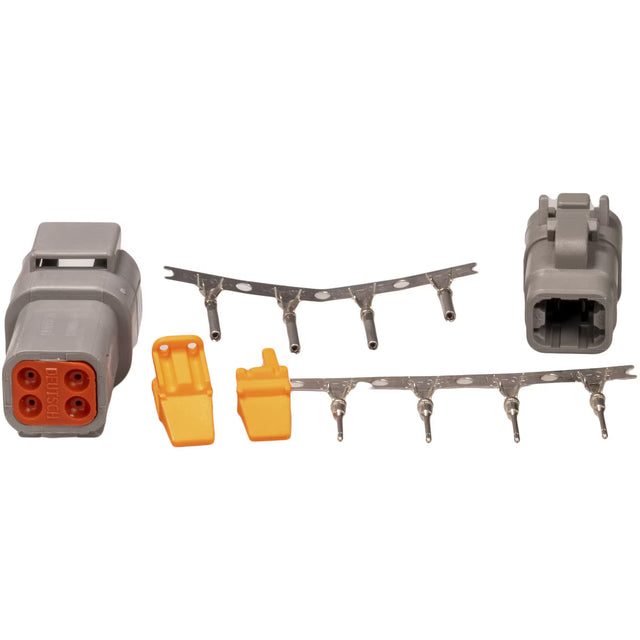

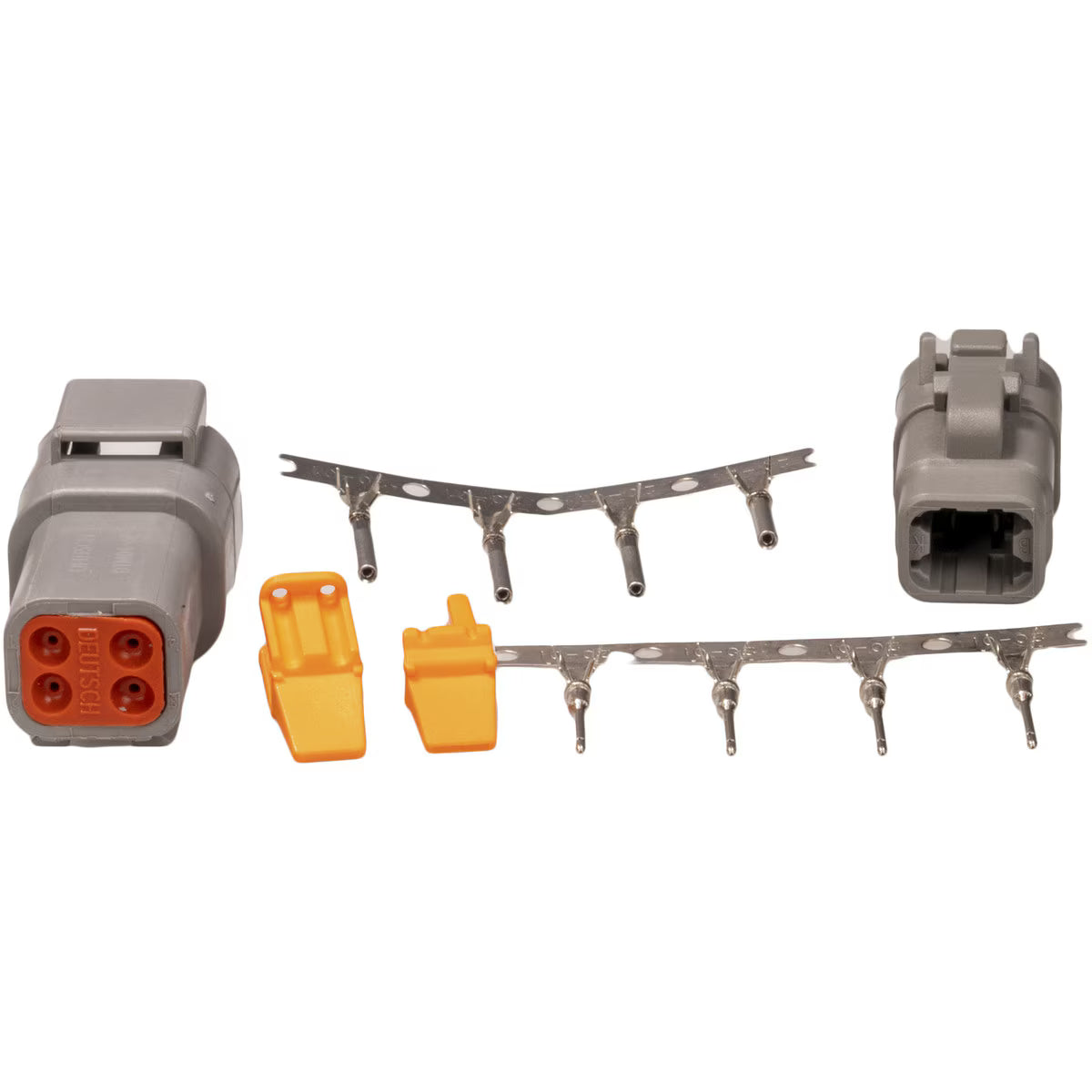

Deutsch DTM4 4 Pin Connector Kit

Deutsch DTM4 4 Pin Connector Kit

The Deutsch DTM4 Connector Kit is a compact 4-pin sealed automotive connector suitable for custom wiring looms, motorsport electronics and general vehicle wiring.

The DTM range is widely used in aftermarket automotive wiring thanks to its durable sealed design and easy-to-service terminals, making loom repairs and modifications straightforward.

Suitable Applications

Suitable for:

• Custom automotive wiring looms

• Motorsport wiring

• Sensor connections

• CAN wiring

• Low-current electrical circuits

• Loom repairs and modifications

• Street and race applications

Key Features

• 4-pin Deutsch DTM connector

• Environmentally sealed design

• Suitable for harsh automotive environments

• Easy to pin and re-pin

• Open-barrel style terminals

• No machined / closed-barrel crimp tool required

• Suitable for circuits up to 7.5A per circuit

Electrical Specification

Maximum Input Voltage: 250V
Maximum Continuous Current: 7.5A per circuit
Suitable Wire Size: 22 AWG / 0.35mm² to 16 AWG / 1.0mm²

Dimensions

Length: 60mm
Width: 60mm
Height: 20mm

Weight

15g

What's Included

• 1 x Deutsch DTM4 Connector Kit

Please Note

Please check the required connector size, terminal type and wire gauge before ordering.
