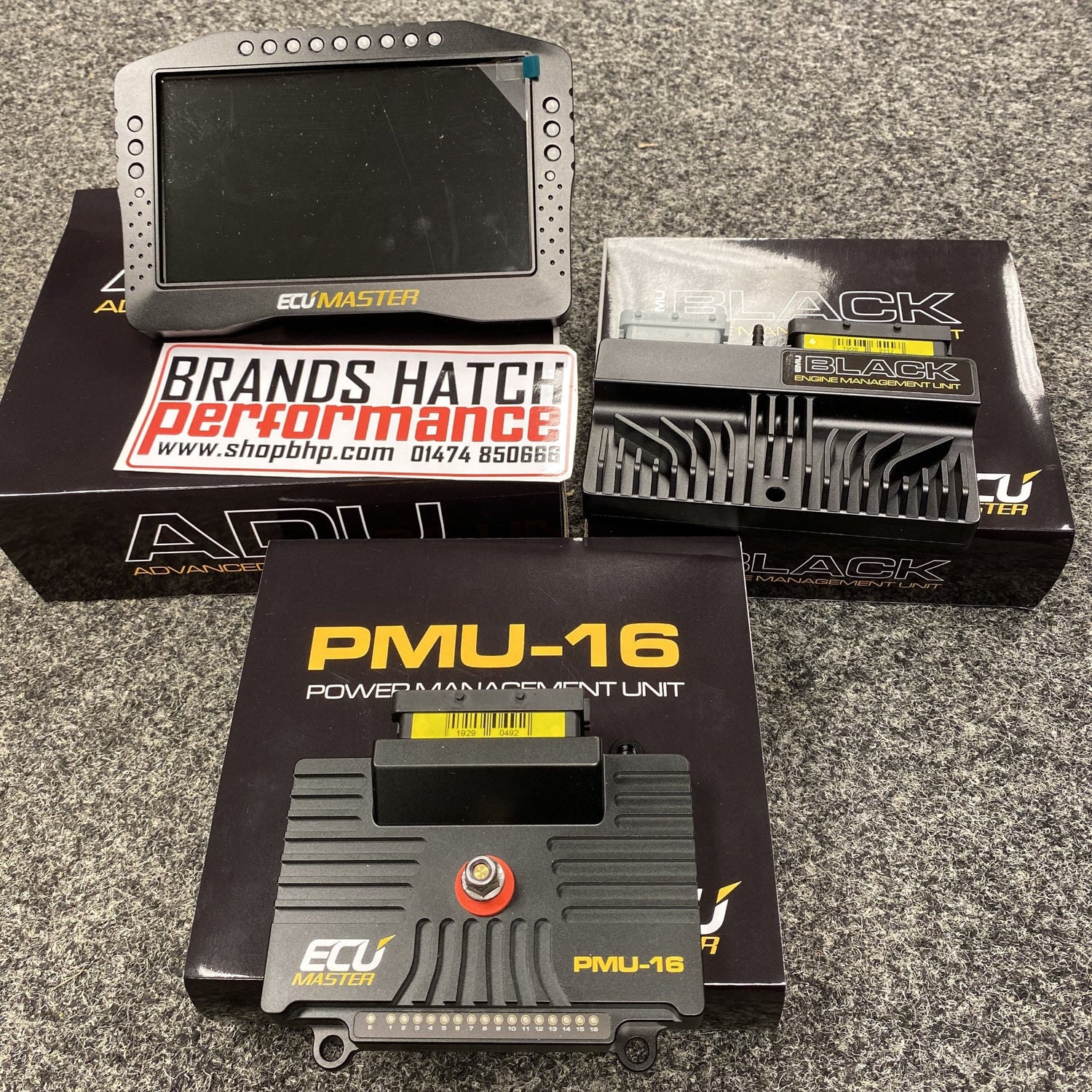

ECUmaster Control Race Package : Black ECU / ADU Digital Dash 7" / PMU16 (PDU)
Tax included.
Your Package will include:

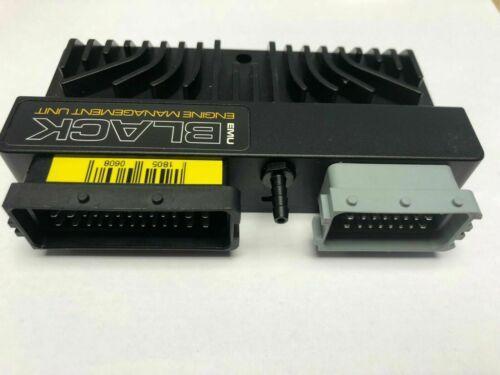

-Ecumaster Black
The EMU Black features more built-in value than any other aftermarket ECU. It easily matches the functionality of other stand-alone management systems with multiple inputs and outputs. Unlike many other ECU systems, the EMU Black has built-in wideband lambda input (Bosch LSU 4.2, and LSU 4.9 sensors wire directly in), MAP control connector (4 bar MAP sensor on board), 2 EGT probe inputs and an input to directly connect a Flex Fuel ethanol content sensor. All of this provides greater flexibility, reduces costs and negates the requirement for external or supplemental signal conditioning control systems and the associated wiring that other management systems require.
The EMU Black controls fueling, ignition and auxiliary systems on 1-12 cylinder engines including those with drive-by-wire throttles (E Throttle) and VVT.
It can drive up to 6 passive or 12 smart coils directly and does not require external amplifier/power modules to achieve this. Sophisticated drive-by-wire strategies provide a wide range of throttle control along with advanced plausibility (fault/error) checking for safety.
Free, easy to install firmware upgrades further improve system capabilities (e.g. new strategies, trigger patterns, CAN data streams).

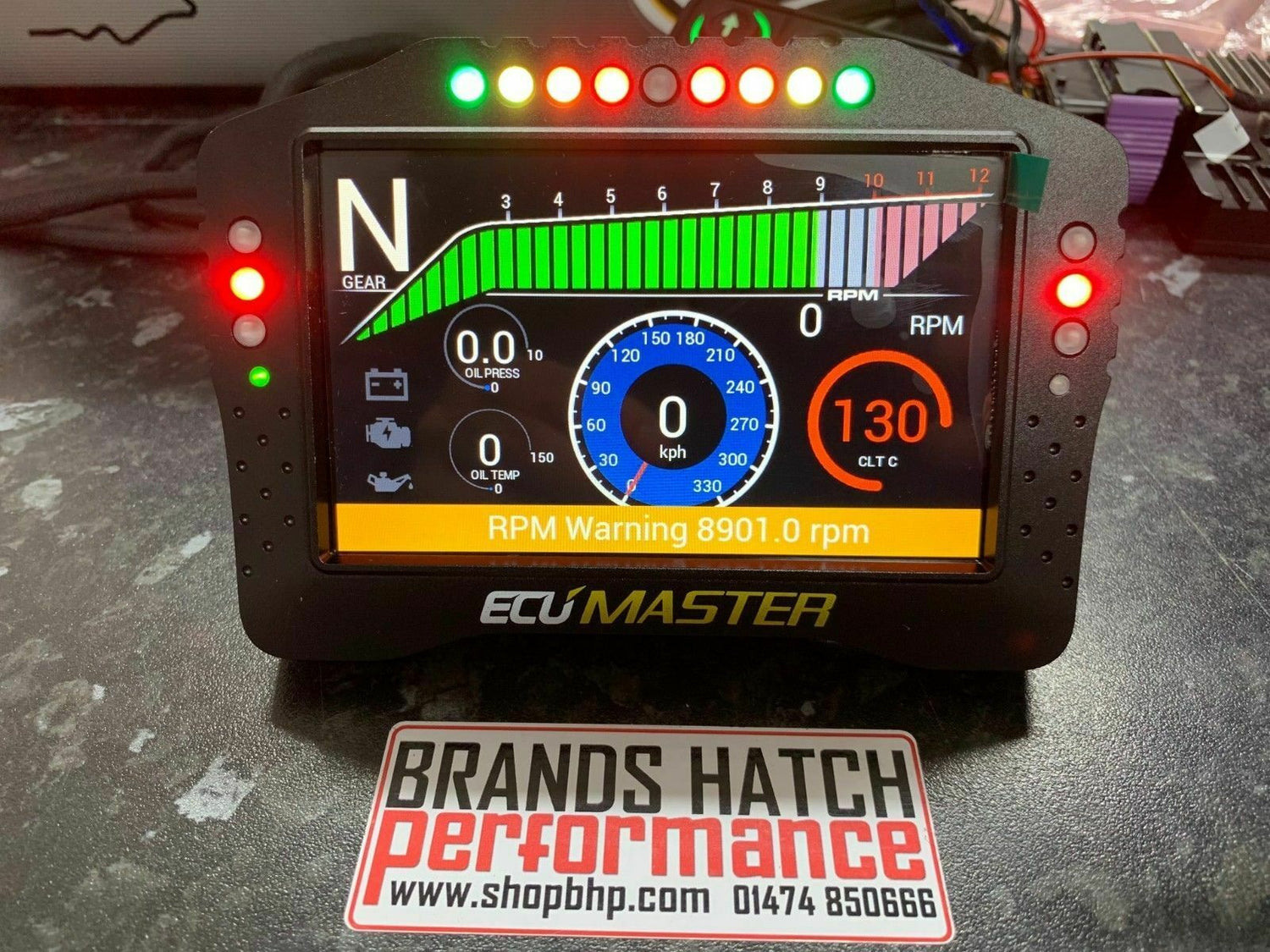

-ADU Dash 7"
Our Advanced Display Units are available in 5” and 7” versions. Both versions feature high resolution, high visibility anti-glare screens, guaranteeing perfect visibility in any lighting conditions. The ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g. practice, qualification, race, troubleshooting, etc.). Pages may be changed manually or automatically (based on defined conditions). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified in real time using user-friendly Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independent of the actual page displayed.

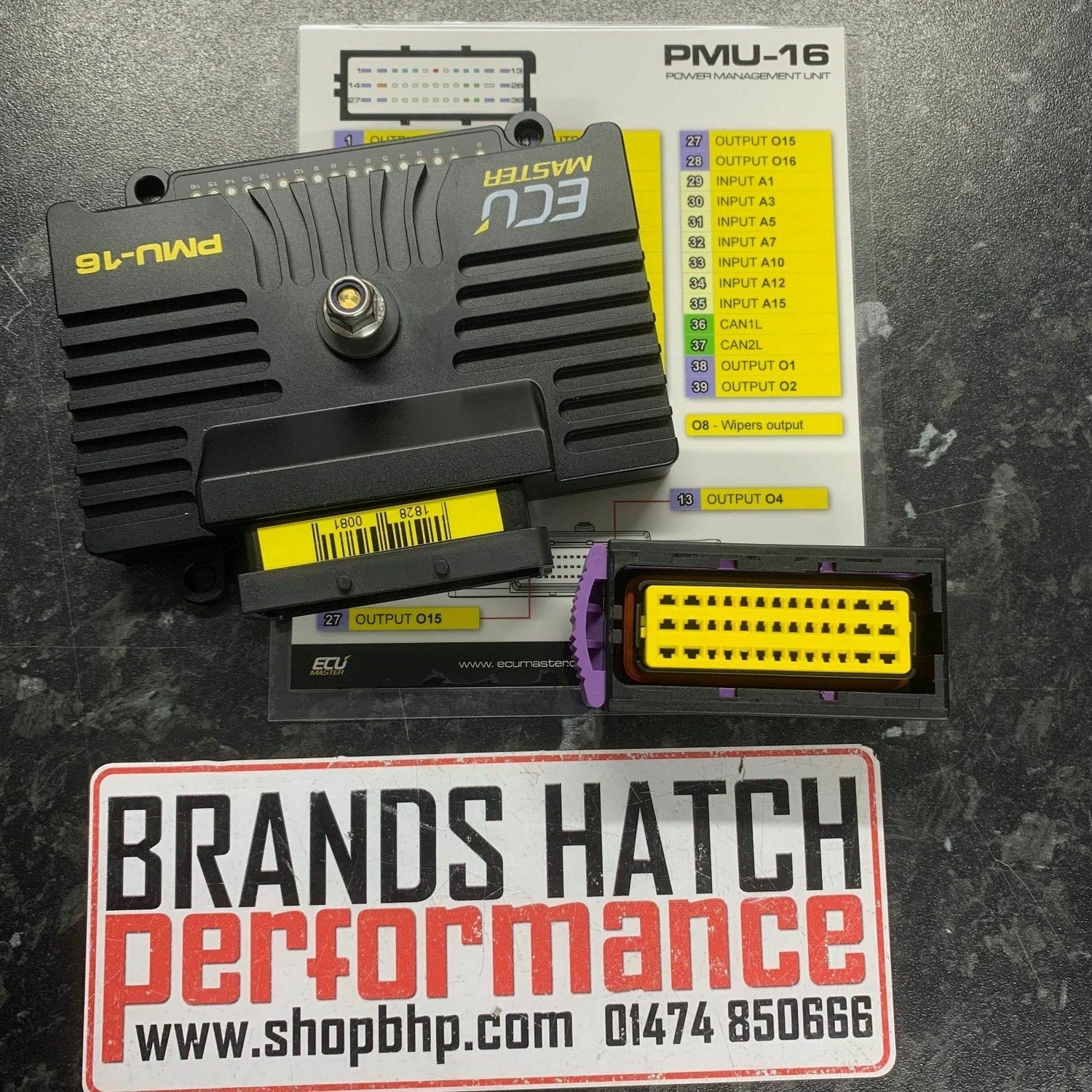

-PMU16
Decades ago, the critical electronic components in a race car were the ignition coil and points. Race cars now feature advanced engine management systems, antilock brake systems, paddle shifters, dataloggers, radios, electric pumps, fans, and lights. All components need to be controlled at the correct moment, and all components require circuit protection to prevent damage or fire.
Traditionally, fuses and relays served all of those purposes, but they have many disadvantages like complicated wiring looms, sensitivity to vibration/temperature, and difficult diagnostics.
All of these problems can be solved by using intelligent power management units (PMUs). Our newly developed PMU unit is at the forefront of technology. It provides 16 high current outputs (and use of multiple units if more outputs are required).
Black Spec:
GENERAL |
|
| Temperature range | AECQ100 GRADE2 (-40 to +105˚C) |
| Reverse battery protection | Yes, internal |
| Operating voltage | 6-22V, immunity to transients according to ISO 7637 |
| Enclosure | IP 65, custom CNC machined aluminium |
| Size (mm) and weight(g) | 150x72x31, 390 |
| Connectors | 1 x 24, 1 x 39 FCI Automotive connector |
| PC communication | USB (with PC client software), serial, CAN |
OUTPUTS |
|
| Injector outputs | 6 protected outputs 5A, low side |
| Ignition outputs | 6 outputs 7A(15A peak) (passive & active coils supported) |
| Aux outputs | 6 protected outputs 5A, low side |
| Other outputs | Full bridge up to 7A, can be used as separate outputs or 2 H-Bridges |
| WBO heater | Protected low side up to 5A |
| Communication | Serial, CAN BUS 2.0B |
INPUTS |
|
| Analog inputs | 9 inputs, resolution 10Bits, 0-5V (protected) |
| EGT inputs | 2 for K-Type thermocouple |
| Knock sensor | 2 inputs |
| Oxygen sensor | LSU 4.2, LSU 4.9 or Narrow band |
| Trigger inputs | 3 (primary, 2 cams) Hall/ VR software selectable |
| VSS | 1 (Hall / VR) |
| Flex Fuel Sensor | Yes |
| Switch inputs | 3 inputs, switched to ground |
SENSORS |
|
| Temperature sensors | IAT, CLT, Oil temperature, AC evap temperature |
| Pressure sensor | MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor, Back pressure |
| Oxygen sensor | LSU 4.2 or 4.9 (built in controller), Narrow band, external WBO controllers |
| Speed | Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated) |
FUELING |
|
| Injectors | Up to 8 HiZ injectors (sequential) |
| Injection angle control | 0-720 deg, start or end of injections |
| Battery compensation | User defined, wizard for popular injectors |
| Fueling strategies | VE based speed density, Alpha N |
| Air charge temp. | Based on IAT and CLT |
| VE table | 2 tables 16×20 (Load x RPM), resolution of 0.1% |
| Individual cylinder trim | Yes |
| Staged injection | Yes |
| Additional correction | Oxygen sensor corrections, EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensor |
| Lambda based real time correction | Using Lambda target table |
| Acc. / Deceleration enrichment | Yes |
IGNITION |
|
| Ignition outputs | 6 for passive and active coils (software selectable) |
| Supported triggers | N-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ, Wrangler |
| Ignition angle table | 2 tables 16×20 (Load x RPM), resolution of 0.5 Deg |
| Per cylinder trim | Yes |
| Dwell time battery compensation | Used defined, wizard for popular coils |
| Odd fire compatibility | Application dependent |
| Additional correction | CLT, IAT, TPS vs MAP, Nitrous, Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichment |
KNOCK SENSING |
|
| Channels | 2 |
| Resonant frequency range | 1-20kHz, 3rd order AAF |
| Sampling | Ignition event driven, knock window |
| Actions | Ignition retard, fuel enrichment, dashboard indication |
IDLE CONTROL |
|
| Control type | PWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar), ignition cut, fuel cut |
| Control strategy | Open / Close loop , ignition angle control |
| VE correction | Yes, for Alpha-N |
| Corrections | AC clutch, coolant fan, analog input |
BOOST CONTROL |
|
| Boost ref and target tables | 2 sets 10×10 (TPS vs RPM) |
| Control strategies | Open / Closed loop (PID based) |
| Corrections | Gear, VSS, IAT, EGT |
DRIVE BY WIRE |
|
| Control strategy | Advanced 3D PID + static friction compensation |
| Supported throttles | All with DC motor and current requirement lower than 6.5A
Wizard for 28 popular electronic throttles |
| PPS to throttle position characteristic | 3D table |
| BLIP support | Yes |
| ALS support | Yes |
TRACTION CONTROL |
|
| TC strategy | Delta RPM, gear compensation |
| Torque reduction | Spark cut using 3D table (16×20) |
| Sensitivity control | 10 position rotary switch |
VARIABLE VALVE TIMING |
|
| Supported systems | VVTi, MiVec, VANOS, Double Vanos |
| Number of camshafts | 2 |
| Control strategy | PID based closed loop, CAM angle target tables 12×12 |
FLEX FUEL |
|
| Ethanol content measurement | Yes |
| Fuel temperature measurement | Yes |
| Tables blending | VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup |
| Fuel temperature PW correction | Yes |
SPORT |
|
| ALS | 2 independent ALS setting, DBW support |
| Shift light | Per gear shift light |
| Launch control | Yes |
| Gear cut | Yes (Open loop), DBW blip supported
Source: Switch, load cell, CAN |
| Pit limiter | Yes |
| Rolling anti lag | Yes |
ENGINE PROTECTION |
|
| Fail safe values for critical sensors | Yes |
| Dashboard indication of failures | Yes, user defined |
| Over temperature engine protection | Yes (oil and coolant), user defined, RPM limit |
| Low oil pressure protection | Yes, user defined, shut off |
| Fuel pressure protection | Yes, fuel dose compensation, RPM limit, engine shut off |
| High exhaust temperature | Alarm, per cylinder fuel trim, boost limit |
CAN BUS |
|
| CAN standard | 2.0B 125, 250, 500, 1000 kbps |
| Supported CAN Dashes | ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM |
| Supported OEM CAN streams | BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST, EVO X (AYC support) |
OTHER |
|
| Unused injection outputs can be used as AUX output | Yes |
| Output functions | Fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometer |
| Password protection | Yes, 2 levels |
| Timers | Fuel, Ignition, Boost, timers controlled by virtual outputs |
| Serial dashboard support | AIM, RaceTechnology |
| Autotune | Yes |
| Built in trigger scope | Yes |
| Logging | Real time logging to PC computer, logging on external loggers (serial / CAN) |
ADU Dash 7" Spec:
GENERAL |
|
| Temperature range | AECQ100 GRADE1 (-40 to +85˚C) |
| Reverse battery protection | Yes, internal |
| Operating voltage | 6-22V, immunity to transients according to ISO 7637 |
| Enclosure | IP 60, custom CNC machined aluminum |
| Connectors | 1 x 35 positions, AMP Automotive connector |
| PC communication | CAN BUS – Ecumaster interface, Peak or Kvaser |
| Display Type | TFT 800×600 |
| Brightness of display | 5″ – 600 cd/m2, 7″ – 1000 cd/m2 |
INPUTS / OUTPUTS |
|
| Analogue inputs | 8 inputs, 10 bits, 0-5 V, software controlled pull-up/pull-down 10K resistor. Al analog inputs can be used as a switches |
| Digital inputs | 8 digital inputs, software controlled input sensitivity (VR, Hall), software controlled 4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speeds, turbocharger shaft speed. All digital inputs can be used as switches |
| Outputs | 2 low side outputs (switch to ground), up to 2A, 1 analogue output (0-5V) 10 bits |
| +5V Output | Monitored 5V output for powering external sensors |
COMMUNICATION |
|
| CAN Interface | 2 x CAN2.0 A/B, 250, 500, 1000 Kbps |
| CAN streams | User-defined |
| Serial communication | RS232 Rx/Tx, AiM protocols, Ecumaster, Hondata Kpro, Autronic |
| USB | Used for logging to external USB memory |
OTHERS |
|
| Light Emitting Diodes | 15 ultra bright RGB LEDs |
| Accelerometer/gyroscope | 3D accelerometer + 3D gyroscope for the analysis of vehicle dynamics |
| Real-time clock | Yes, battery powered |
| Light sensor | Yes, for automatic correction of brightness |
| Temperature sensor | Yes, for monitoring device temperature |
PMU16 Spec:
GENERAL |
|
| Temperature range | AECQ100 GRADE1 (-40 to +125˚C) |
| CPU | 32 bits automotive, 90MIPS |
| Reverse polarity protection | Yes, internal |
| Operating voltage | 6-22V, immunity to transients according to ISO 7637 |
| Enclosure | IP 65, bespoke CNC machined aluminium |
| Size (mm) and weight(g) | 131x112x32.5, 345g |
| Connectors | 1 x 39 Automotive connector,
1 x M6 stud for battery connection |
| PC communication | CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER) |
OUTPUTS |
|
| High current outputs | 10 x 25A(cont.), 6 x 15A(cont.) with Overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output |
| Total current output | 150A continuous |
| Output current control step | 100mA |
| Wipers output | Dedicated output with wiper braking feature |
| +5V | Monitored 5V, 500mA output for powering external sensors. |
INPUTS |
|
| Analog inputs | 16 inputs, 10 Bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns |
| CAN Keypads | 2 x Ecumaster keypads (4, 6, 8, 12 keys) |
OTHER |
|
| Output state indication | 16 bicolour LEDs |
| Accelerometer/Gyroscope | 3D accelerometer with 3D gyroscope for logging and crash detection |
| Real time clock | Yes, super capacitor for backup power (up to 3 days) |
CAN BUS |
|
| CAN interface | 2 x CAN2B |
| CAN standard | 2.0B 125, 250, 500, 1000 kbps |
| Input/output stream | User defined with bit masking
up to 48 input messages |
FUNCTIONS |
|
| Logical operators | AND, OR, NOT, XOR, >, <, =, >=, <=, !=, isTrue, isFalse, Toggle, Flash, Pulse |
| Number of functions | 100 |
| Number of operations | 250 |
| Update frequency | 500Hz |
| Special functions | Wipers, blinkers |
