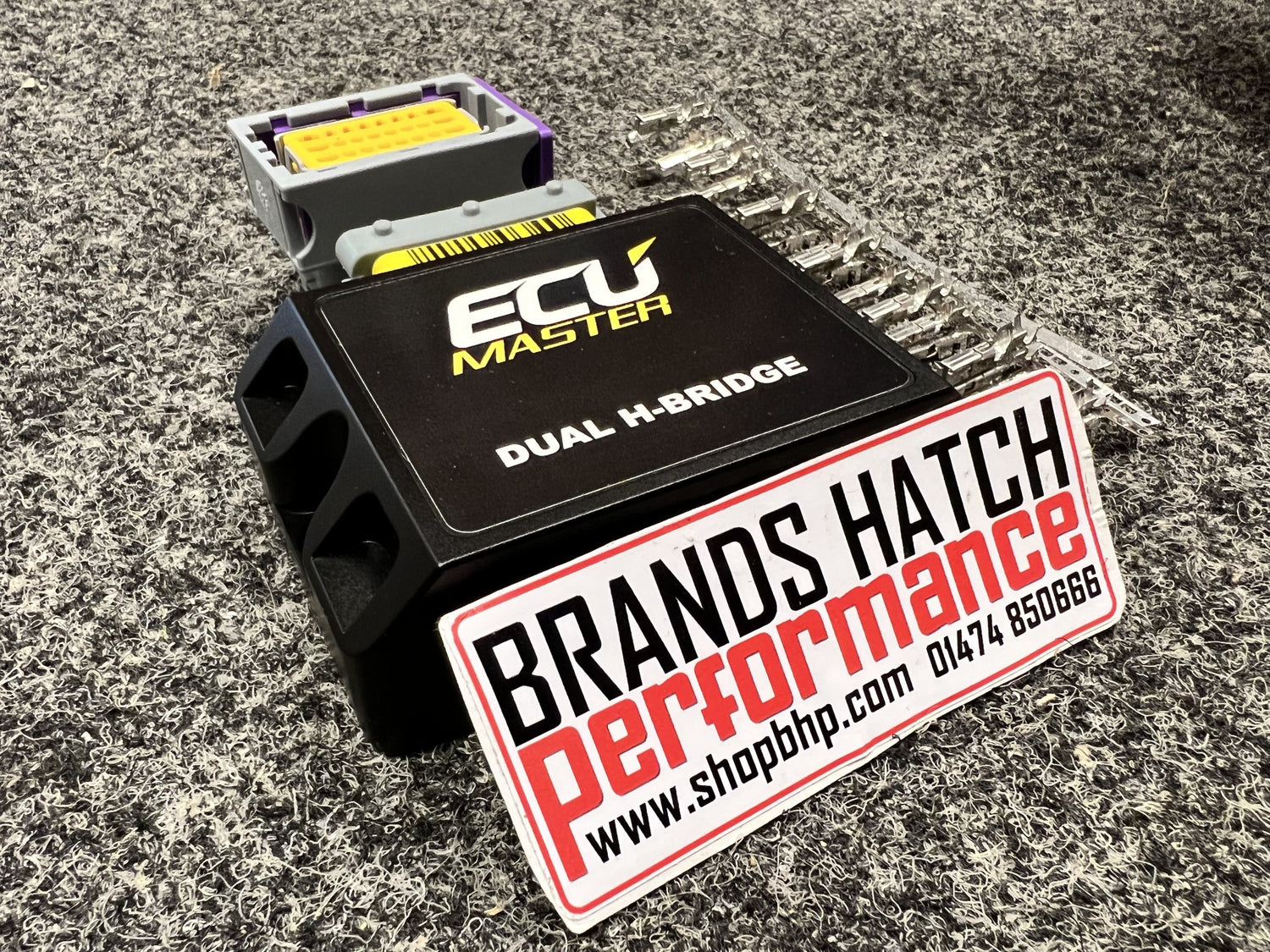

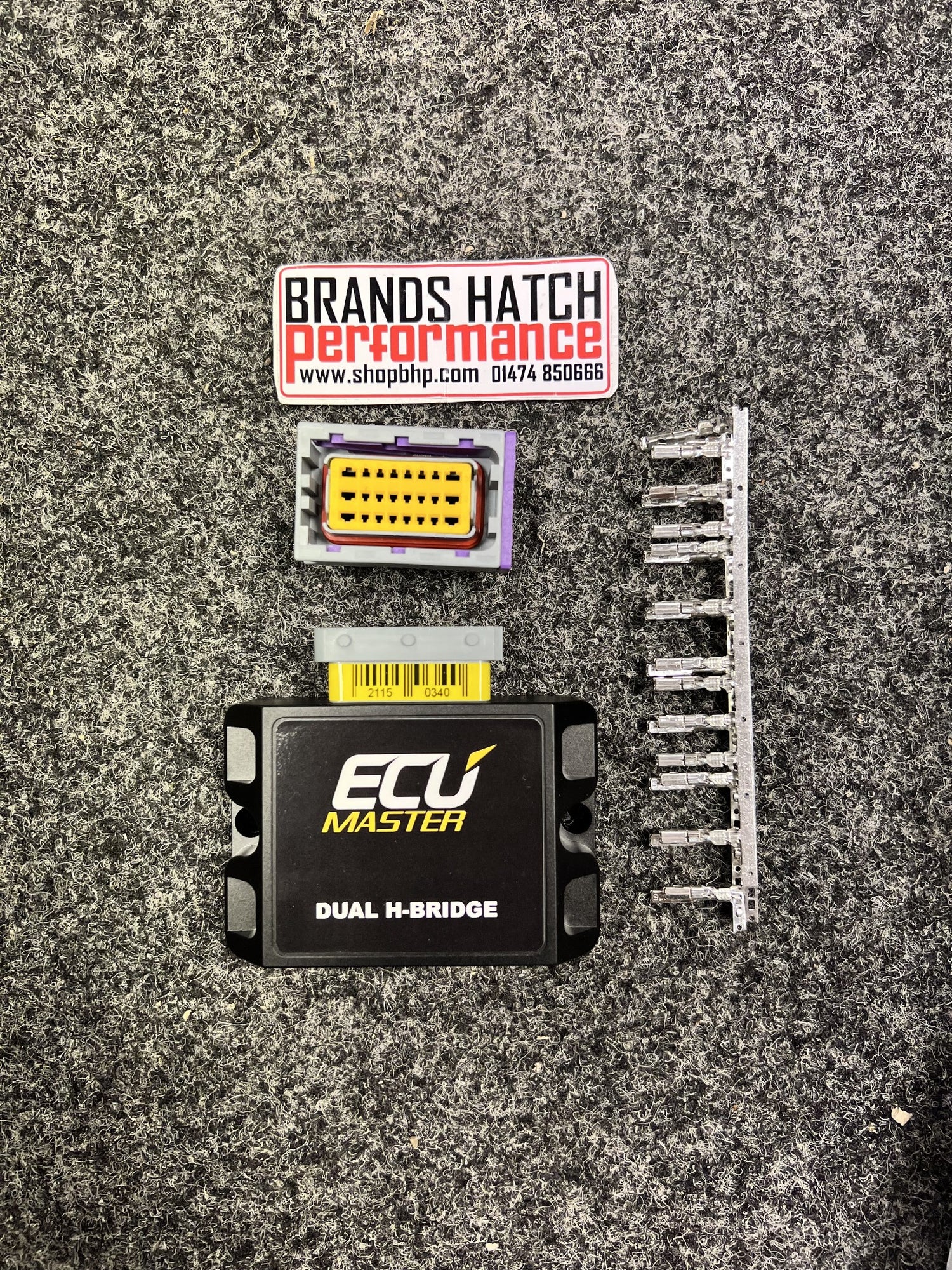

Ecumaster Dual H Bridge - 30A Peak 10A Continuous
Device contains two independent H-Bridges, with over-current and short circuit protection, capable of
10A continuous current and 30A peak current. H-Bridges can be controlled via device inputs or CAN
bus messages.
Voltage range: 6V - 28V (12V and 24V automotive installations)
Output current: 10A continuous, 30A peak
4 analogue (0-5V) / digital (35Hz - 200Hz PWM) inputs
Output PWM: 12bit 3.9kHz
Device can be used to supply protected low side (GND) or high side (VBat) supply independently to
each of 4 outputs for bidirectional DC motor control. Low side output can be PWM modulated on per
bridge basis. Common use cases can be:
Electric windows controller
High current electronic throttle body amplifier
