Ecumaster EMU Black ECU & ADU 5" / 7" Digital Dash Display Bundle

Ecumaster EMU Black ECU & ADU 5" / 7" Digital Dash Display Bundle

The Ecumaster EMU Black ECU & ADU Digital Dash Display Bundle combines advanced standalone engine management with a professional motorsport display solution. This package is ideal for performance, motorsport, track, and custom vehicle builds requiring powerful engine control, real-time data visibility, CAN communication, and a clean integrated setup.

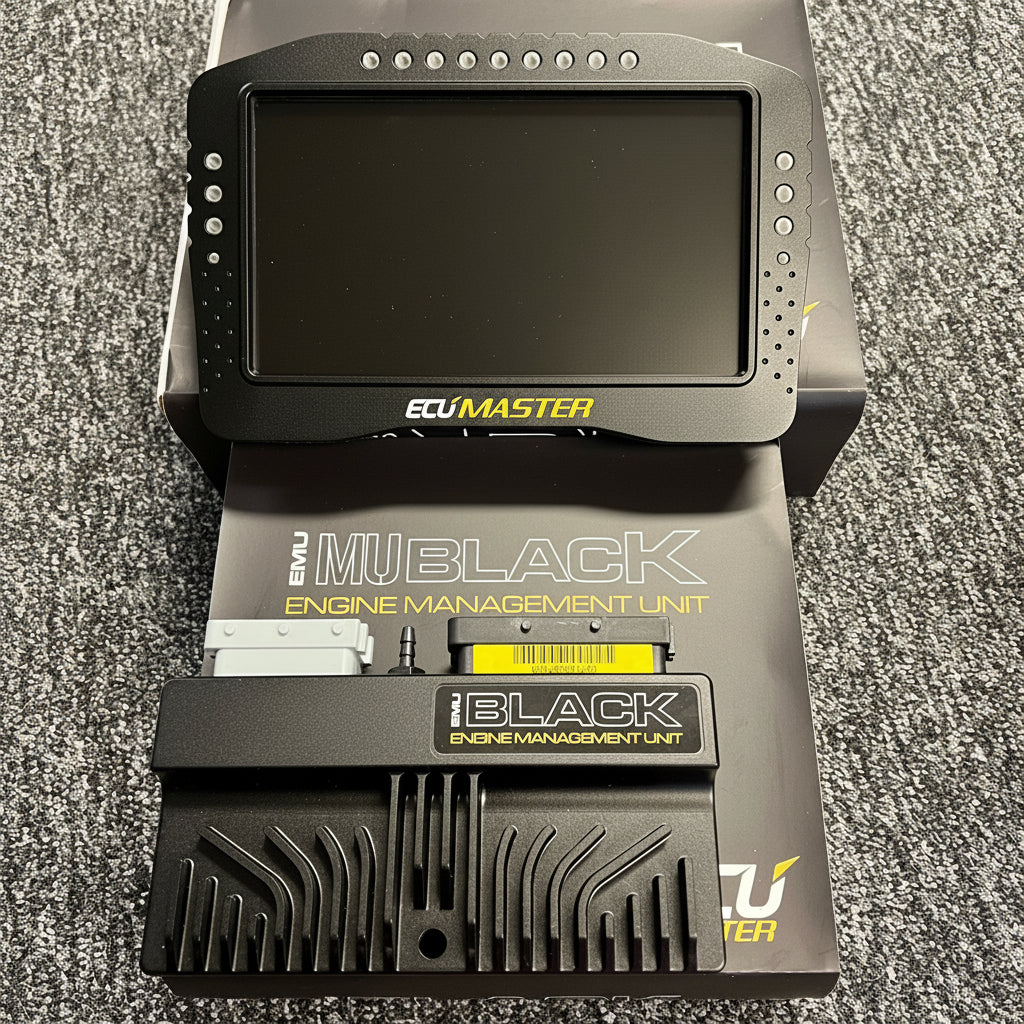

This bundle includes the Ecumaster EMU Black Engine Management Unit and your choice of Ecumaster ADU 5" or ADU 7" Digital Dash Display. The bundle is available with either the standard ADU version or the Autosport ADU version, depending on your installation requirements.

Together, the EMU Black and ADU provide a complete ECU and display package with flexible configuration, live data monitoring, warning overlays, logging capability, and professional motorsport functionality.

Why Choose This Kit?

This bundle is a strong choice for customers who want a matched engine management and display package rather than buying the ECU and dash separately. The EMU Black provides advanced standalone engine control, while the ADU display gives the driver clear, real-time visibility of engine data, warnings, lap timing, and logging information.

Because both units are from Ecumaster, they are designed to work together through CAN bus communication, helping simplify integration and reduce setup complexity. This makes the kit ideal for motorsport, track cars, performance builds, engine conversions, and custom wiring projects where reliable control and clear data visibility are essential.

The option to choose between 5" or 7" displays, as well as standard or Autosport ADU versions, allows the package to suit a wide range of dashboards, vehicle layouts, and installation requirements.

EMU Black Engine Management

The EMU Black is a powerful standalone ECU designed for demanding applications. It features a CNC-machined aluminium enclosure, robust PCB construction, flexible sensor and trigger inputs, active and passive ignition coil support, drive-by-wire capability, integrated wideband oxygen sensor support, and built-in CAN bus communication.

The EMU Black controls key engine functions including fuel, ignition, auxiliary outputs, boost control, idle control, flex fuel, drive-by-wire throttle, and motorsport strategies.

ADU Digital Dash Display

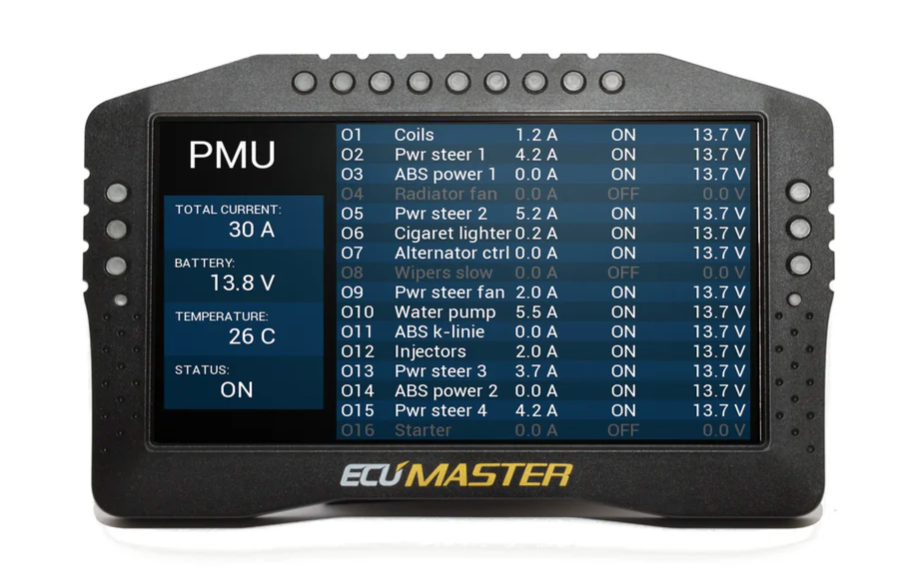

The ADU Digital Dash Display provides a professional driver interface for viewing critical engine and vehicle data. It comes with multiple pre-configured pages that can be customised by the end user to display the data required at each stage of a race weekend, including practice, qualifying, race, and troubleshooting.

Pages can be changed manually or automatically using an advanced conditions system. Each channel displayed on a page, including gauges, icons, text, and other display elements, can be modified using user-friendly Windows-based software.

The ADU overlay system allows important data such as low oil pressure warnings, best lap information, alarms, and other priority messages to be displayed independently of the current page.

Key Features

Complete ECU & Dash Bundle
Includes an Ecumaster EMU Black ECU and an Ecumaster ADU digital dash display in either 5" or 7" format.

Standard or Autosport ADU Options

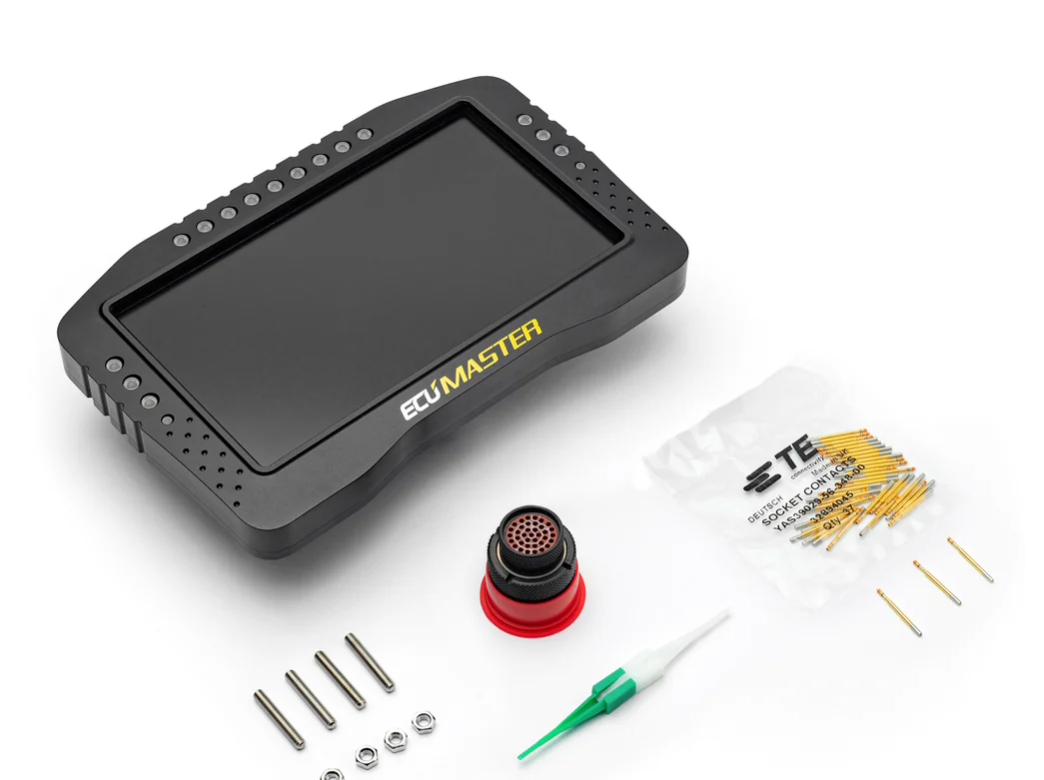

Available with either the standard ADU version or the Autosport version, depending on the selected variant.

Advanced Engine Management
The EMU Black provides control of fuel, ignition, boost, idle, auxiliary outputs, flex fuel, drive-by-wire throttle, and motorsport strategies.

Professional Digital Display
The ADU provides a clear, configurable motorsport display with custom pages, warning overlays, lap timing, shift lights, alarms, CAN input streams, and data logging support.

48 Customisable Display Pages
The ADU supports up to 48 available pages with user-defined content and custom graphics.

Advanced Overlay System
Important warnings and priority messages can be shown independently of the currently selected display page.

Lap Timer Functionality
Includes lap timer memory, predictive timing, and lap triggering via beacon or GPS.

CAN Bus Integration
The EMU Black and ADU communicate via CAN bus, allowing engine and vehicle data to be displayed in real time. The ADU supports user-defined CAN streams, up to 48 input messages, and predefined streams for popular ECUs.

Data Logging Support
The ADU logs data to USB flash memory at up to 500Hz. A suitable USB memory stick is required for reliable data logging and is sold separately unless selected as an option.

RGB Alarm and Shift LEDs
Includes 15 ultrabright RGB LEDs for alarms and shift light functions.

Integrated Motion and Light Sensors
The ADU includes a 3-axis gyro, 3-axis accelerometer, light sensor for automatic brightness control, internal temperature monitoring, and a real-time clock.

EMU Black Highlights

• CNC-machined aluminium enclosure
• IP65 water-resistant enclosure design
• Sealed USB connector for PC communication
• MAP sensor connection tube
• 4-layer PCB construction
• Protective coating for moisture resistance
• High vibration resistance
• Operating temperature range: -40°C to 105°C
• AECQ-100 Grade 2 component selection
• Software-selectable pull-up / pull-down analogue inputs
• 3 digital switch inputs
• Hall / VR trigger input support
• Dedicated flex fuel input
• Active and passive ignition coil support
• High-current H-Bridge outputs
• Direct drive-by-wire throttle control
• Built-in flyback circuits on AUX outputs
• Bosch LSU 4.2 and LSU 4.9 wideband oxygen sensor support
• Built-in CAN bus support
• Software-selectable 120 Ohm CAN termination
• Two 5V output terminals
• Three sensor ground terminals
• Improved software navigation

ADU Display Features

• Multiple pre-configured display pages
• 48 available user-customisable pages
• User-defined content and custom graphics
• Gauges, icons, text, and displayed channels can be modified
• User-configurable maths and logic functions
• User-defined overlays
• Lap timer with memory
• Predictive lap timing
• Beacon or GPS lap trigger support
• User-defined CAN stream
• Up to 48 CAN input messages
• Predefined CAN streams for popular ECUs
• USB flash memory data logging
• 15 ultrabright RGB LEDs for alarms and shift lights
• 3-axis gyro and 3-axis accelerometer
• Light sensor for automatic brightness
• Built-in internal temperature sensor
• Real-time clock with internal power supply

ADU Technical Specifications

Contents

• 1 × Ecumaster EMU Black unit

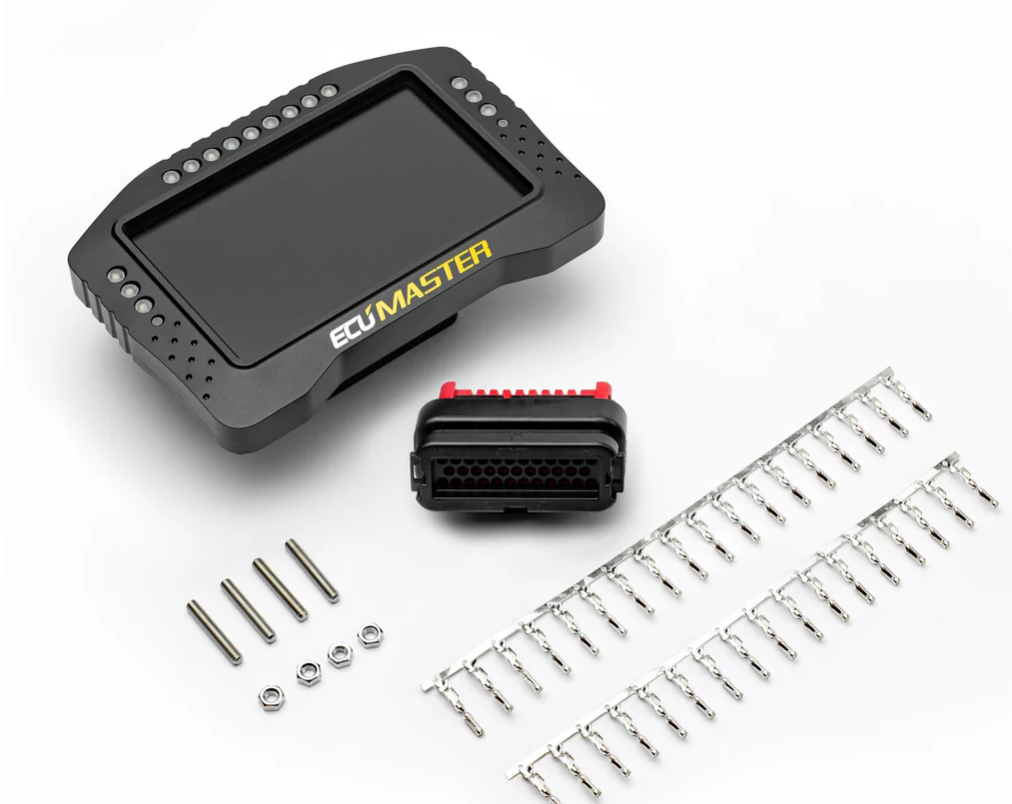

• 1 × Ecumaster ADU Digital Dash Display, selected as 5" or 7"
• Choice of standard ADU version or Autosport ADU version, depending on selected variant
• 1 × Warranty card
• 1 × Pinout description
• 45 × Sicma terminals 2.8 mm
• 18 × Sicma terminals 1.5 mm
• 1 × Set of green fillers / connector empty pin sealant
• 1 × FCI connector, 24 pin
• 1 × FCI connector, 39 pin
• 1 × Set of resistors: 2 × 2k, 2 × 10k, 2 × 120R
• 1 × USB A-A cable
• 1 × USB-A to USB-C adapter

Recommended Add-On

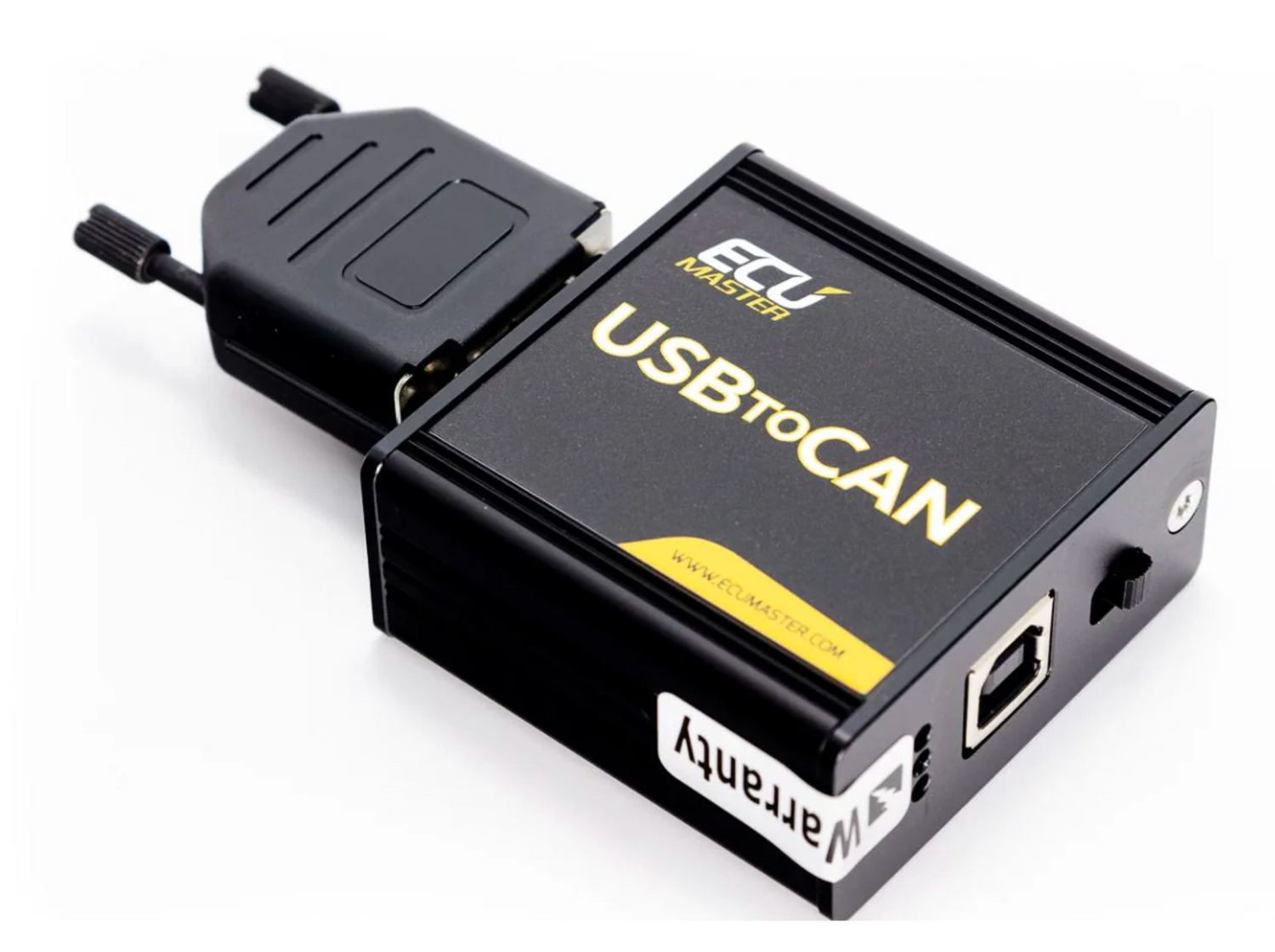

To communicate with and configure the ADU display, a CAN bus interface is required. We recommend adding the Ecumaster USB-to-CAN interface if you do not already have a compatible PEAK-System, Kvaser, or Ecumaster CAN interface.

Please note: the EMU Black can connect to a PC via USB, but ADU communication requires CAN.

Data Logging Note

The ADU logs data to a USB flash memory stick. A suitable USB memory stick is required for data logging and is not included unless selected separately.

We recommend using a good quality, tested USB memory stick for reliable logging performance.

Optional Accessories

• Ecumaster USB-to-CAN interface
• PEAK-System or Kvaser CAN interface
• ADU 5" flush mount panel
• ADU 7" flush mount panel
• Suitable USB memory stick for ADU data logging

Communication & Logging Notes

To communicate with the ADU, a CAN bus interface is required. Compatible options include PEAK-System, Kvaser, or Ecumaster CAN interfaces.

For ADU data logging, a good quality USB flash memory stick is required and is sold separately unless selected as an option.

Important Notes

• Supplied as an ECU and digital dash bundle
• Available with either 5" or 7" Ecumaster ADU display
• Available with standard or Autosport ADU versions
• Mount panels are available separately for both ADU 5" and ADU 7"
• CAN interface is required for ADU communication
• USB memory stick is required for ADU data logging and is sold separately unless selected as an option
• Professional installation and calibration are recommended
• Additional sensors, wiring, and configuration may be required depending on the vehicle

Motorsport Use Notice

This product is intended for performance, motorsport, and off-road applications. Installation and calibration should be carried out by a qualified professional. It is the customer’s responsibility to ensure the product is suitable and legal for their intended use and location.
