ECUMaster RF Steering Wheel Panel - Wireless

The ECUMaster RF Steering Wheel Panel provides a professional wireless control interface for motorsport and performance vehicles.

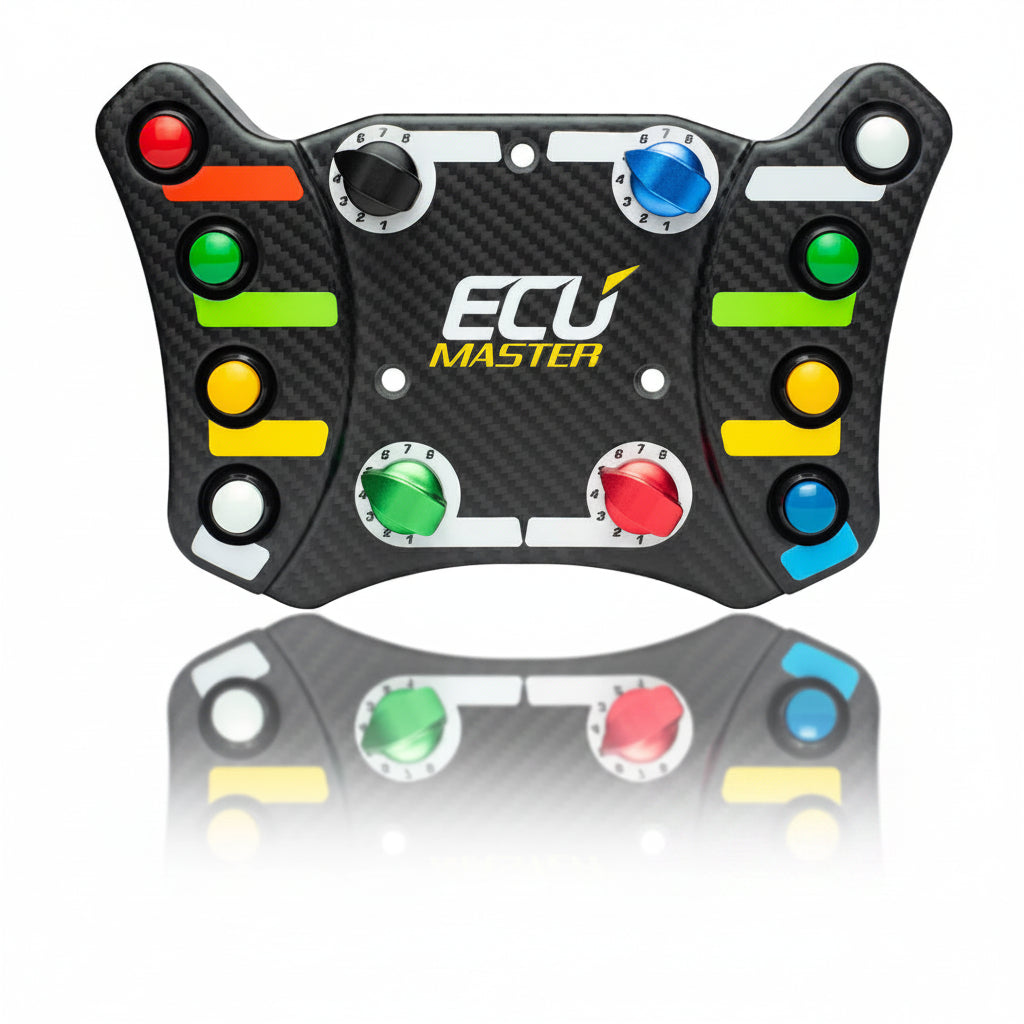

Designed with a carbon housing and ergonomic layout, the panel offers customisable vehicle controls without the need for a wired steering wheel connection. It features eight OTTO momentary pushbutton switches and four 8-position rotary switches, giving excellent control flexibility for race cars, track cars, drift cars, rally cars, and custom CAN bus systems.

The panel also includes two spare switch inputs, which can be used for shift paddles or additional functions. It communicates wirelessly with the RF Receiver and transmits data via CAN bus, using the same message format as the ECUMaster CAN Switch Board V3.

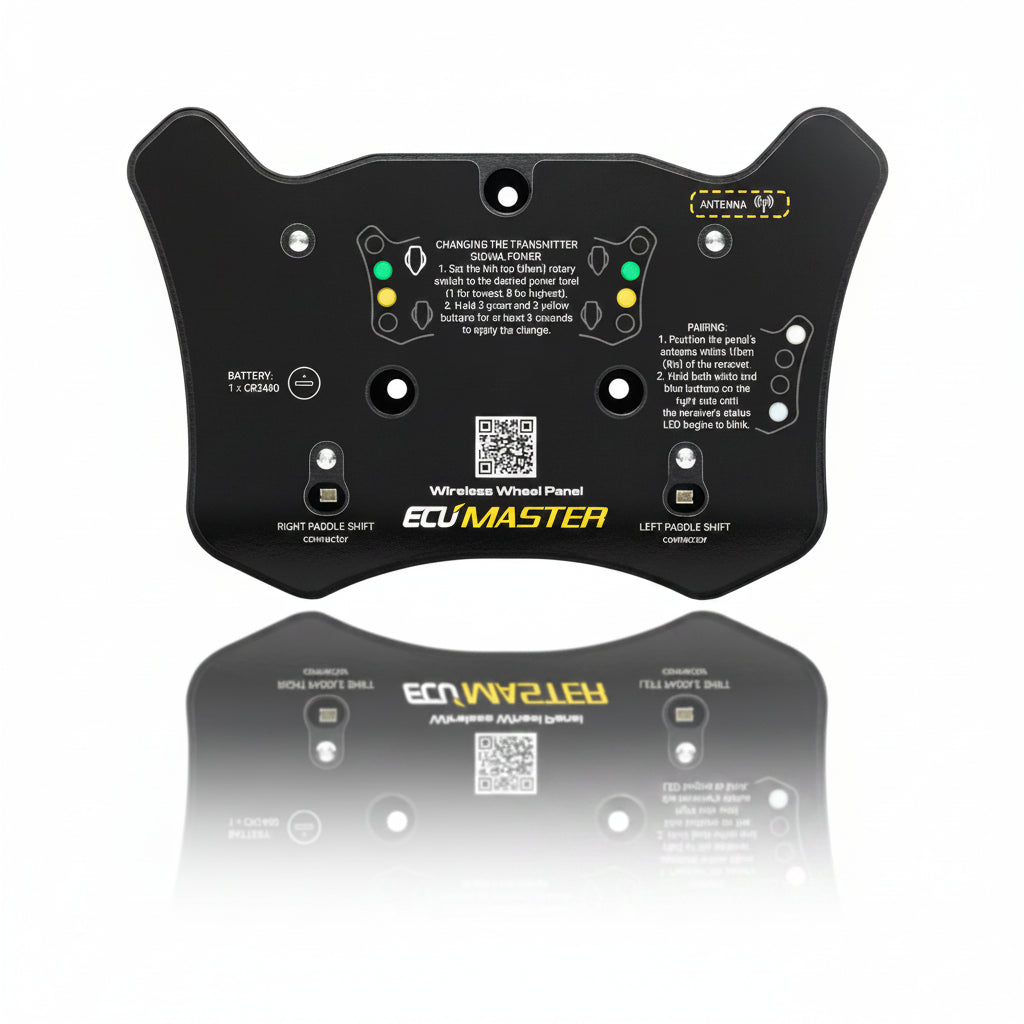

Powered by a CR2450 battery, the panel offers extremely low power consumption and can last for over 1.5 million button presses at room temperature. Battery level is transmitted through CAN bus, and the RF Receiver includes a low battery warning LED.

Key Features

Wireless Steering Wheel Controls
Provides cable-free steering wheel control using ECUMaster RF technology.

Professional Carbon Housing
Carbon housing with an ergonomic design for improved usability and a motorsport-quality finish.

Eight OTTO Push Buttons
Features 8 momentary OTTO pushbutton switches for reliable control inputs.

Four Rotary Switches
Includes 4 rotary switches, each with 8 positions for adjustable control functions.

Spare Switch Inputs
Includes 2 spare switch inputs suitable for shift paddles or additional functions.

CAN Bus Integration
Transmits data over CAN bus and uses the same message format as the ECUMaster CAN Switch Board V3.

Long Battery Life
CR2450 battery supports over 1.5 million button presses at room temperature.

Battery Monitoring
Battery level is transmitted via CAN bus, with a low battery warning LED on the receiver.

Simple Wiring
Only requires 12V power, ground, CAN Hi, and CAN Lo connections.

6x70mm Bolt Pattern
Compatible with the popular 6x70mm steering wheel bolt pattern.

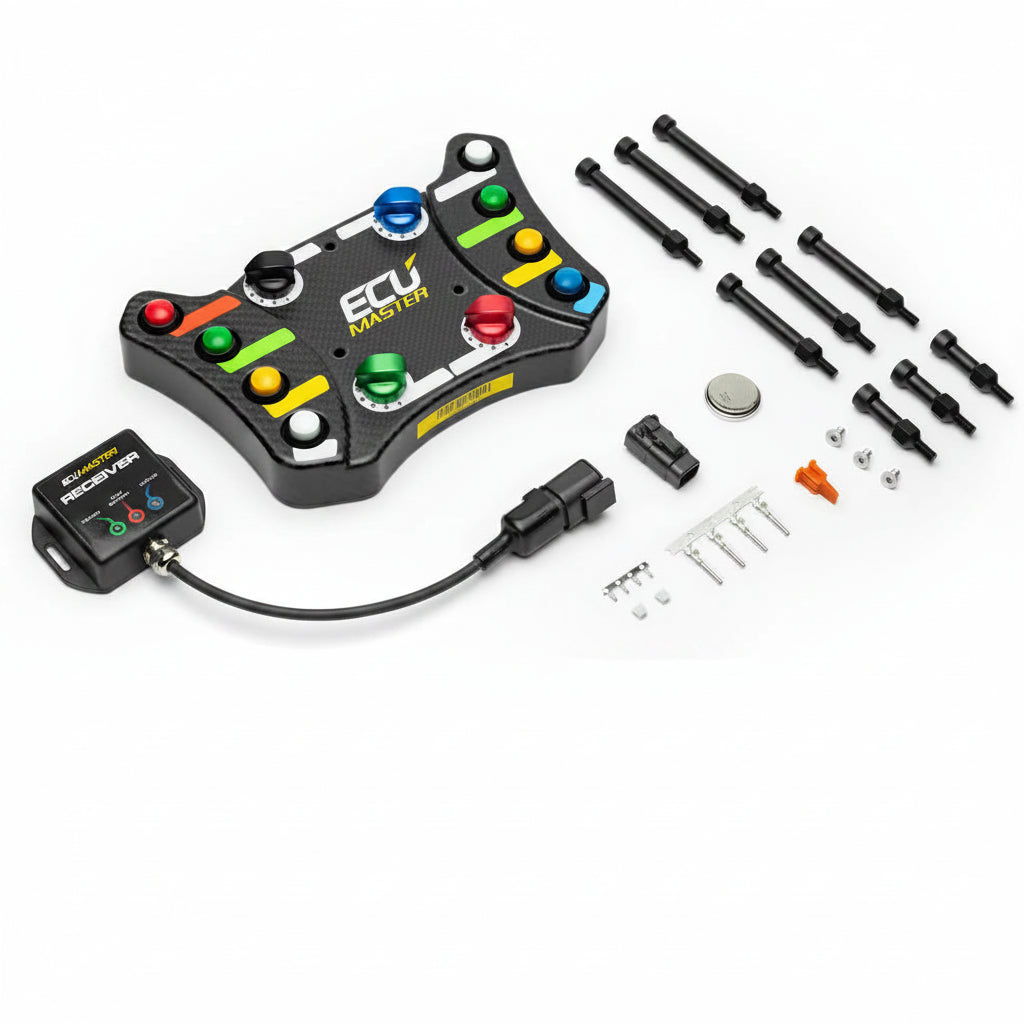

Supplied Contents

1 x wireless steering wheel panel
1 x RF Receiver
9 x threaded spacers
3 x fasteners
1 x 4-position DTM connector with terminals
Sticker / label sheet

Spacer Options

The supplied threaded spacers allow the distance from the back of the switch panel to the face of the steering wheel to be set at:

10mm
35mm
45mm

Suitable Applications

Race cars
Track cars
Drift cars
Rally cars
Time attack cars
Custom steering wheel controls
CAN bus control systems
Paddle shift installations
Motorsport wiring projects

Important Notes

Designed for motorsport and performance vehicle use
Requires CAN bus configuration for supported devices
Uses CR2450 battery
Compatible with 6x70mm steering wheel bolt pattern
Please contact us for an ETA before ordering
Professional installation is recommended
