Lexus / Toyota 1UZFE 1UZ Link ECU G4+A Atom II Wirein ECU Kit

Lexus / Toyota 1UZFE 1UZ Link ECU G4+A Atom II Wirein ECU Kit

£672.00

LinkECU Atom ECU Kit for Toyota Lexus 1UZ 1UZFE Ready Mapped for Standard Engine

0% Interest Free Finance - Call for details 01474850666

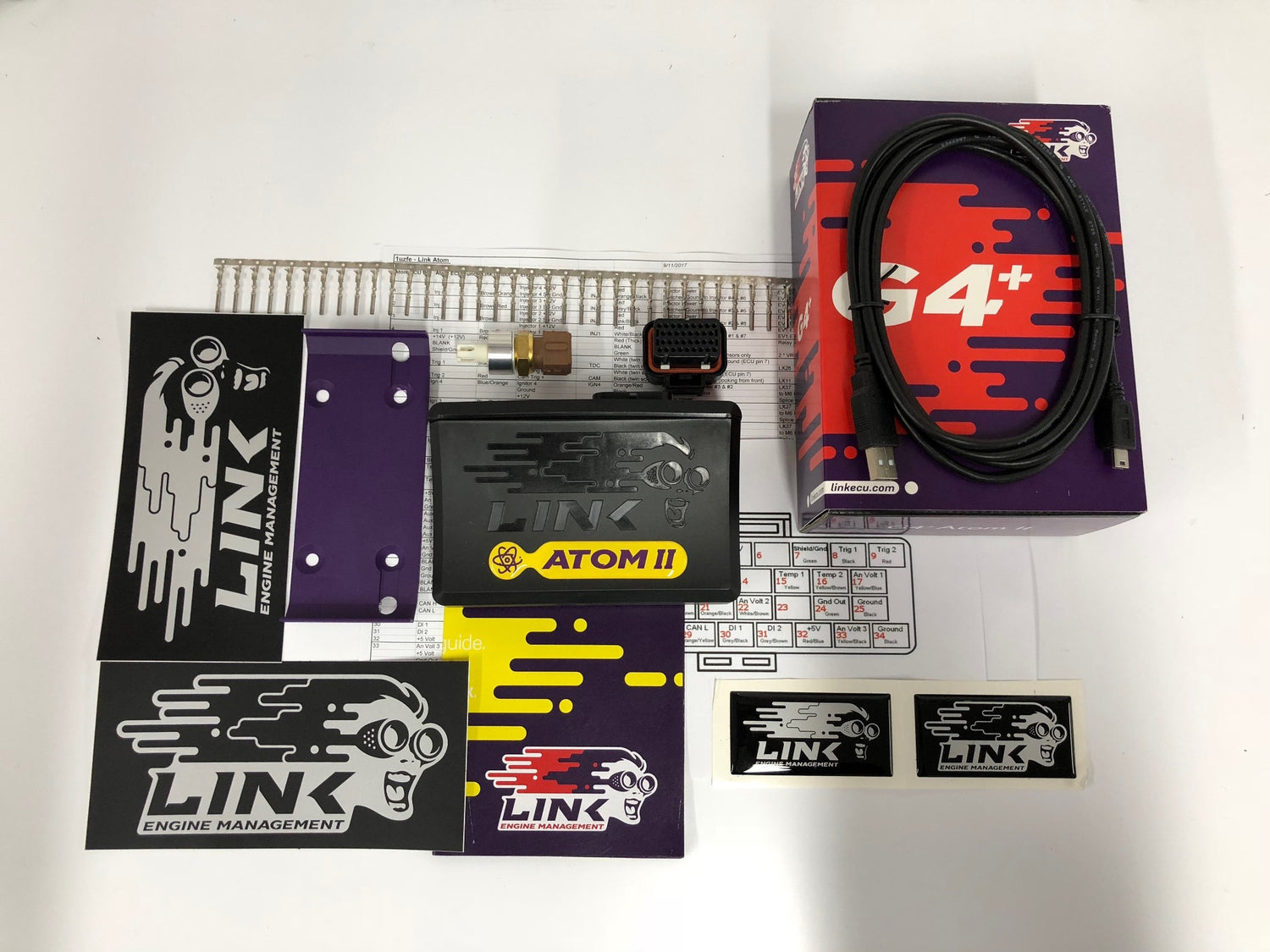

This kit contains:

  • Atom ECU
  • Tuning Cable
  • Bracket
  • Link Stickers
  • Link A Connector and Terminals
  • Air Temp Sensor and Aluminium Boss
  • Full Pinout Diagram for the Atom to be connected to your Lexus 1UZFE Loom General Installation Instructions.
  • Mapped file that will run a standard engine.

You can also run this ECU with Coil on Plugs, Bike kit is £225 (less coils as they are available secondhand very cheaply) please contact us for options.

We think this is the ultimate budget kit available today that uses a top brand ECU that carries a lifetime warranty. (We can also supply other Link ECU's configured to 1UZFE if you want more features)

There are options for adding on bike coil on plug's that included the connectors, wiring, instructions Ignition Amplifiers. (Coils not included cheap to buy secondhand)

We can also replug your loom for a fee of £200 if you send it into us.

The Link G4+ Atom II is Link's entry level ECU that blows the opposition away - half the size, all the technology! Now with more refinements for the budget conscious. Full configurability, no preset inputs / outputs. Logging, motorsport, and even closed loop fuel if an external device is added. Industry standard waterproof connectors and mounting bracket are supplied with your G4+ Atom.

EVERY PURCHASE OF AN ECU COMES WITH A 20% VOUCHER FOR YOUR CONNECTOR & WIRE ORDER !

Engine Configurations

  • 2-12 Cylinder Distributed
  • 2-8 Cylinder Wasted Spark
  • 2-4 Cylinder Direct Spark
  • Odd Fire Engines
  • 2-Stroke Engines
  • Configurable Firing Order
  • Configurable TDC Points (for odd fire)

Fueling Adjustments

  • Up to 440 Zone Fuel Table with configurable load and RPM centers. Configurable X and Y Axis Parameters
  • Multiple Fuel Tables
  • Up to 6D Fuel Mapping
  • Injection Rate
  • Master Enrichment
  • Pre-Crank Prime
  • Crank Enrichment
  • Post Start Enrichment
  • Warm Up Enrichment
  • Acceleration Enrichment
  • IAT Fuel Correction
  • Injector Deadtime Compensation
  • Overrun Fuel Cut
  • Idle Load Trims
  • Fuel Temperature Correction

Ignition Adjustments

  • Up to 440 Zone Ignition Table with configurable load and RPM centers. Configurable X and Y Axis Parameters
  • Crank Dwell Extension
  • Maximum Advance
  • AFR Table Correction
  • Spark Duration
  • Beginning / End Injection Definable
  • Dwell Time Table. Configurable X and Y Axis Parameters
  • Individual Cylinder Trim
  • Individual Cylinder Tables
  • Multiple Ignition Tables
  • Up to 6D Ignition Mapping
  • Individual Cylinder Ignition Trim
  • IAT Trim
  • Voltage Correction
  • ECT Trim
  • OEM Compatibility
  • CDI Compatibility

Limits

  • Engine Temperature Dependent Progressive Limiting
  • Vehicle Speed Limit
  • System Voltage Limit
  • User Configurable RPM Limit based on external input

Triggering

  • Digital Trigger Decoding
  • Reluctor, Optical Proximity or Hall Sensors
  • Programmable filtering and arming thresholds
  • Configurable trigger patterns or preset triggering options.
  • Supports nearly all OEM trigger patterns and custom trigger arrangements

Motor-Sport Features

Communications

  • Serial RS232 via adapter cable available separately

Auxiliary Output Options

  • Each Output independently configurable
  • Unused ignition outputs available as auxiliary outputs
  • General Purpose Output
  • General Purpose PWM
  • Closed Loop Idle Speed Control (Solenoid only)
  • Fuel Pump
  • Fuel Pump Speed Control
  • Engine Fan
  • Air Con Clutch
  • Air Con Fan
  • Intercooler Spray
  • Tacho
  • Check Engine Light
  • Purge Solenoid
  • Oxygen Sensor Heater
  • Switched Cam Solenoid

Processing

  • 40 MHz Specialised Engine Management Microprocessor
  • Ignition control to 0.1 degree, fuel to 0.01 ms
  • 32 Bit Calculation
  • 10 Bit ADC Resolution
  • 20000+ RPM
  • 4Mb Non Volatile Flash

Inputs/Output

  • 4 High Current Injector Drives
  • 4 Ignition Channels
  • 4 Auxiliary Outputs
  • 2 Digital Inputs
  • +5V Out
  • 2 Temperature Inputs
  • 3 0-5V Analog Inputs
  • 2 Trigger Inputs (Reluctor, Optical or Hall Sensors)
  • On Board Baro Correction (Real Time)

Analog Inputs

  • Each channel independently configurable with preset or custom calibrations
  • Wide-band O2 (from external controller e.g. Innovate LC1)
  • Boost Adjust Signal
  • Configurable Fault Detection Settings
  • Voltage (0-5V)
  • Pyro (from external controller)
  • Throttle Position
  • Pressure (general purpose, fuel, oil)
  • Air Flow Meter
  • MAP (external)
  • Temperature (coolant, IAT, general purpose)
  • Narrow Band O2

Boost Control

  • Engine Temp Correction
  • IAT Correction
  • Multiple Boost Tables
  • External Adjustment

Idle Control

  • Reliable and accurate user configurable Closed Loop Control
  • Solenoid or Uni-polar 6 terminal stepper only.
  • Aircon, Engine Fan or Power Steer idle up
  • Open Loop Control Mode for diagnostics

Environment

  • Internal Temperature Range -10 - 85oC
  • Ambient Temperature Range -30 - 90oC
  • Voltage 8 - 22V
  • Operating Current 200mA
  • Electrical protection on all inputs and outputs

Physical

  • Length: 79 mm
  • Width: 126 mm
  • Height: 42 mm
  • Weight: 360 grams
  • Connector : 26 Pin Waterproof Automotive

PC Link

  • Adjust ALL parameters in real time
  • Mouse or keyboard operation
  • Tuning
  • QuickTune - automated fuel self tuning
  • Logging Analysis
  • Diagnostic Information
  • Built In Help
  • Definable Screen Layouts
  • View over 300 possible runtime parameters

Package Contents

  • G4+ Atom ECU
  • Mounting Bracket
  • Wiring and Installation Instructions
  • 2 large Link Stickers
  • 2 small Link Stickers

Manufacturing Standard

  • ISO 13485
