LINK ECU G4 G4+ G4X 3 bar MAP Sensor & Connector / Plug

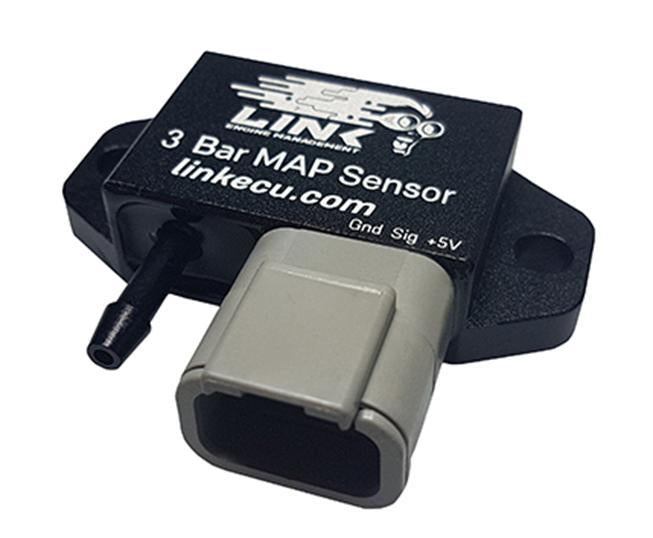

Link 3 Bar MAP Sensor

The Link 3 Bar MAP Sensor is a high-accuracy manifold absolute pressure sensor designed for turbocharged and supercharged engines.

It measures from full vacuum up to 3 Bar absolute pressure, making it suitable for engines running up to approximately 2 Bar / 29 PSI of boost.

Suitable Applications

Designed for:

• All Link ECUs

• Other aftermarket ECUs with analogue MAP sensor inputs

• Turbocharged engines

• Supercharged engines

• Applications running up to 2 Bar / 29 PSI boost

Important Information

• Mount the sensor higher than the intake manifold connection point

• In PCLink, select “Link 3 Bar” as the MAP sensor type

• Not recommended for naturally aspirated applications

• Not suitable for boost levels above 2 Bar / 29 PSI

Key Features

• 0 to 3 Bar absolute pressure range

• High-resolution pressure measurement

• Compact aluminium enclosure

• 4mm / 3/16" hose barb connection

• Two-bolt mounting design

• Includes 3-pin Deutsch DTM connector kit

• Wiring pinout marked on the sensor housing

• Designed and manufactured by LinkECU

Pressure Range

0 to 3 Bar absolute

Equivalent to approximately:

• Full vacuum

• Up to 2 Bar boost

• Up to 29 PSI boost

Electrical Specification

Operating Voltage Range: 4.75V to 5.25V
Maximum Input Voltage: 5.25V
Maximum Continuous Current Draw: 10mA

PCLink Calibration

Select:

Link 3 Bar

Raw Calibration

• 0.38V = 25kPa

• 4.75V = 300kPa

Dimensions

Length: 60mm
Width: 55mm
Height: 20mm

Weight

40g

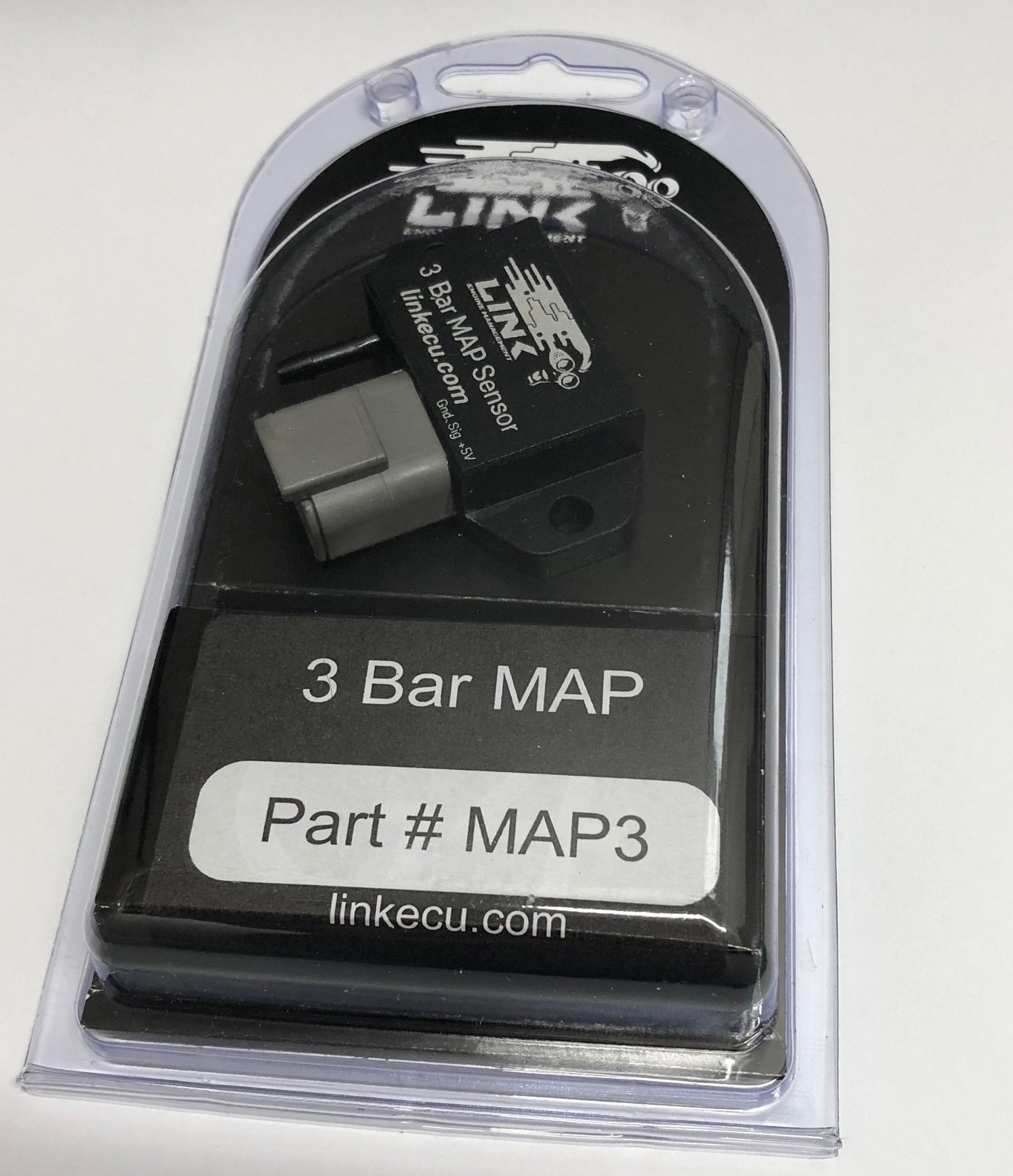

What's Included

• Link 3 Bar MAP Sensor

• Deutsch 3-Way Plug Kit

Please Note

This sensor is intended for boosted applications running up to approximately 2 Bar / 29 PSI of boost.

For higher boost levels, a higher-range MAP sensor should be used.
