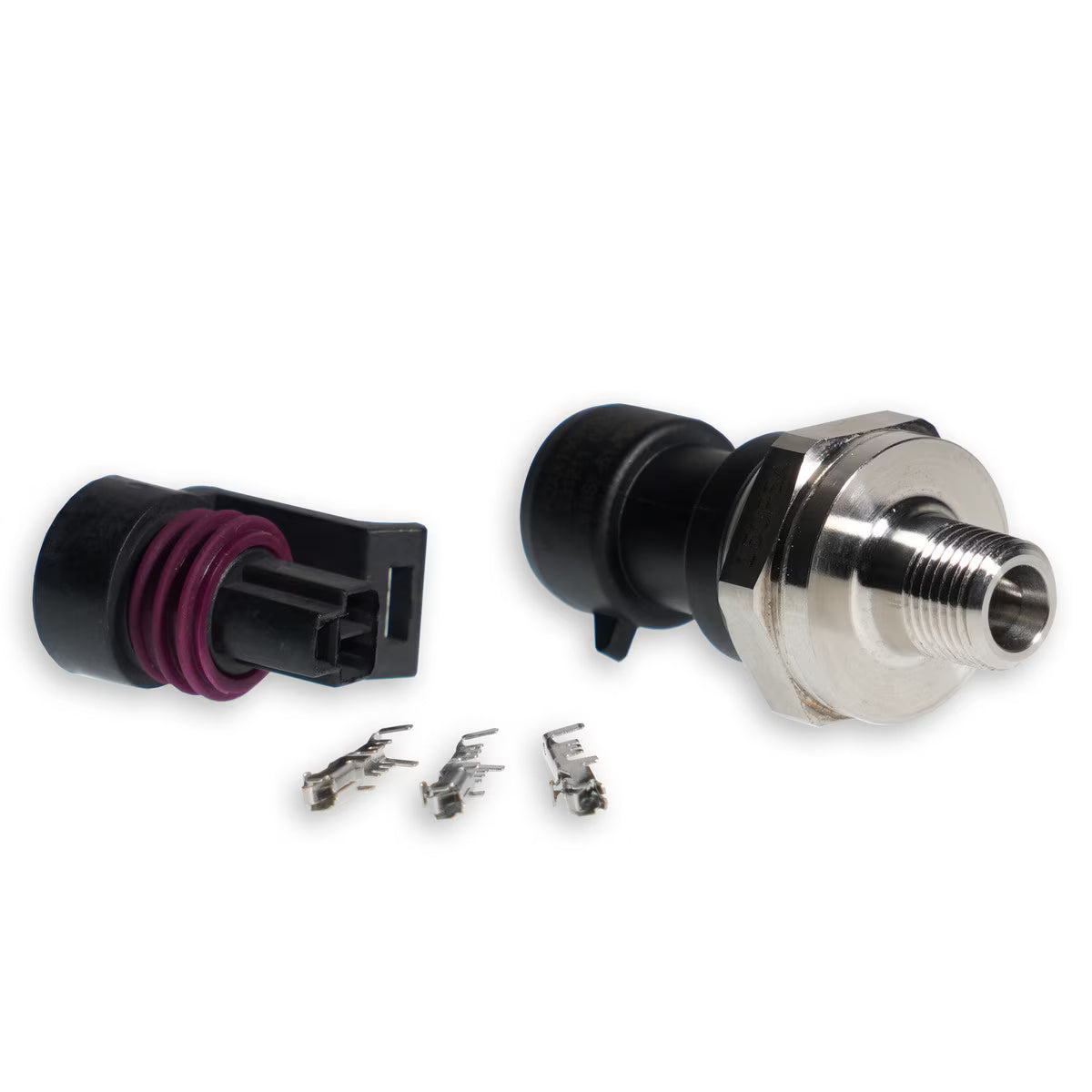

Link ECU MIPS 150 PSI Pressure Sensor

Link MIPS 150 PSI Pressure Sensor

The Link MIPS 150 PSI Pressure Sensor is a media-isolated pressure transducer designed for accurate and reliable pressure measurement in demanding automotive applications.

With a stainless steel body, compact design and 0.5V to 4.5V output, it is suitable for monitoring fuel, oil, coolant and other compatible fluid pressures in motorsport and performance vehicles.

Suitable Applications

Compatible with:

• All Link ECUs

• Other aftermarket ECUs with analogue pressure sensor inputs

• Fuel pressure monitoring

• Oil pressure monitoring

• Coolant pressure monitoring

• Water pressure monitoring

• Petrol applications

• Ethanol applications

• Diesel applications

Key Features

• Genuine Honeywell MIP Series pressure sensor

• Pressure range from 0 to 150 PSI

• 1/8"-27 NPT male thread

• Stainless steel construction

• Media-isolated sensing element

• Ratiometric 0.5V to 4.5V analogue output

• Operating temperature from -40°C to +125°C

• Compact 22mm hex body

• Supplied with 3-way Metri-Pack 150 connector kit

Fluid Compatibility

Suitable for use with:

• Oil

• Petrol

• Ethanol

• Diesel

• Coolant

• Water

Pressure Range

0 to 150 PSI

Operating Temperature

-40°C to +125°C

Electrical Specification

Operating Voltage Range: 4.75V to 5.25V
Maximum Input Voltage: 40V
Maximum Continuous Current Draw: 7.5mA
Output Voltage: 0.5V to 4.5V

PCLink Calibration

Select:

1000 kPa (150 PSI) TI Sensor

Raw Calibration

• 0.5V = 0 kPa

• 4.5V = 1034.21 kPa

Thread

1/8"-27 NPT Male

Dimensions

Length: 45mm
Width: 25mm
Height: 25mm

Weight

25g

Connector

• 3-way Metri-Pack 150 connector

What's Included

• Link MIPS 150 PSI Pressure Sensor

• 3-Way Metri-Pack 150 Connector Kit

• Printed Accessory Instructions

Please Note

This sensor requires a regulated 5V sensor supply from the ECU.

Use a suitable thread sealant for the fluid being measured and ensure the 150 PSI pressure range is appropriate for the application before installation.
