Mini Cooper S R50 R53 W11B16A W10B16A Link ECU G4X MiniLink MINIX PlugIn

Mini Cooper S R50 R53 W11B16A W10B16A Link ECU G4X MiniLink MINIX PlugIn

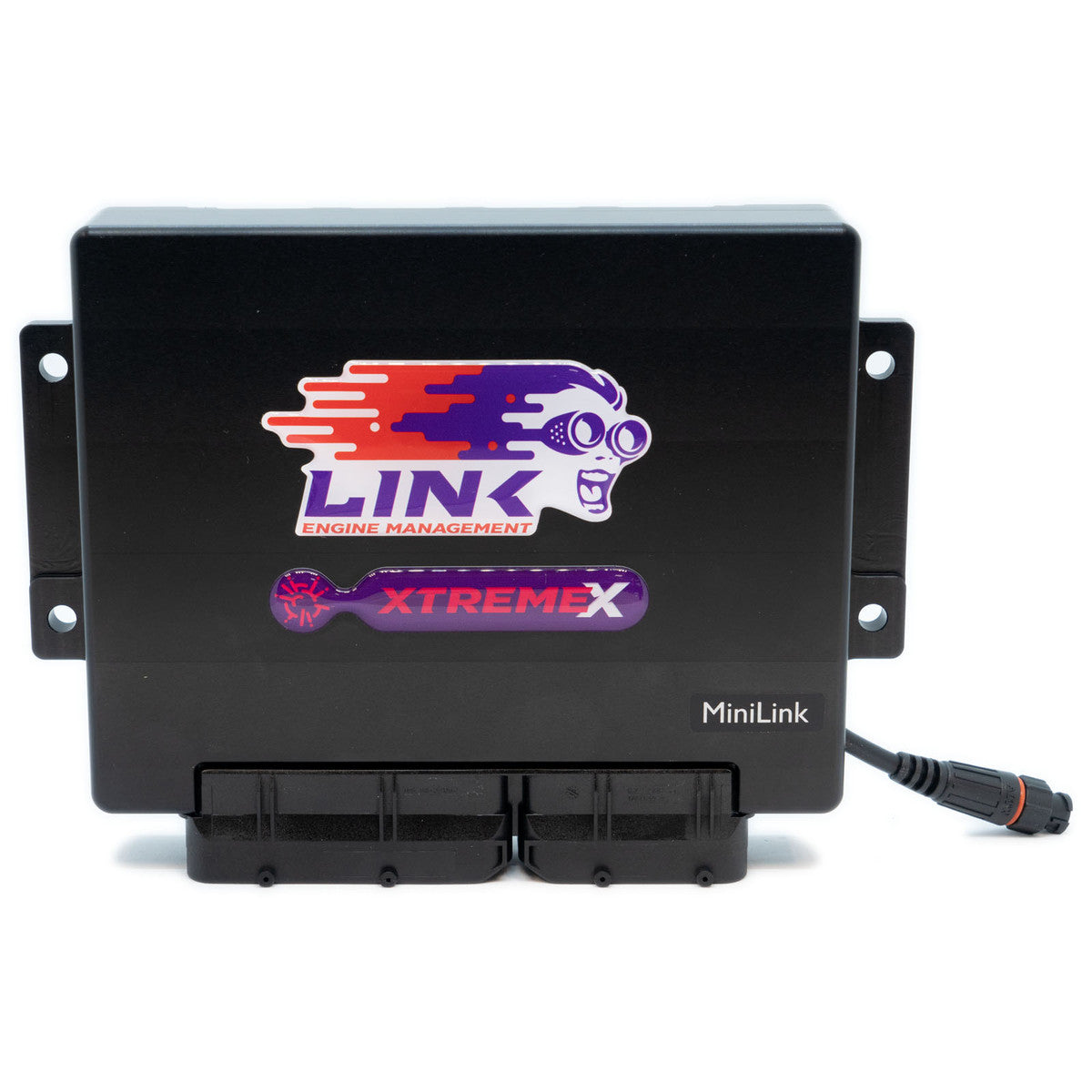

The Link G4X MINI MINIX Plug-In ECU gives you modern standalone engine management while retaining the convenience of a genuine plug-in ECU.

Designed specifically for the MINI R50, R52 and R53 with the 1.6 Tritec and 1.6 Tritec Supercharged engines, the MINIX fits directly into the factory ECU location using the original mounting points, wiring loom and ECU connectors.

No replacement engine loom or adaptor harness is required. The ECU is designed to work with the factory wiring while retaining supported original vehicle functions and maintaining a clean, factory-style installation.

A startup map is included to help get the engine running ready for final setup and calibration.

The MINIX uses the same processor, firmware and PCLink software as the rest of the Link G4X range and includes the standard G4X feature set.

Suitable Applications

The MINIX is designed to suit the following applications:

• MINI R50 with 1.6 Tritec engine

• MINI R52 with 1.6 Tritec engine

• MINI R52 with 1.6 Tritec Supercharged engine

• MINI R53 with 1.6 Tritec Supercharged engine

Important Compatibility Information

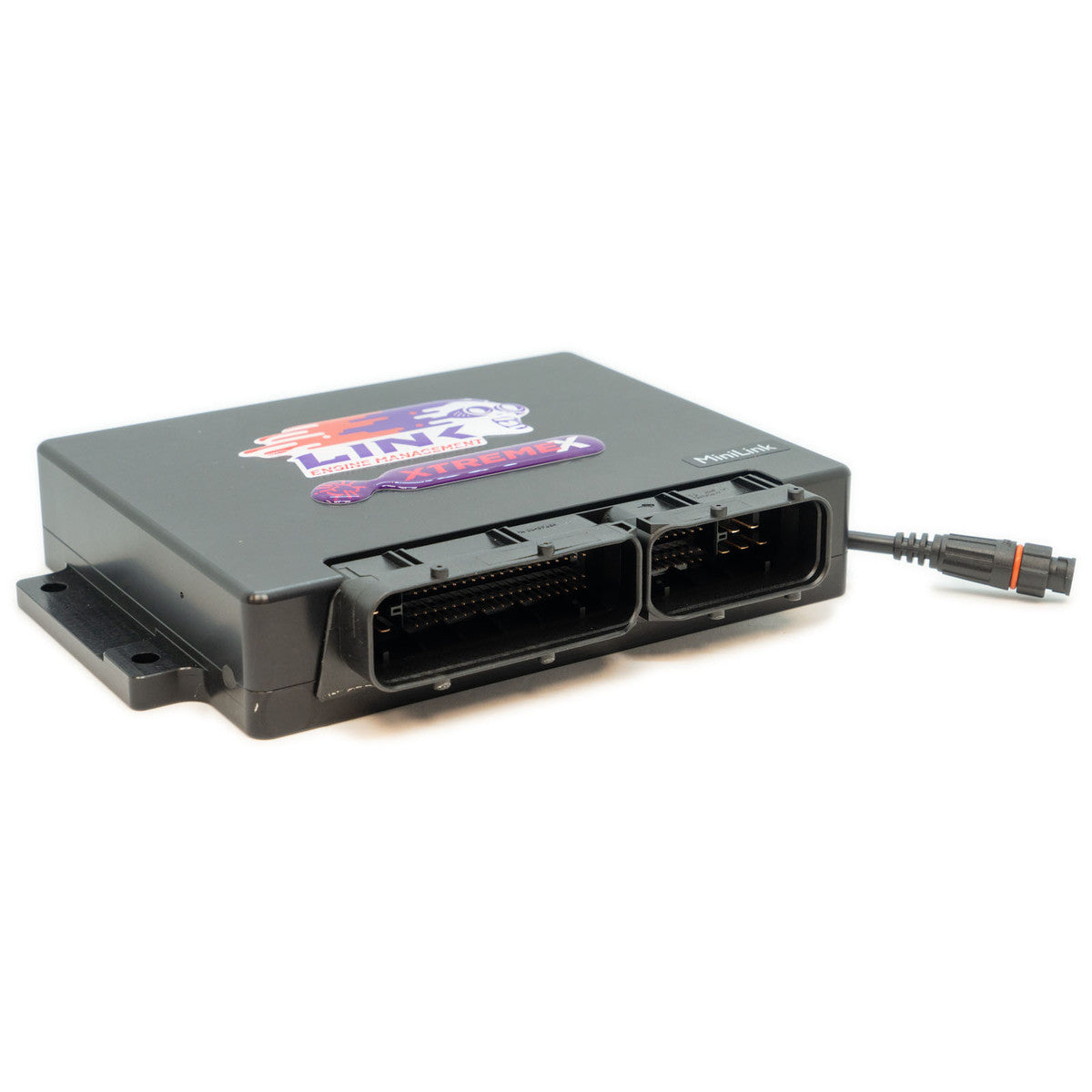

Please check your original ECU connector arrangement against the ECU header shown in the product photos before ordering.

• Suitable for manual transmissions only

• Most factory features are supported

• Built-in E-Throttle / Drive-by-Wire control

G4X MINIX Features

• Dual CAN Bus

• E-Throttle Control

• Flex Fuel

• Trigger Oscilloscope

• 3 Axis Accelerometer

• Selectable Temperature Input Pull-ups

• Flexible Engine Protection Limiters

• CAN Keypad Control

• VVT Control

• Open Loop Boost Control

• Closed Loop Boost Control

• Dual Closed Loop Lambda

• Compatible with leading aftermarket displays via CAN or serial stream

• 512MB Internal Data Logging

Motorsport Features

• Nitrous Control

• Launch Control

• Anti-Lag

• Cruise Control

• Traction Control

• Race Timer and Power Management

• Gear Shift Control

• Paddle Shift Control

Inputs and Outputs

For the complete list of available inputs and outputs, please refer to the Link MINIX Installation Manual.

Communications

• 2 CAN Bus Channels

• LTW 6-Pin USB Tuning Connection

Dimensions

Length: 190mm
Width: 155mm
Height: 40mm

Weight

960g

Electrical Specification

Operating Voltage Range: 6.5V to 24V
Maximum Input Voltage: 36V
Maximum Continuous Current Draw: 10A

What's Included

• Link G4X MINI MINIX Plug-In ECU

• Anti-static strap

• USB tuning cable

• Link stickers

• Plug-In manual card

• Product registration card

Please Note

The ECU is supplied with a startup map to assist with initial setup. This is not a finished vehicle calibration.

Professional setup and tuning are recommended before the vehicle is driven under load.
