Link ECU 150PSI 10 bar Pressure Sensor PS150

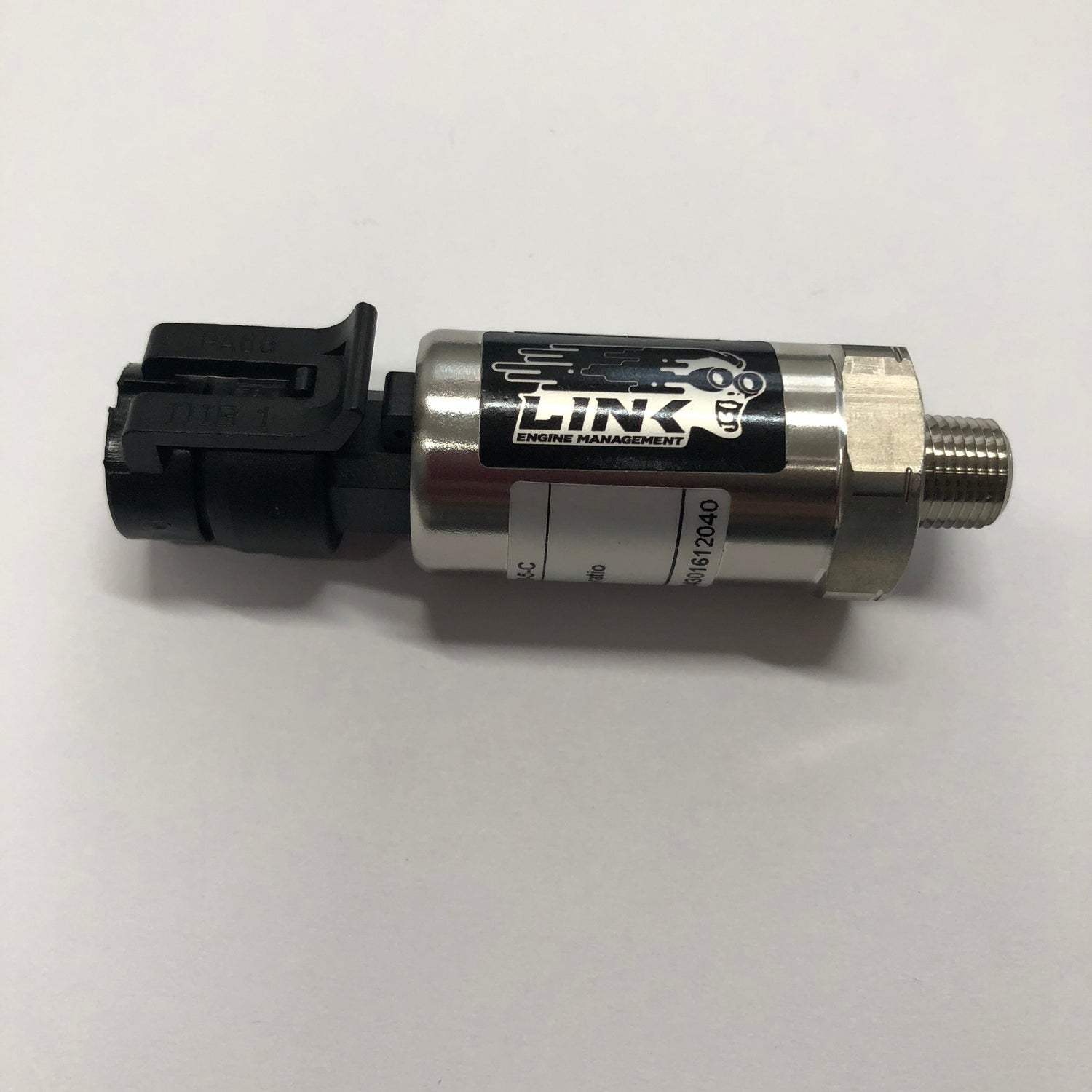

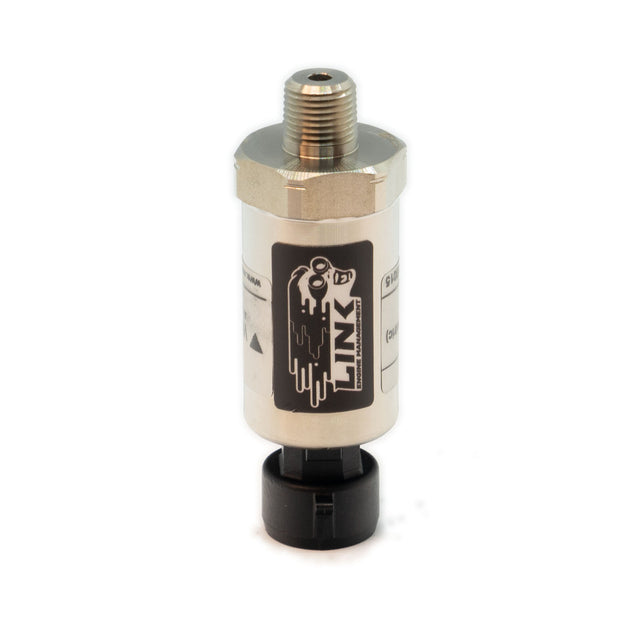

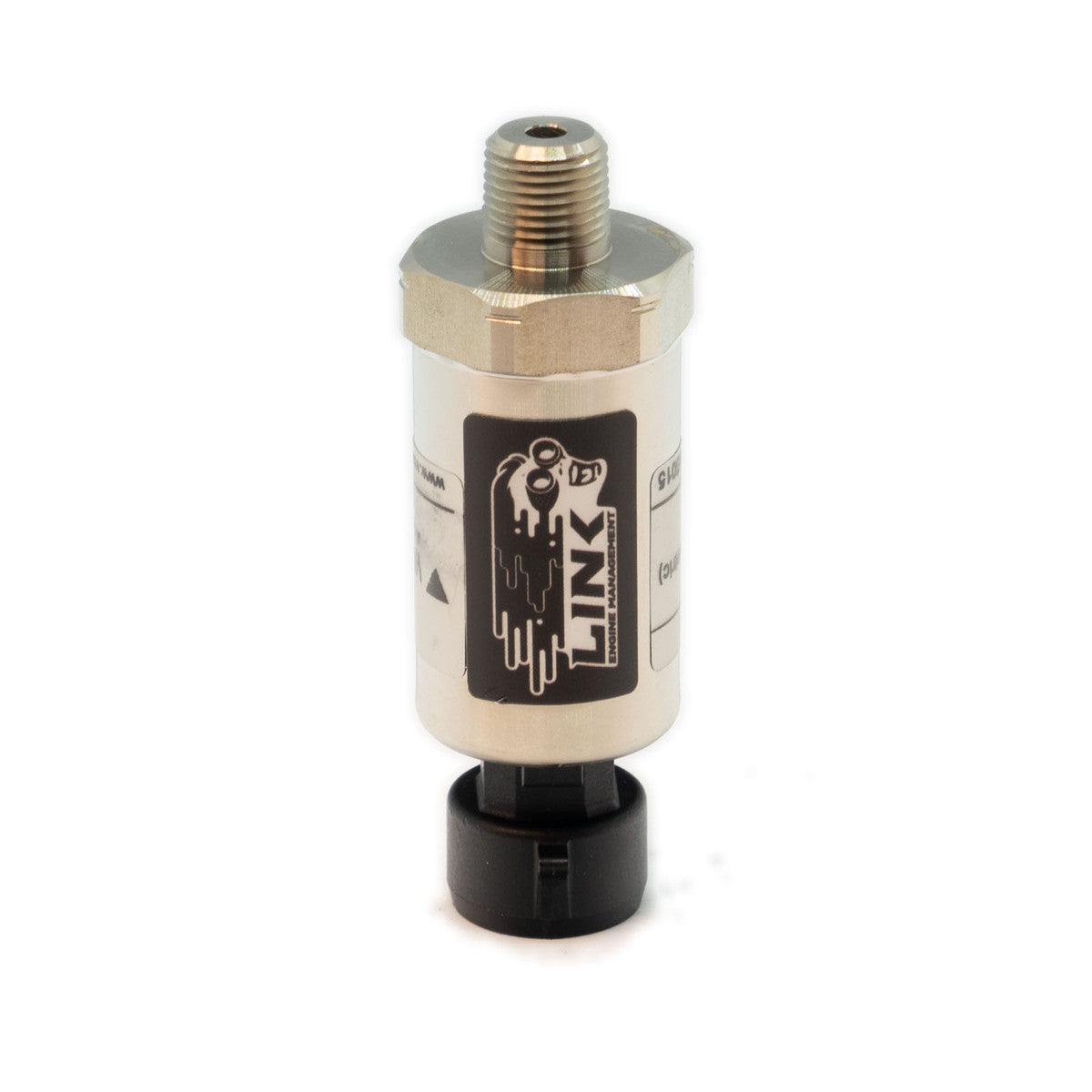

Link PS150 Pressure Sensor

The Link PS150 Pressure Sensor is a compact, high-accuracy pressure sensor designed for motorsport and high-performance automotive applications.

It is suitable for measuring fuel, oil, coolant, air and other compatible fluids, and provides a 0.5-4.5V ratiometric output for use with Link ECUs and other compatible aftermarket engine management systems.

Suitable Applications

Compatible with:

• All Link ECUs

• Other aftermarket ECUs with a 0.5-4.5V analogue input

• Fuel pressure monitoring

• Oil pressure monitoring

• Coolant pressure monitoring

• Air pressure monitoring

Pressure Range

0-150 PSI / 0-10 Bar

Key Features

• 0-150 PSI / 0-10 Bar pressure range

• 0.5-4.5V ratiometric output

• 5V supply

• Stainless steel sensing element and housing

• High accuracy

• Fast 1ms response time

• Excellent vibration and shock resistance

• Suitable for harsh automotive environments

• IP67 rated, depending on connector installation

• Packard Metri-Pack electrical connection

• 1/4"-18 NPT male pressure port

Accuracy

±0.5% Full Scale at 25°C

Long-Term Stability

≤0.1% Full Scale per year

Operating Temperature

-40°C to +125°C

Electrical Specification

Supply Voltage: 5V
Maximum Input Voltage: 5V

PCLink Calibration

Select:

Bosch 10 Bar 0 261 230 340

Raw Calibration

• 0.5V = 0kPa

• 4.5V = 1000kPa

Dimensions

Length: 50mm
Width: 25mm
Height: 25mm

Weight

50g

Connector

• TI Sensor Connector Kit

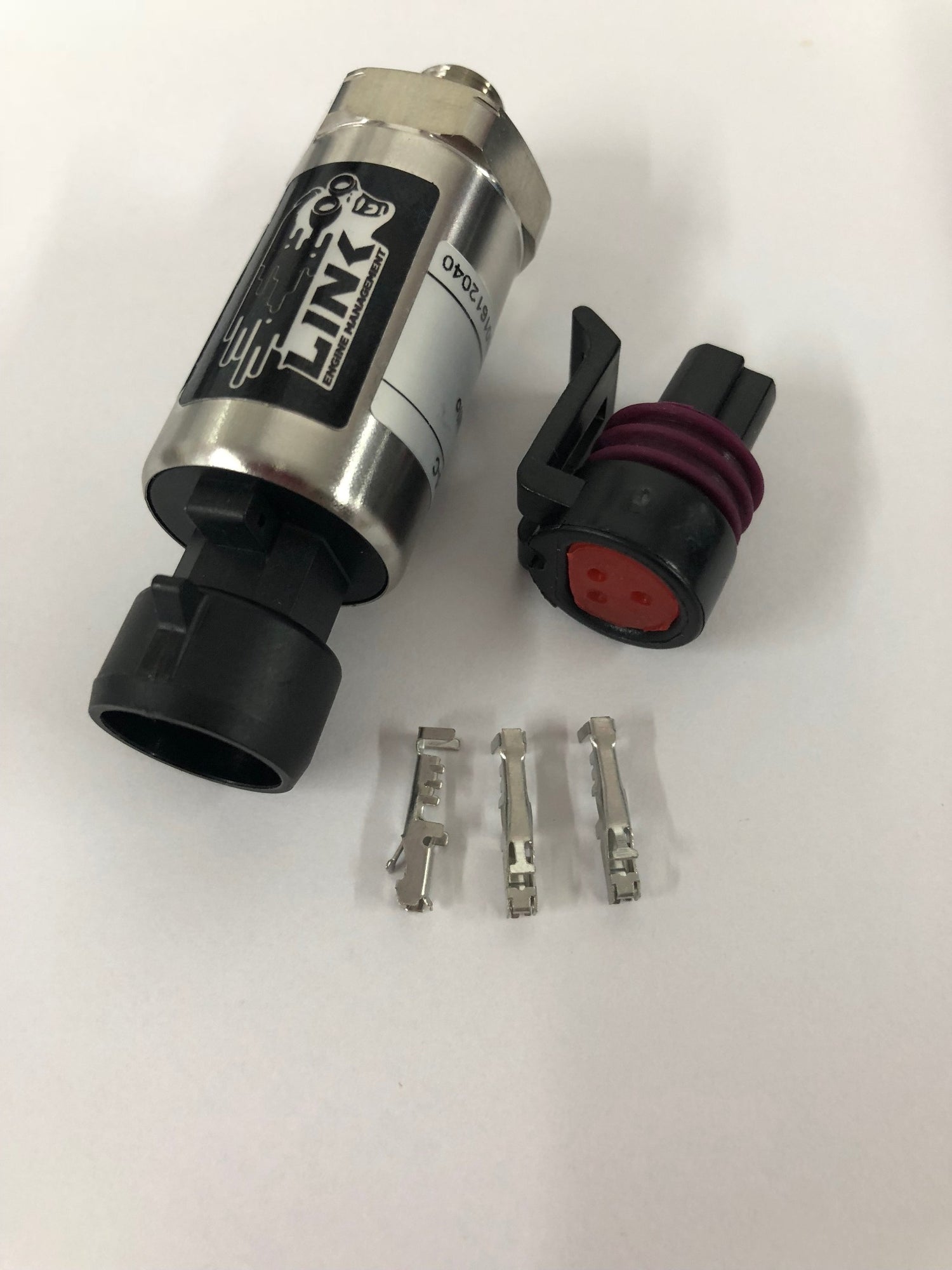

What's Included

• Link PS150 Pressure Sensor

• TI Sensor Connector Kit

• Printed Accessory Instructions

Please Note

The sensor should be powered from a regulated 5V sensor supply.

Please make sure the 0-10 Bar / 0-150 PSI range is suitable for the pressure you intend to monitor before ordering.
