Link G4X FuryX Motorsport Bundle - ECU, A & B Looms + Sensors

Link G4X FuryX Motorsport Bundle – ECU, A & B Looms + Sensors

A complete wire-in package for installing a Link G4X FuryX ECU into your chosen vehicle.

This bundle is ideal for engines with up to 6 cylinders or 3 rotors where you want the extra capability of the FuryX, including onboard digital wideband Lambda control, E-Throttle control and the full premium G4X motorsport feature set.

The package includes the ECU, both main wiring looms and a useful selection of engine sensors to get your installation started.

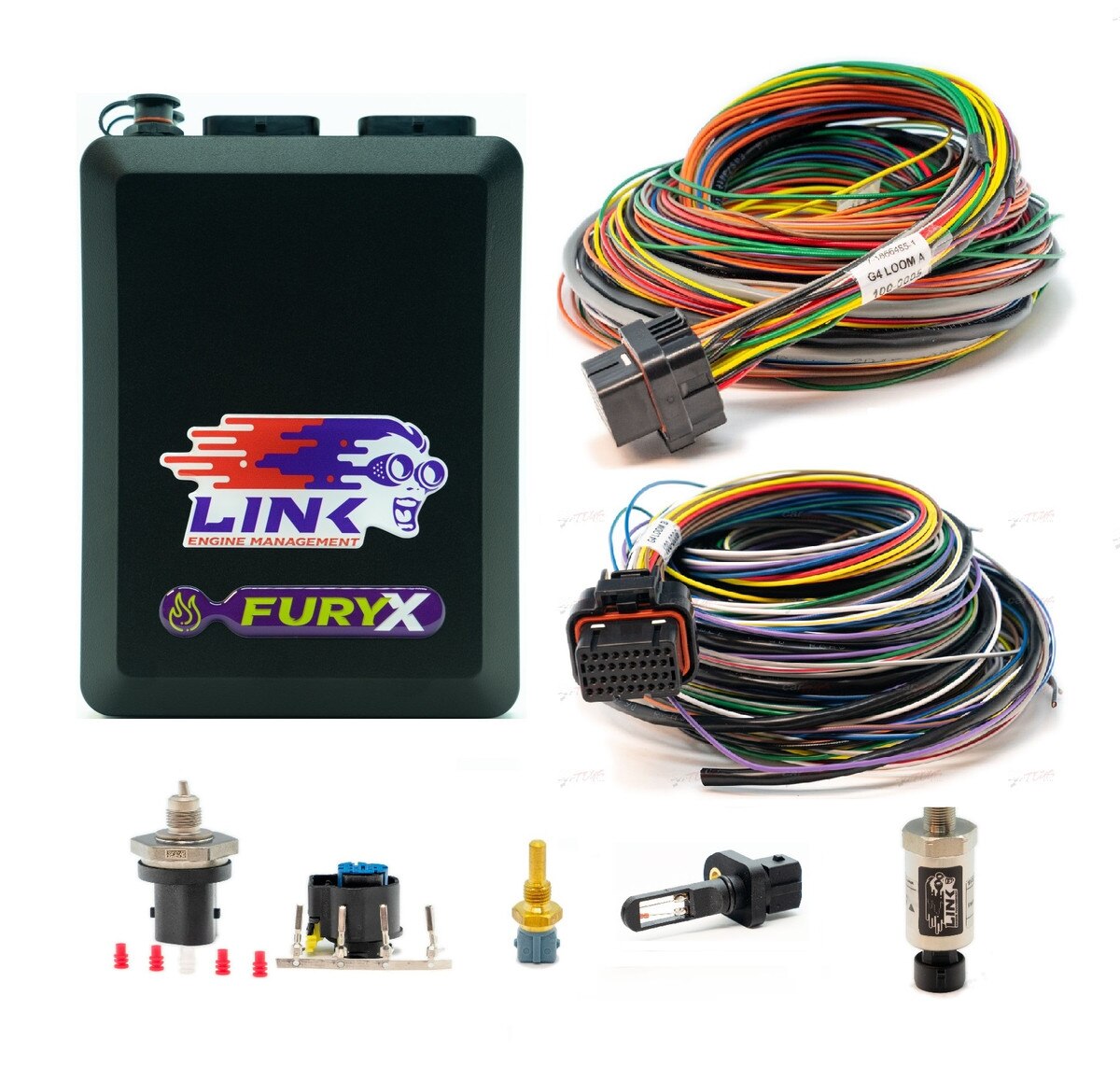

Bundle Includes

• Link G4X FuryX ECU

• 2.5m A Loom

• 2.5m B Loom

• Air Temperature Sensor

• Coolant Temperature Sensor

• 10 Bar Pressure Sensor

• Combined Pressure and Temperature Sensor

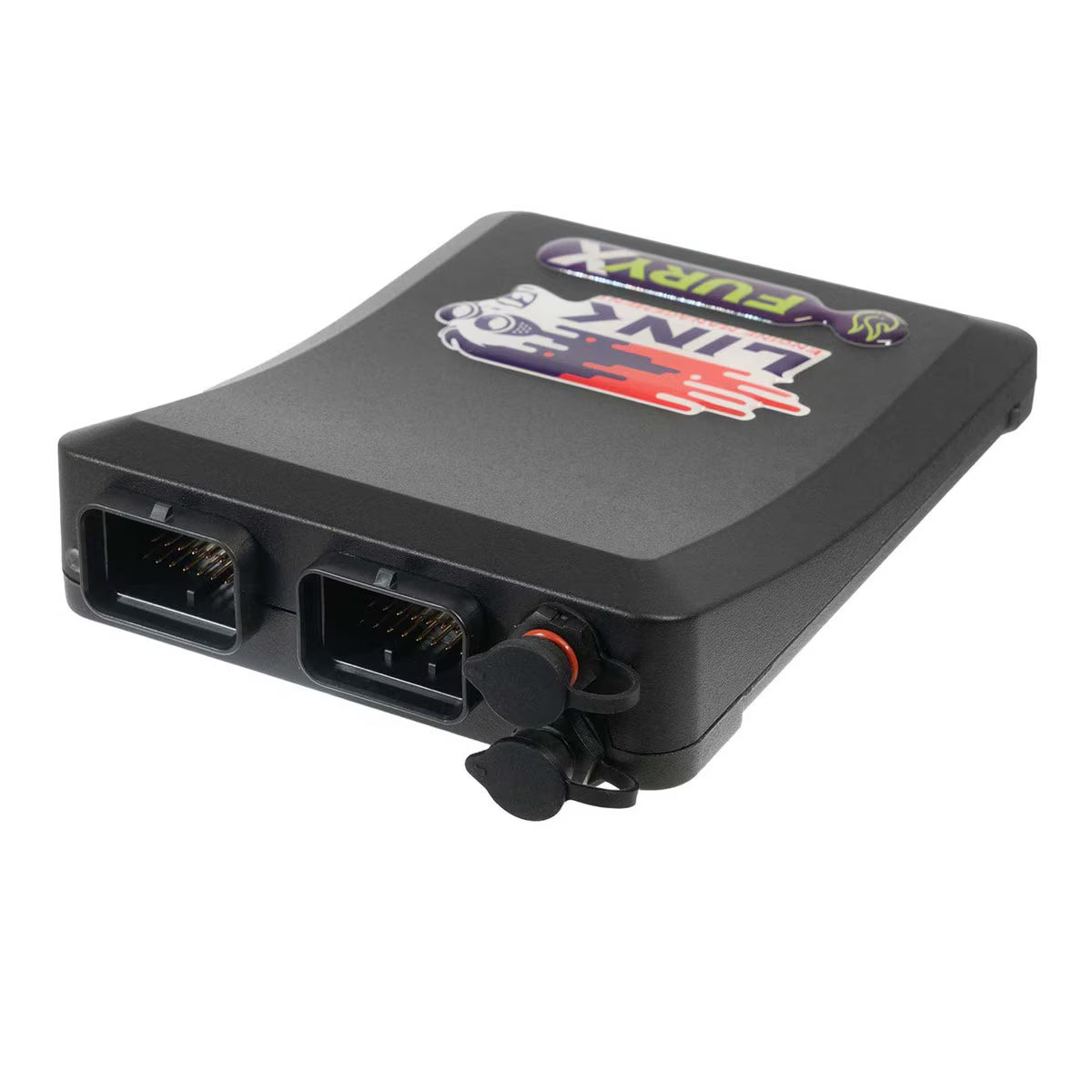

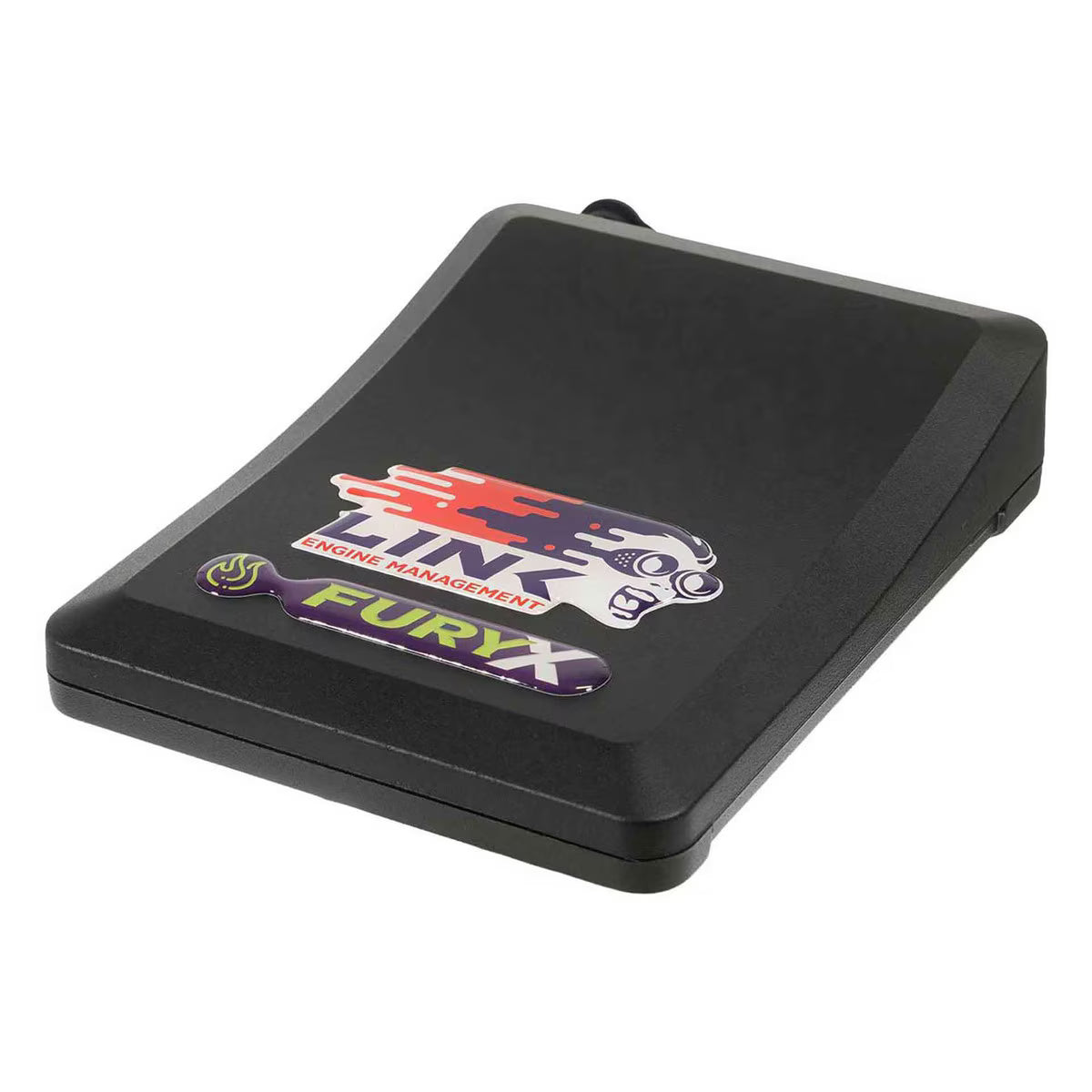

Link G4X FuryX ECU

The FuryX is a premium standalone ECU designed for high-performance road, race and motorsport applications.

It supports:

• Up to 6 cylinders

• Up to 3 rotors

• Sequential fuel injection

• Direct spark ignition

• Onboard Digital Wideband Lambda Control

• Fully programmable E-Throttle Control

• Direct Automatic Transmission Control

• Dual CAN Bus

• Advanced motorsport functions

• 512MB onboard data logging

Onboard Wideband Lambda

The FuryX includes onboard digital wideband Lambda control, allowing a compatible wideband Lambda sensor to be connected directly to the ECU.

This helps simplify the installation and allows Lambda control to be integrated directly into the ECU calibration and engine protection strategies.

Wiring Looms

The bundle includes both:

• 2.5m A Loom

• 2.5m B Loom

These provide the main wiring required to build a custom engine harness around the FuryX ECU.

Supplied Sensors

The bundle includes:

• Air Temperature Sensor

• Coolant Temperature Sensor

• Pressure Sensor for oil or fuel pressure up to 10 Bar

• Combined Pressure and Temperature Sensor

This gives you a useful starting point for monitoring the main engine parameters required in a performance or motorsport installation.

ECU Features

• Onboard Digital Wideband Lambda Control

• E-Throttle Control

• Flex Fuel

• Trigger Oscilloscope

• 3-Axis Accelerometer

• Flexible Engine Protection Limiters

• CAN Keypad Control

• VVT Control

• Open Loop Boost Control

• Closed Loop Boost Control

• Dual Closed Loop Lambda

• Direct Automatic Transmission Control

Motorsport Features

• Nitrous Control

• Launch Control

• Anti-Lag

• Cruise Control

• Traction Control

• Race Timer

• Power Management

• Gear Shift Control

• Paddle Shift Control

Please Note

This is a wire-in ECU bundle, not a vehicle-specific plug-in kit.

The supplied looms must be wired to suit the individual engine and vehicle installation.

Professional installation and final calibration are recommended.
