Reinz XL A4 Create Your Own Gaskets Gasket Paper Repair Sealing Kit & Sealant

Reinz XL A4 Create Your Own Gaskets Gasket Paper Repair Sealing Kit & Sealant

£26.50

Part no: 16-27250-03 & 70-31414-10
Paper size: 210 X 297 mm (A4)
DIN-A4

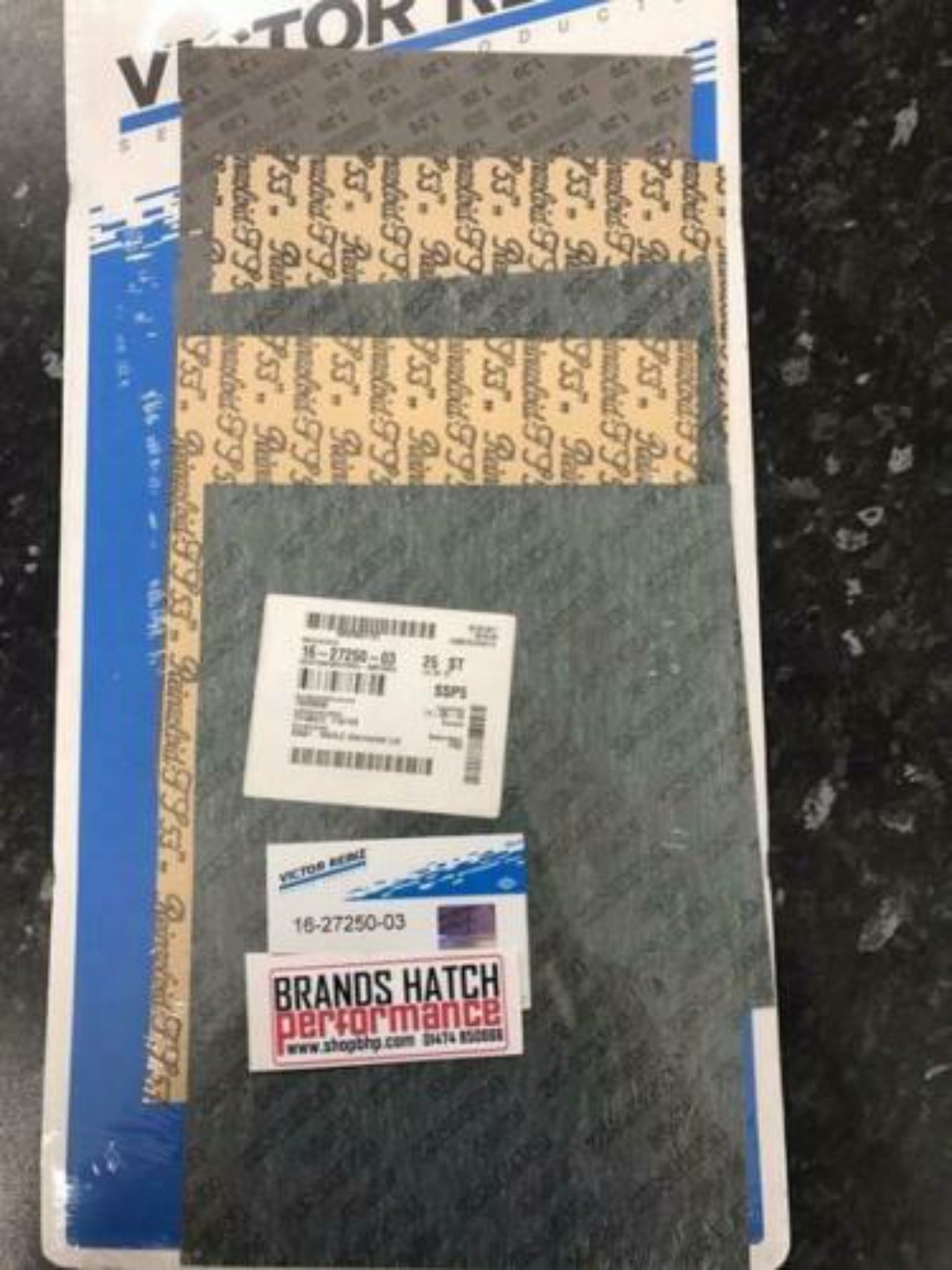

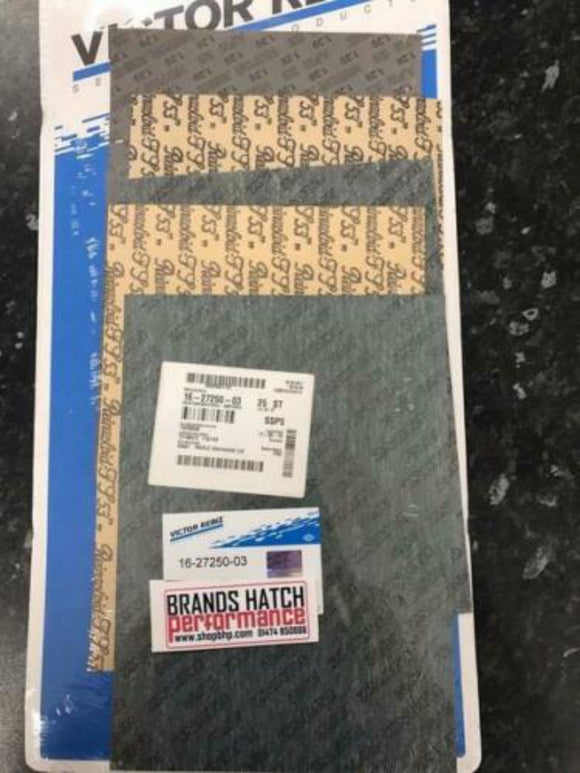

Included in this Kit:

1 X AFM 22 - Thickness: 1.2mm
1 X AFM 37/8 - Thickness: 0.50mm
1 X AFM 37/8 - Thickness: 1.00mm
1 X REINZOLOID FS 53 - Thickness: 0.50mm
1 X REINZOLOID FS 53 - Thickness: 1.00mm
Gasket Sealant 70ml

Description :

AFM 22 : AFM 22 is the next step up on the ladder of metal-reinforced for cylinder head gaskets in combustion engines. Configured in line with the AFM 20, the AFM 22 will tackle any of the challenges which come up in virtually any conceivable operating situation. It is resistant to all of the usual liquid media that come up in engines and can withstand great mechanical stress.

AFM 37/8 : AFM 37/8 is a highly cost-effective yet high-performance material for low to moderate sealing requirements. It possesses good thermal and mechanical behaviour and is particularly suited to sealing against oil and other liquids.

REINZOLOID FS 53:  REINZOLOID FS 53 is an impregnated soft composite material on a cellulose base and features a good cost-to-benefit ratio. Gaskets made of cellulose are very adaptable and prove highly durable in contact with oil and fuel. When used on the right sealing joint, REINZOLOID FS 53 makes effective and affordable gasket solution.

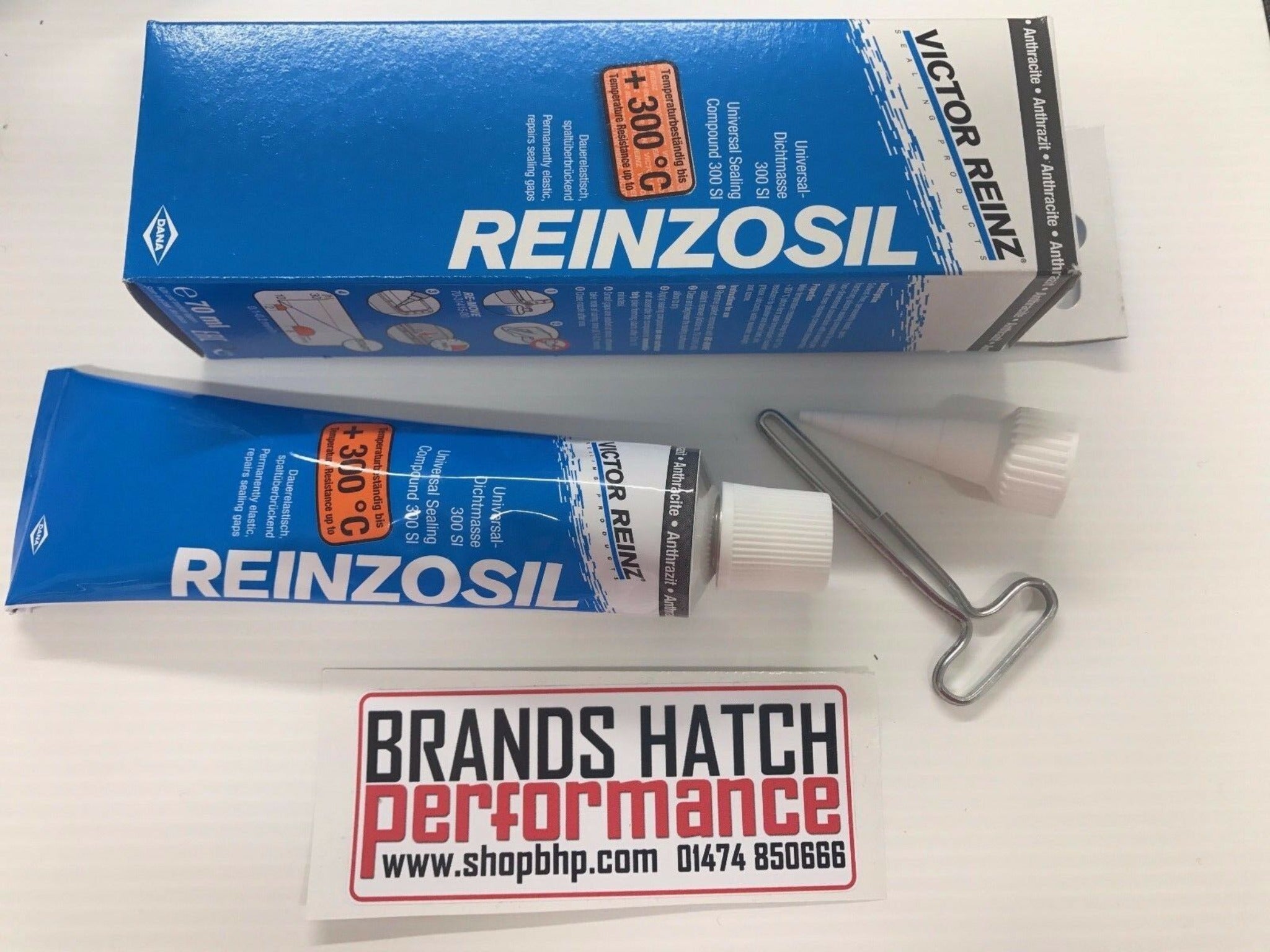

REINZ GASKET SEALER : This sealant is solvent-free , permanently elastic and fast hardening silicone compound for sealing flat surfaces where there is a sealing gap.


Technical Data:
AFM 22
Material
AFM 22 consists of a tanged and galvanized steel core. An asbestos-free soft material compound containing aramide fibers, inorganic fillers and high-grade binder elastomers is applied to both sides of the core.

Properties
AFM 22 exhibits very high mechanical strength together with very high pressure and temperature resistance, yet still conforms well to sealing surfaces.
The material is resistant to oils, fuels, and mixtures of water and antifreeze or corrosion inhibitors.

Application
  • for cylinder head gaskets in standard IC engines
  • for other sealed joints subjected to high mechanical and thermal stress, e.g. intake and exhaust manifolds, transmission flanges, and high-pressure pumps

Surfaces
For special applications, full-surface or partial coatings are available, e.g. a non-stick coating on a PTFE basis (also possible on materials in roll form) or a silicone-based coating that improves micro-sealing (only available as a finished gasket). Screen printing with various elastomers is also possible.
Approvals
Germanischer Lloyd (DNV GL)
Approval for shipbuilding

Technical Data
(nominal thickness 1.30 mm)
Weight per surface unit kg/m² ≈ 3.8

Residual stress acc. to DIN 52 913
16 h, 300 °C N/mm² > 40

Compressibility and recovery
acc. to ASTM F 36, procedure J
compressibility % 7 - 13
recovery % > 55

Swelling acc. to ASTM F 146

in IRM 903 Oil (replaces ASTM Oil No. 3)
5 h, 150 °C
increase in thickness % < 10

in water / antifreeze (50:50)
5 h, 100 °C
increase in thickness % < 7

Operating temperature
maximum

°C 400
Surface pressure
maximum at 300 °C N/mm² 100

AFM 37/8
Material
REINZ-AFM 37/8 is an asbestos-free gasket material. It consists of aramide fibers and other asbestos substitutes that are resistant to high temperatures and are processed with high-grade elastomers under elevated pressure and temperature.

Properties
REINZ-AFM 37/8 is a very ecomomical gasket material. It exhibits good thermal/mechanical strength, is highly conformable, and is suitable for sealing oils and other liquids.

Application
For sealed joints that are subjected to low or medium mechanical stress.

    Surfaces
    As standard, both sides of AFM 37/8 are coated with a non-stick, high-friction layer that greatly facilitates disassembly. In most cases, additional surface treatment is unnecessary.

    Technical Data
    (nominal thickness 2.00 mm)
    Density g/cm³ 1.7 - 1.9
    Ignition loss acc. to DIN 52 911 % < 38
    Tensile strength
    acc. to ASTM F 152, across grain N/mm² > 7
    acc. to DIN 52 910, across grain N/mm² > 5
    Residual stress acc. to DIN 52 913
    16 h, 175 °C N/mm² ≈ 25
    Compressibility and recovery
    acc. to ASTM F 36, procedure J
    compressibility % 8 - 15
    recovery % > 50
    Sealability against nitrogen
    acc. to DIN 3535, Part 6 FA mg/(s·m) < 0.1
    Swelling acc. to ASTM F 146
    in Oil IRM 903 (replaces ASTM Oil No. 3)
    5 h, 150 °C
    increase in thickness % < 10
    increase in weight % < 15
    in ASTM Fuel B
    5 h, room temp.
    increase in thickness % < 10
    increase in weight % < 15
    in water / antifreeze (50:50)
    5 h, 100 °C
    increase in thickness % < 10
    increase in weight % < 15
    Short-term peak temperature °C 300
    Maximum continuous temperature         °C 200
    Maximum operating pressure bar 60


    REINZOLOID FS 53
    Material
    REINZOLOID FS 53 is a gasket material based on glue-bonded, impregnated cellulose fibers.

    Properties
    REINZOLOID FS 53 is an economical gasket material with good resistance to oils and fuels. In addition, the material is compressible and conformable.

    Application
    • in transmissions, carburettors, fuel and oil pumps, axles
    • for sealing fuels, oils, water, mixtures of water & antifreeze and corrosion inhibitors

    The use of this material for steam and dry heat service is not recommended.

    Technical Data
    Density g/cm³ 0.7 - 0.9

    Tensile strength (thickness 1.5 mm)
    acc. to ASTM F 152 across grain N/mm² > 20
    acc. to DIN 52 910 across grain N/mm² > 15

    Compressibility and recovery
    acc. to ASTM F 36, procedure G
    compressibility % 20 - 40
    recovery % > 35

    Swelling acc. to ASTM F 146:

    in IRM 903 Oil (replaces ASTM Oil No. 3)
    22 h, room temp.
    increase in thickness % < 5
    increase in weight % < 20

    in ASTM Fuel B
    22 h, room temp.
    increase in thickness % < 5
    increase in weight % < 15

    in water / antifreeze (50:50)
    22 h, room temp.
    increase in thickness % < 30
    increase in weight % < 95

    Maximum operating temperature °C 120

    Maximum operating pressure bar 10
    Reinzosil Features:
    • High Thermal stability from -50 C to +300C
    • Very good durability agaisnt internal combustion fuels and disel fuels, oil, grease , lubricants, water and sunlight
    • Easy to position
    • Easy to apply
    • Precise positioning, down to the last millimeter
    • Goes on evenly
    • Container empties completely i.e waste
    • Protective cap prevents nozzle from blocking
    • Prevents corrosion of the sealing surfaces
    • Acid free hardening means no damage to synthetic parts and electrical components
    • Odourless
    Application Areas:
    • Intended for sealing all surfaces in engines , gearboxes and axles and also cylinder liners and synthetic housings
    • Very suitable for uneven and rough surfaces
    • All purpose application for use with all makes of engines and vehicles
