ITG Universal Air Box STAB122XL Air Box with 99mm ID Filter
ITG Universal Air Box STAB122XL Air Box with 99mm ID Filter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
ITG Universal Air Box STAB122XL Air Box with 99mm ID Filter
Description
Description
As used on the 600 bhp Skoda Octavia VRS which officially became the worlds fastest 2.0 supercharged production car in the world in 2011. This is the ultimate air box for air flow and dust holding

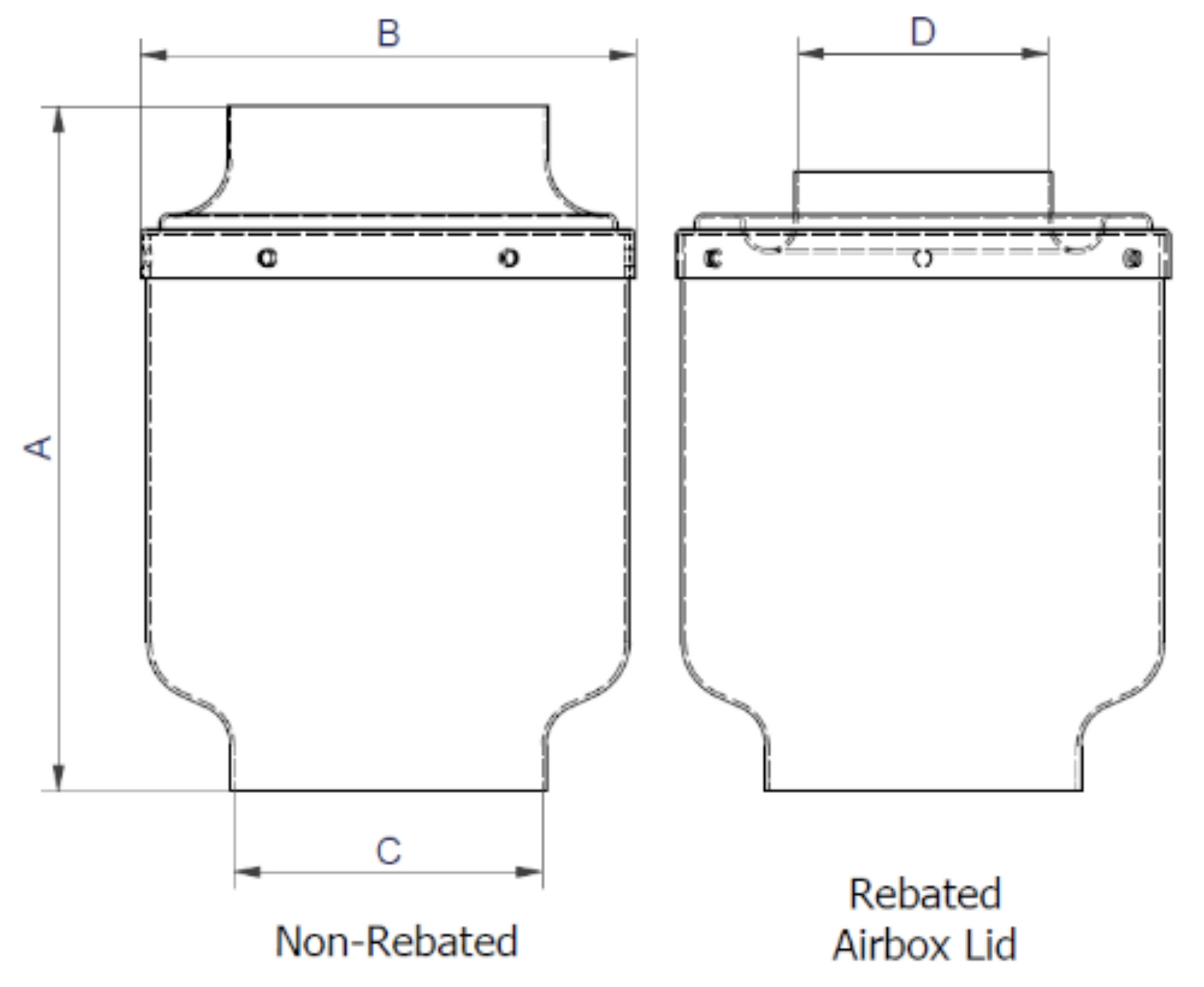

A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D).
Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C – Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D – Outlet (Clean air out) measurement taken as internal diameter, and relates to ARAB spinning used.
See table for silicone hose sizing guide.
All dimensions are in mm
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet) | |
|---|---|---|---|---|---|
| STAB122XL/67R | 275.00 | 196.00 | 122.00 | 70.00 | |
| STAB122XL/80 | 312.00 | 196.00 | 122.00 | 83.00 | |
| STAB122XL/80R | 274.00 | 196.00 | 122.00 | 83.00 | |
| STAB122XL/86 | 306.00 | 196.00 | 122.00 | 89.00 | |
| STAB122XL/86R | 274.00 | 196.00 | 122.00 | 89.00 | |
| STAB122XL/93 | 299.00 | 196.00 | 122.00 | 96.00 | |
| STAB122XL/99 | 300.00 | 196.00 | 122.00 | 102.00 | |
| STAB122XL/114 | 296.00 | 196.00 | 122.00 | 117.00 | |
| STAB122XL/124 | 293.00 | 196.00 | 122.00 | 127.00 |
