ITG Universal Air Box STAB99XL Air Box with 67mm ID Filter
ITG Universal Air Box STAB99XL Air Box with 67mm ID Filter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
OEM References
OEM References
ITG Universal Air Box STAB99XL Air Box with 67mm ID Filter
Description
Description
This air box is a longer vesrion of the STAB99. If you have a well modifyed forced induction engine and you can't fit one the larger diameter STAB122 air boxes then this might the answer. It uses an extended length coned shaped filter which increases both air flow and dust retention

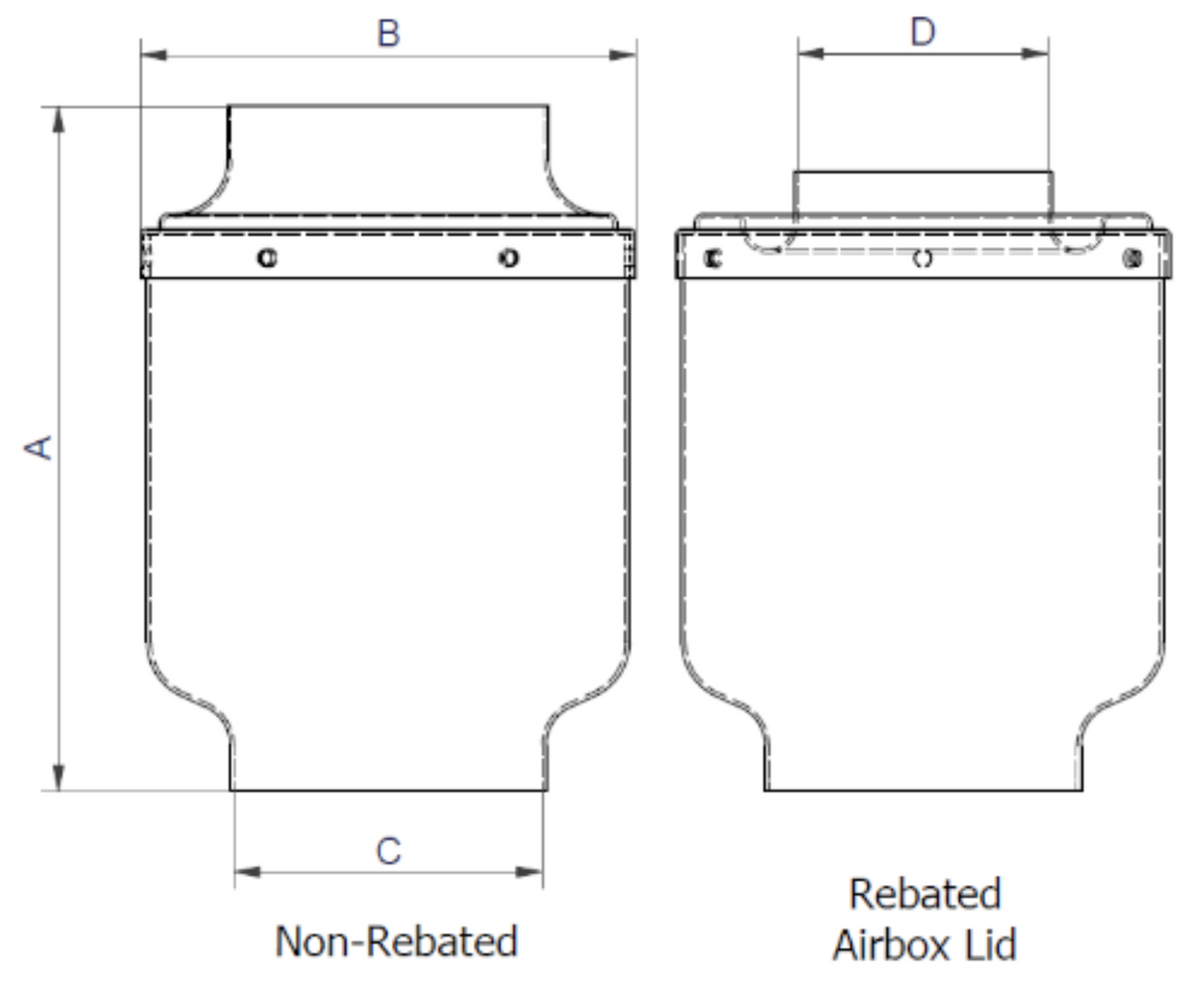

A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D).
Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C – Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D – Outlet (Clean air out) measurement taken as internal diameter, and relates to ARAB spinning used.
See table for silicone hose sizing guide.
All dimensions are in (mm)
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet) | |
|---|---|---|---|---|---|
| STAB99XL/58 | 295.00 | 164.00 | 99.00 | 61.00 | |
| STAB99XL/60 | 316.00 | 164.00 | 99.00 | 63.00 | |
| STABBXL/63 | 314.00 | 164.00 | 99.00 | 66.00 | |
| STABBXL/63 | 314.00 | 164.00 | 99.00 | 66.00 | |
| STAB99XL/67 | 316.00 | 164.00 | 99.00 | 70.00 | |
| STAB99XL/67R | 289.00 | 164.00 | 99.00 | 70.00 | |
| STAB99XL/70 | 318.00 | 164.00 | 99.00 | 73.00 | |
| STAB99XL/73 | 314.00 | 164.00 | 99.00 | 76.00 | |
| STAB99XL/73R | 288.00 | 164.00 | 99.00 | 76.00 | |
| STAB99XL/78 | 307.00 | 164.00 | 99.00 | 81.00 | |
| STAB99XL/84 | 309.00 | 164.00 | 99.00 | 87.00 |
