Syvecs Power Distribution Unit Module PDU34A

Syvecs Power Distribution Unit Module PDU34A

  • £4,020.00
    Unit price per
Tax included.

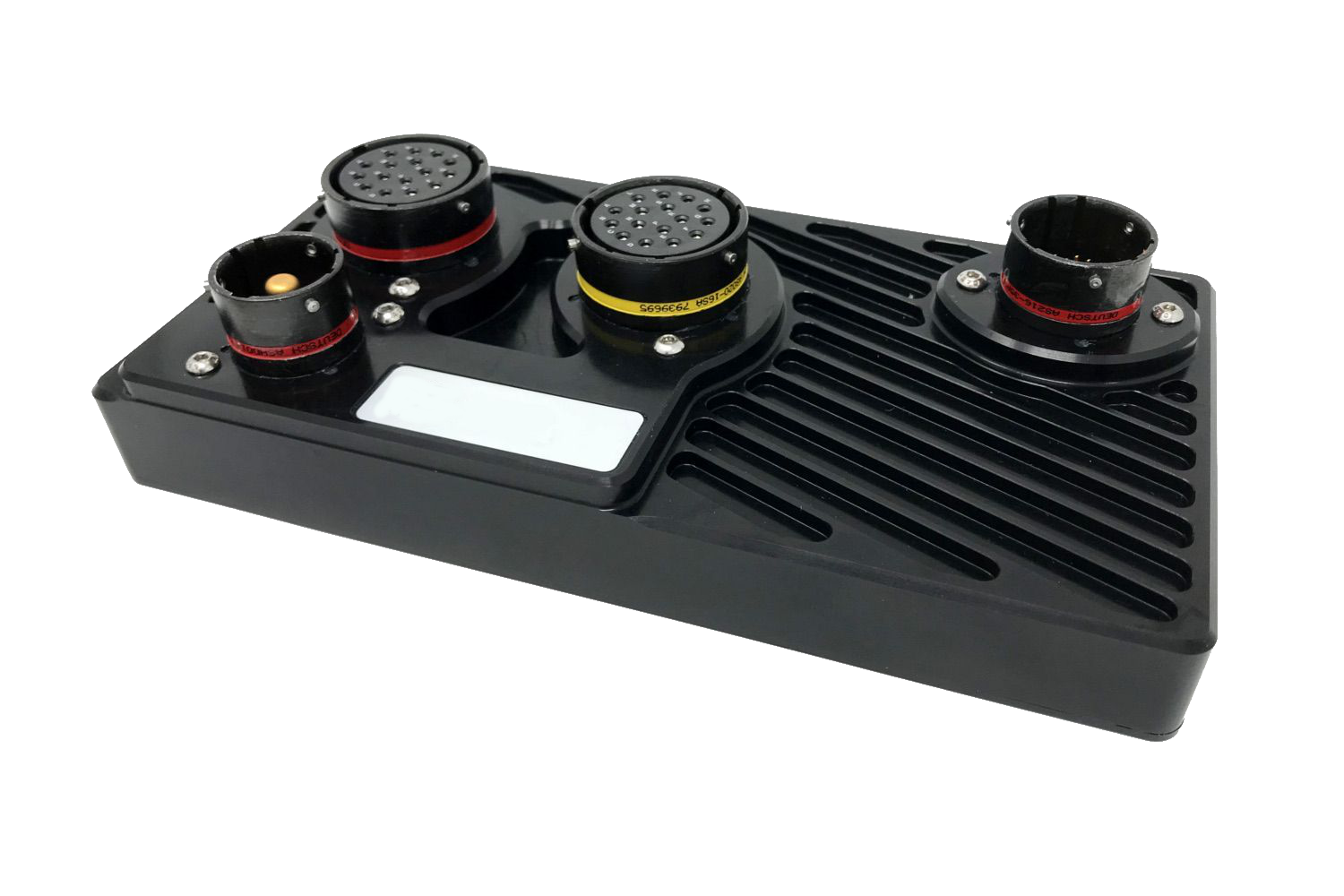

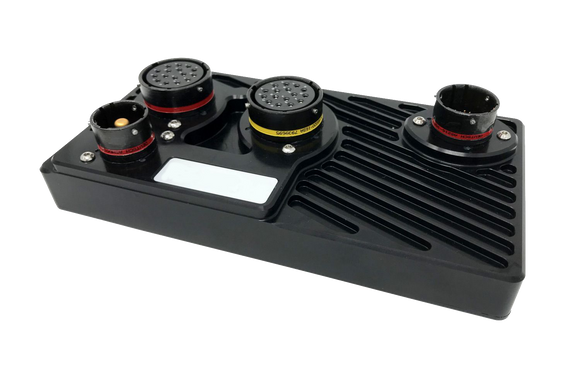

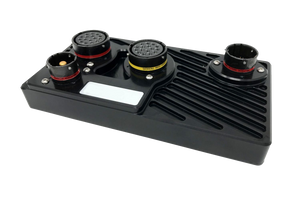

Syvecs Power Distribution Unit Module PDU34A
PLEASE CONTACT US FOR A LEAD TIME
This product will require professional fitting, BHP can do this please contact us for a price, the cost can be included in financing options.

Syvecs Power Distribution units are designed to replace the use of a conventional relay boxs. It provides multi channel solid state logic driven processing, which is fully software configurable using our PDU cal tool. Features include logic inputs and power outputs with validation and debounce settings. RS232 and CAN provide communication to external displays and data loggers.

The PDU34A offers advanced features such as the ability to sleep and wake via CAN bus messaging or by using hardware input pins as triggers. The PDU34A comes equipped with an impressive 34 programmable outputs in total, including 10 extremely capable multifunction outputs which can be defined by the user to operate in either discreet high-side or low-side switching, low-side PWM, Half or Full bridge operation. These flexible outputs, as well as the PDU34's 16 input channels, can be used to increase the I/O compliment of our S7, S8 and S12 Ecus connected using our extremely fast slave link Canbus to drive engine control solenoids or actuators.

Outputs:

 34 main Power Outputs, 30 outputs rated to 30A, 4 outputs rated to 8A
 10 multifunction high side, low side, PWM, H-Bridge, soft start outputs
(peak current 100A)
 20 High Side outputs (peak current 125A)
 Output teaming to support very high current devices
 All outputs short circuit and thermally protected with multi-stage in-rush control
 Combined diagnostic output with reset input
 Up to 64 soft outputs via CAN

Inputs:

 16 physical switch inputs or, when slaved, general purpose analogue sensor inputs including:
 8x frequency measurement inputs (4 optionally bi-polar)
 software selectable 3k ohm pull-up resistors
 4x inputs capable of programmable “wake up” functionality
 Dedicated wake pin
 Up to 64 soft inputs via CAN with configurable validation and debounce time

Comms:

 x2 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
 x3 CAN 2.0B
 RS232C serial interface
 LIN Bus

Physical:

 6.5V to 40V input voltage
 Dedicated 12V logic power input
 Regulated 5V sensor supply output with short circuit protection

 x2 Deutsch 16 way Power Connectors
 x1 Deutsch 32way Connector
 x1 M6 Power Stud
 Machined Aluminium enclosure
 995g
 Operating Temperature -20 to +85C
