Wossner Ford 1.6 16V Zetec Sigma Forged Pistons & PEC Rods Set
Engine Type: 1.6 16v Zetec "Sigma" non VVT
Compression Ratio: 12.5:1 with OEM Gasket
79mm, 79.5mm bore pistons
You are buying a full set of 4 Pistons with Rings, Gudgeon pins & Circlips & H-beam Rods.
Con Rod Length C/C 137.00mm
Small End Diameter 18.00mm
Small End Width 18.00mm
Big End Diameter 47.00mm
Big End Width 20.80mm

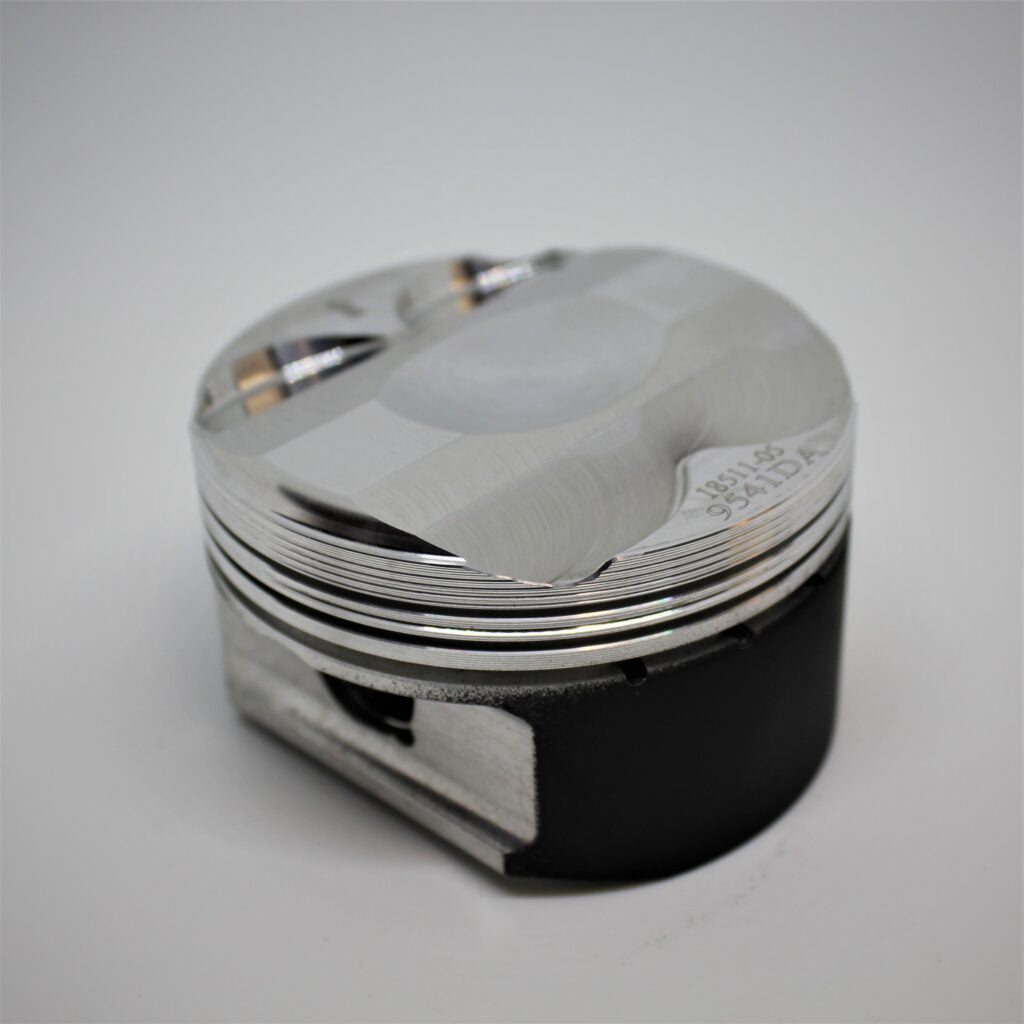

Wossner pistons:
4x Wossner forged pistons
4x Wossner piston rings sets
4x Wossner gudgeon pins
4x Wossner circlips sets
1x Wossner sticker
1x PEC piston installation guideline sheet

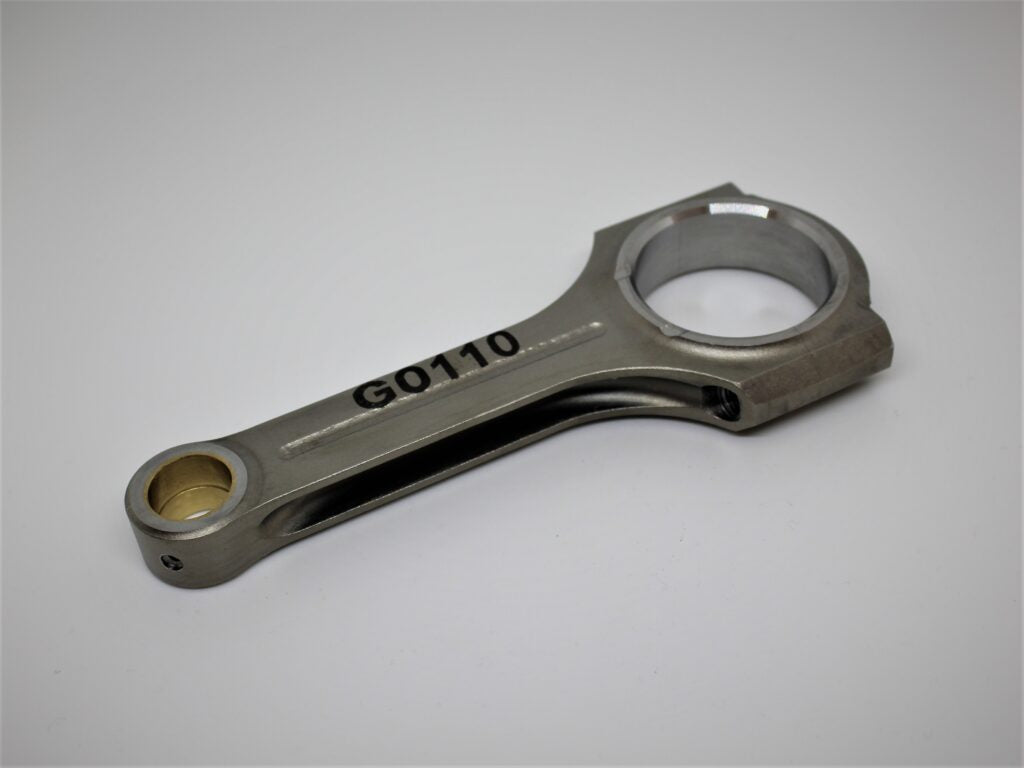

PEC connecting rods:
4x PEC forged steel connecting rods - H-beam
8x ARP 2000 series
1x ARP fastener assembly lubricant
1x PEC connecting rod installation guideline sheet
Wössner are regarded by Europe’s leading motor sport engine builders as being the piston of choice when building an engine not only to perform, but to withstand the stresses and duress’s of competition life. Wössner pistons feature a unique PTFE coating on the skirts and a grade of 4032 Alloy (T6) which allows the engine builder to run a closer piston to bore tolerance then he might do on another make of piston. This helps remove the slapping noise during cold start, common place among engines running forged pistons due to larger then OE bore clearances. The crowns of the pistons are also polished to better resist detonation on a high performance engine. Polishing allows a more even spread of heat inside the chamber which will help prevent “hot spots” on piston crowns. Price includes all piston rings and gudgeon pins.
PEC rods are designed to withstand roughly 225hp per cylinder (typically 900hp on most 4cyl engines) and on the ARP 2000 series 3/8 bolts normally provided & have an 8,500 RPM safe operating limit (engine specific).
In some cases, we recommend using the ARP custom age bolts available from us. This increases the hp threshold to 250hp per cylinder and raises the RPM limit to 9,000 however as every engine is different, these numbers are not guaranteed for every configuration.
Prolonged high RPM's for drifting, or sudden bursts of torque for drag racing (as two examples) will warrant the use of the custom age bolts to help retain the clamping force between the big end cap and the connecting rod.
If in doubt, please contact us for advice.
H-Beam and I-Beam section connecting rods are forged from AISI 4340 (En24) steel. Heat treated to HRC 35-38 and then shot peened for a higher fatigue strength. Small ends are bushed for a fully floating pin and big ends are fitted with high quality ARP fasteners with different specification bolts available depending on the level of performance required.
Manufactured from forgings originally produced in Sweden, PEC connecting rods have offered engine builders and tuners a cost efficient and yet high performing solution to a wide variety engine building problems.
