ITG Universal Air Box ARAB80 Air Box with 114mm ID Filter
ITG Universal Air Box ARAB80 Air Box with 114mm ID Filter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
OEM References
OEM References
ITG Universal Air Box ARAB80 Air Box with 114mm ID Filter
Description
Description
This is physically the largest aluminium air box we manufacture. You need a big engine bay to fit this air box into. They can be found under the bonnet of JE Motorworks' Zulu Defender conversions

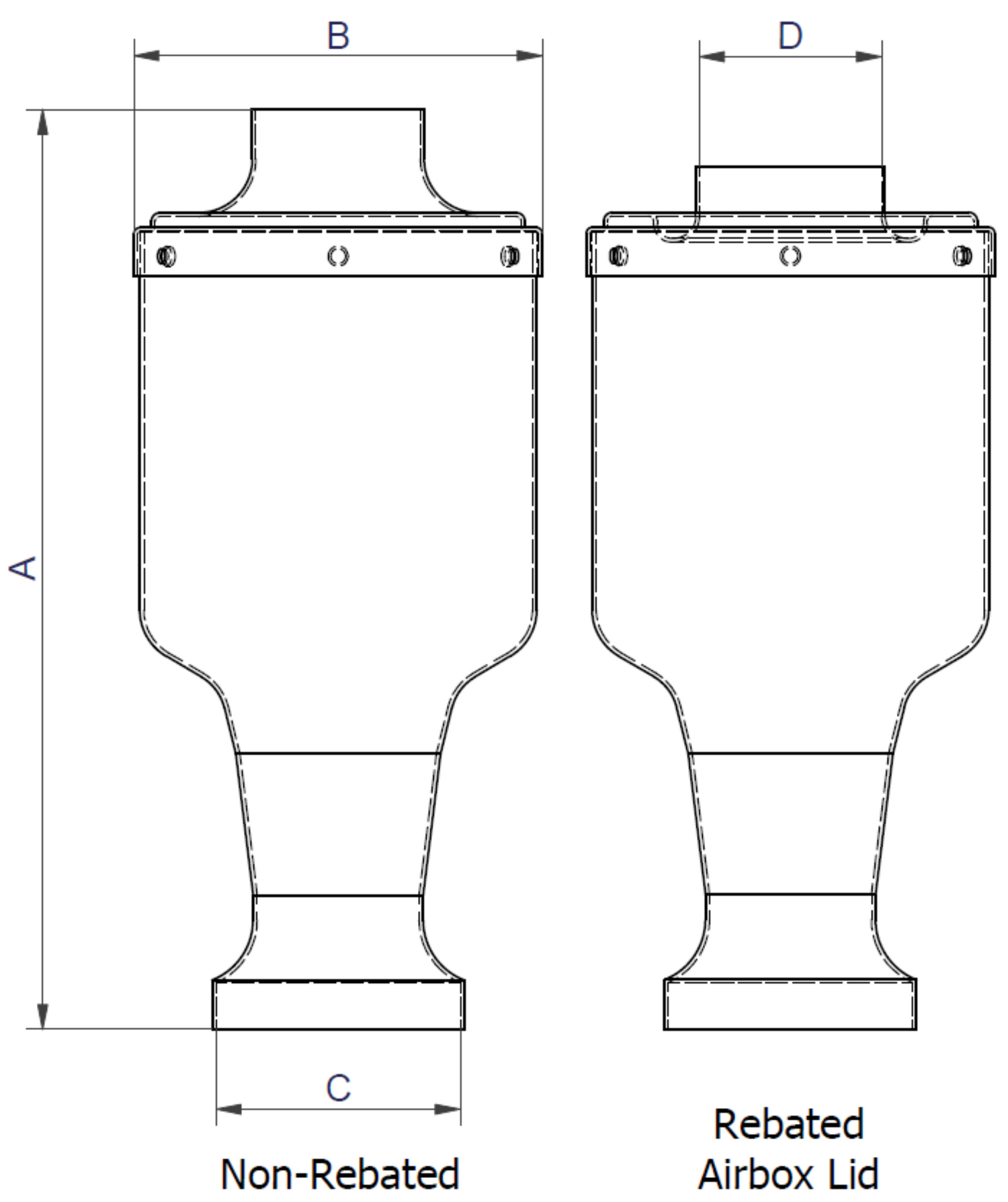

A - (Length) Measurement taken from airbox inlet (C), to filter spinning outlet (D).
Rebated ARAB Spinning reduces length by approx. 20mm
B - (Width) Measurement taken at widest point of filter lid spinning.
Do not measure from screw to screw.
C - Inlet (Dirty air in) measurement taken as internal diameter.
See table for duct sizing guide.
D - Outlet (Clean air out) measurement taken as internal diameter, and relates to ARAB spinning used.
All dimensions are in mm
| Part No. | A (Length) | B (Width) | C (Inlet) | D (Outlet) | |
|---|---|---|---|---|---|
| ARAB80/67R | 424.00 | 196.00 | 121.50 | 70.00 | |
| ARAB80/80 | 461.00 | 196.00 | 121.50 | 83.00 | |
| ARAB80/80R | 423.00 | 196.00 | 121.50 | 83.00 | |
| ARAB80/86 | 455.00 | 196.00 | 121.50 | 89.00 | |
| ARAB80/86R | 423.00 | 196.00 | 121.50 | 89.00 | |
| ARAB80/93 | 448.00 | 196.00 | 121.50 | 96.00 | |
| ARAB80/99 | 449.00 | 196.00 | 121.50 | 102.00 | |
| ARAB80/114 | 445.00 | 196.00 | 121.50 | 117.00 | |
| ARAB80/124 | 442.00 | 196.00 | 121.50 | 127.00 |
