Ecumaster 4 bar MAP sensor
Description
Description
Ecumaster 4 bar MAP sensor

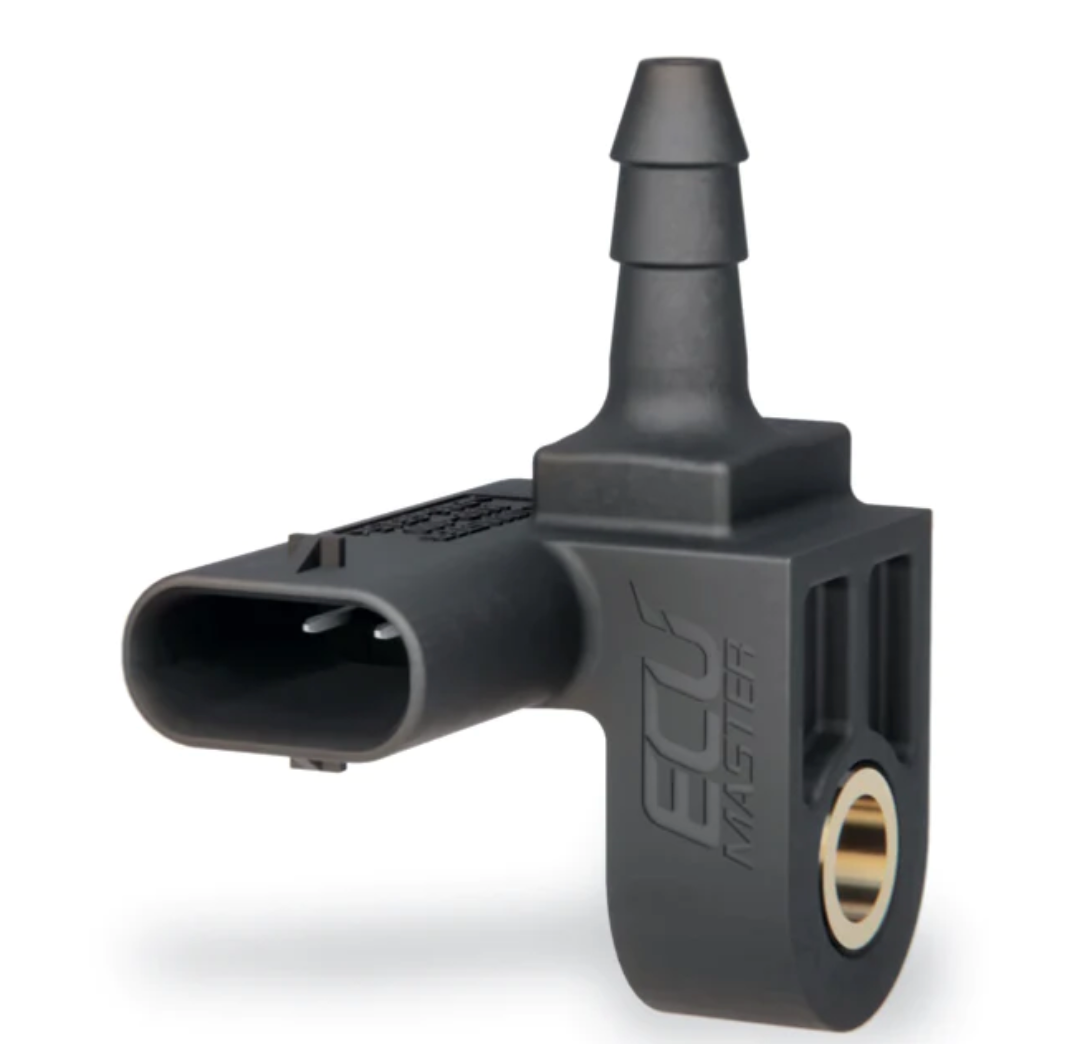

The 400kPa MAP (Manifold Absolute Pressure) sensor from Ecumaster is a cost-effective and accurate automotive-grade pressure unit. It translates absolute pressure into an electrical voltage signal.
Installation entails connecting the 3 terminals (+5V, MAP Out, Ground) to the ECU's sensor ground.
The terminal descriptions are marked on the sensor housing for easy identification.
Install the MAP sensor to the inlet manifold with a 6mm diameter vacuum hose. Position the sensor above the intake manifold with the nipple pointing downward to protect it against fluid accumulation.
Calibration
0.20V-20Kpa
4.80V-400Kpa.

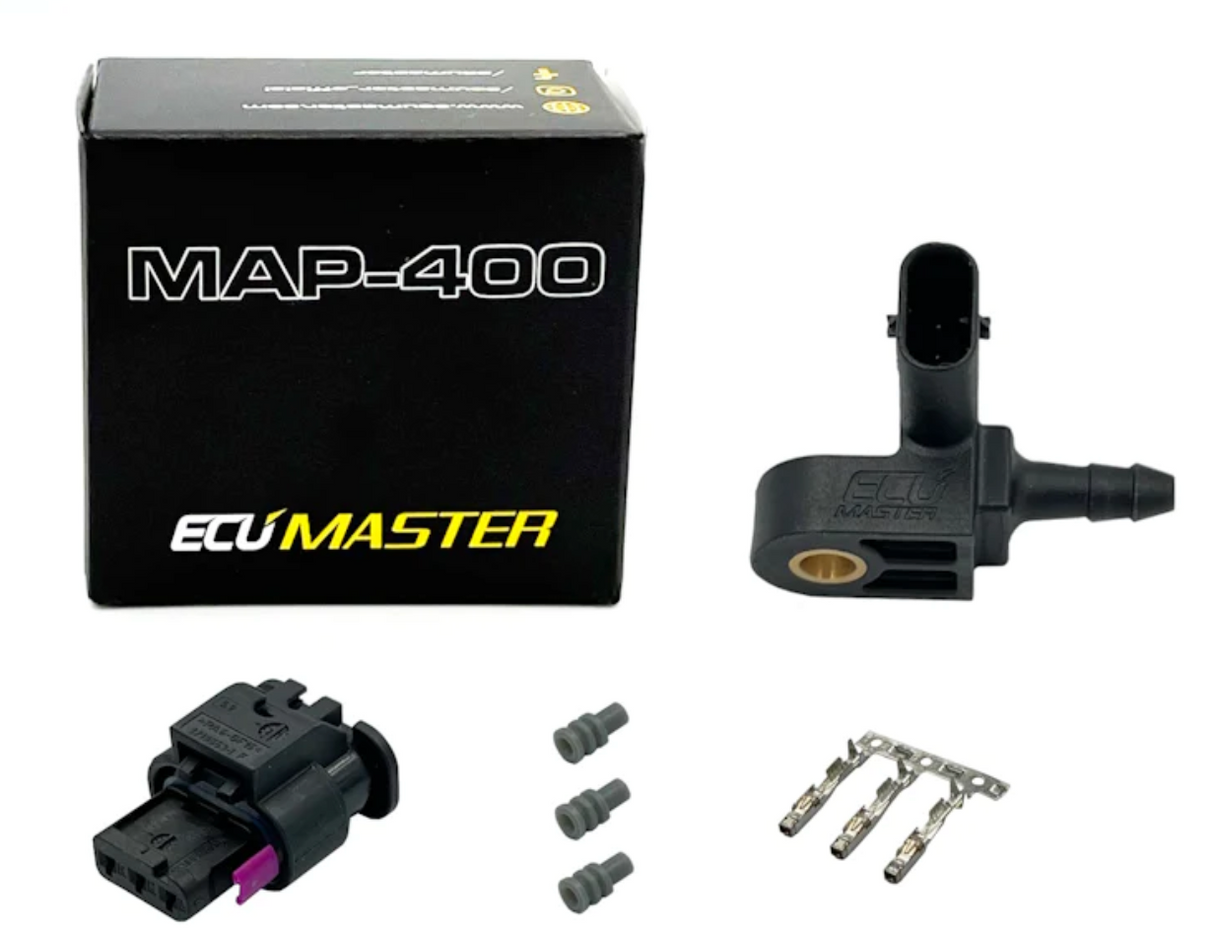

Connector and terminals included.
