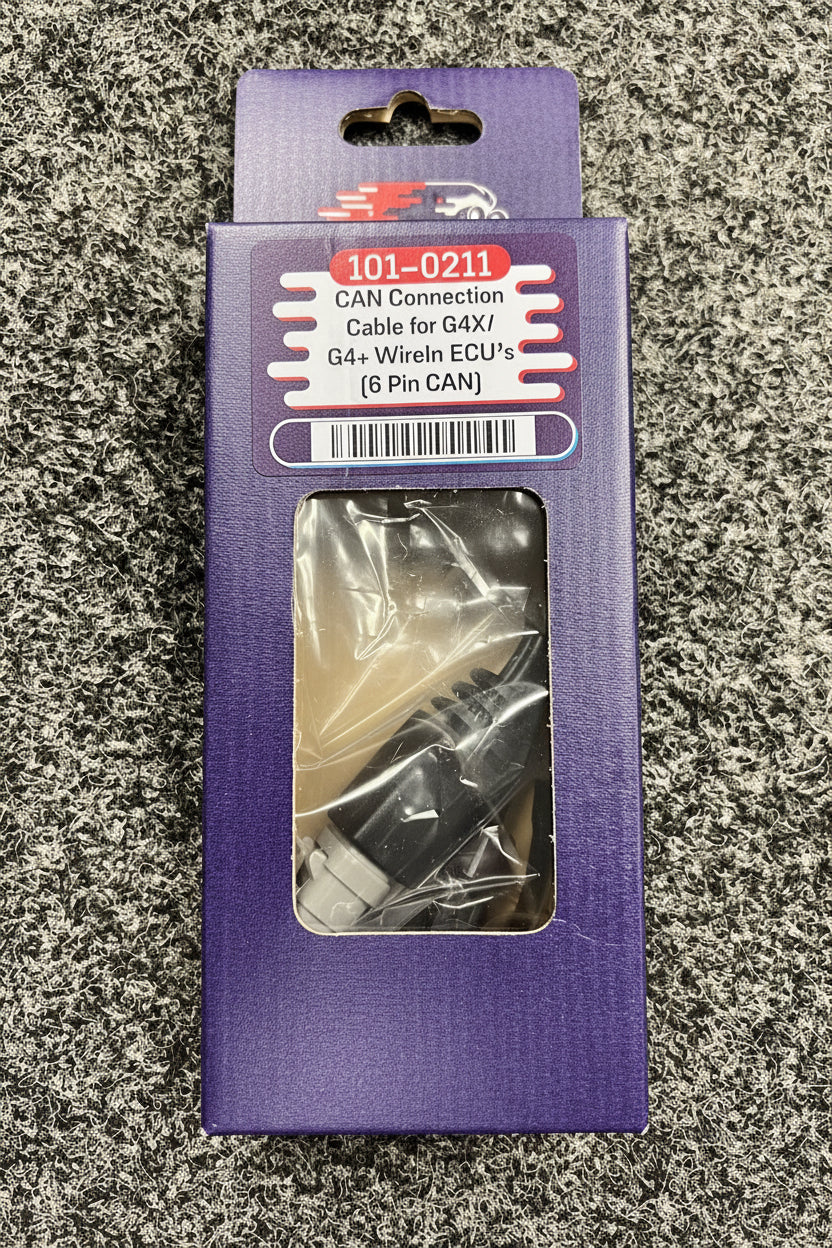

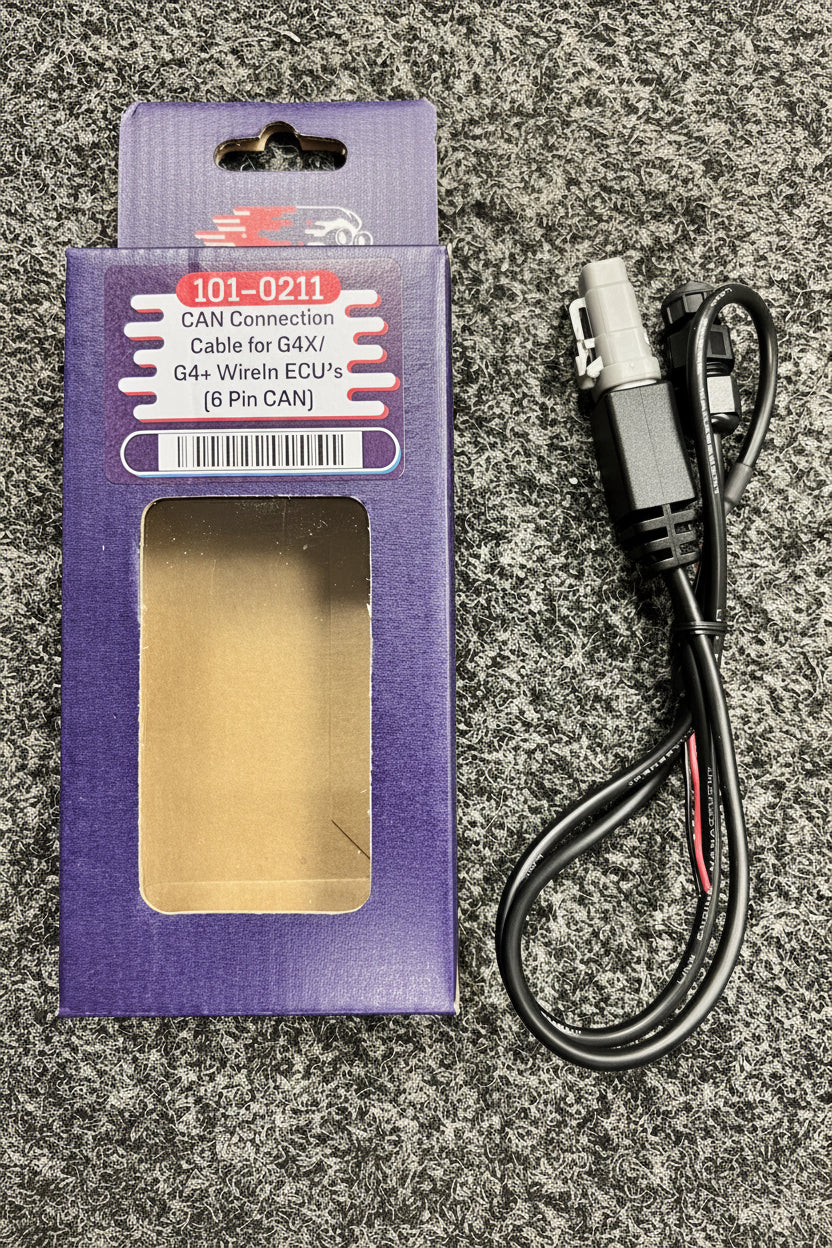

Link ECU CAN Connection Cable for G4X G4+ WireIn ECU’s 6 Pin CAN CANLTW

Link CANLTW CAN Connection Cable

The Link CANLTW Cable is used to add CAN communication to compatible Link wire-in ECUs that provide CAN access through the 6-pin round CAN connector on the front of the ECU.

It converts the ECU connection to a DTM4 male connector using the standard Link CAN pinout, with separate 12V and Ground flying leads.

Compatible ECUs

Suitable for:

• G5 Voodoo Pro – CAN1

• G4X Xtreme – CAN1

• G4+ Xtreme – CAN1

• G4X Fury – CAN1

• G4+ Fury – CAN1

• G4+ Force – CAN1

• G4+ Thunder – CAN1

Key Features

• Adds CAN communication to compatible Link wire-in ECUs

• Connects to the ECU's 6-pin round CAN socket

• Terminates to DTM4 Male

• Includes 12V and Ground flying leads

• Uses the standard Link CAN wiring layout

• Suitable for connecting compatible Link CAN accessories and devices

CAN Pinout

• Pin 1: 12V

• Pin 2: Ground

• Pin 3: CAN Low

• Pin 4: CAN High

Connector

• DTM4 Male

• LTW 6-Pin ECU connector

• 12V and Ground flying leads

Electrical Specification

Maximum Input Voltage: 300V
Maximum Continuous Current Draw: 3A
Wire Size: 20 AWG / 0.5mm²

Dimensions

Length: 570mm
Width: 20mm
Height: 20mm

Weight

50g

Additional Dimensions

CAN Cable Section: 300mm
Flying Lead Length: 500mm

What's Included

• 1 x Link CANLTW CAN Connection Cable

Please Note

This cable is intended for compatible Link wire-in ECUs using the 6-pin round CAN connector.

Please check the ECU model and CAN port before ordering.
