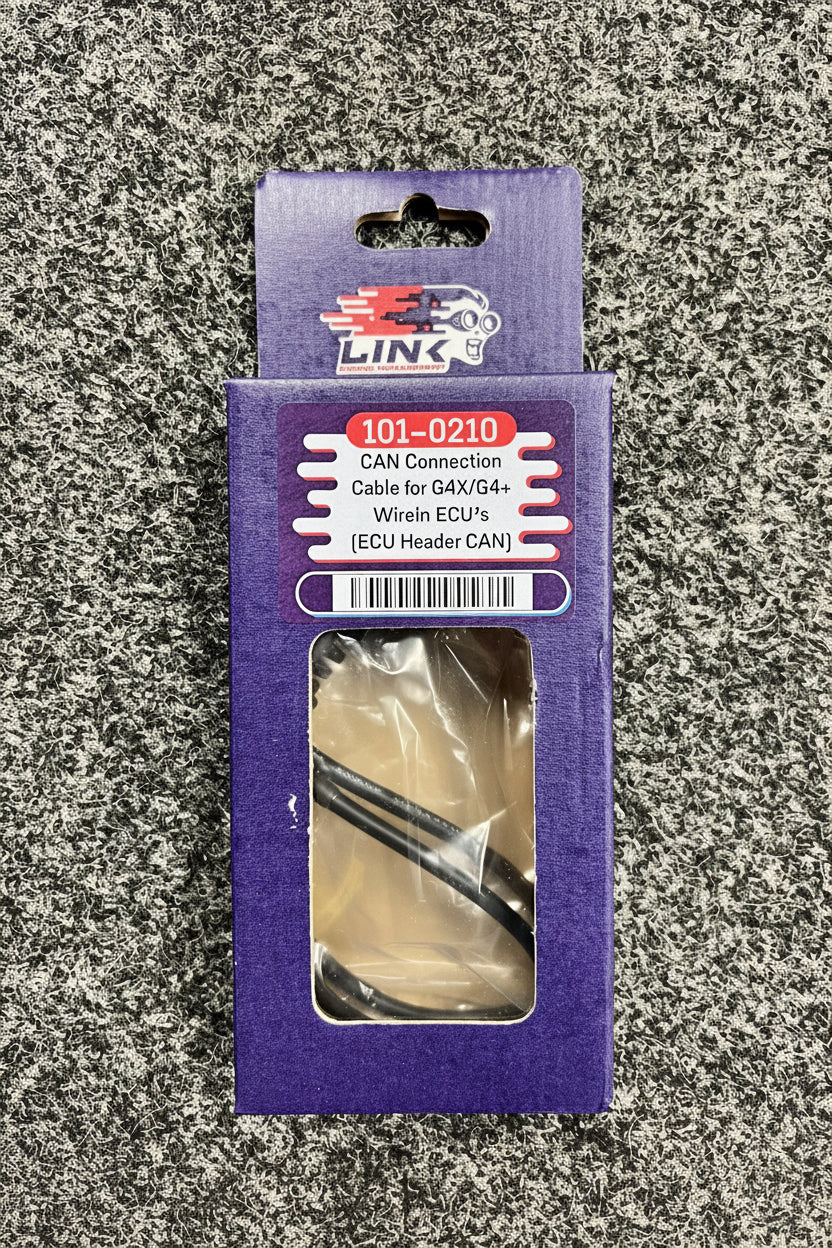

Link ECU CAN Connection Cable for G4X/G4+ WireIn ECU’s ECU Header CAN CANSS

Link CANSS CAN Connection Cable

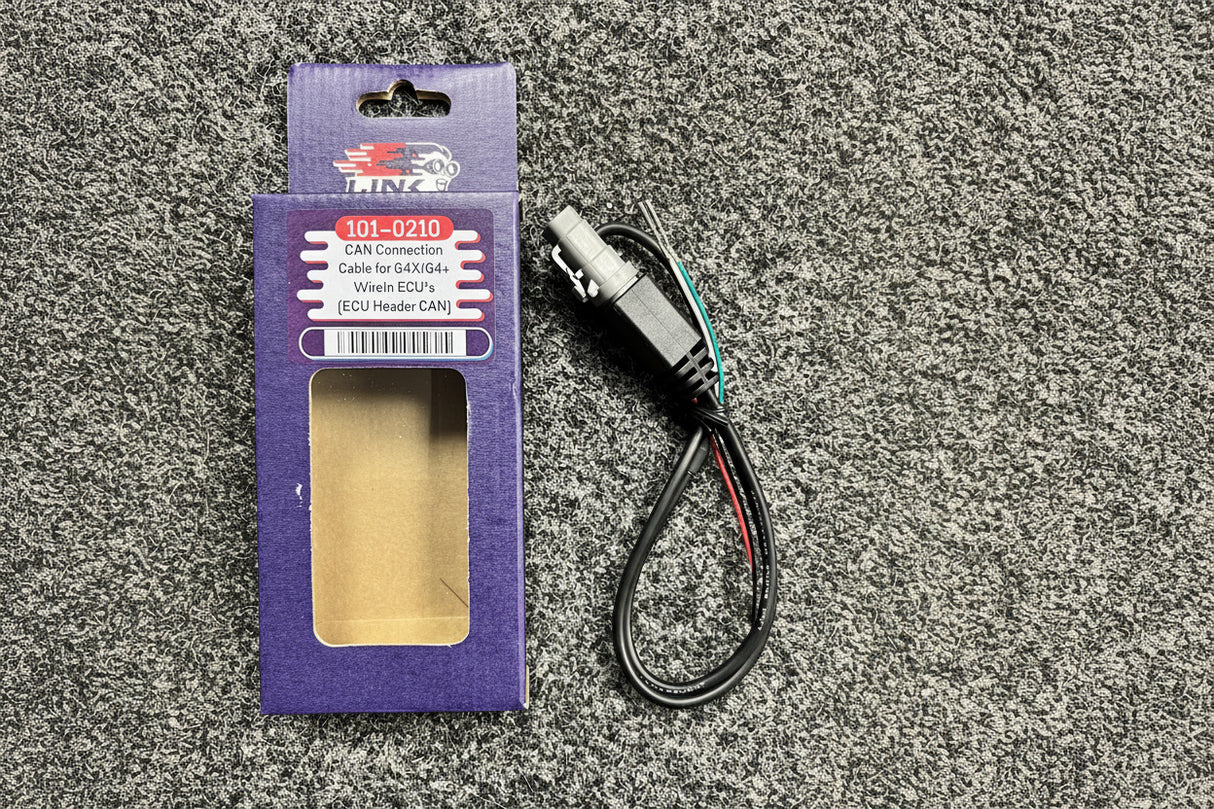

The Link CANSS Cable is used to add CAN communication to compatible Link wire-in ECUs where CAN is accessed through the ECU header.

It provides a DTM4 male CAN connection, with CAN High and CAN Low terminated with Superseal terminals and separate 12V and Ground flying leads.

Compatible ECUs

Suitable for:

• G4X Atom – CAN1

• G4+ Atom – CAN1

• G4X Monsoon – CAN1

• G4+ Monsoon – CAN1

• G4X Storm – CAN2

• G4+ Storm – CAN2

• G4X Xtreme – CAN2

• G4+ Xtreme – CAN2

• G4X Fury – CAN2

• G4+ Fury – CAN2

• G5 Voodoo Pro – CAN1

• G4+ Force – CAN2

• G4+ Thunder – CAN2

Key Features

• Adds CAN communication to compatible Link wire-in ECUs

• Designed for ECUs with CAN accessible through the header

• DTM4 male connection

• CAN High and CAN Low supplied with Superseal terminals

• 12V and Ground flying leads

• Uses the standard Link CAN wiring layout

• Suitable for connecting compatible CAN accessories and devices

CAN Pinout

• Pin 1: 12V

• Pin 2: Ground

• Pin 3: CAN Low

• Pin 4: CAN High

Connector

• DTM4 Male

• CAN High and CAN Low with Superseal terminals

• 12V and Ground flying leads

Electrical Specification

Maximum Input Voltage: 300V
Maximum Continuous Current Draw: 3A
Wire Size: 20 AWG / 0.5mm²

Dimensions

Length: 580mm
Width: 20mm
Height: 15mm

Cable Lengths

CAN Cable Section: 300mm
Flying Leads: 500mm

Weight

45g

What's Included

• 1 x Link CANSS Superseal to DTM4 CAN Cable

Please Note

This cable is intended for compatible Link wire-in ECUs where CAN is accessed through the ECU header.

Please check your ECU model and required CAN channel before ordering.
