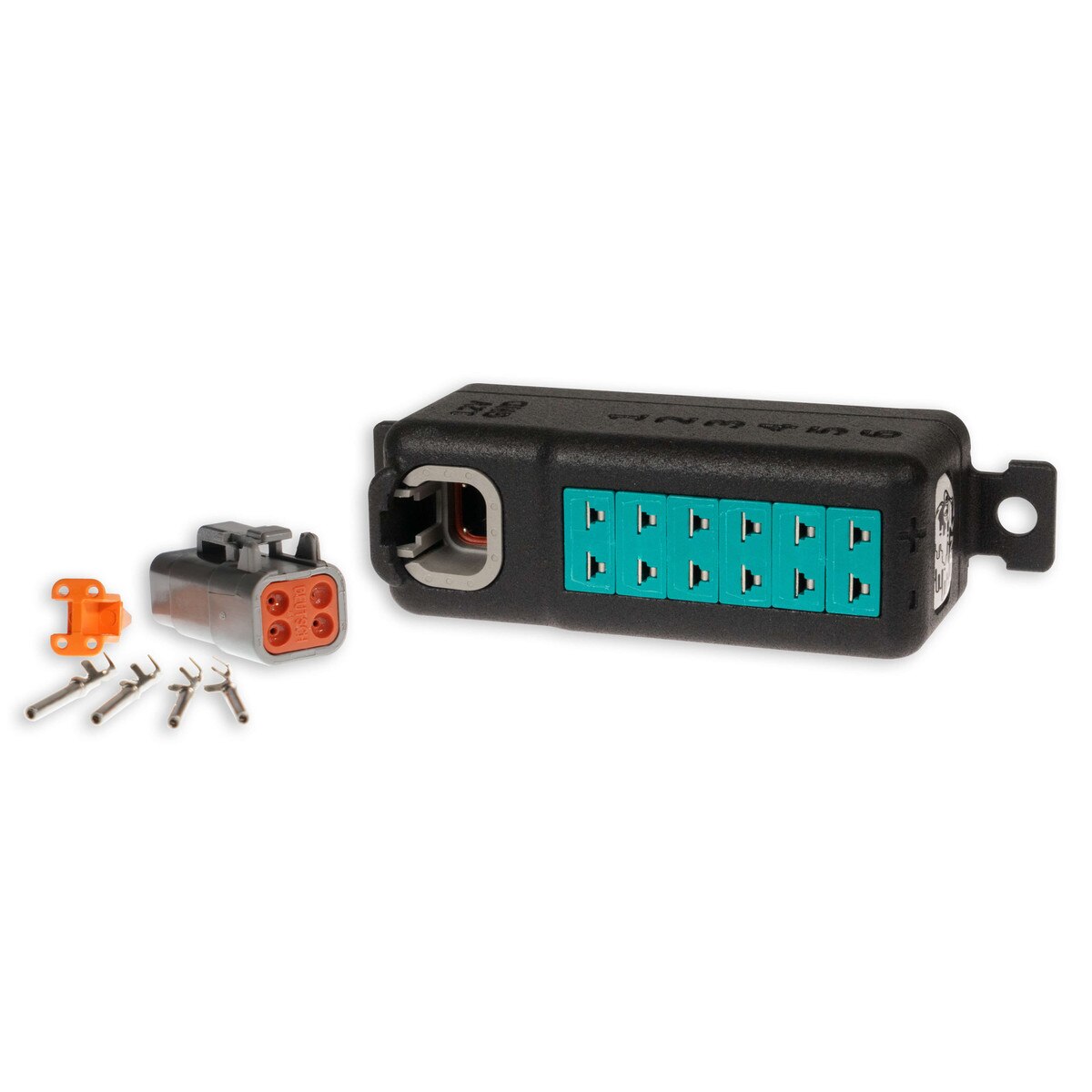

LINK ECU TCC06 6 Channel EGT to CAN Module

Link 6-Channel EGT to CAN Module / Amplifier – TCC06

The Link 6-Channel EGT to CAN Module / Amplifier allows up to six Type-K thermocouples to be connected to a compatible Link ECU through the CAN Bus.

This provides accurate multi-channel temperature monitoring without using the ECU's analogue inputs and is ideal for monitoring individual cylinder exhaust gas temperatures.

The TCC06 can also be used for other temperature measurements including pre- and post-intercooler temperatures, turbocharger housing temperature, cylinder head temperature, coolant and oil temperature.

Suitable Applications

Compatible with:

• All Link ECUs with CAN Bus support

• Up to 6 Type-K thermocouples

• Individual cylinder EGT monitoring

• Pre- and post-intercooler temperature monitoring

• Turbocharger temperature monitoring

• Cylinder head temperature monitoring

• Coolant temperature monitoring

• Oil temperature monitoring

Key Features

• 6 x cold-junction compensated Type-K thermocouple inputs

• CAN Bus connection to the ECU

• Pre-configured for Link ECU integration

• Standard miniature K-Type thermocouple sockets

• Temperature measuring range from 0°C to 1250°C

• 0.25°C temperature resolution

• Adjustable sample frequency up to 100Hz

• Detection of short circuit to ground

• Detection when no Type-K thermocouple is connected

• Wireless configuration and monitoring

• Live temperature and thermocouple status monitoring

• Does not use ECU analogue inputs

Temperature Range

0°C to 1250°C
32°F to 2282°F

Accuracy

Maximum Deviation: 2%

Resolution

0.25°C

Sample Rate

Adjustable up to 100Hz.

CAN Connection

The module uses a 4-pin DTM connector with the Link standard CAN pinout:

• Pin 1: 12V

• Pin 2: Ground

• Pin 3: CAN Low

• Pin 4: CAN High

Wireless Configuration

The module can be configured wirelessly from a compatible smartphone or PC.

Configuration options include:

• CAN Speed

• CAN Bus ID

• Data format

• Big or Little Endian

• Device emulation

• Live temperature monitoring

• Thermocouple status monitoring

Supported CAN Speeds

• 125 kbps

• 250 kbps

• 500 kbps

• 1 Mbps

Emulation

Supports:

• Standard configuration

• Emulation of major aftermarket EGT / thermocouple-to-CAN modules

PCLink Setup

A supplied LCS file is used to configure the TCC06 within PCLink.

A Receive User Stream must be configured with the CAN ID matching the CAN ID set within the TCC06.

The relevant stream can then be loaded within the PCLink CAN Setup menu.

Electrical Specification

Operating Voltage: 12V

Dimensions

Length: 115mm
Width: 35mm
Height: 35mm

Weight

95g

What's Included

• 1 x Link 6-Channel CAN EGT Module

• 1 x DTM4 Mating Connector Kit

• 2 x Link Stickers

Please Note

Type-K thermocouples are required and are not listed as included with the module.

Correct CAN configuration and PCLink setup are required before temperature data can be received by the ECU.
